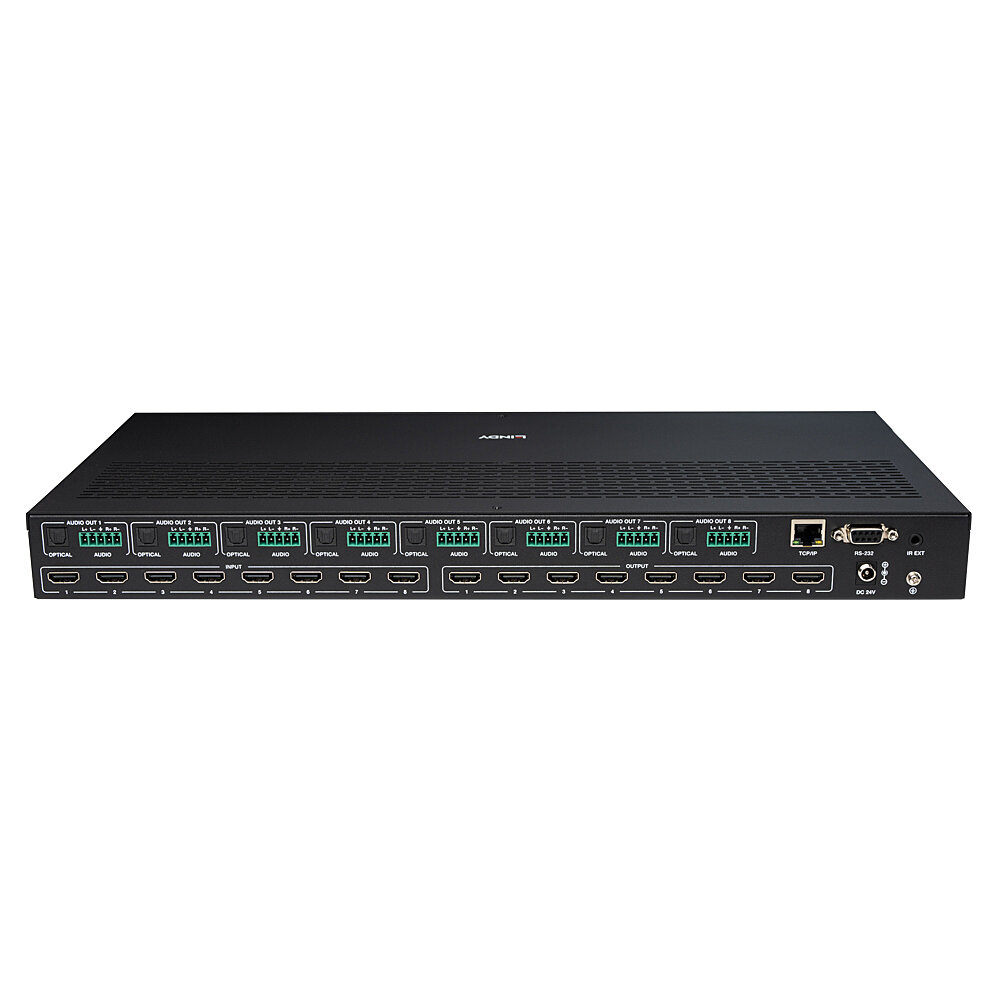

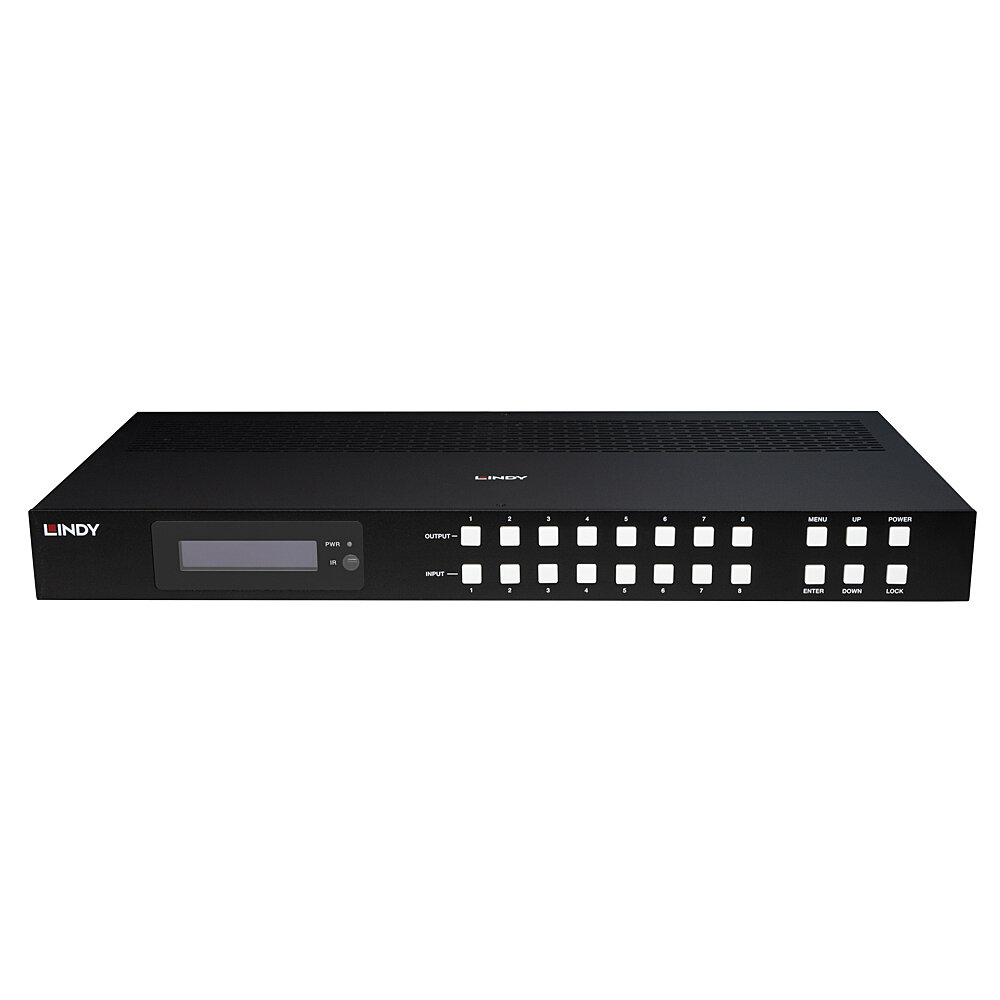

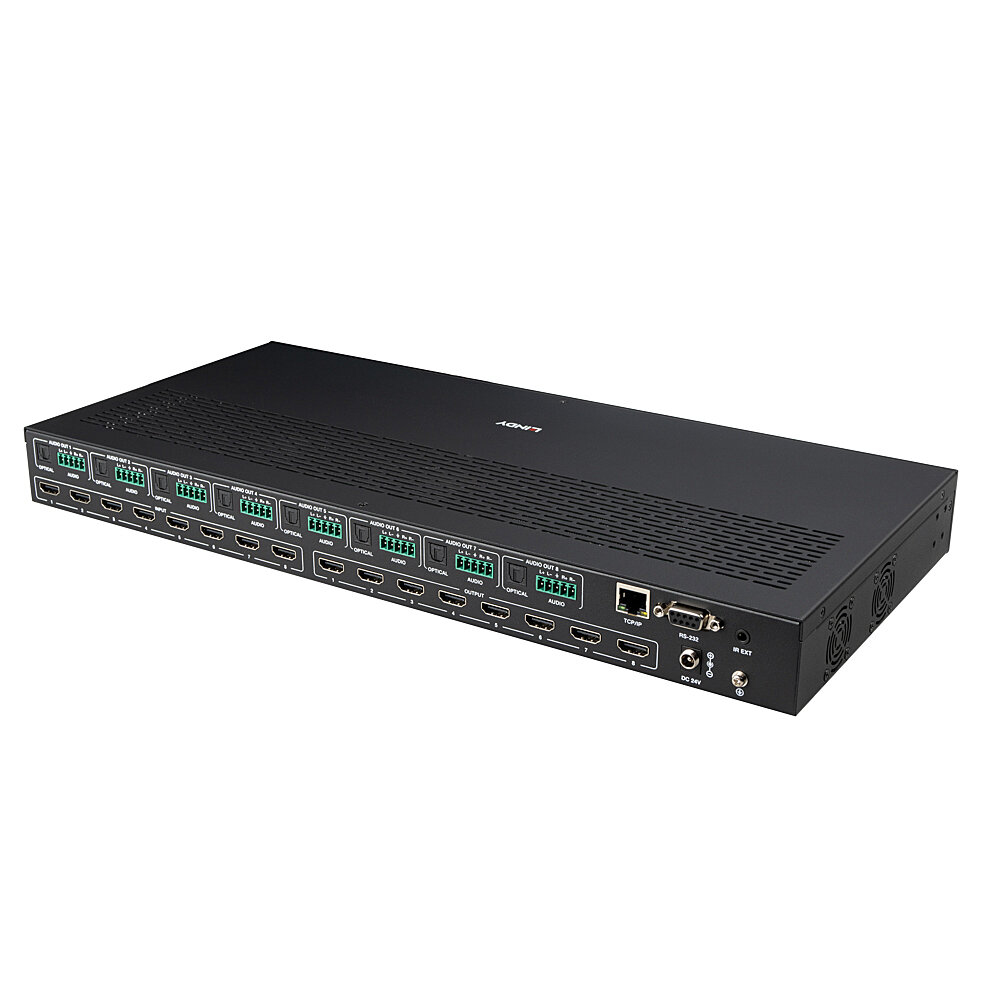

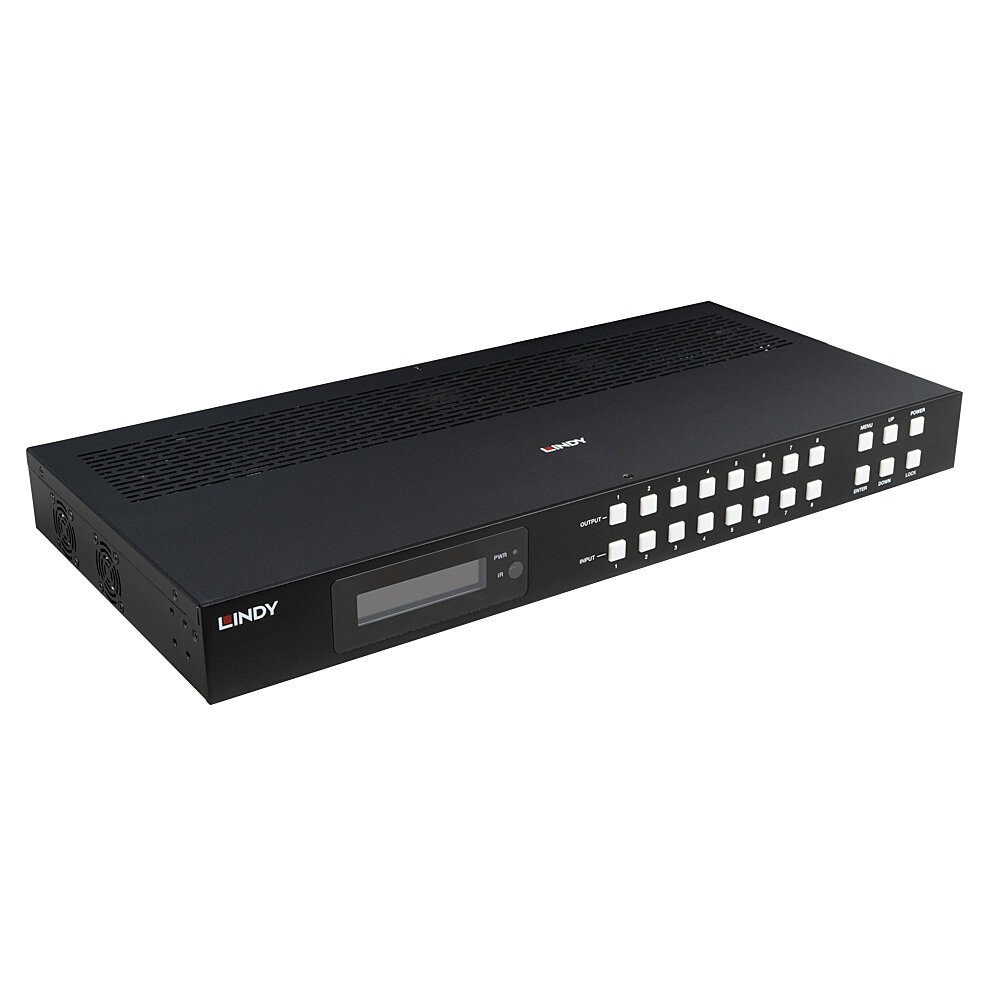

38435 matrix switcher AV matrix switcher Built-in display
Model 38435EAN 4002888384353
37 specifications
- TypeAV matrix switcher
- Weight2.94 kg
- Housing colourBlack
- Built-in displayYes
- HDMI input ports quantity8
- Output current3.75 mA
Overview
- Type
- AV matrix switcher
- Weight
- 2.94 kg
- Housing colour
- Black
- Built-in display
- Yes
- HDMI input ports quantity
- 8
- Output current
- 3.75 mA
- Brand
- Lindy
- Category
- Matrix Switcher
- Model
- 38435
- Part number
- 38435
- EAN / UPC
- 4002888384353
- Also known as
- Lindy 38435 matrix switcher AV matrix switcher Built-in display
Specifications
37 specifications in 9 groups
Features
| Specification | Value |
|---|---|
| Product type | AV matrix switcher |
| Bandwidth | 48 Gbit/s |
| Maximum resolution (HDMI) | 7680 x 4320 pixels |
| HDCP | Yes |
| HDCP version | 2.3 |
| High Dynamic Range (HDR) supported | Yes |
| Audio decoders | Dolby Atmos |
| High Dynamic Range (HDR) technology | Dolby Vision, High Dynamic Range 10 (HDR10) |
Design
| Specification | Value |
|---|---|
| Housing colour | Black |
| Housing material | Metal |
| Remote control included | Yes |
| Mean time between failures (MTBF) | 50000 h |
Display
| Specification | Value |
|---|---|
| Built-in display | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| HDMI input ports quantity | 8 |
| HDMI output ports quantity | 8 |
| HDMI version | 2.1 |
| Ethernet LAN (RJ-45) ports | 1 |
| RS-232 ports | 1 |
| Digital audio coaxial out | 8 |
Power
| Specification | Value |
|---|---|
| Output current | 3.75 mA |
| Output voltage | 24 V |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 10 - 90% |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | CE, Federal Communications Commission (FCC), REACH, RoHS |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 440 mm |
| Depth | 203 mm |
| Height | 44.5 mm |
| Weight | 2.94 kg |
| Package type | Box |
| Package width | 500 mm |
| Package depth | 333 mm |
| Package height | 68 mm |
| Package weight | 3.46 kg |
Packaging content
| Specification | Value |
|---|---|
| Cables included | IR, AC |
| Manual | Yes |
| Mounting brackets included | Yes |
