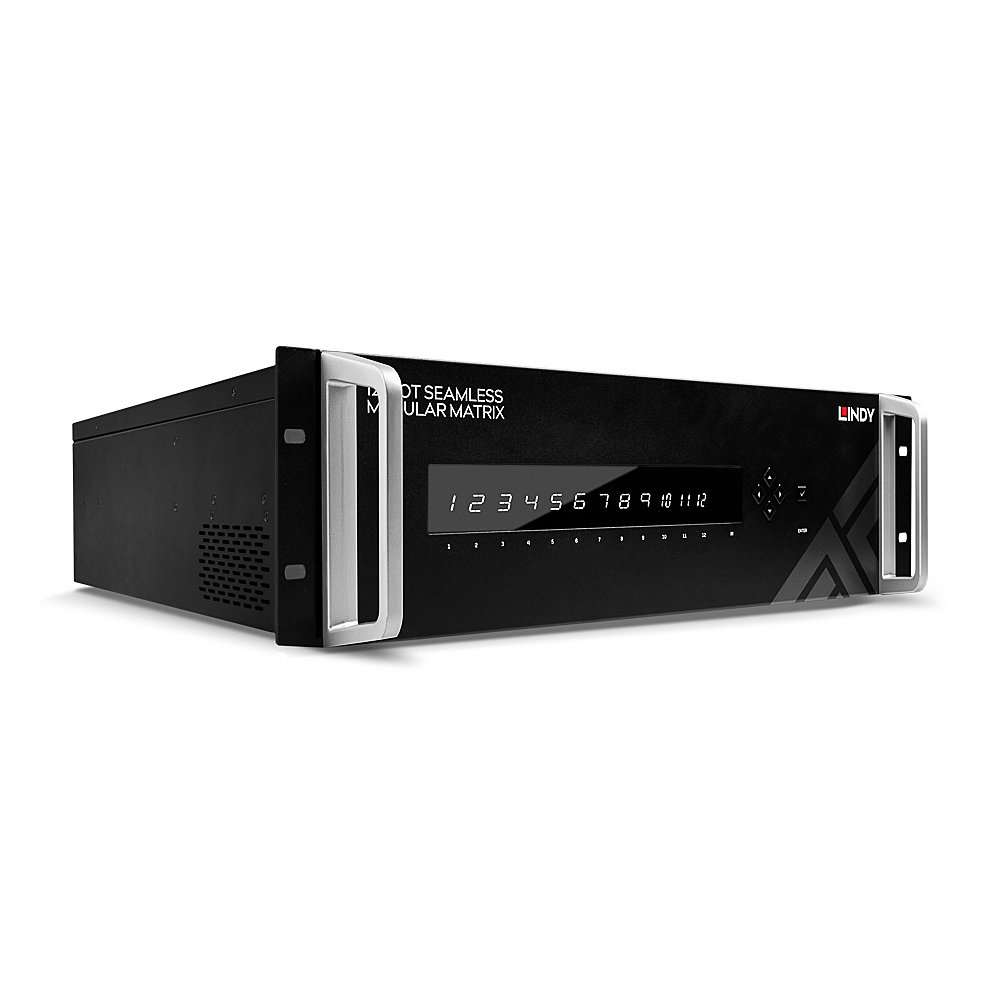

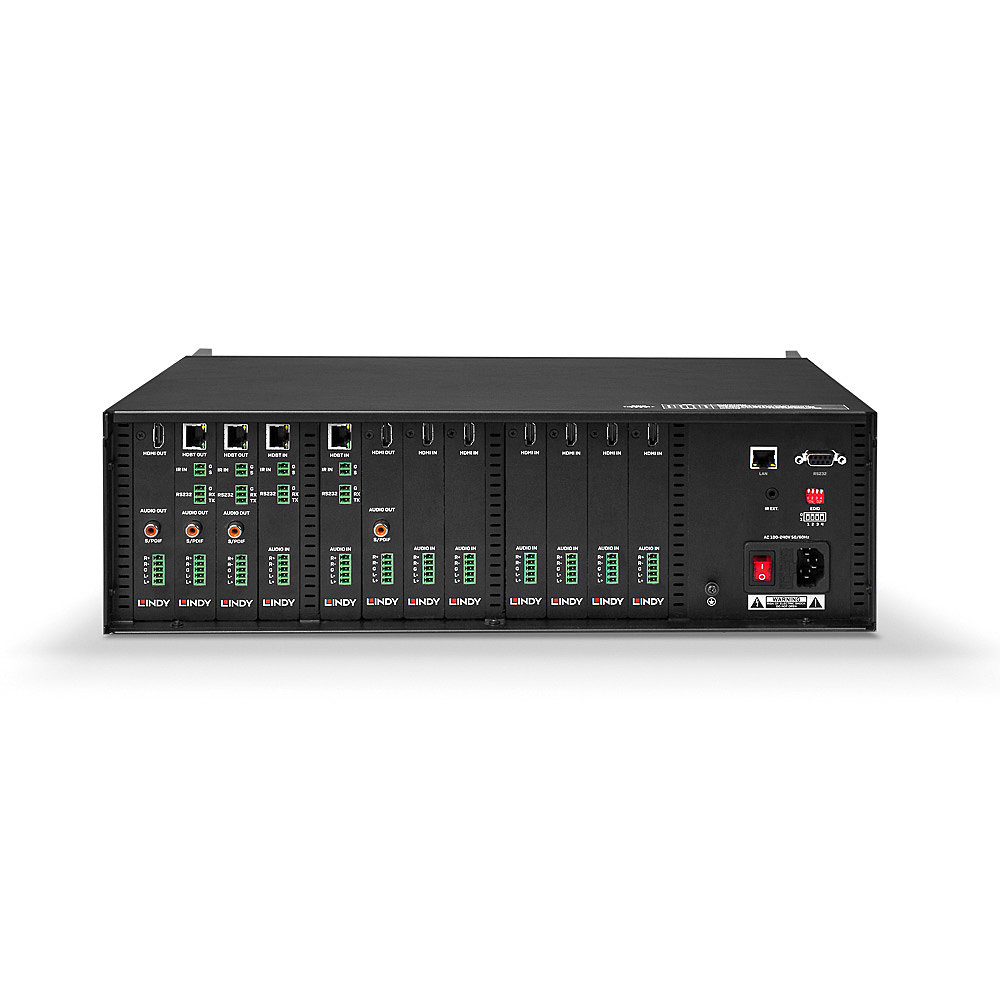

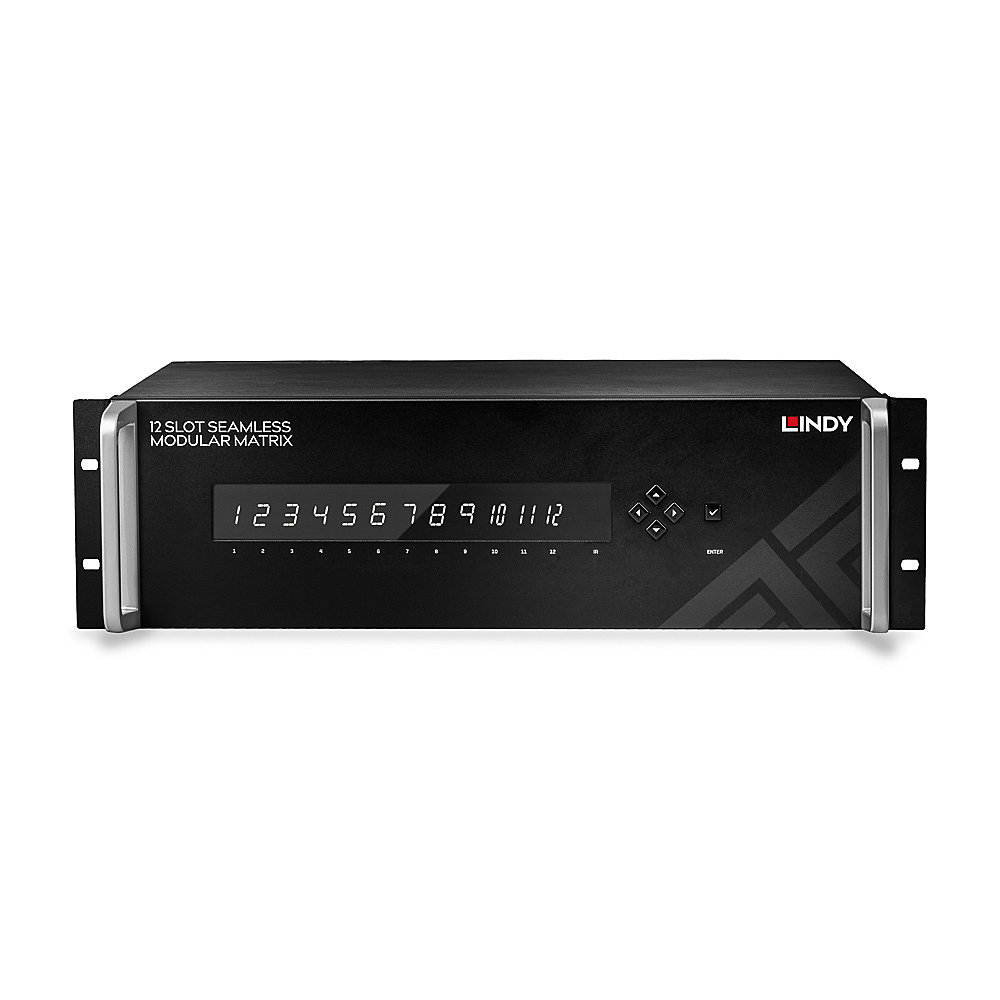

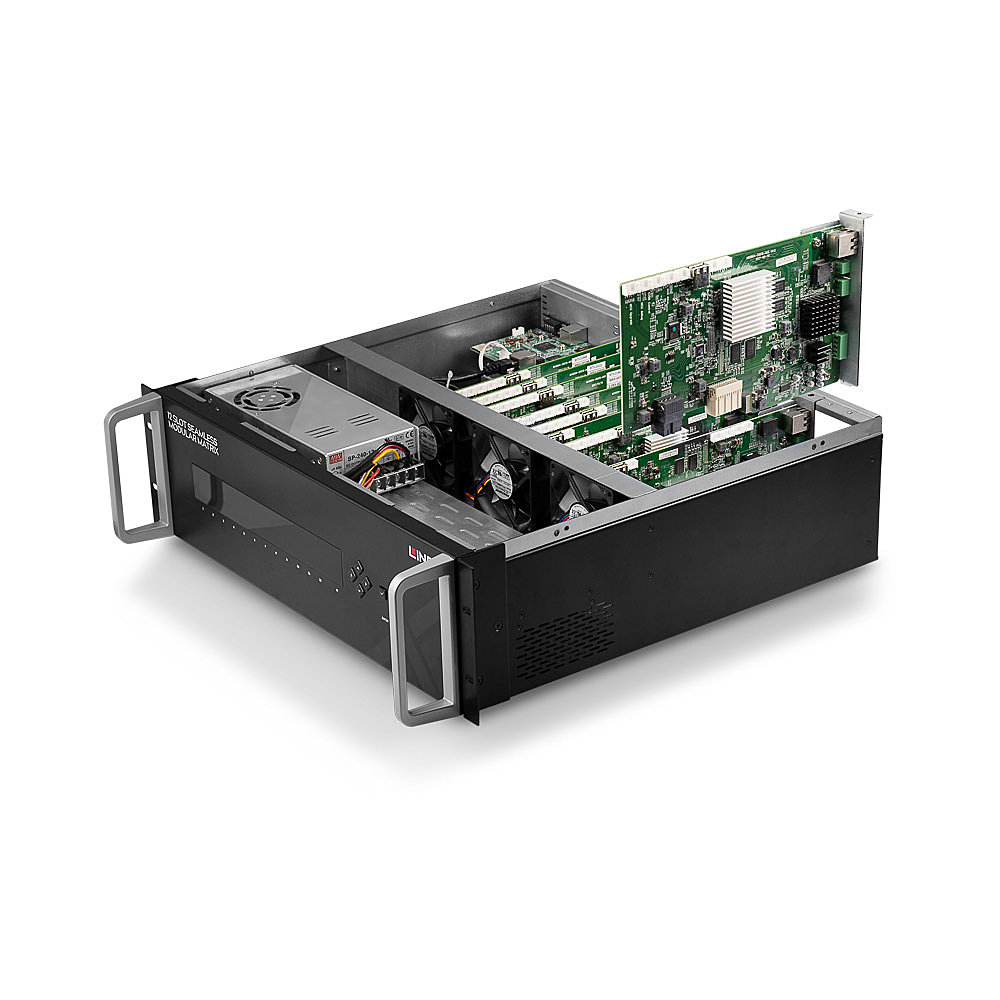

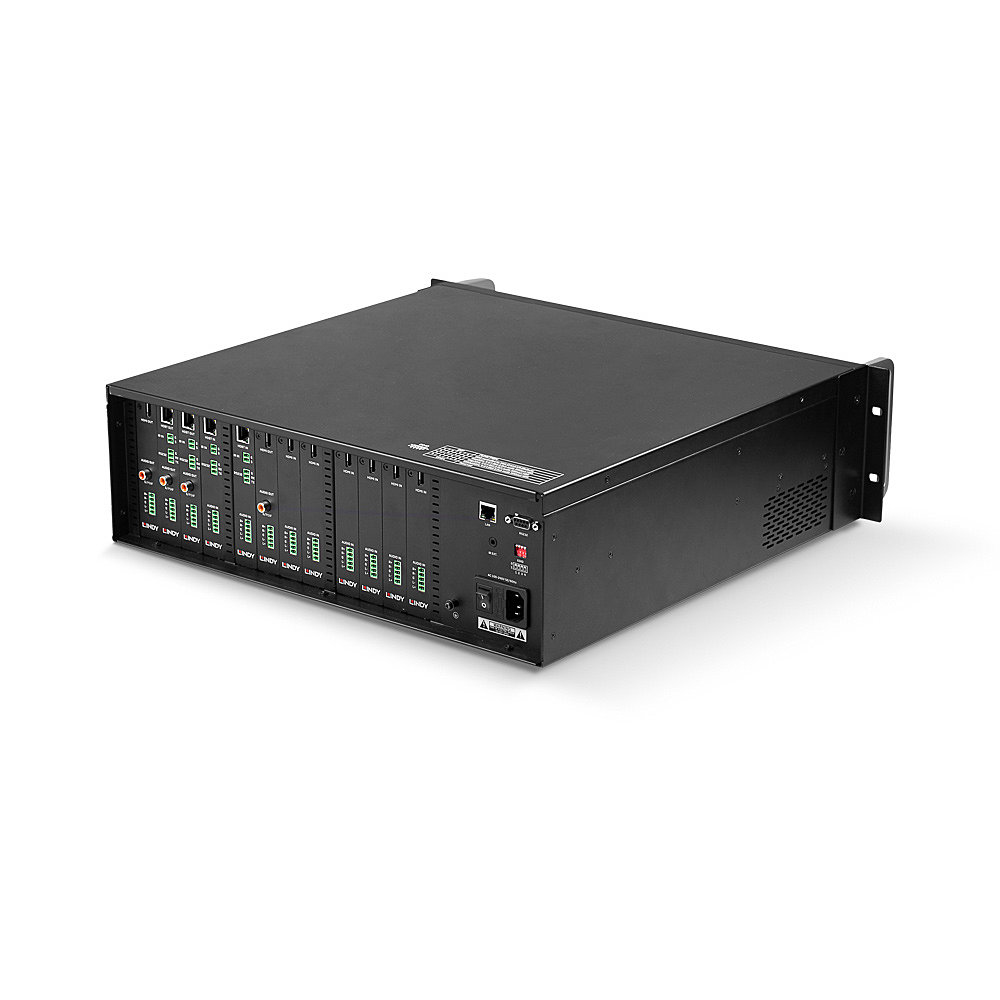

12 Slot Seamless Modular Matrix Chassis
Model 38350EAN 4002888383509
26 specifications
- TypeAV matrix switcher
- Weight9.26 kg
- Housing colourBlack
- Built-in displayNo
- AC input voltage100 - 240 V
- Compliance certificatesRoHS
Overview
- Type
- AV matrix switcher
- Weight
- 9.26 kg
- Housing colour
- Black
- Built-in display
- No
- AC input voltage
- 100 - 240 V
- Compliance certificates
- RoHS
- Brand
- Lindy
- Category
- Matrix Switcher
- Model
- 38350
- Part number
- 38350
- EAN / UPC
- 4002888383509
- Also known as
- Lindy 12 Slot Seamless Modular Matrix Chassis
Specifications
26 specifications in 8 groups
Features
| Specification | Value |
|---|---|
| Product type | AV matrix switcher |
| Maximum resolution | 3840 x 2160 pixels |
| Bandwidth | 18 Gbit/s |
| HDCP | Yes |
| HDCP version | 2.2 |
| Extended display identification data (EDID) | Yes |
| Web-based management | Yes |
Design
| Specification | Value |
|---|---|
| Housing colour | Black |
| Housing material | Metal |
| Certification | CE, FCC, REACH |
Display
| Specification | Value |
|---|---|
| Built-in display | No |
Power
| Specification | Value |
|---|---|
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85299097 |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 483 mm |
| Depth | 433.7 mm |
| Height | 132.5 mm |
| Weight | 9.26 kg |
| Package width | 565 mm |
| Package depth | 540 mm |
| Package height | 283 mm |
| Package weight | 11.9 kg |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC |
| Manual | Yes |
| Mounting brackets included | Yes |
