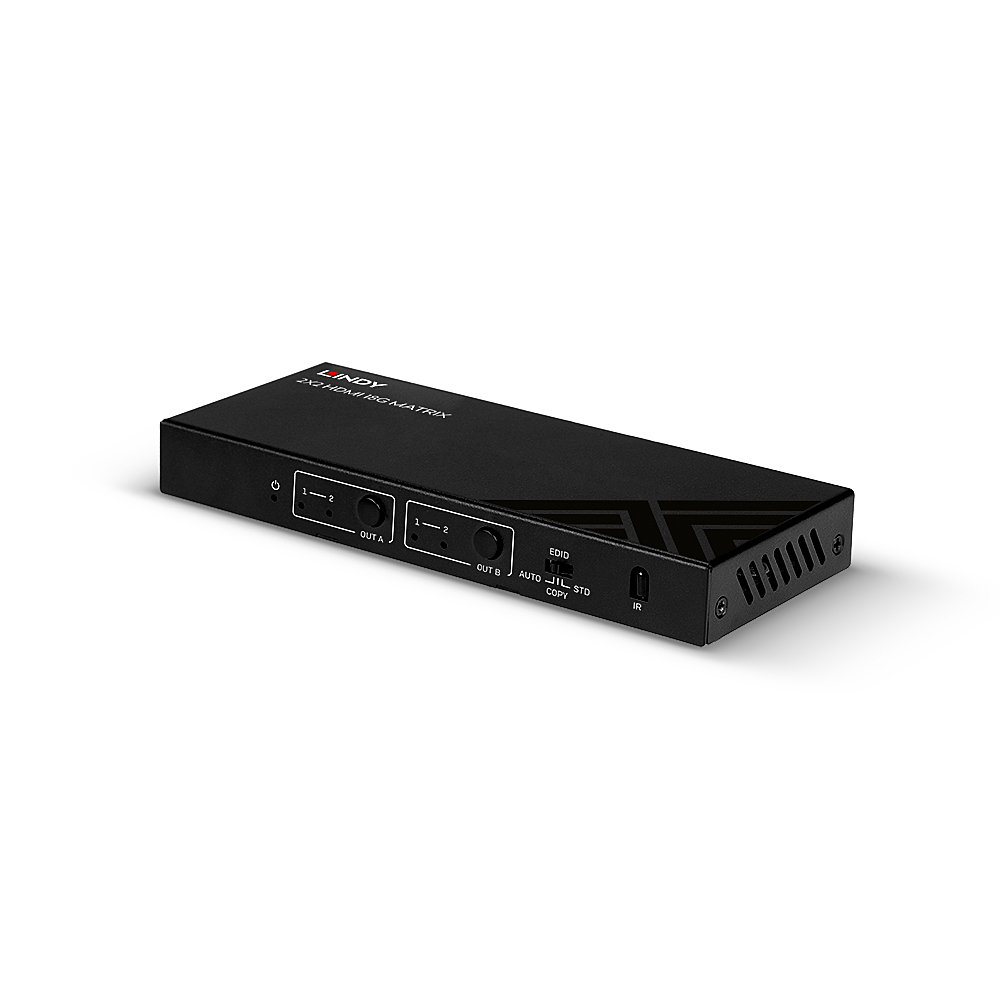

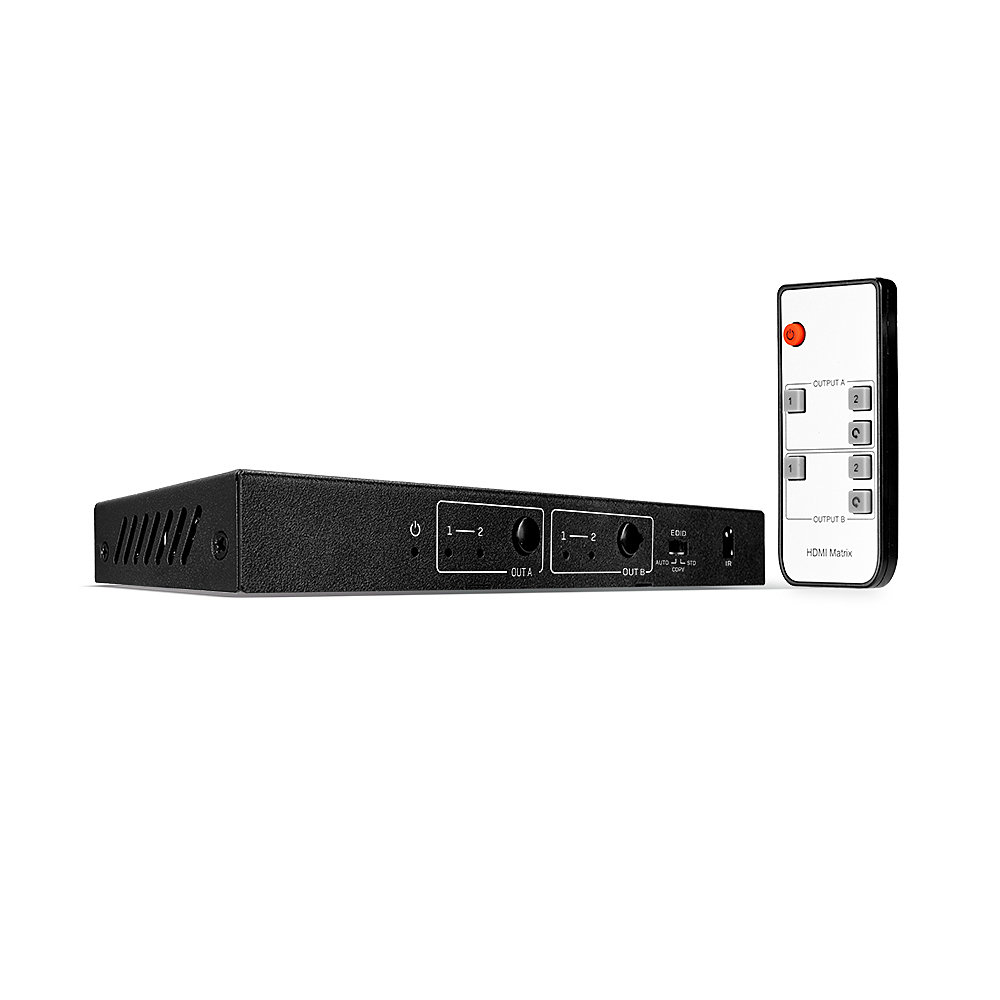

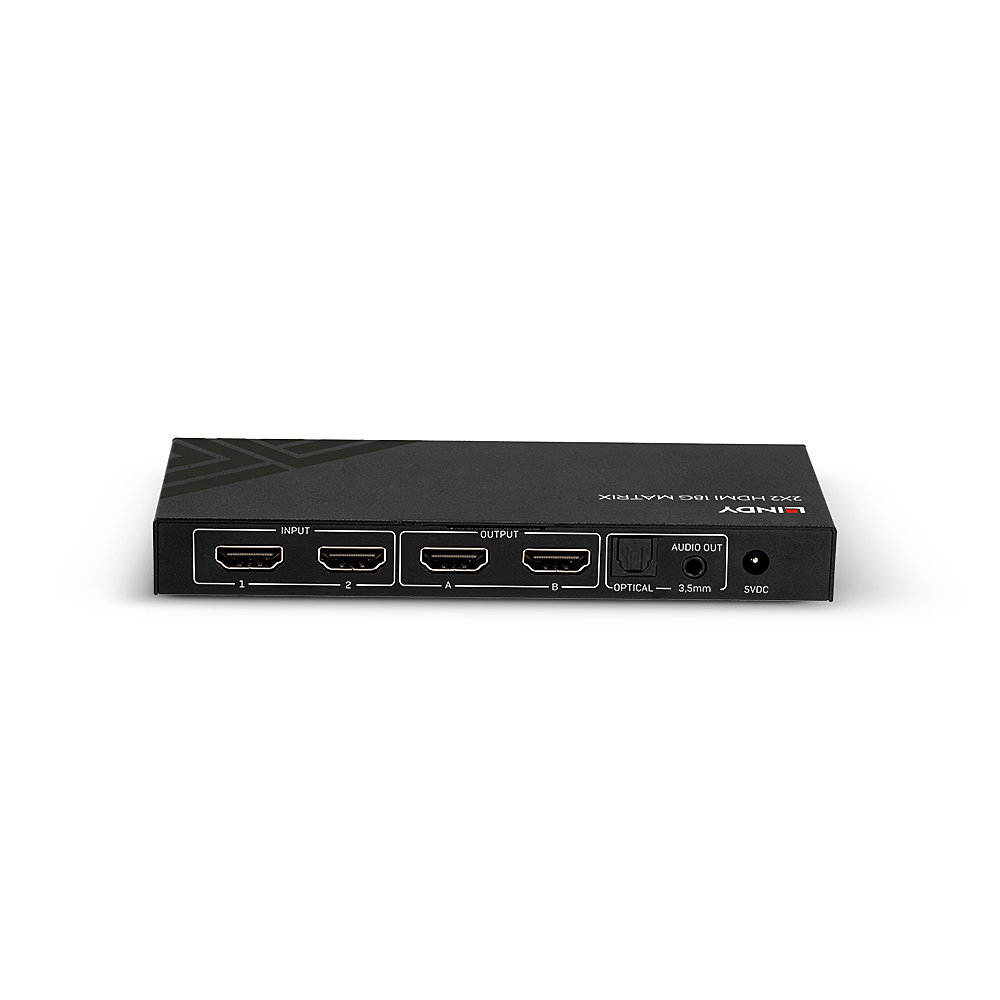

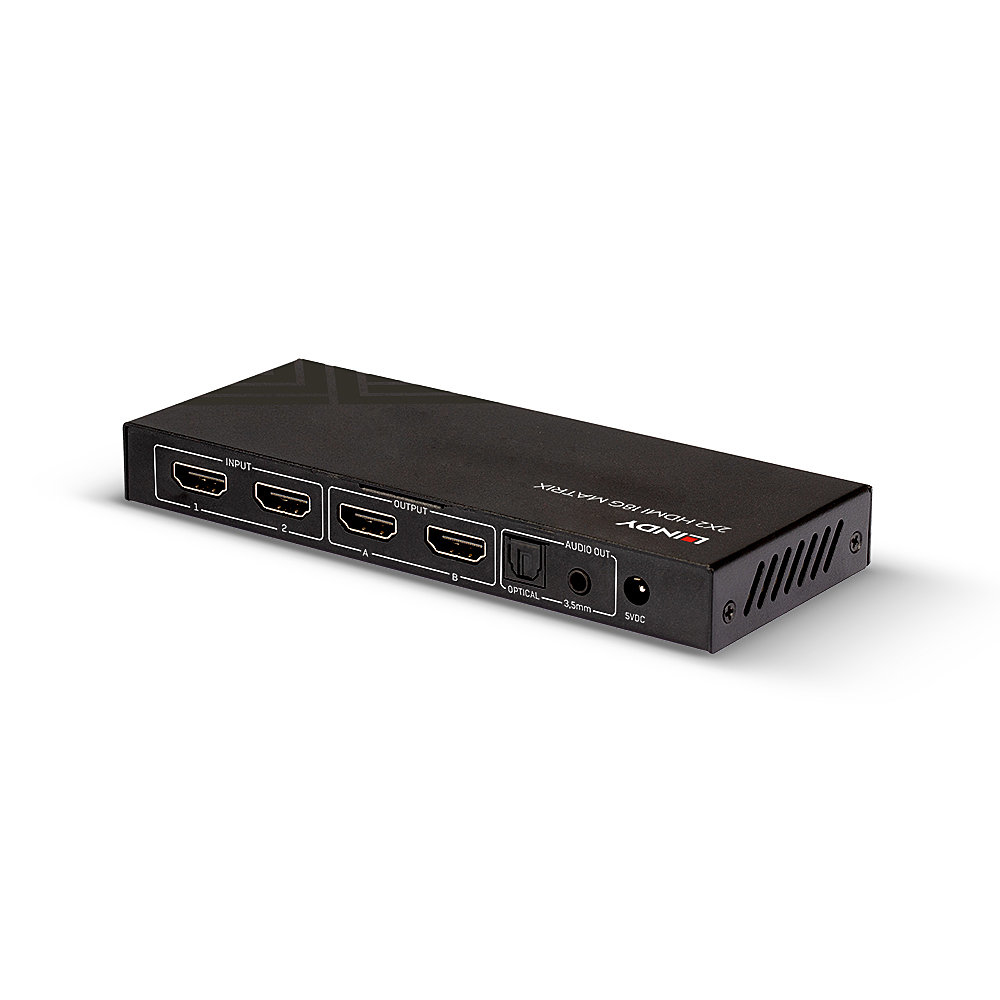

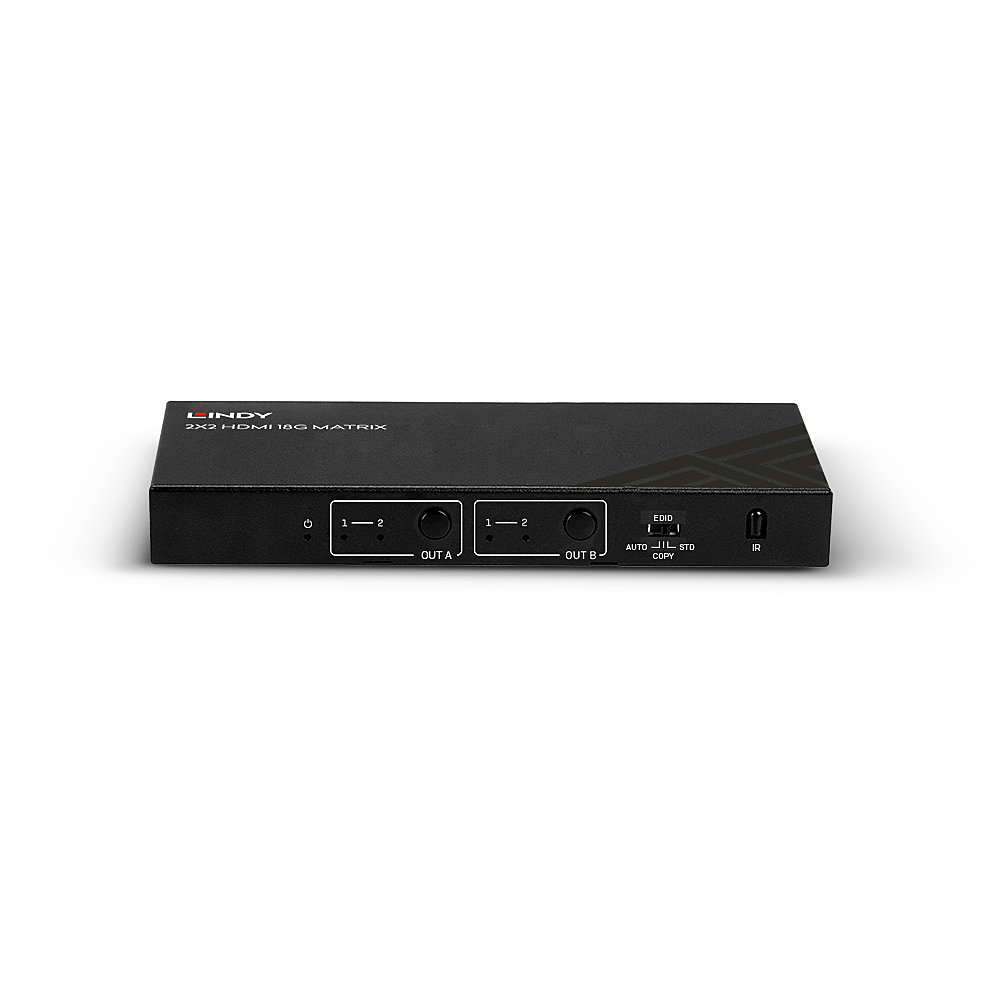

2x2 HDMI 18G Matrix
Model 38302EAN 4002888383028
27 specifications
- TypeAV matrix switcher
- Weight208 g
- Housing colourBlack
- Built-in displayNo
- HDMI input ports quantity2
- Operating temperature (T-T)0 - 40 °C
Overview
- Type
- AV matrix switcher
- Weight
- 208 g
- Housing colour
- Black
- Built-in display
- No
- HDMI input ports quantity
- 2
- Operating temperature (T-T)
- 0 - 40 °C
- Brand
- Lindy
- Category
- Matrix Switcher
- Model
- 38302
- Part number
- 38302
- EAN / UPC
- 4002888383028
- Also known as
- Lindy 2x2 HDMI 18G Matrix
Specifications
27 specifications in 8 groups
Features
| Specification | Value |
|---|---|
| Product type | AV matrix switcher |
| Data transfer rate | 18 Gbit/s |
| Maximum resolution | 4096 x 2160 pixels |
| HDCP | Yes |
| HDCP version | 2.2 |
| EDID management | Yes |
| Fiber optic connector | TOSLINK |
Design
| Specification | Value |
|---|---|
| Housing colour | Black |
| Housing material | Metal |
Display
| Specification | Value |
|---|---|
| Built-in display | No |
Ports & interfaces
| Specification | Value |
|---|---|
| HDMI input ports quantity | 2 |
| HDMI output ports quantity | 2 |
| HDMI version | 2.0 |
| DC-in jack | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 20 - 90% |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85299097 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 144 mm |
| Depth | 59.5 mm |
| Height | 18 mm |
| Weight | 208 g |
| Package width | 200 mm |
| Package depth | 113 mm |
| Package height | 70 mm |
| Package weight | 328 g |
Packaging content
| Specification | Value |
|---|---|
| Manual | Yes |
