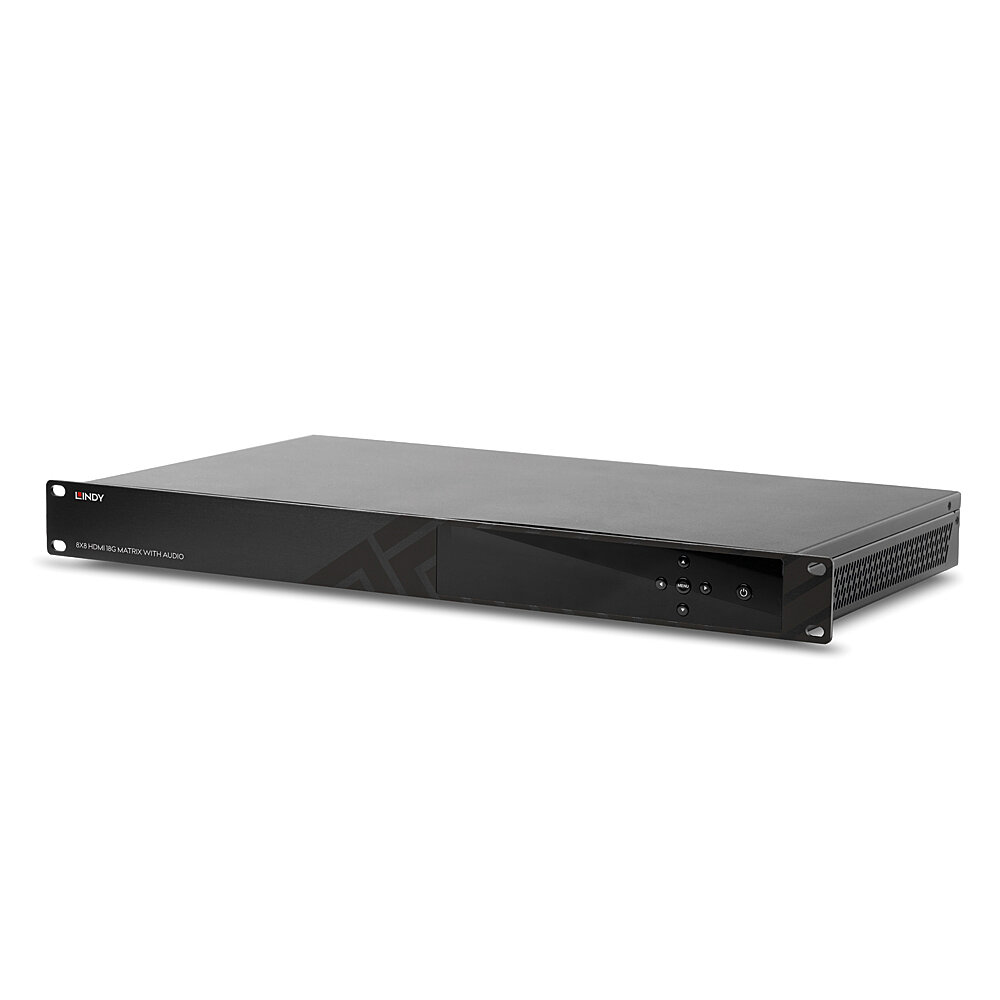

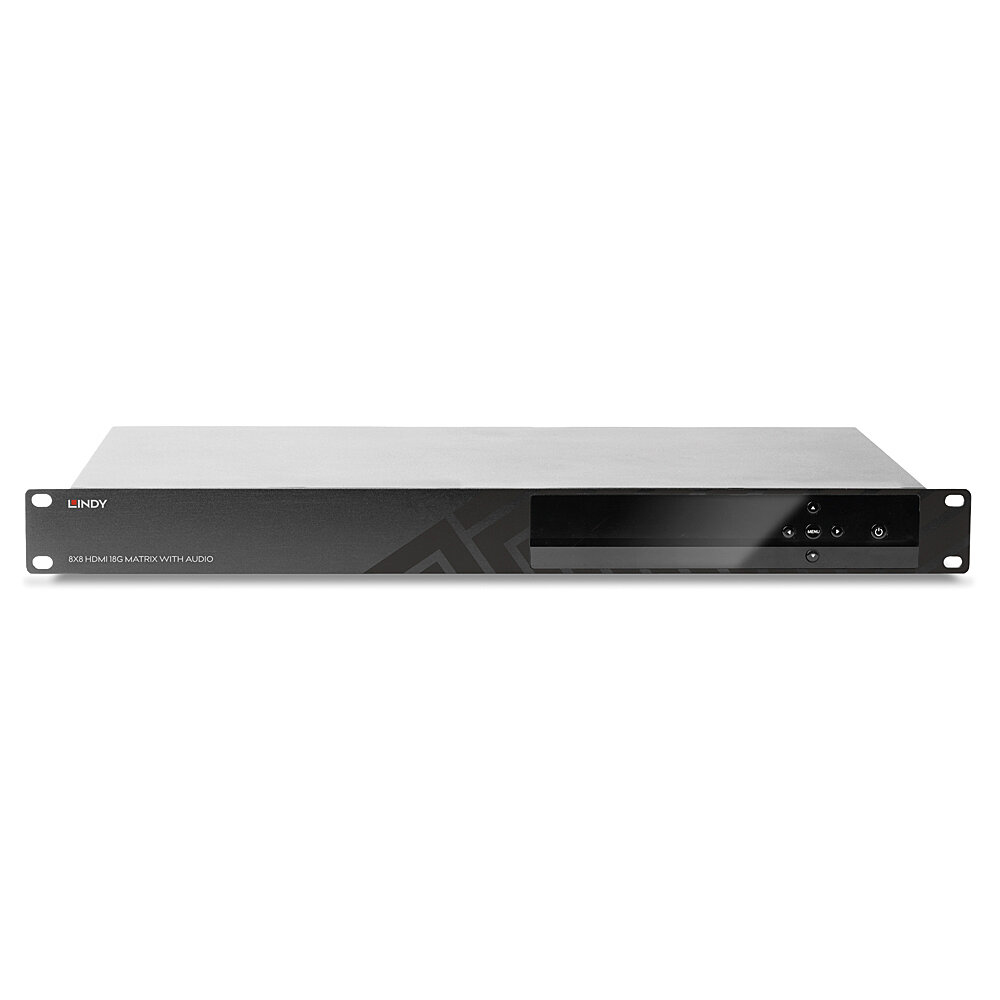

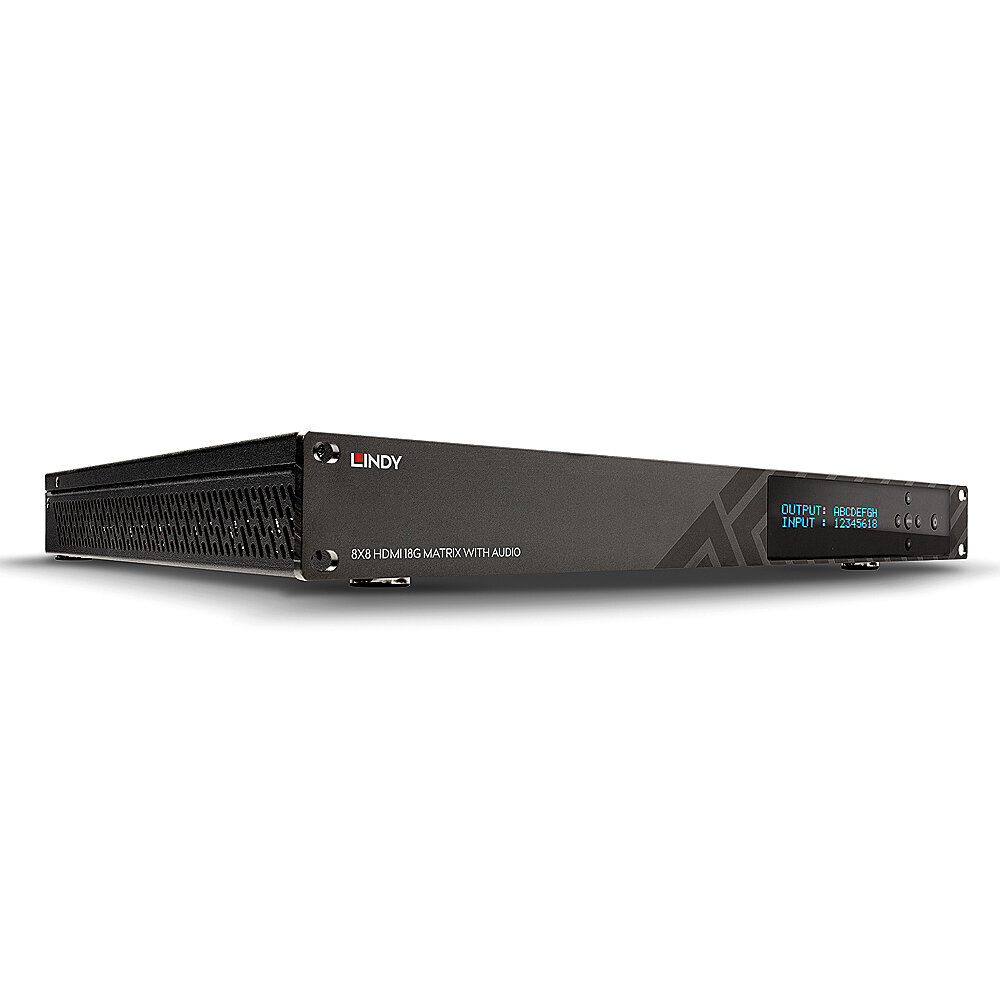

8x8 HDMI 2.0
18G Matrix Switch Pro
Model 38248EAN 4002888382489
38 specifications
- TypeAV matrix switcher
- Weight2.8 kg
- Housing colourBlack
- Built-in displayYes
- HDMI input ports quantity8
- Output current3000 mA
Overview
- Type
- AV matrix switcher
- Weight
- 2.8 kg
- Housing colour
- Black
- Built-in display
- Yes
- HDMI input ports quantity
- 8
- Output current
- 3000 mA
- Brand
- Lindy
- Category
- Matrix Switcher
- Model
- 38248
- Part number
- 38248
- EAN / UPC
- 4002888382489
- Also known as
- Lindy 8x8 HDMI 2.0 18G Matrix Switch Pro
Specifications
38 specifications in 9 groups
Features
| Specification | Value |
|---|---|
| Product type | AV matrix switcher |
| Maximum resolution | 4096 x 2160 pixels |
| Bandwidth | 18 Gbit/s |
| HDCP | Yes |
| HDCP version | 2.2 |
Design
| Specification | Value |
|---|---|
| Housing colour | Black |
| Housing material | Metal |
| Rack mounting | Yes |

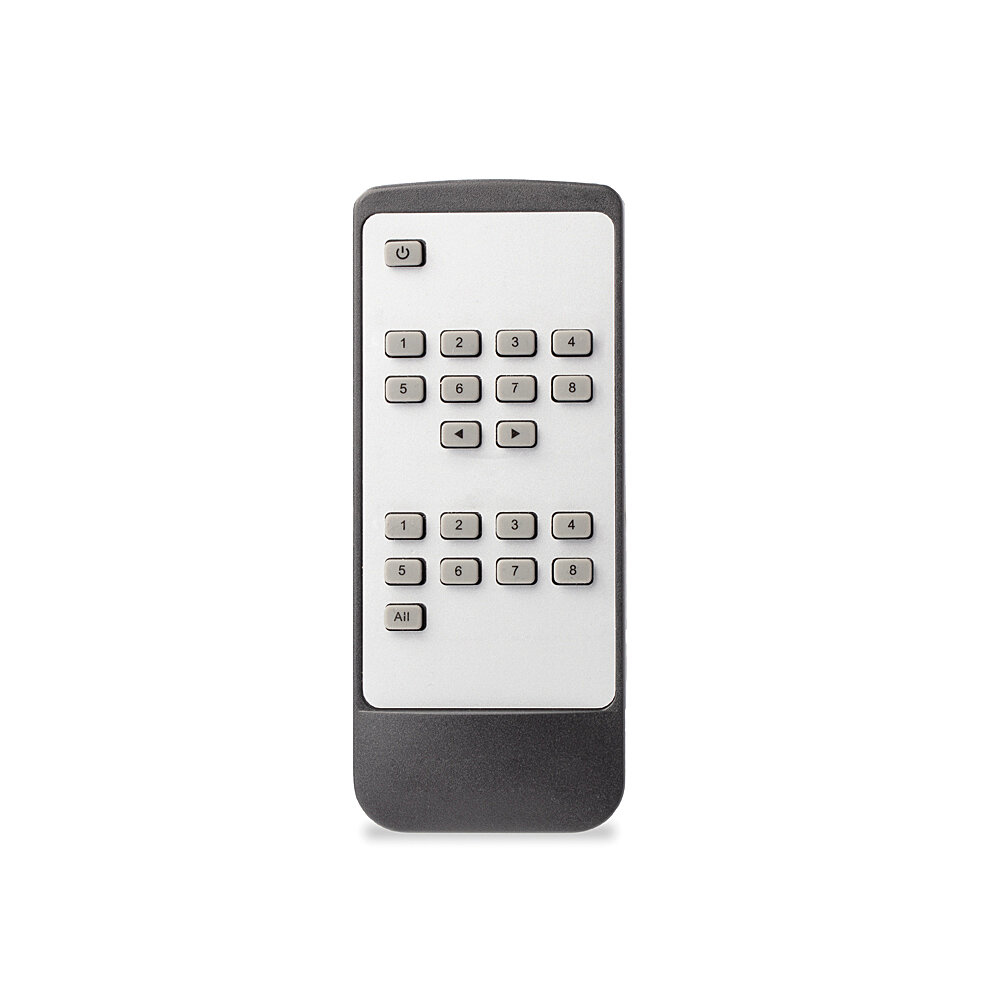

| Remote control included | Yes |
Display
| Specification | Value |
|---|---|
| Built-in display | Yes |
| Display type | LCD |

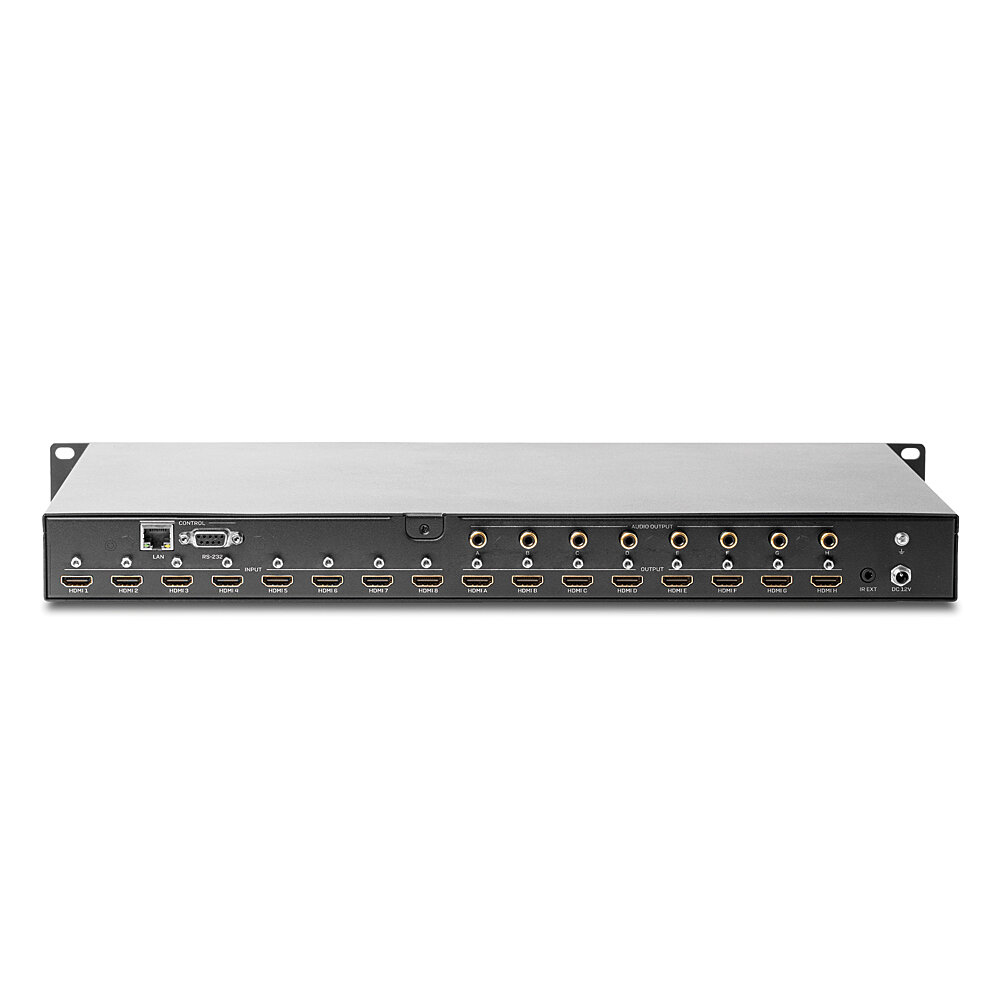

Ports & interfaces
| Specification | Value |
|---|---|
| HDMI input ports quantity | 8 |
| HDMI output ports quantity | 8 |
| HDMI version | 2.0 |
| RJ-45 input ports | 1 |
| Digital audio optical out | 8 |
| USB connector type | Micro-USB B |
| USB ports quantity | 1 |
| RS-232 ports | 1 |
| Remote (IR) input | 1 |
| DC-in jack | Yes |
Power
| Specification | Value |
|---|---|
| Output current | 3000 mA |
| Output voltage | 12 V |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 20 - 90% |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85299097 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 437 mm |
| Depth | 225 mm |
| Height | 50 mm |
| Weight | 2.8 kg |
| Package width | 495 mm |
| Package depth | 310 mm |
| Package height | 80 mm |
| Package weight | 3.64 kg |
Packaging content
| Specification | Value |
|---|---|
| Rack mount kit | Yes |
| Manual | Yes |
| IR extender included | Yes |
