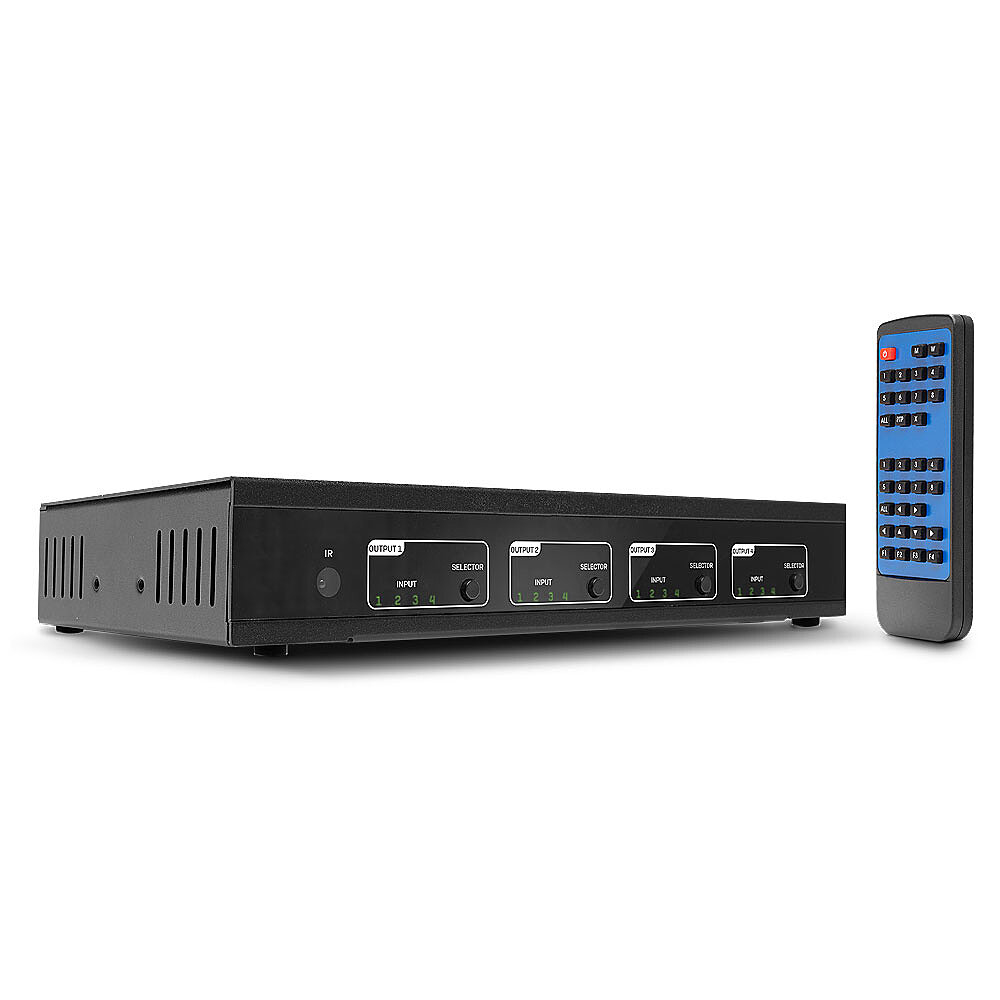

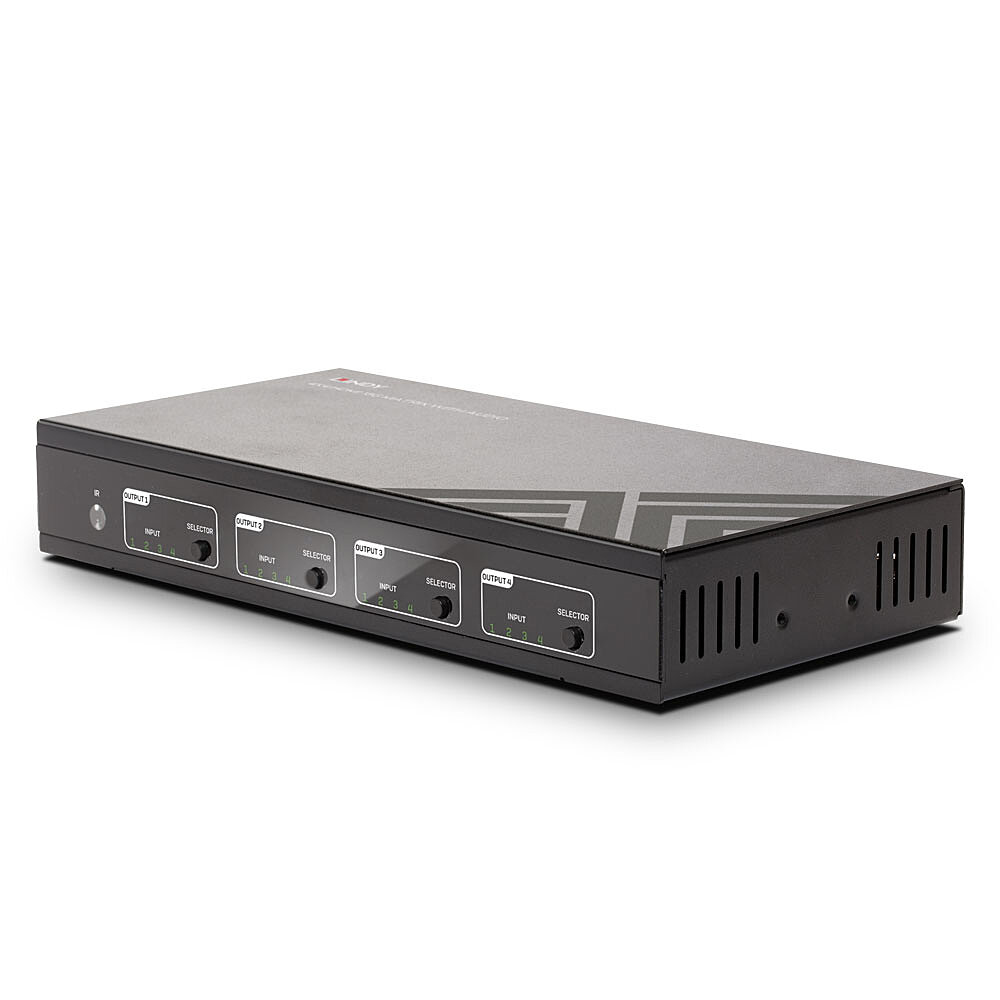

4x4 HDMI 18G Matrix Switch with Audio
Model 38247EAN 4002888382472
34 specifications
- TypeAV matrix switcher
- Weight655 g
- Housing colourBlack
- HDMI input ports quantity4
- Output current3000 mA
- Operating temperature (T-T)0 - 40 °C
Overview
- Type
- AV matrix switcher
- Weight
- 655 g
- Housing colour
- Black
- HDMI input ports quantity
- 4
- Output current
- 3000 mA
- Operating temperature (T-T)
- 0 - 40 °C
- Brand
- Lindy
- Category
- Matrix Switcher
- Model
- 38247
- Part number
- 38247
- EAN / UPC
- 4002888382472
- Also known as
- Lindy 4x4 HDMI 18G Matrix Switch with Audio
Specifications
34 specifications in 9 groups
Features
| Specification | Value |
|---|---|
| Product type | AV matrix switcher |
| Maximum resolution | 4096 x 2160 pixels |
| Bandwidth | 18 Gbit/s |
| HDCP | Yes |
| HDCP version | 2.2 |
Design
| Specification | Value |
|---|---|
| Housing colour | Black |
| Remote control included | Yes |
| Certification | CE, FCC, REACH |

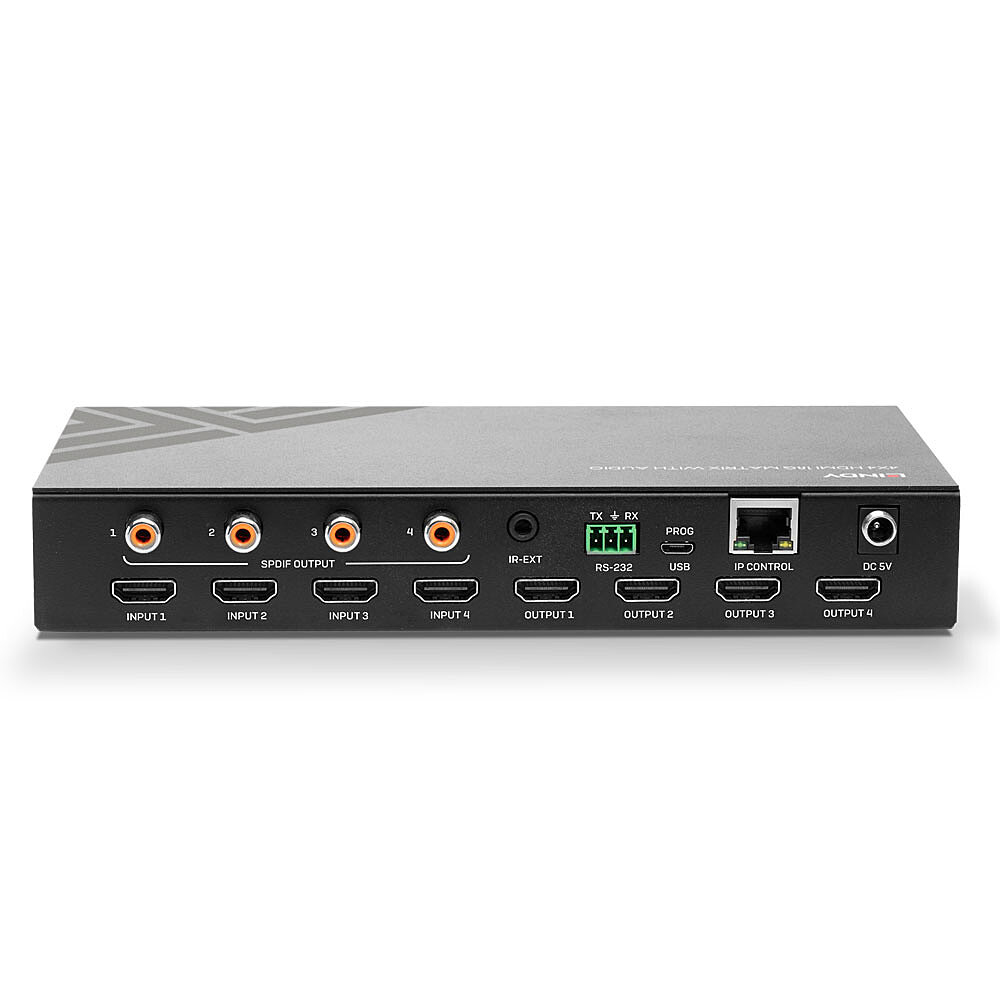

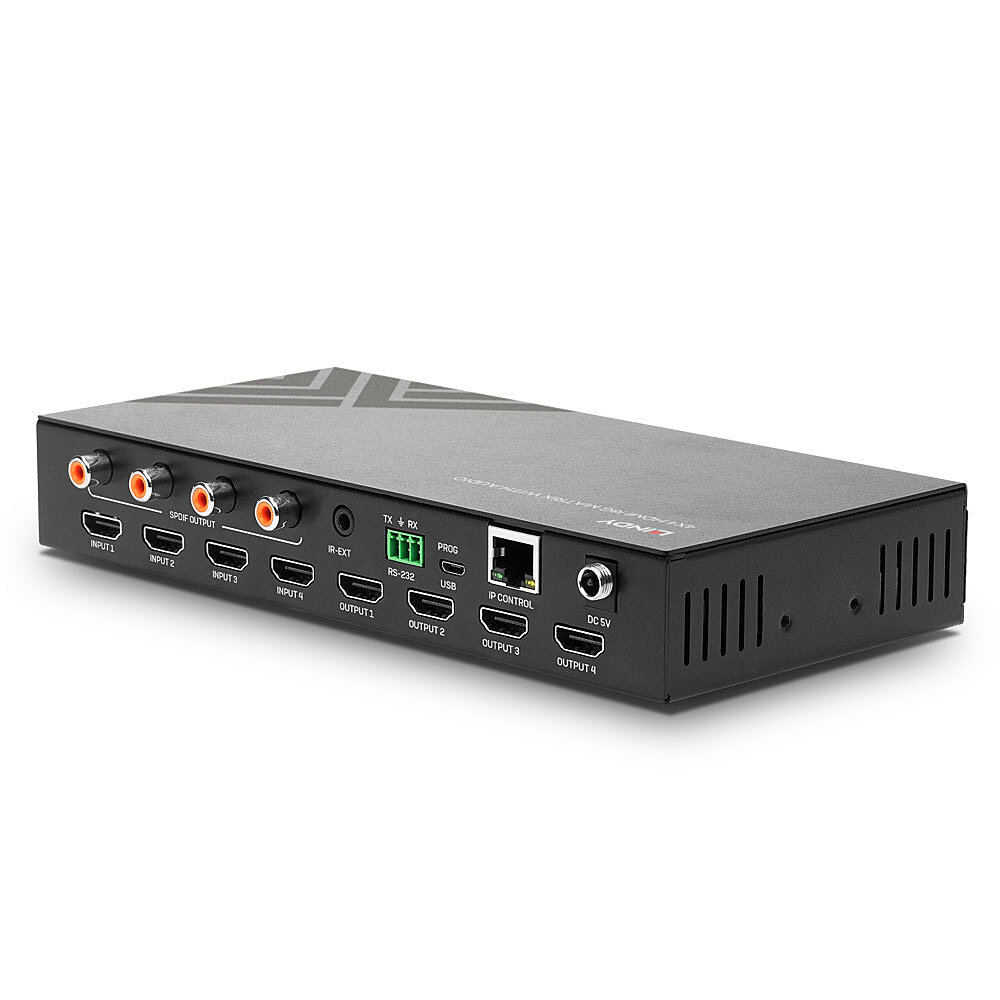

Ports & interfaces
| Specification | Value |
|---|---|
| HDMI input ports quantity | 4 |
| HDMI output ports quantity | 4 |
| HDMI version | 2.0 |
| RJ-45 input ports | 1 |
| Digital audio optical out | 4 |
| USB ports quantity | 1 |
| Remote (IR) input | 1 |
| DC-in jack | Yes |
Power
| Specification | Value |
|---|---|
| Output current | 3000 mA |
| Output voltage | 5 V |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 20 - 90% |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85299097 |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 216 mm |
| Depth | 115 mm |
| Height | 34 mm |
| Weight | 655 g |
| Package width | 255 mm |
| Package depth | 202 mm |
| Package height | 60 mm |
| Package weight | 1.16 kg |
Packaging content
| Specification | Value |
|---|---|
| Manual | Yes |
| IR receiver included | Yes |
| IR extender included | Yes |
