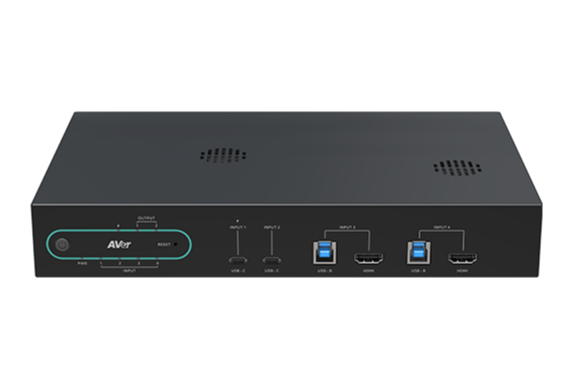

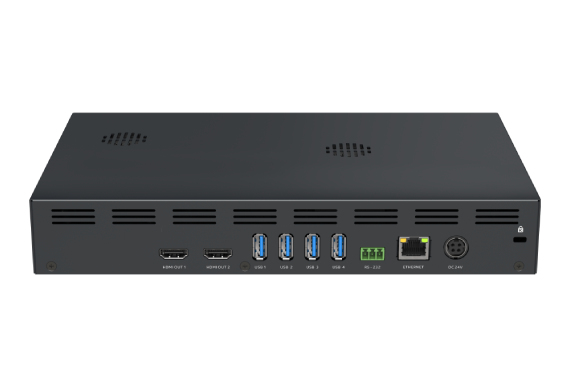

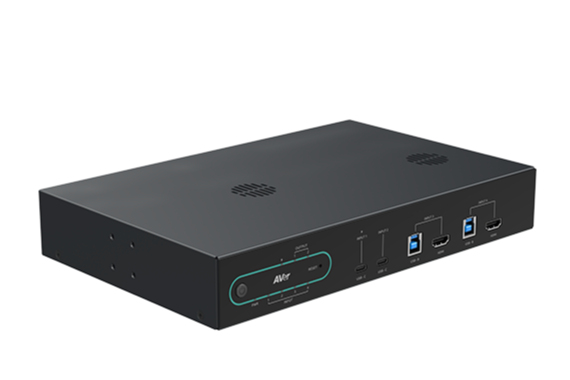

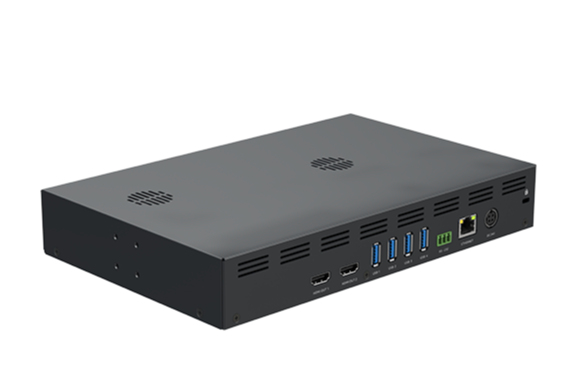

HUB30 Media presentation matrix switcher
150 W
Model HUB30Part no. 61B35A0000ACEAN 4719552128372
30 specifications
- Weight1.34 kg
- Housing colourBlack
- Built-in displayNo
- HDMI input ports quantity2
- Power consumption (max)150 W
- Operating temperature (T-T)0 - 45 °C
Overview
- Weight
- 1.34 kg
- Housing colour
- Black
- Built-in display
- No
- HDMI input ports quantity
- 2
- Power consumption (max)
- 150 W
- Operating temperature (T-T)
- 0 - 45 °C
- Brand
- AVer
- Category
- Matrix Switcher
- Model
- HUB30
- Part number
- 61B35A0000AC
- EAN / UPC
- 4719552128372
- Also known as
- AVer HUB30 Media presentation matrix switcher 150 W
Specifications
30 specifications in 9 groups
Features
| Specification | Value |
|---|---|
| Product type | Media presentation matrix switcher |
Design
| Specification | Value |
|---|---|
| Housing colour | Black |
| LED indicators | Yes |
| Cable lock slot type | Kensington |
Display
| Specification | Value |
|---|---|
| Built-in display | No |
Ports & interfaces
| Specification | Value |
|---|---|
| HDMI input ports quantity | 2 |
| HDMI output ports quantity | 3 |
| HDMI version | 2.0 |
| USB connector type | USB Type-C, USB Type-B, USB Type-A |
| USB ports quantity | 8 |
| Ethernet LAN (RJ-45) ports | 1 |
| RS-232 ports | 1 |
| DC-in jack | Yes |
Power
| Specification | Value |
|---|---|
| Power consumption (max) | 150 W |
| Power supply location | External |
| AC input voltage | 100 - 240 V |
| Output voltage | 24 V |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage relative humidity (H-H) | 20 - 95% |
Technical details
| Specification | Value |
|---|---|
| Warranty period | 3 year(s) |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 270 mm |
| Depth | 175 mm |
| Height | 42.4 mm |
| Weight | 1.34 kg |
Packaging content
| Specification | Value |
|---|---|
| Cables included | USB Type-A to USB Type-B, USB Type-C |
| Rack mount kit | Yes |
| Quick start guide | Yes |
| AC adapter included | Yes |
