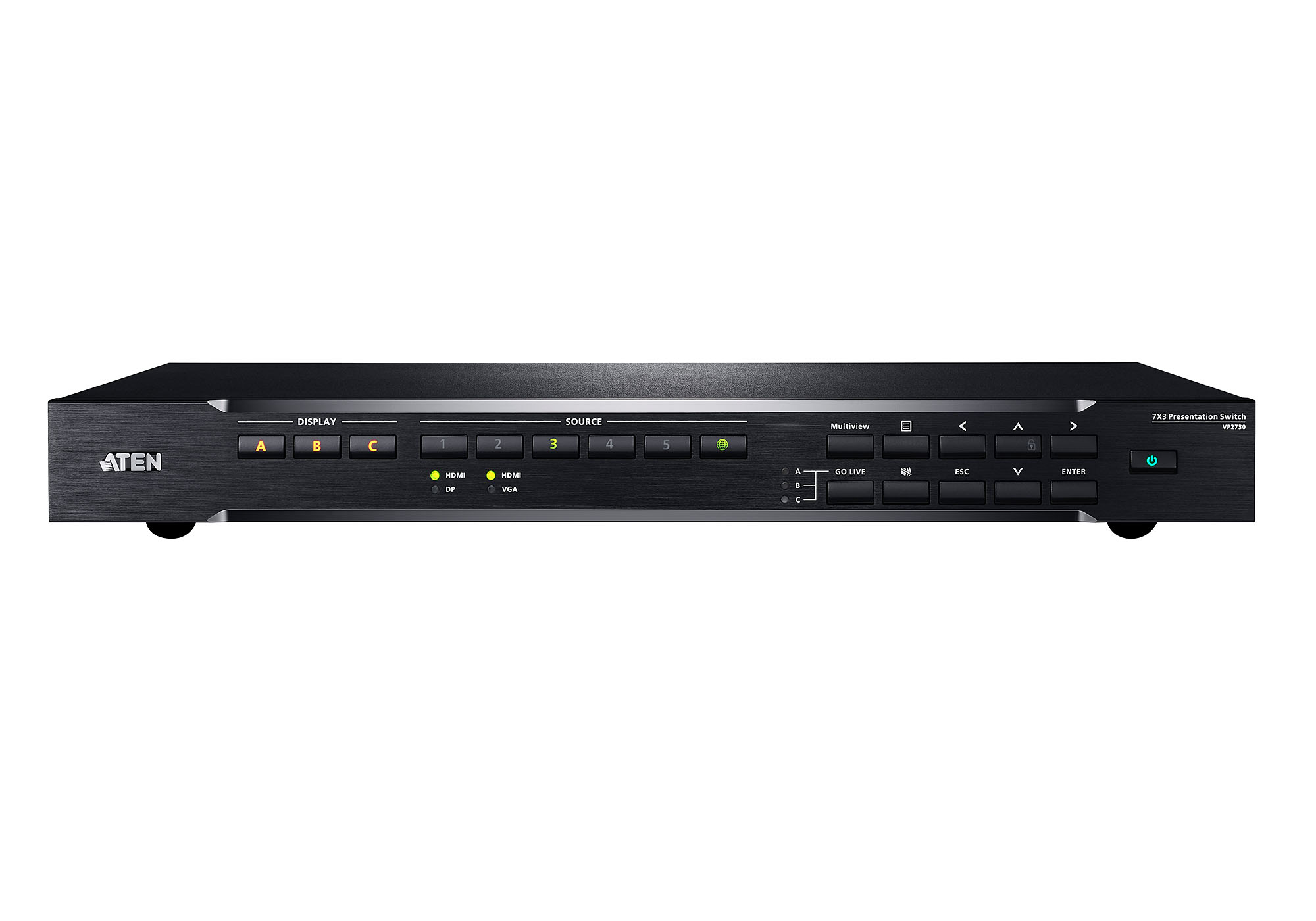

VP2730-AT-U matrix switcher Media presentation matrix switcher
Model VP2730-AT-U
42 specifications
- Weight3.7 kg
- Maximum resolution1920 x 1200 pixels
- Housing colourBlack
- Built-in displayNo
- HDMI input ports quantity5
- AC input voltage100 - 240 V
Overview
- Weight
- 3.7 kg
- Maximum resolution
- 1920 x 1200 pixels
- Housing colour
- Black
- Built-in display
- No
- HDMI input ports quantity
- 5
- AC input voltage
- 100 - 240 V
- Brand
- ATEN
- Category
- Matrix Switcher
- Model
- VP2730-AT-U
- Part number
- VP2730-AT-U
- Also known as
- ATEN VP2730-AT-U matrix switcher Media presentation matrix switcher
Specifications
42 specifications in 9 groups
Features
| Specification | Value |
|---|---|
| Product type | Media presentation matrix switcher |
| Maximum resolution | 1920 x 1200 pixels |
| HDCP | Yes |
| HDCP version | 1.4 |
| Extended display identification data (EDID) | Yes |
| EDID management | Yes |
Design
| Specification | Value |
|---|---|
| Housing colour | Black |
| Housing material | Metal |
| Rack mounting | Yes |
| Rack capacity | 1U |
| Control type | Buttons |
| LED indicators | Yes |
Display
| Specification | Value |
|---|---|
| Built-in display | No |

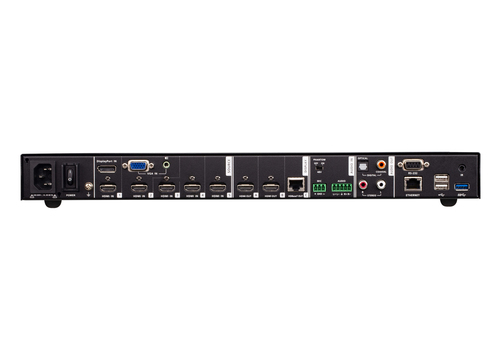

Ports & interfaces
| Specification | Value |
|---|---|
| HDMI input ports quantity | 5 |
| HDMI output ports quantity | 2 |
| VGA (D-Sub) input ports | 1 |
| DisplayPorts in | 1 |
| Digital audio optical out | 1 |
| USB connector type | USB Type-A |
| USB ports quantity | 3 |
| Ethernet LAN (RJ-45) ports | 2 |
| RS-232 ports | 1 |
| Audio (L/R) in | 1 |
| Audio (L/R) out | 1 |
| Analog audio input terminal ports | 1 |
| Analog audio output terminal ports | 1 |
| Remote (IR) input | 1 |
Power
| Specification | Value |
|---|---|
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 1 A |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
Logistics data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 262.8 mm |
| Depth | 432.4 mm |
| Height | 44 mm |
| Weight | 3.7 kg |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC |
| Manual | Yes |
| Mounting brackets included | Yes |
| IR receiver included | Yes |
