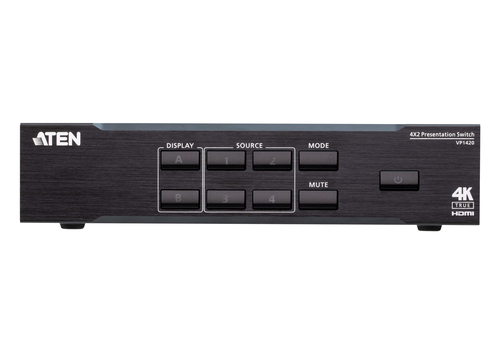

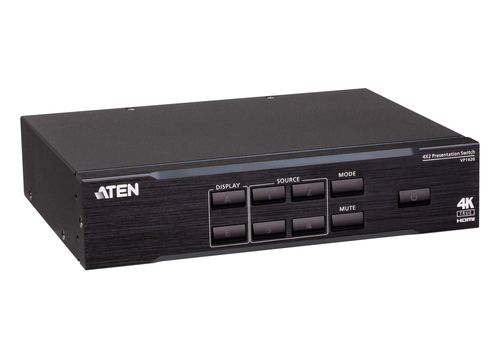

ATEN 4 x 2 True 4K Presentation Matrix Switch: Full Specifications

Overview

Weight: 1.39 kg
Maximum resolution: 4096 x 2160 pixels
Housing colour: Black
Built-in display: No
HDMI input ports quantity: 3
Power consumption (typical): 7.21 W

Brand: ATEN
Category: Matrix Switcher
Model: VP1420-AT-G
Part number: VP1420-AT-G
EAN / UPC: 4719264649141
Also known as: ATEN 4 x 2 True 4K Presentation Matrix Switch

Specifications

43 specifications in 9 groups

Features

Specification	Value
Product type	Media presentation matrix switcher
Maximum resolution	4096 x 2160 pixels
HDCP	Yes
HDCP version	2.2
3D	Yes
Extended display identification data (EDID)	Yes
Supported resolutions	4096 x 2160, 3840 x 2160

Design

Specification	Value
Housing colour	Black
Housing material	Metal
Control type	Buttons
LED indicators	Yes
On/off switch	Yes
Remote control included	Yes

Display

Specification	Value
Built-in display	No

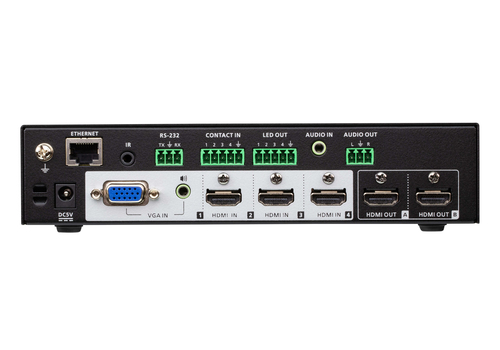

Ports & interfaces

Specification	Value
HDMI input ports quantity	3
HDMI output ports quantity	2
VGA (D-Sub) input ports	1
RJ-45 input ports	1
Remote (IR) input	1
DC-in jack	Yes

Power

Specification	Value
Power consumption (typical)	7.21 W

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	0 - 80%
Storage relative humidity (H-H)	0 - 80%

Logistics data

Specification	Value
Harmonized System (HS) code	85299097
Master (outer) case gross weight	6.37 kg
Master (outer) case height	232 mm
Master (outer) case length	427 mm
Master (outer) case net weight	4.17 kg
Master (outer) case width	370 mm
Products per master (outer) case	3 pc(s)

Weight & dimensions

Specification	Value
Width	160.5 mm
Depth	200 mm
Height	44 mm
Weight	1.39 kg
Package width	207 mm
Package depth	414 mm
Package height	117 mm
Package weight	1.85 kg

Packaging content

Specification	Value
Quick start guide	Yes
AC adapter included	Yes
IR receiver included	Yes
