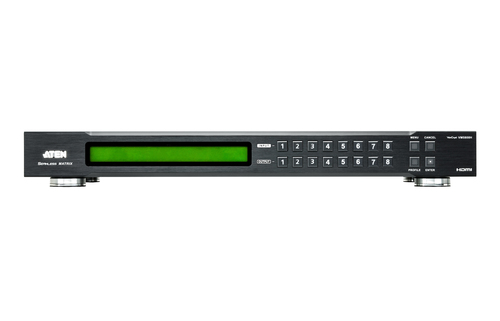

8 x 8 HDMI Audio/Video Matrix Switch + Videowall + Scaler and seamless switching
Model VM5808H-AT-GEAN 4719264640452
41 specifications
- TypeScaling matrix switcher
- Weight4.55 kg
- Housing colourBlack
- Built-in displayYes
- HDMI input ports quantity8
- Power consumption (typical)56.5 W
Overview
- Type
- Scaling matrix switcher
- Weight
- 4.55 kg
- Housing colour
- Black
- Built-in display
- Yes
- HDMI input ports quantity
- 8
- Power consumption (typical)
- 56.5 W
- Brand
- ATEN
- Category
- Matrix Switcher
- Model
- VM5808H-AT-G
- Part number
- VM5808H-AT-G
- EAN / UPC
- 4719264640452
- Also known as
- ATEN 8 x 8 HDMI Audio/Video Matrix Switch + Videowall + Scaler and seamless switching
Specifications
41 specifications in 9 groups
Features
| Specification | Value |
|---|---|
| Product type | Scaling matrix switcher |
| Data transfer rate | 6.75 Gbit/s |
| Maximum pixel clock | 225 MHz |
| Maximum resolution | 1920 x 1080 pixels |
| HDCP | Yes |
| HDCP version | 1.4 |
| 3D | Yes |
| Extended display identification data (EDID) | Yes |
Design
| Specification | Value |
|---|---|
| Housing colour | Black |
| Housing material | Metal |
Display
| Specification | Value |
|---|---|
| Built-in display | Yes |

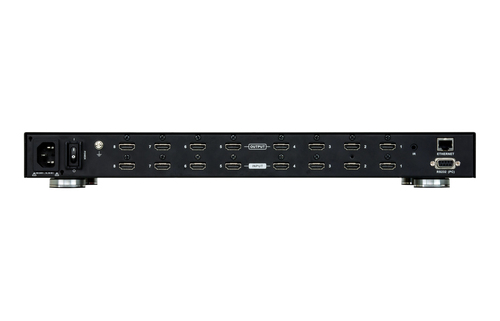

Ports & interfaces
| Specification | Value |
|---|---|
| HDMI input ports quantity | 8 |
| HDMI output ports quantity | 8 |
| RJ-45 input ports | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| RS-232 ports | 1 |
| Remote (IR) input | 1 |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 56.5 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 1 A |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85299097 |
| Master (outer) case gross weight | 5.83 kg |
| Master (outer) case height | 155 mm |
| Master (outer) case length | 515 mm |
| Master (outer) case net weight | 4.55 kg |
| Master (outer) case width | 338 mm |
| Products per master (outer) case | 1 pc(s) |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 262.3 mm |
| Depth | 432.4 mm |
| Height | 44 mm |
| Weight | 4.55 kg |
| Package width | 338 mm |
| Package depth | 515 mm |
| Package height | 155 mm |
| Package weight | 5.89 kg |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC |
| Manual | Yes |
