VM5808D-AT-U matrix switcher Scaling matrix switcher Built-in display
Model VM5808D-AT-U
37 specifications
- TypeScaling matrix switcher
- Weight4.25 kg
- Housing colourBlack
- Built-in displayYes
- DVI-D ports quantity16
- AC input voltage100 - 240 V
Overview
- Type
- Scaling matrix switcher
- Weight
- 4.25 kg
- Housing colour
- Black
- Built-in display
- Yes
- DVI-D ports quantity
- 16
- AC input voltage
- 100 - 240 V
- Brand
- ATEN
- Category
- Matrix Switcher
- Model
- VM5808D-AT-U
- Part number
- VM5808D-AT-U
- Also known as
- ATEN VM5808D-AT-U matrix switcher Scaling matrix switcher Built-in display
Specifications
37 specifications in 9 groups
Features
| Specification | Value |
|---|---|
| Product type | Scaling matrix switcher |
| Data transfer rate | 6.75 Gbit/s |
| Maximum pixel clock | 225 MHz |
| Maximum resolution | 1920 x 1200 pixels |
| HDCP | Yes |
| HDCP version | 1.4 |
| Firmware upgradeable | Yes |
| EDID management | Yes |
Design
| Specification | Value |
|---|---|
| Housing colour | Black |
| Housing material | Metal |
| Rack mounting | Yes |
| Rack capacity | 1U |
| Control type | Buttons |
| Remote control included | Yes |

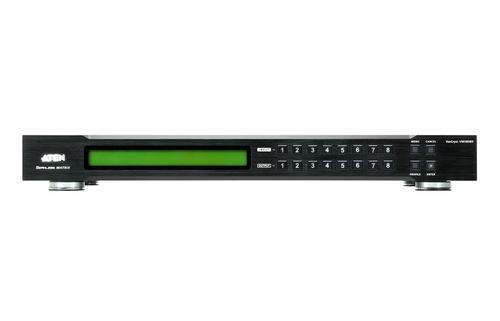

Display
| Specification | Value |
|---|---|
| Built-in display | Yes |
| Display type | LCD |

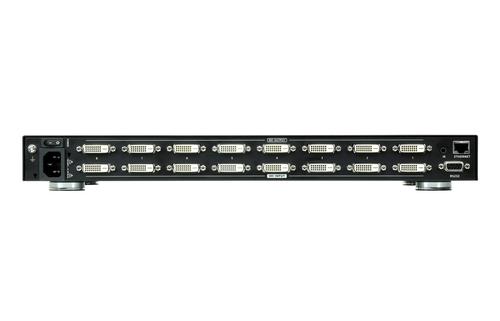

Ports & interfaces
| Specification | Value |
|---|---|
| DVI-D ports quantity | 16 |
| DVI-D input ports | 8 |
| DVI-D output ports | 8 |
| Ethernet LAN (RJ-45) ports | 1 |
| RS-232 ports | 1 |
| Remote (IR) input | 1 |
Power
| Specification | Value |
|---|---|
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 1 A |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
Logistics data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 259.8 mm |
| Depth | 432.4 mm |
| Height | 44 mm |
| Weight | 4.25 kg |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC |
| Rack mount kit | Yes |
| Manual | Yes |
| Mounting brackets included | Yes |
