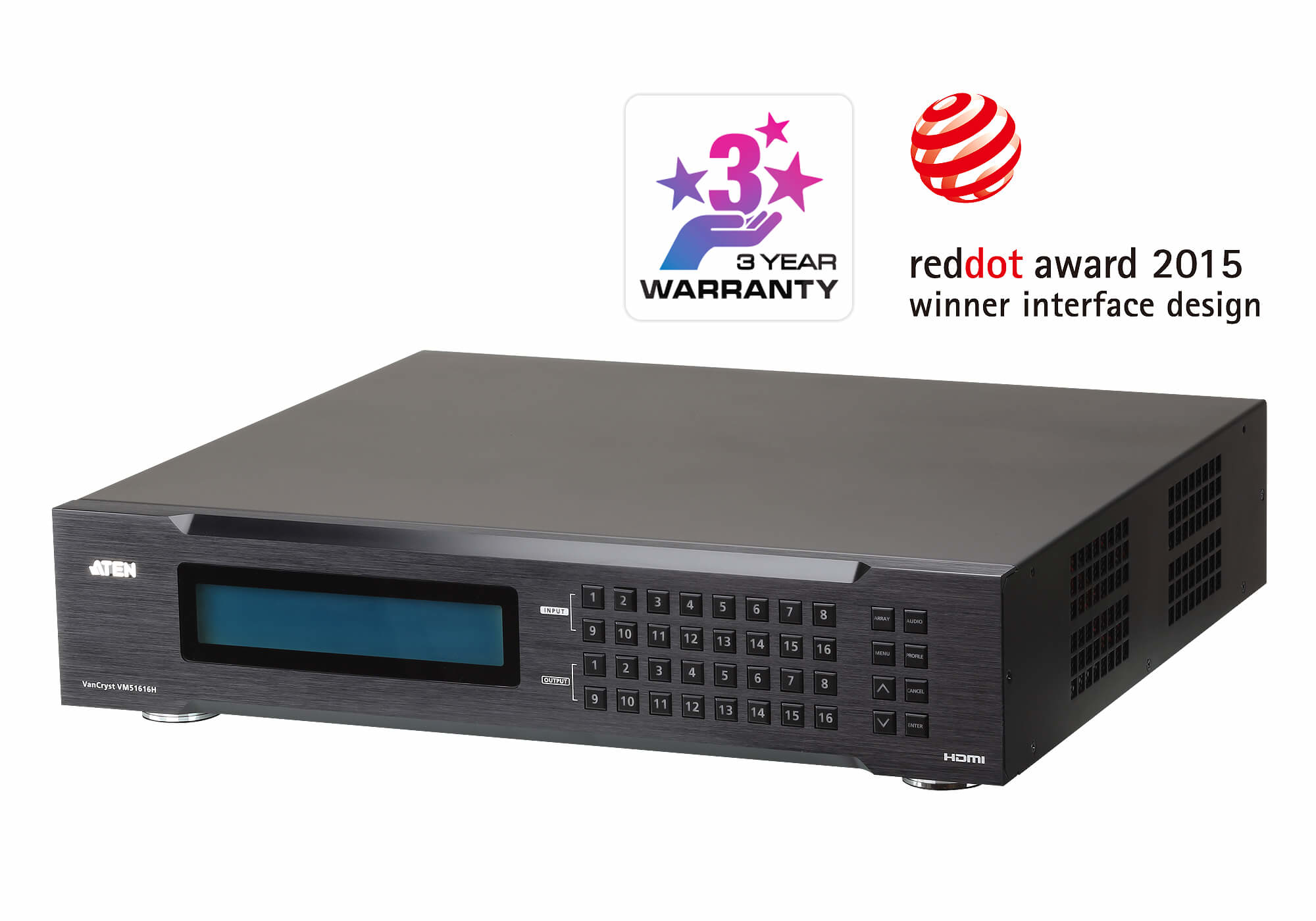

16x16 HDMI Matrix Switch + Videowall + Scaler and seamless switching
Model VM51616HPart no. VM51616H-AT-GEAN 4719264646072
42 specifications
- TypeScaling matrix switcher
- Weight8.09 kg
- Housing colourBlack
- HDMI input ports quantity16
- Power consumption (max)124.5 W
- Operating temperature (T-T)0 - 40 °C
Overview
- Type
- Scaling matrix switcher
- Weight
- 8.09 kg
- Housing colour
- Black
- HDMI input ports quantity
- 16
- Power consumption (max)
- 124.5 W
- Operating temperature (T-T)
- 0 - 40 °C
- Brand
- ATEN
- Category
- Matrix Switcher
- Model
- VM51616H
- Part number
- VM51616H-AT-G
- EAN / UPC
- 4719264646072
- Also known as
- ATEN 16x16 HDMI Matrix Switch + Videowall + Scaler and seamless switching
Specifications
42 specifications in 9 groups
Features
| Specification | Value |
|---|---|
| Product type | Scaling matrix switcher |
| Data transfer rate | 6.75 Gbit/s |
| Maximum resolution | 1920 x 1080 pixels |
| HDCP | Yes |
| HDCP version | 1.4 |
| 3D | Yes |
| Extended display identification data (EDID) | Yes |
| EDID management | Yes |
Design
| Specification | Value |
|---|---|
| Housing colour | Black |
| Housing material | Metal |
| Rack mounting | Yes |
| Rack capacity | 2U |
| LED indicators | Yes |

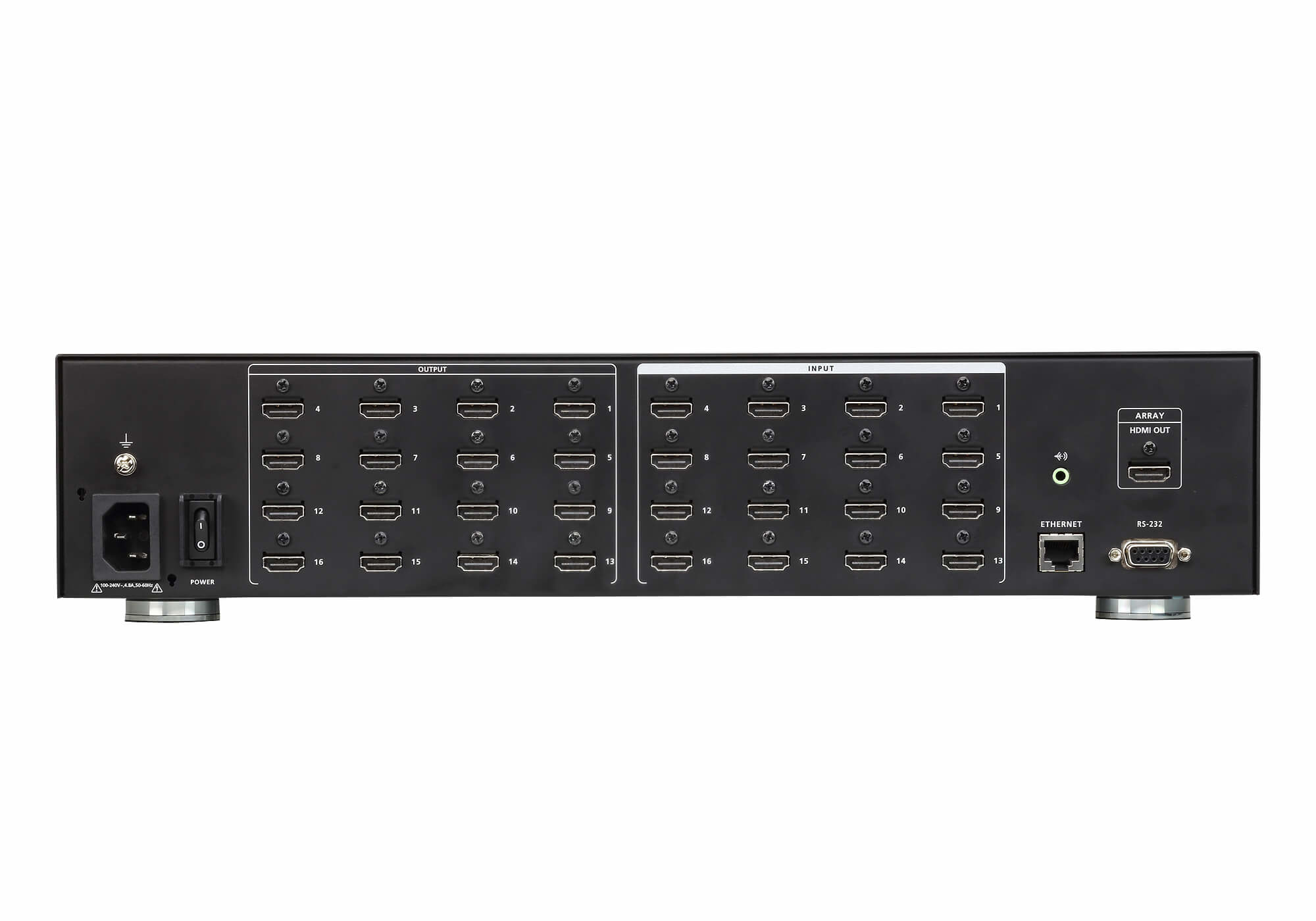

Ports & interfaces
| Specification | Value |
|---|---|
| HDMI input ports quantity | 16 |
| HDMI output ports quantity | 16 |
| RJ-45 input ports | 1 |
| RS-232 ports | 1 |
Power
| Specification | Value |
|---|---|
| Power consumption (max) | 124.5 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 1 A |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85299097 |
| Master (outer) case gross weight | 9.79 kg |
| Master (outer) case height | 175 mm |
| Master (outer) case length | 575 mm |
| Master (outer) case net weight | 8.09 kg |
| Master (outer) case width | 505 mm |
| Products per master (outer) case | 1 pc(s) |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 381.8 mm |
| Depth | 432.4 mm |
| Height | 88 mm |
| Weight | 8.09 kg |
| Package width | 505 mm |
| Package depth | 575 mm |
| Package height | 175 mm |
| Package weight | 9.79 kg |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC |
| Rack mount kit | Yes |
