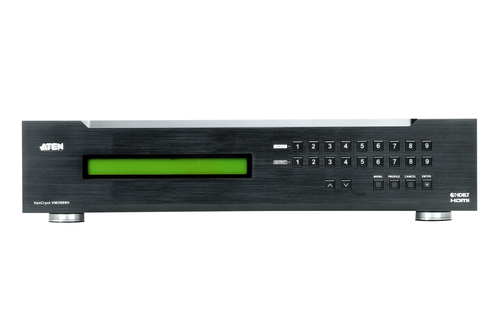

9 x 9 HDMI HDBaseT-Lite (Class B) 4K Matrix Switch
Model VM3909HPart no. VM3909H-AT-GEAN 4719264643484
43 specifications
- TypeAV matrix switcher
- Weight7.56 kg
- Housing colourBlack
- Built-in displayYes
- HDMI input ports quantity9
- Power consumption (max)122 W
Overview
- Type
- AV matrix switcher
- Weight
- 7.56 kg
- Housing colour
- Black
- Built-in display
- Yes
- HDMI input ports quantity
- 9
- Power consumption (max)
- 122 W
- Brand
- ATEN
- Category
- Matrix Switcher
- Model
- VM3909H
- Part number
- VM3909H-AT-G
- EAN / UPC
- 4719264643484
- Also known as
- ATEN 9 x 9 HDMI HDBaseT-Lite (Class B) 4K Matrix Switch
Specifications
43 specifications in 9 groups
Features
| Specification | Value |
|---|---|
| Product type | AV matrix switcher |
| Data transfer rate | 10.2 Gbit/s |
| Maximum pixel clock | 340 MHz |
| Maximum resolution | 4096 x 2160 pixels |
| Bandwidth | 10.2 Gbit/s |
| HDCP | Yes |
| HDCP version | 1.4 |
| 3D | Yes |
| Extended display identification data (EDID) | Yes |
Design
| Specification | Value |
|---|---|
| Housing colour | Black |
| Rack mounting | Yes |
| Rack capacity | 2U |
Display
| Specification | Value |
|---|---|
| Built-in display | Yes |

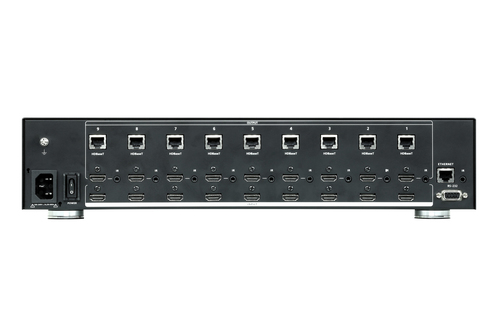

Ports & interfaces
| Specification | Value |
|---|---|
| HDMI input ports quantity | 9 |
| HDMI output ports quantity | 9 |
| RJ-45 input ports | 1 |
| RJ-45 output ports | 9 |
| RS-232 ports | 1 |
Power
| Specification | Value |
|---|---|
| Power consumption (max) | 122 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 1 A |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85299097 |
| Master (outer) case gross weight | 9.24 kg |
| Master (outer) case height | 175 mm |
| Master (outer) case length | 575 mm |
| Master (outer) case net weight | 7.56 kg |
| Master (outer) case width | 505 mm |
| Products per master (outer) case | 1 pc(s) |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 382.3 mm |
| Depth | 432.4 mm |
| Height | 88 mm |
| Weight | 7.56 kg |
| Package width | 505 mm |
| Package depth | 575 mm |
| Package height | 175 mm |
| Package weight | 9.24 kg |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC |
| Rack mount kit | Yes |
| Mounting brackets included | Yes |
