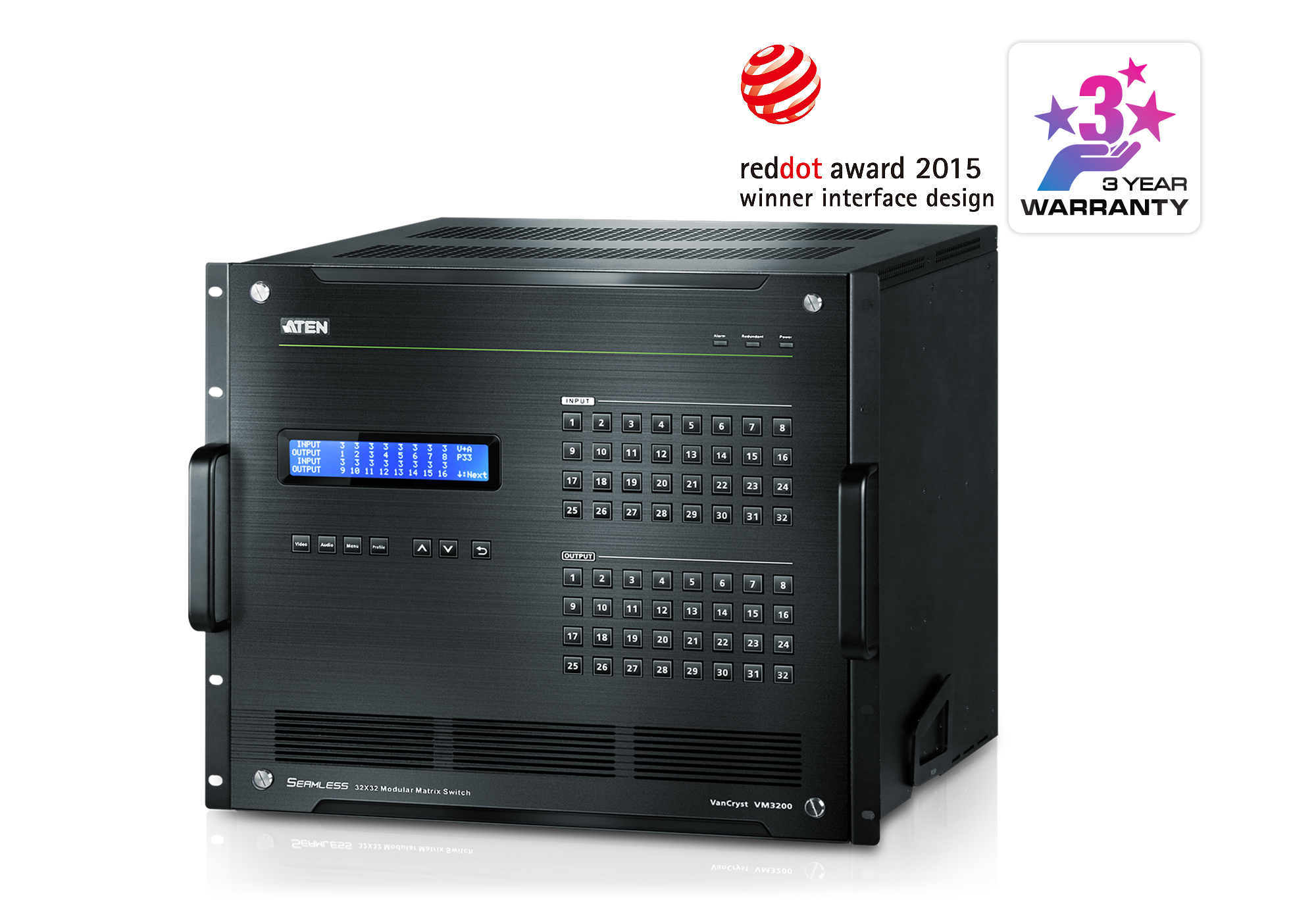

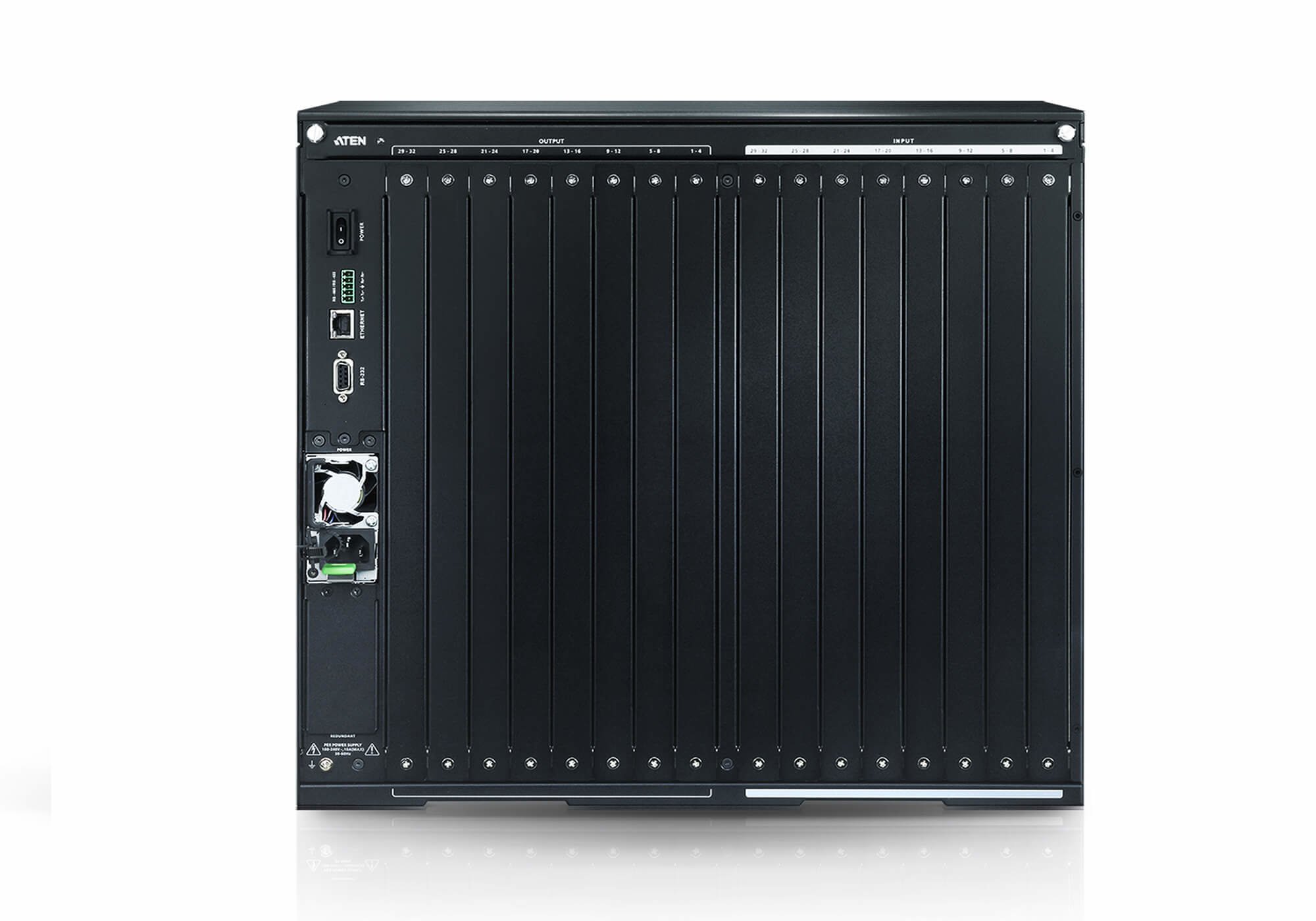

32x32 Digital Modular Matrix – Chassis Only / 9U - High
Model VM3200-AT-GEAN 4719264644870
35 specifications
- TypeScaling matrix switcher
- Weight19.4 kg
- Housing colourBlack
- Built-in displayYes
- RJ-45 output ports1
- Power consumption (max)800 W
Overview
- Type
- Scaling matrix switcher
- Weight
- 19.4 kg
- Housing colour
- Black
- Built-in display
- Yes
- RJ-45 output ports
- 1
- Power consumption (max)
- 800 W
- Brand
- ATEN
- Category
- Matrix Switcher
- Model
- VM3200-AT-G
- Part number
- VM3200-AT-G
- EAN / UPC
- 4719264644870
- Also known as
- ATEN 32x32 Digital Modular Matrix – Chassis Only / 9U - High
Specifications
35 specifications in 9 groups
Features
| Specification | Value |
|---|---|
| Product type | Scaling matrix switcher |
| Data transfer rate | 15.2 Gbit/s |
| Bandwidth | 15.2 Gbit/s |
| Extended display identification data (EDID) | Yes |
| EDID management | Yes |
Design
| Specification | Value |
|---|---|
| Housing colour | Black |
| Housing material | Metal |
| Rack mounting | Yes |
| Rack capacity | 9U |
Display
| Specification | Value |
|---|---|
| Built-in display | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| RJ-45 output ports | 1 |
| RS-232 ports | 1 |
Power
| Specification | Value |
|---|---|
| Power consumption (max) | 800 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 1 A |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85299097 |
| Master (outer) case gross weight | 22.8 kg |
| Master (outer) case height | 526 mm |
| Master (outer) case length | 579 mm |
| Master (outer) case net weight | 19.4 kg |
| Master (outer) case width | 518 mm |
| Products per master (outer) case | 1 pc(s) |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 471.9 mm |
| Depth | 482 mm |
| Height | 399 mm |
| Weight | 19.4 kg |
| Package width | 518 mm |
| Package depth | 579 mm |
| Package height | 526 mm |
| Package weight | 22.8 kg |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC |
