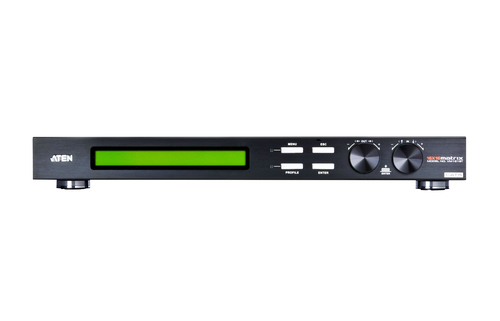

VM1616T-AT-U matrix switcher AV matrix switcher Built-in display
Model VM1616T-AT-U
31 specifications
- TypeAV matrix switcher
- Weight3.63 kg
- Housing colourBlack
- Built-in displayYes
- VGA (D-Sub) output ports1
- AC input voltage100 - 240 V
Overview
- Type
- AV matrix switcher
- Weight
- 3.63 kg
- Housing colour
- Black
- Built-in display
- Yes
- VGA (D-Sub) output ports
- 1
- AC input voltage
- 100 - 240 V
- Brand
- ATEN
- Category
- Matrix Switcher
- Model
- VM1616T-AT-U
- Part number
- VM1616T-AT-U
- Also known as
- ATEN VM1616T-AT-U matrix switcher AV matrix switcher Built-in display
Specifications
31 specifications in 9 groups
Features
| Specification | Value |
|---|---|
| Product type | AV matrix switcher |
| Maximum pixel clock | 500 MHz |
| Maximum resolution | 1920 x 1200 pixels |
| Firmware upgradeable | Yes |
Design
| Specification | Value |
|---|---|
| Housing colour | Black |
| Housing material | Metal |
| Rack mounting | Yes |
| Control type | Buttons |
Display
| Specification | Value |
|---|---|
| Built-in display | Yes |
| Display type | LCD |

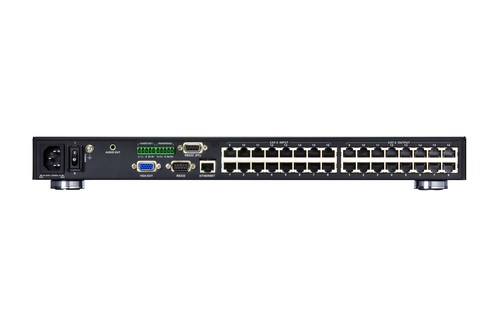

Ports & interfaces
| Specification | Value |
|---|---|
| VGA (D-Sub) output ports | 1 |
| RJ-45 input ports | 16 |
| RJ-45 output ports | 16 |
| Ethernet LAN (RJ-45) ports | 33 |
| RS-232 ports | 2 |
| Analog audio output terminal ports | 1 |
Power
| Specification | Value |
|---|---|
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 1 A |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
Logistics data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 271.2 mm |
| Depth | 432.4 mm |
| Height | 44 mm |
| Weight | 3.63 kg |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC |
| Rack mount kit | Yes |
| Manual | Yes |
| Mounting brackets included | Yes |
