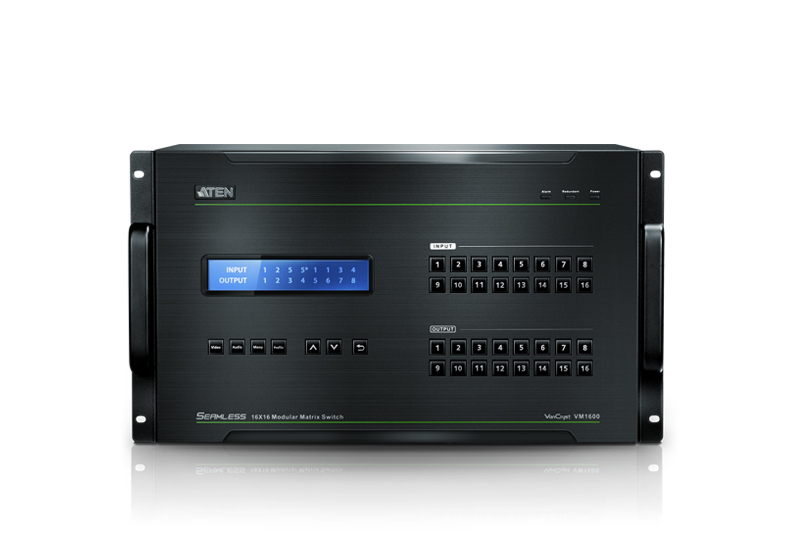

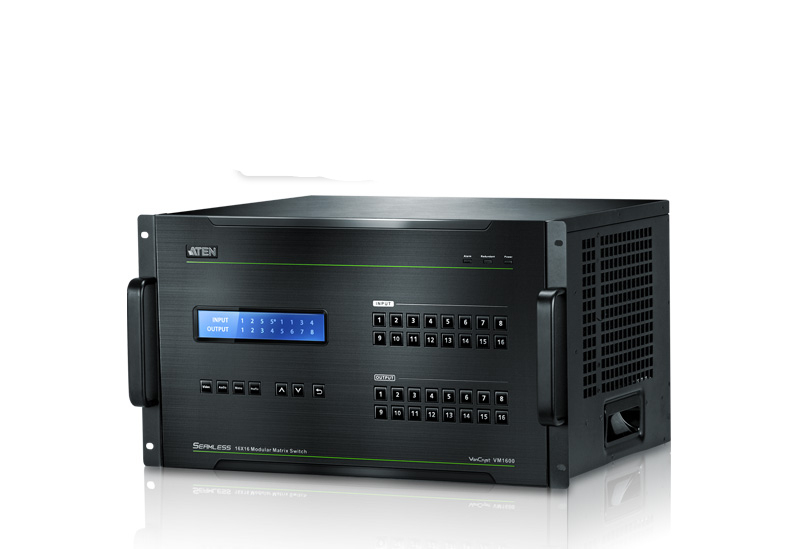

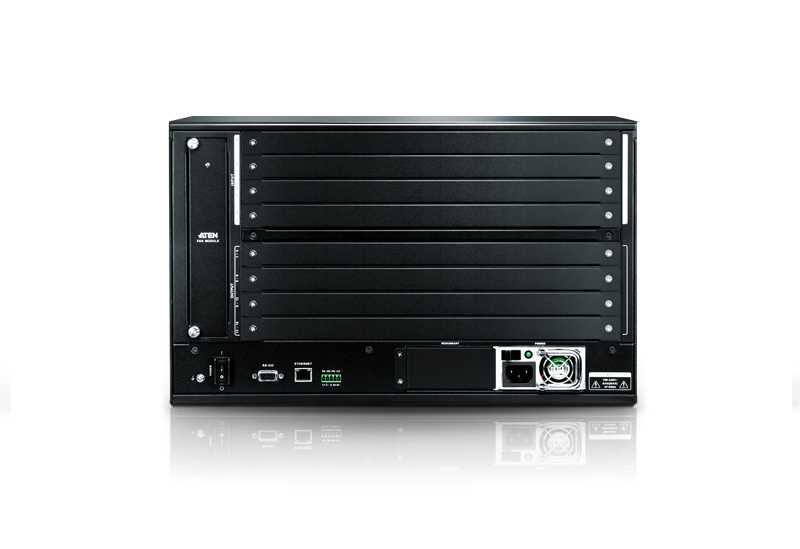

VM1600-AT-G matrix switcher Modular AV matrix switchers Built-in display
378 W
Model VM1600-AT-GEAN 4719264641244
33 specifications
- TypeModular AV matrix switchers
- Weight17 kg
- Housing colourBlack
- Built-in displayYes
- Ethernet LAN (RJ-45) ports1
- Power consumption (max)378 W
Overview
- Type
- Modular AV matrix switchers
- Weight
- 17 kg
- Housing colour
- Black
- Built-in display
- Yes
- Ethernet LAN (RJ-45) ports
- 1
- Power consumption (max)
- 378 W
- Brand
- ATEN
- Category
- Matrix Switcher
- Model
- VM1600-AT-G
- Part number
- VM1600-AT-G
- EAN / UPC
- 4719264641244
- Also known as
- ATEN VM1600-AT-G matrix switcher Modular AV matrix switchers Built-in display 378 W
Specifications
33 specifications in 8 groups
Features
| Specification | Value |
|---|---|
| Product type | Modular AV matrix switchers |
| Maximum pixel clock | 340 MHz |
| Maximum resolution | 4096 x 2160 pixels |
| HDCP | Yes |
| HDCP version | 2.2 |
| 3D | Yes |
| Extended display identification data (EDID) | Yes |
| Number of fans | 1 fan(s) |
| Supported resolutions | 4096 x 2160, 3840 x 2160 |
Design
| Specification | Value |
|---|---|
| Housing colour | Black |
| Housing material | Metal |
| Rack mounting | Yes |
| Rack capacity | 6U |
| Control type | Buttons |
| Cooling type | Active |
Display
| Specification | Value |
|---|---|
| Built-in display | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| RS-232 ports | 1 |
| RS-422 ports | 1 |
Power
| Specification | Value |
|---|---|
| Power consumption (max) | 378 W |
| AC input voltage | 100-240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 1 A |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Storage relative humidity (H-H) | 0 - 80% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 482.2 mm |
| Depth | 399 mm |
| Height | 265.9 mm |
| Weight | 17 kg |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC |
| Manual | Yes |
