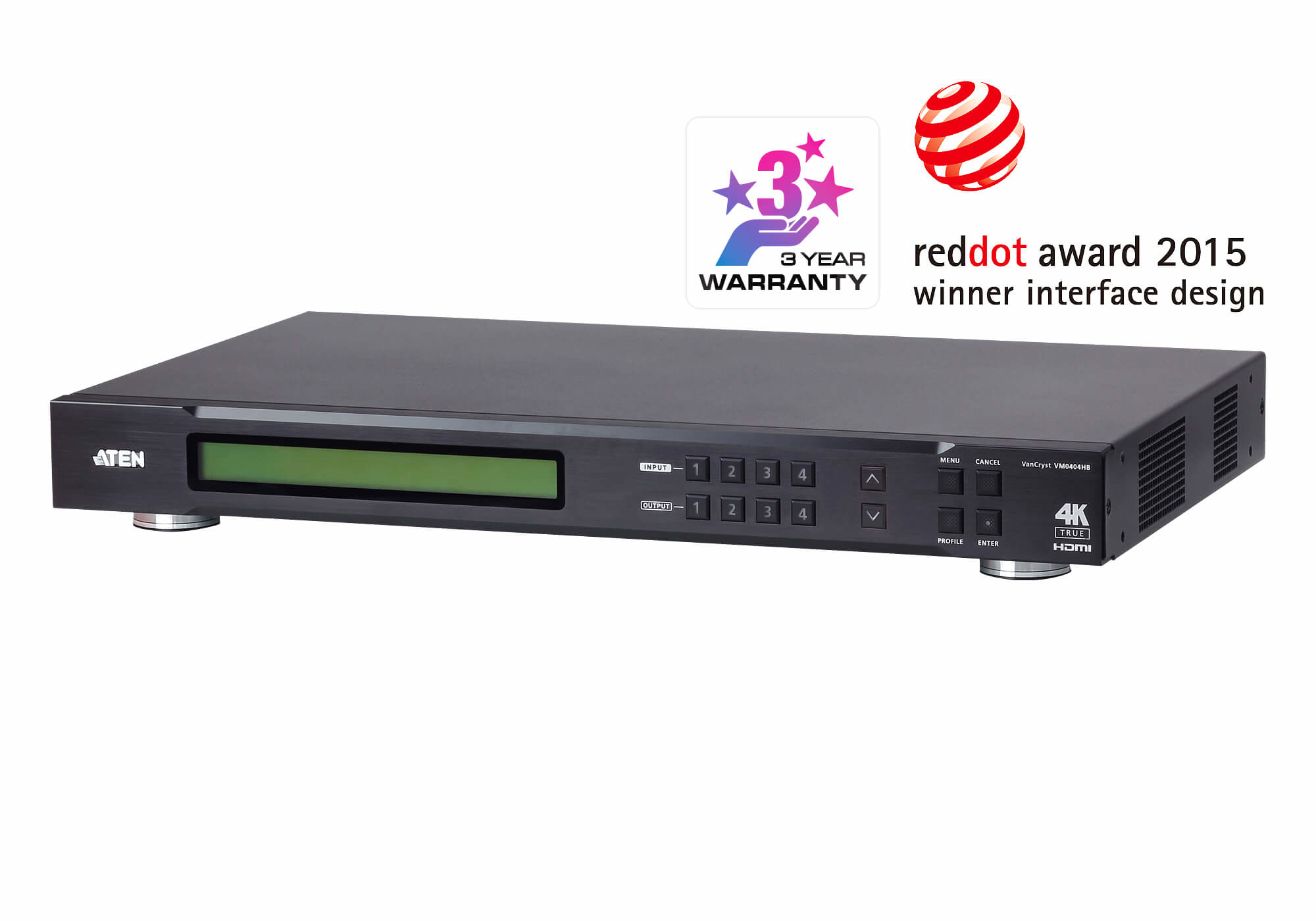

4X4 True 4K HDMI Martrix Switch
Model VM0404HBPart no. VM0404HB-AT-GEAN 4719264646829
41 specifications
- TypeAV matrix switcher
- Weight2.75 kg
- Housing colourBlack
- Built-in displayYes
- HDMI input ports quantity4
- Power consumption (max)17.8 W
Overview
- Type
- AV matrix switcher
- Weight
- 2.75 kg
- Housing colour
- Black
- Built-in display
- Yes
- HDMI input ports quantity
- 4
- Power consumption (max)
- 17.8 W
- Brand
- ATEN
- Category
- Matrix Switcher
- Model
- VM0404HB
- Part number
- VM0404HB-AT-G
- EAN / UPC
- 4719264646829
- Also known as
- ATEN 4X4 True 4K HDMI Martrix Switch
Specifications
41 specifications in 9 groups
Features
| Specification | Value |
|---|---|
| Product type | AV matrix switcher |
| Data transfer rate | 18 Gbit/s |
| Maximum pixel clock | 600 MHz |
| Maximum resolution | 4096 x 2160 pixels |
| HDCP | Yes |
| HDCP version | 2.2 |
| 3D | Yes |
| EDID management | Yes |
Design
| Specification | Value |
|---|---|
| Housing colour | Black |
| Housing material | Metal |
| Rack capacity | 1U |
| Remote control included | Yes |

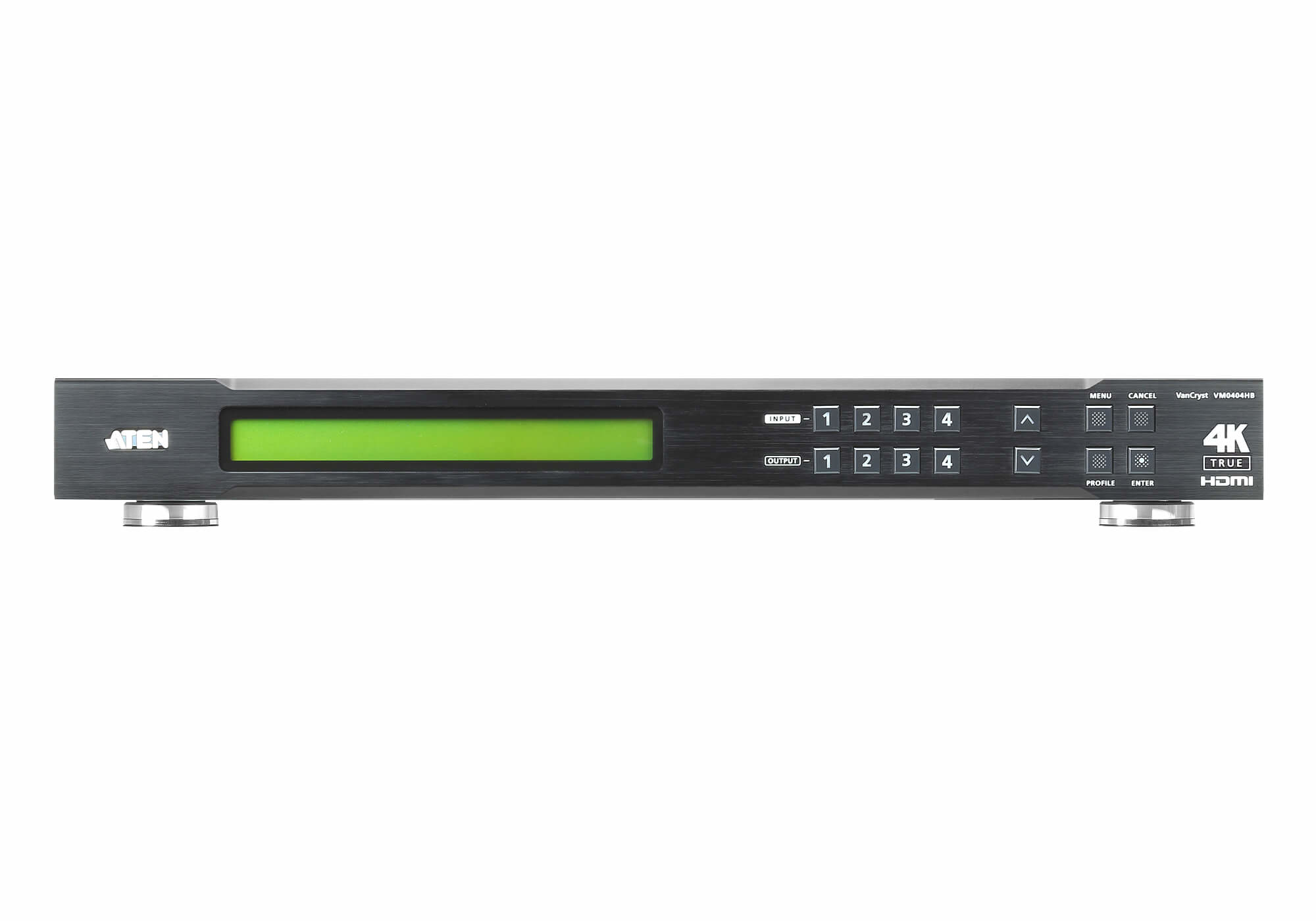

Display
| Specification | Value |
|---|---|
| Built-in display | Yes |

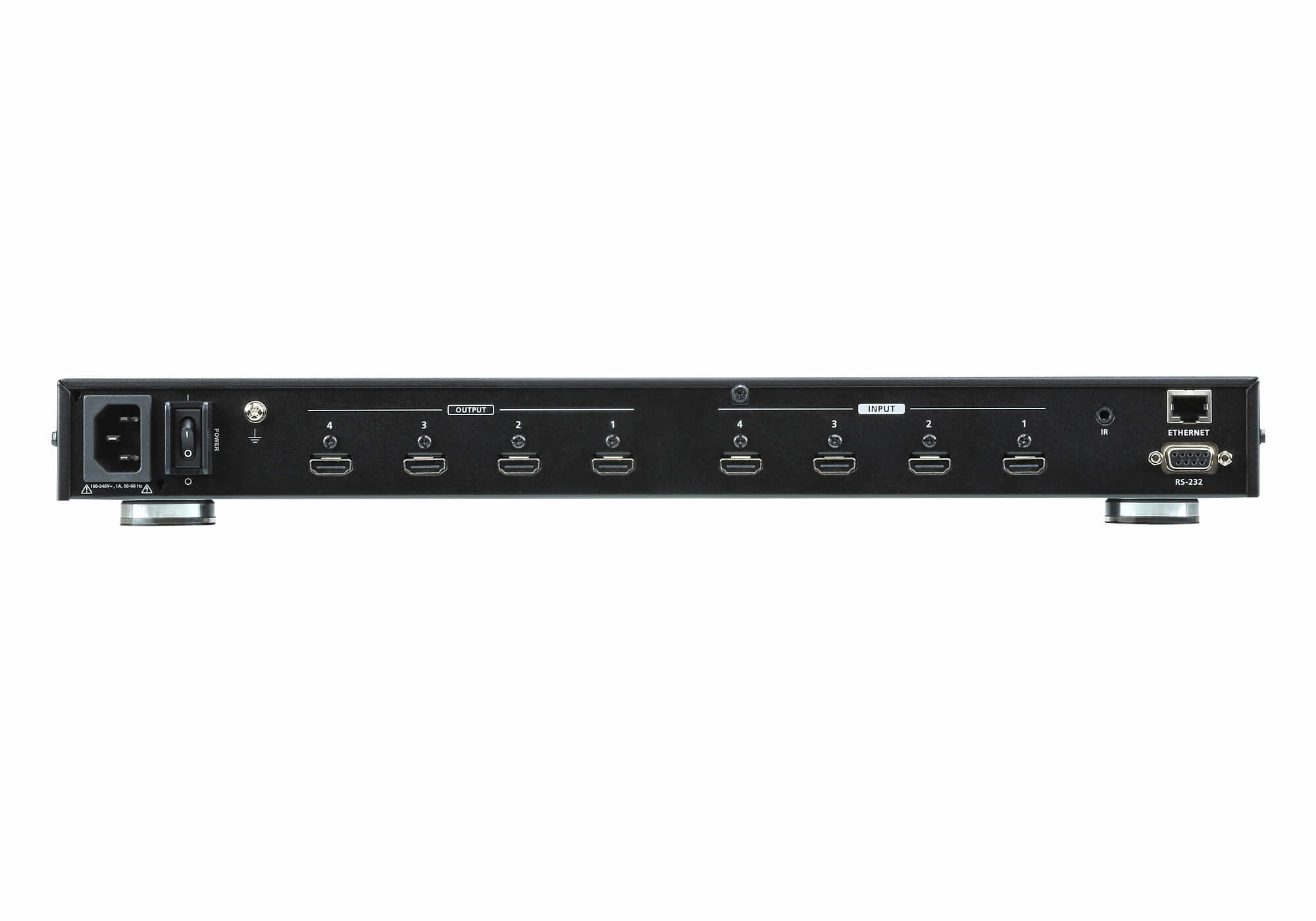

Ports & interfaces
| Specification | Value |
|---|---|
| HDMI input ports quantity | 4 |
| HDMI output ports quantity | 4 |
| RJ-45 input ports | 1 |
| RS-232 ports | 1 |
Power
| Specification | Value |
|---|---|
| Power consumption (max) | 17.8 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 1 A |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85299097 |
| Master (outer) case gross weight | 3.76 kg |
| Master (outer) case height | 153 mm |
| Master (outer) case length | 556 mm |
| Master (outer) case net weight | 2.75 kg |
| Master (outer) case width | 247 mm |
| Products per master (outer) case | 1 pc(s) |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 152.8 mm |
| Depth | 437.2 mm |
| Height | 44 mm |
| Weight | 2.75 kg |
| Package width | 247 mm |
| Package depth | 556 mm |
| Package height | 153 mm |
| Package weight | 3.76 kg |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC |
| Mounting brackets included | Yes |
