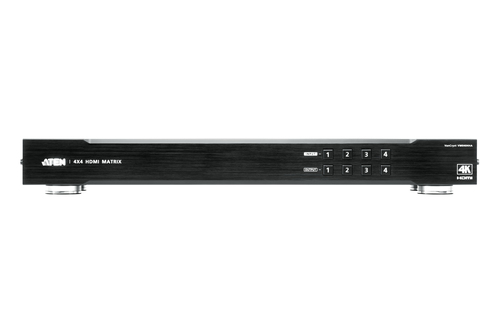

ATEN 4 x 4 4K HDMI Audio/Video Matrix Switch: Full Specifications

Overview

Type: AV matrix switcher
Weight: 2.51 kg
Housing colour: Black
Built-in display: No
HDMI input ports quantity: 4
Power consumption (max): 9.62 W

Brand: ATEN
Category: Matrix Switcher
Model: VM0404HA
Part number: VM0404HA-AT-G
EAN / UPC: 4719264643873
Also known as: ATEN 4 x 4 4K HDMI Audio/Video Matrix Switch

Specifications

44 specifications in 10 groups

Features

Specification	Value
Product type	AV matrix switcher
Data transfer rate	10.2 Gbit/s
Maximum pixel clock	340 MHz
Maximum resolution	4096 x 2160 pixels
HDCP	Yes
HDCP version	1.4
3D	Yes
Extended display identification data (EDID)	Yes

Design

Specification	Value
Housing colour	Black
Housing material	Metal
Rack mounting	Yes
Remote control included	Yes

Display

Specification	Value
Built-in display	No

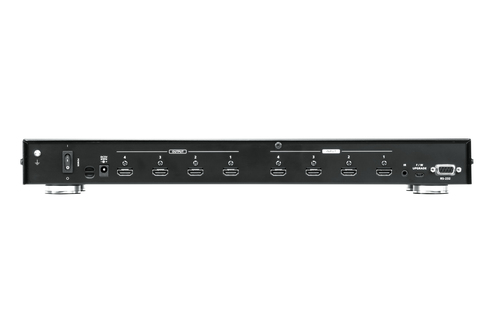

Ports & interfaces

Specification	Value
HDMI input ports quantity	4
HDMI output ports quantity	4
USB connector type	Micro-USB
USB ports quantity	1
RS-232 ports	1
Remote (IR) input	1
DC-in jack	Yes

Power

Specification	Value
Power consumption (max)	9.62 W

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	0 - 80%

Logistics data

Specification	Value
Harmonized System (HS) code	85299097
Master (outer) case gross weight	9.54 kg
Master (outer) case height	258 mm
Master (outer) case length	565 mm
Master (outer) case net weight	7.53 kg
Master (outer) case width	375 mm
Products per master (outer) case	3 pc(s)

Technical details

Specification	Value
Compliance certificates	RoHS

Weight & dimensions

Specification	Value
Width	162.9 mm
Depth	437.2 mm
Height	44 mm
Weight	2.51 kg
Package width	116 mm
Package depth	540 mm
Package height	233 mm
Package weight	2.9 kg

Packaging content

Specification	Value
Rack mount kit	Yes
Manual	Yes
Mounting brackets included	Yes
AC adapter included	Yes
