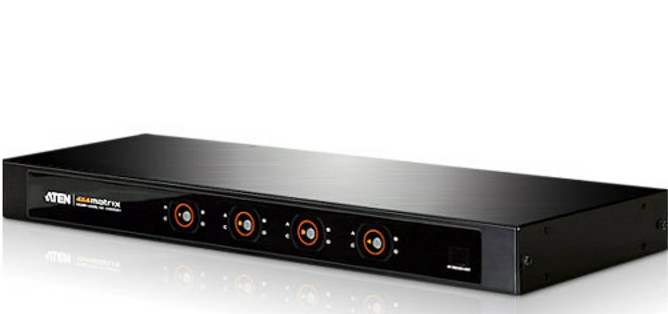

VM0404H-AT-G matrix switcher AV matrix switcher
9 W
Model VM0404H-AT-G
23 specifications
- TypeAV matrix switcher
- Weight1.86 kg
- Housing materialMetal
- Built-in displayNo
- HDMI input ports quantity4
- Power consumption (max)9 W
Overview
- Type
- AV matrix switcher
- Weight
- 1.86 kg
- Housing material
- Metal
- Built-in display
- No
- HDMI input ports quantity
- 4
- Power consumption (max)
- 9 W
- Brand
- ATEN
- Category
- Matrix Switcher
- Model
- VM0404H-AT-G
- Part number
- VM0404H-AT-G
- Also known as
- ATEN VM0404H-AT-G matrix switcher AV matrix switcher 9 W
Specifications
23 specifications in 8 groups
Features
| Specification | Value |
|---|---|
| Product type | AV matrix switcher |
| Data transfer rate | 6.75 Gbit/s |
| Maximum pixel clock | 225 MHz |
| HDCP | Yes |
| HDCP version | 1.4 |
| 3D | Yes |
Design
| Specification | Value |
|---|---|
| Housing material | Metal |
Display
| Specification | Value |
|---|---|
| Built-in display | No |
Ports & interfaces
| Specification | Value |
|---|---|
| HDMI input ports quantity | 4 |
| HDMI output ports quantity | 4 |
| RS-232 ports | 1 |
| DC-in jack | Yes |
Power
| Specification | Value |
|---|---|
| Power consumption (max) | 9 W |
| Output voltage | 5.3 V |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Storage relative humidity (H-H) | 0 - 80% |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85299097 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 437 mm |
| Depth | 159.6 mm |
| Height | 44 mm |
| Weight | 1.86 kg |
