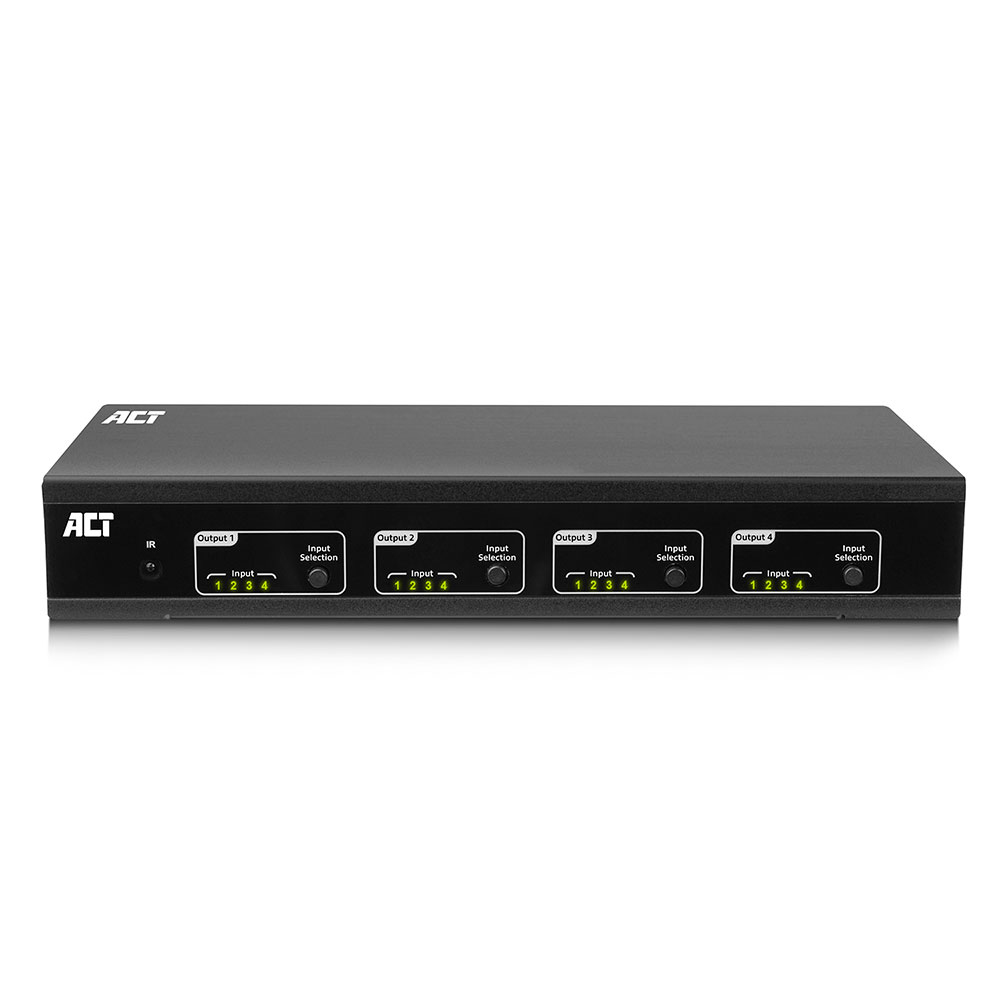

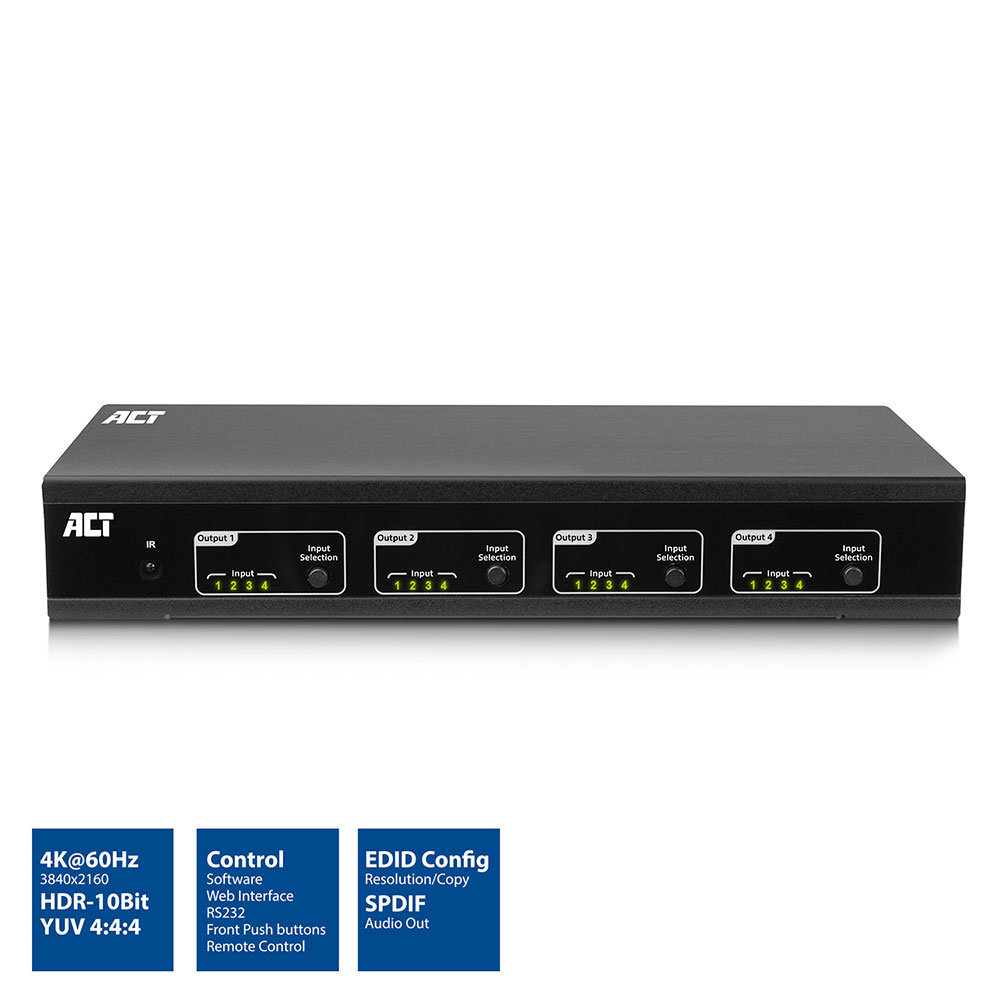

AC7860 HDMI 4K Matrix Switch
4x4, IP, RS232, remote controle, software
Model AC7860EAN 8716065399479
34 specifications
- TypeAV matrix switcher
- Weight1.06 kg
- Housing colourBlack
- Built-in displayNo
- HDMI input ports quantity4
- Power consumption (max)15 W
Overview
- Type
- AV matrix switcher
- Weight
- 1.06 kg
- Housing colour
- Black
- Built-in display
- No
- HDMI input ports quantity
- 4
- Power consumption (max)
- 15 W
- Brand
- ACT
- Category
- Matrix Switcher
- Model
- AC7860
- Part number
- AC7860
- EAN / UPC
- 8716065399479
- Also known as
- ACT AC7860 HDMI 4K Matrix Switch 4x4, IP, RS232, remote controle, software
Specifications
34 specifications in 8 groups
Features
| Specification | Value |
|---|---|
| Product type | AV matrix switcher |
| Data transfer rate | 18 Gbit/s |
| Maximum resolution | 3840 x 2160 pixels |
| HDCP | Yes |
| 3D | Yes |
| High Dynamic Range (HDR) supported | Yes |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Extended display identification data (EDID) | Yes |
Design
| Specification | Value |
|---|---|
| Housing colour | Black |
| Housing material | Metal |
| LED indicators | Status |

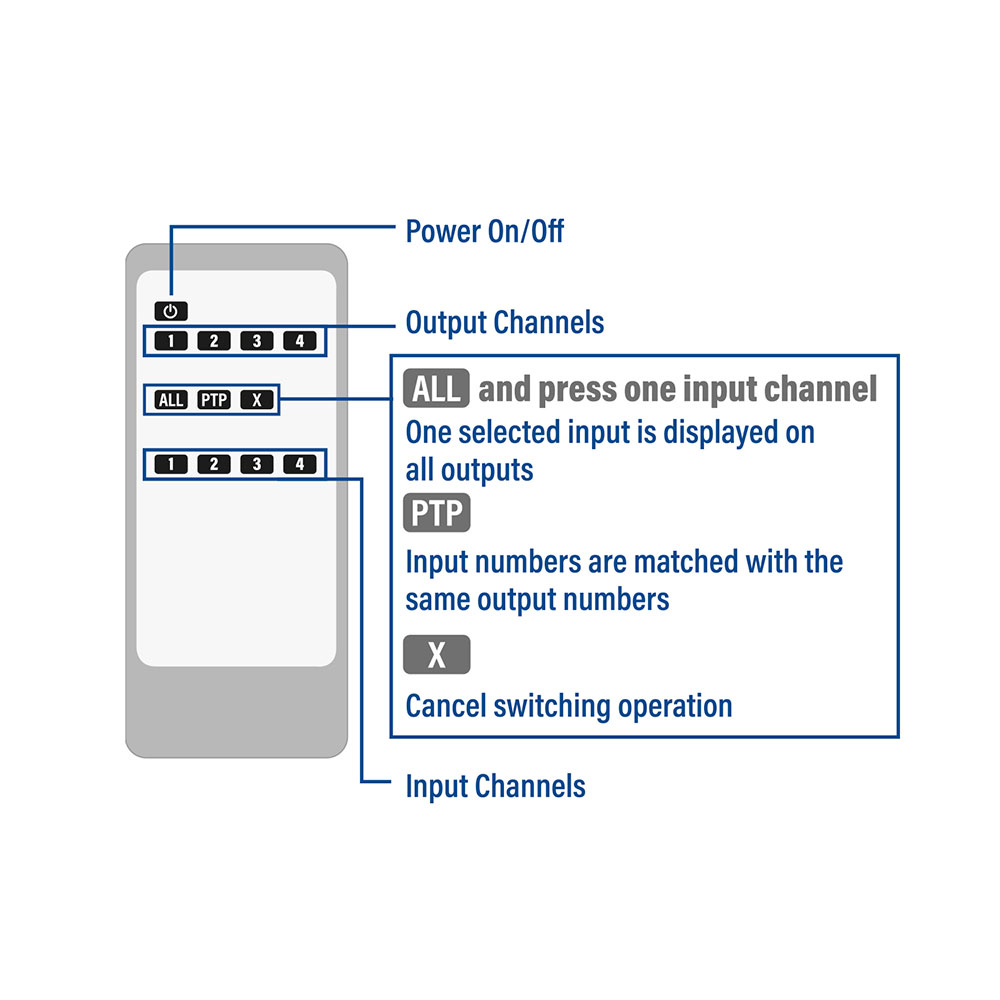

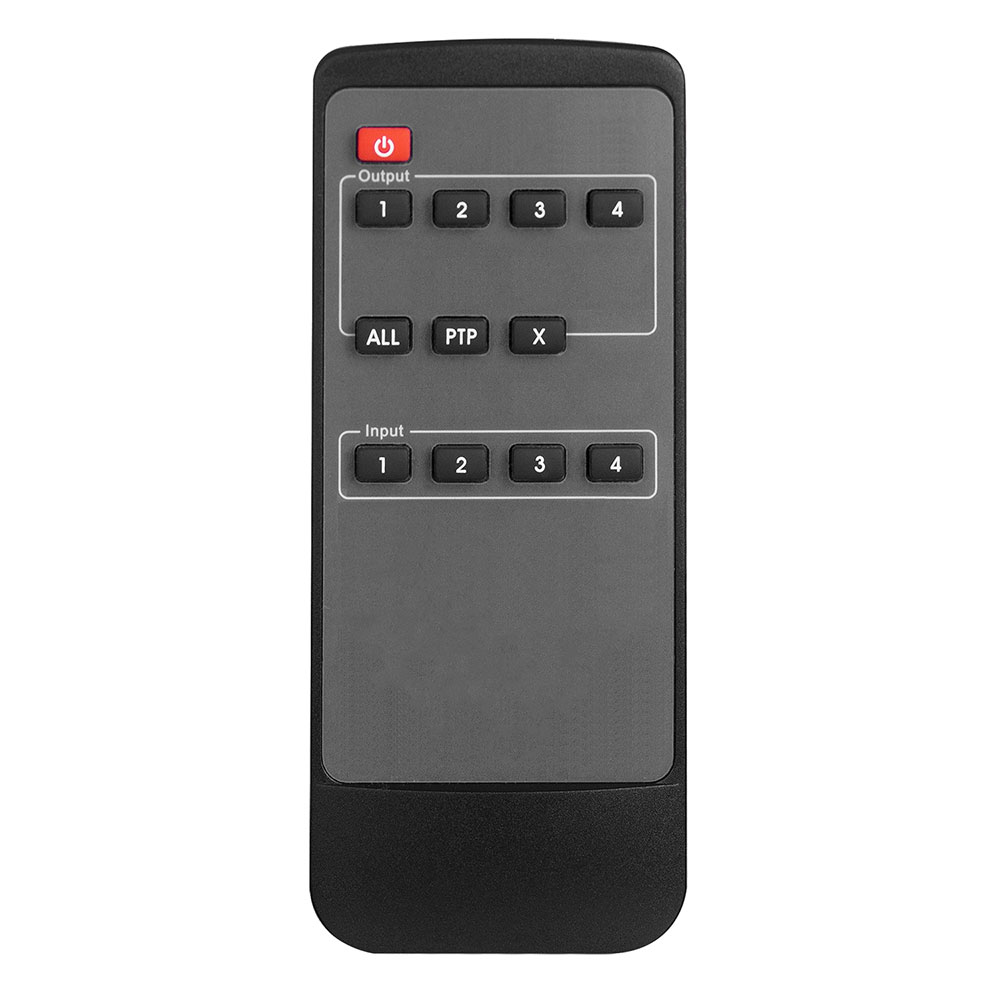

| Remote control included | Yes |
Display
| Specification | Value |
|---|---|
| Built-in display | No |

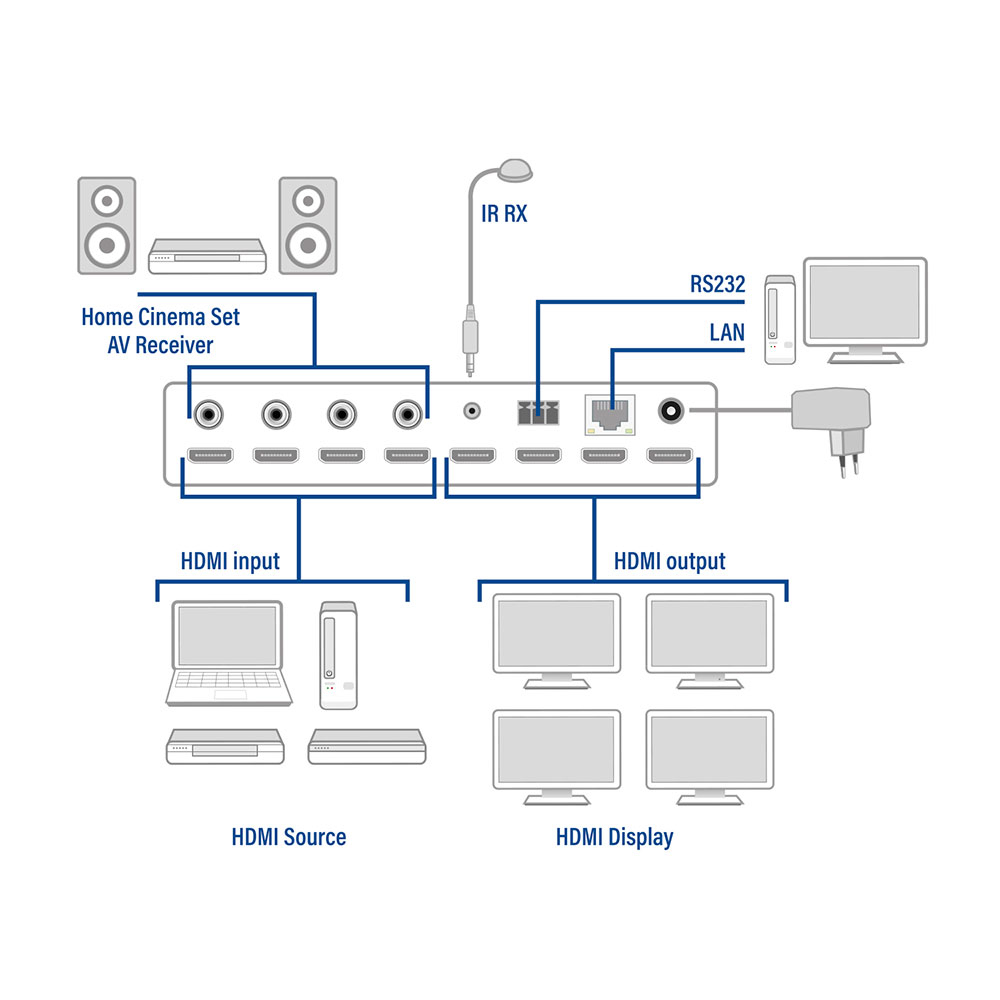

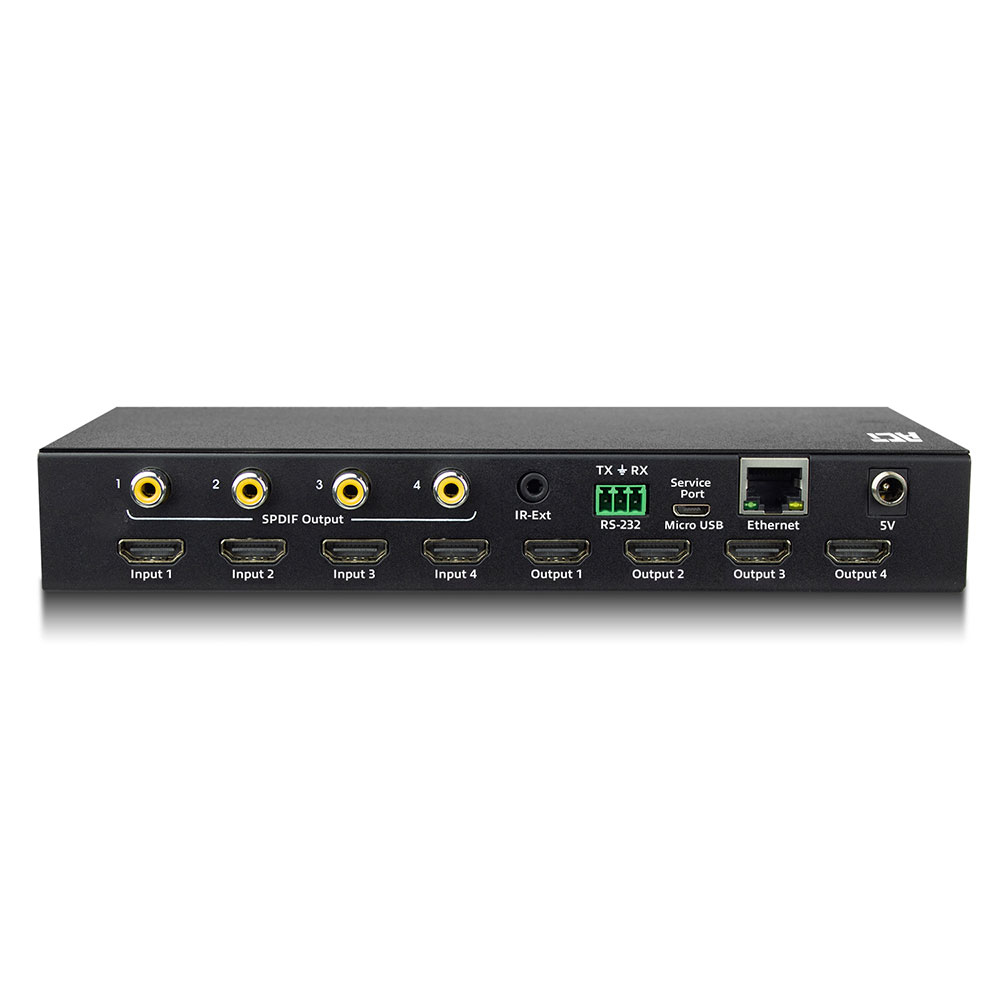

Ports & interfaces
| Specification | Value |
|---|---|
| HDMI input ports quantity | 4 |
| HDMI output ports quantity | 4 |
| HDMI version | 2.0 |
| Digital audio optical out | 4 |
| USB connector type | Micro-USB A |
| USB ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| RS-232 ports | 1 |
| Remote (IR) input | 1 |
| DC-in jack | Yes |
Power
| Specification | Value |
|---|---|
| Power consumption (max) | 15 W |
| AC input voltage | 5 V |
| Input current | 3 A |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85299097 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 255 mm |
| Depth | 204 mm |
| Height | 60 mm |
| Weight | 1.06 kg |

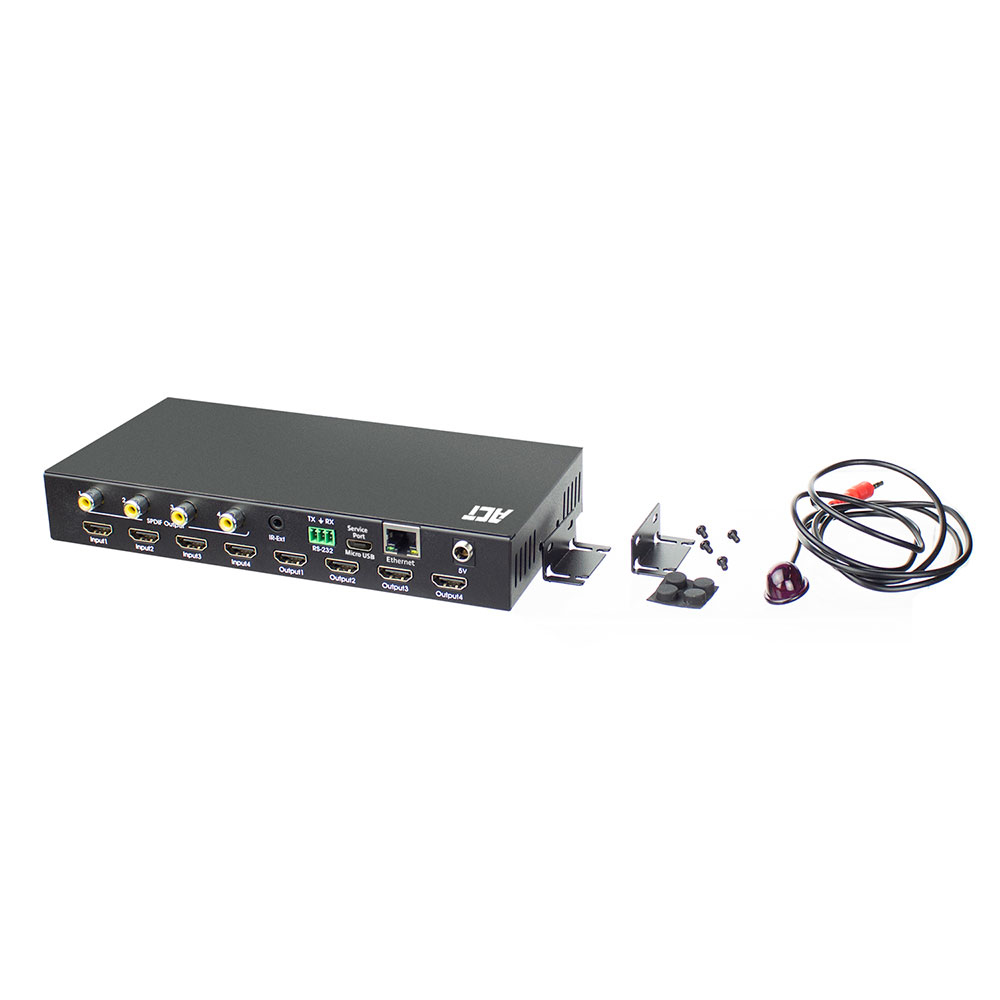

Packaging content
| Specification | Value |
|---|---|
| Cables included | IR |
| Rack mount kit | Yes |
| AC adapter included | Yes |
