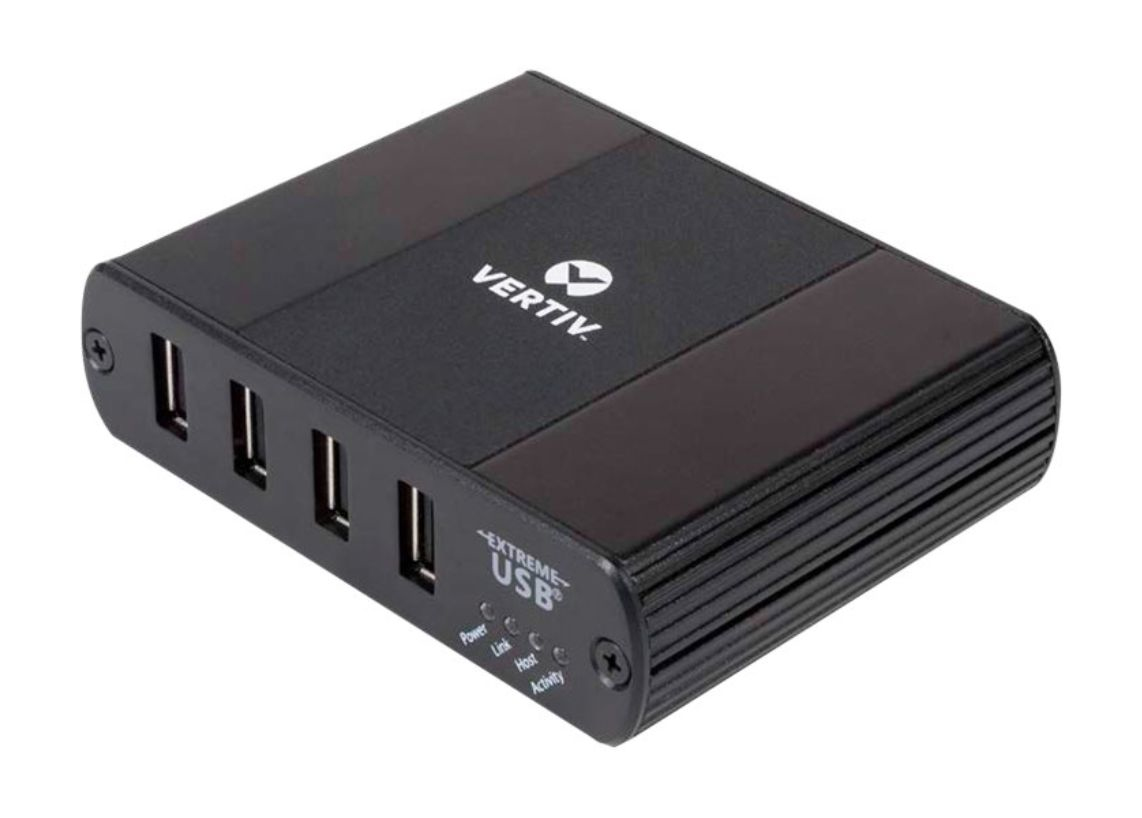

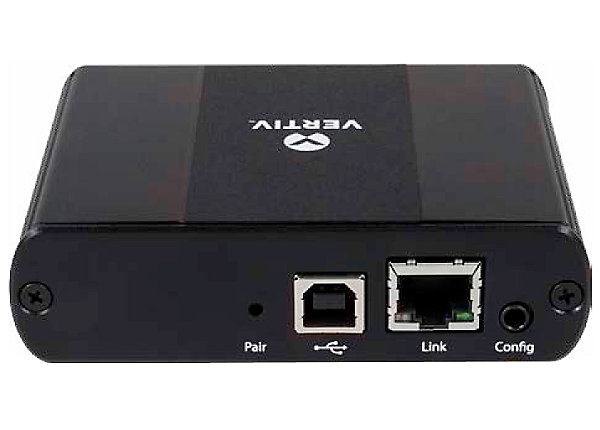

Avocent USB6000RX
Model USB6000RXEAN 636430085913
26 specifications
- ConnectivityWired
- TypeReceiver
- Weight200 g
- ColourBlack
- RJ-45 ports quantity (receiver)1
- USB 2.0 ports quantity4
Overview
- Connectivity
- Wired
- Type
- Receiver
- Weight
- 200 g
- Colour
- Black
- RJ-45 ports quantity (receiver)
- 1
- USB 2.0 ports quantity
- 4
- Brand
- Vertiv
- Category
- KVM Extender
- Model
- USB6000RX
- Part number
- USB6000RX
- EAN / UPC
- 636430085913
- Also known as
- Vertiv Avocent USB6000RX
Specifications
26 specifications in 9 groups
Features
| Specification | Value |
|---|---|
| Type | Receiver |
| Connectivity technology | Wired |
| Maximum transfer distance | 100 m |
| Product colour | Black |
| Material | Metal |
| Easy to install | Yes |
| Plug and Play | Yes |
| Certification | CE FCC |
Receiver
| Specification | Value |
|---|---|
| RJ-45 ports quantity (receiver) | 1 |
| Receiver local keyboard/mouse port type | USB |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
Power
| Specification | Value |
|---|---|
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 0.7 A |
| AC adapter output voltage | 24 V |
Weight & dimensions
| Specification | Value |
|---|---|
| Receiver width | 10 cm |
| Receiver depth | 7.6 cm |
| Receiver height | 2.6 cm |
| Receiver weight | 200 g |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Quick installation guide | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
Technical details
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 100 x 76 x 26 mm |
| Power requirements | AC |
| Weight | 200 g |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84733080 |
