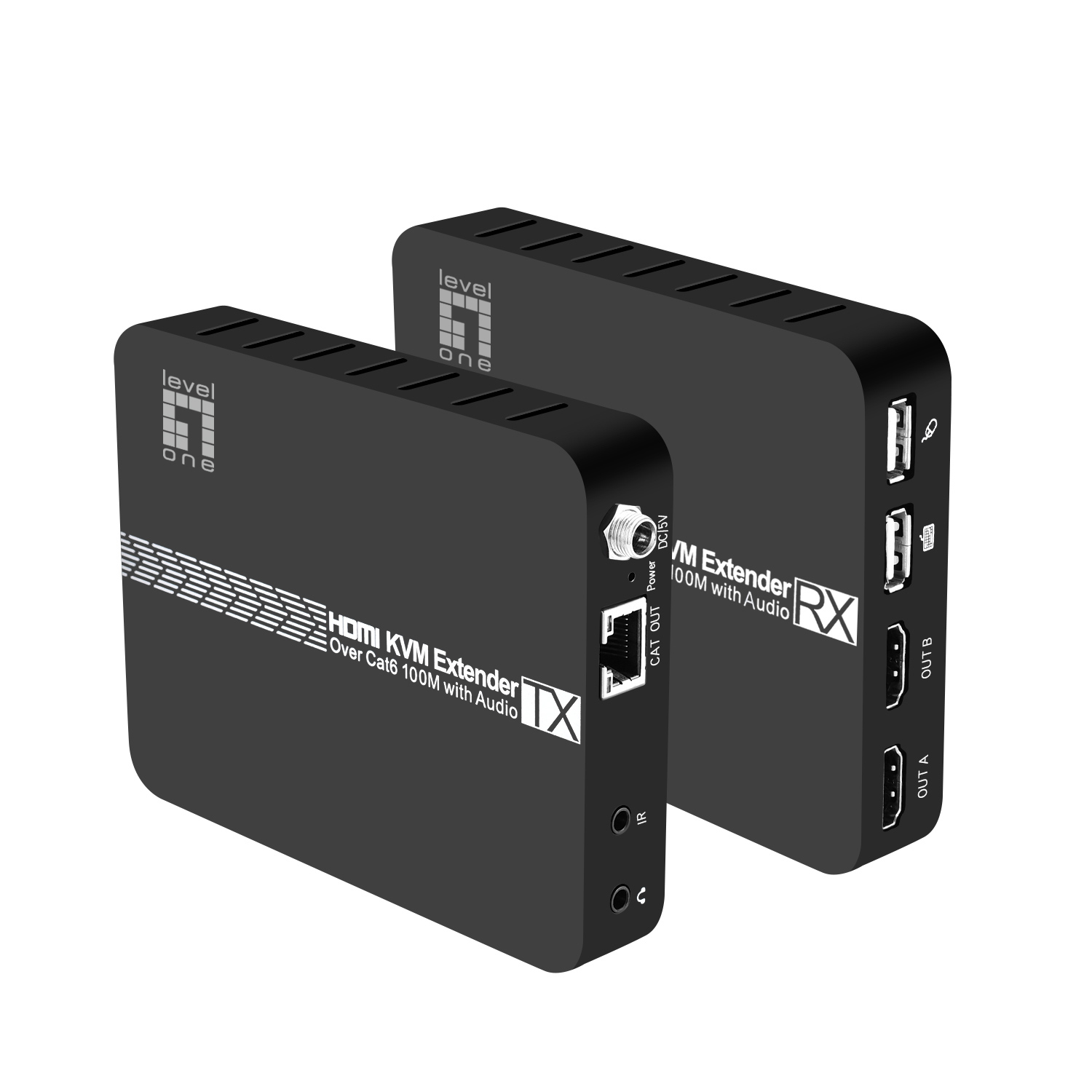

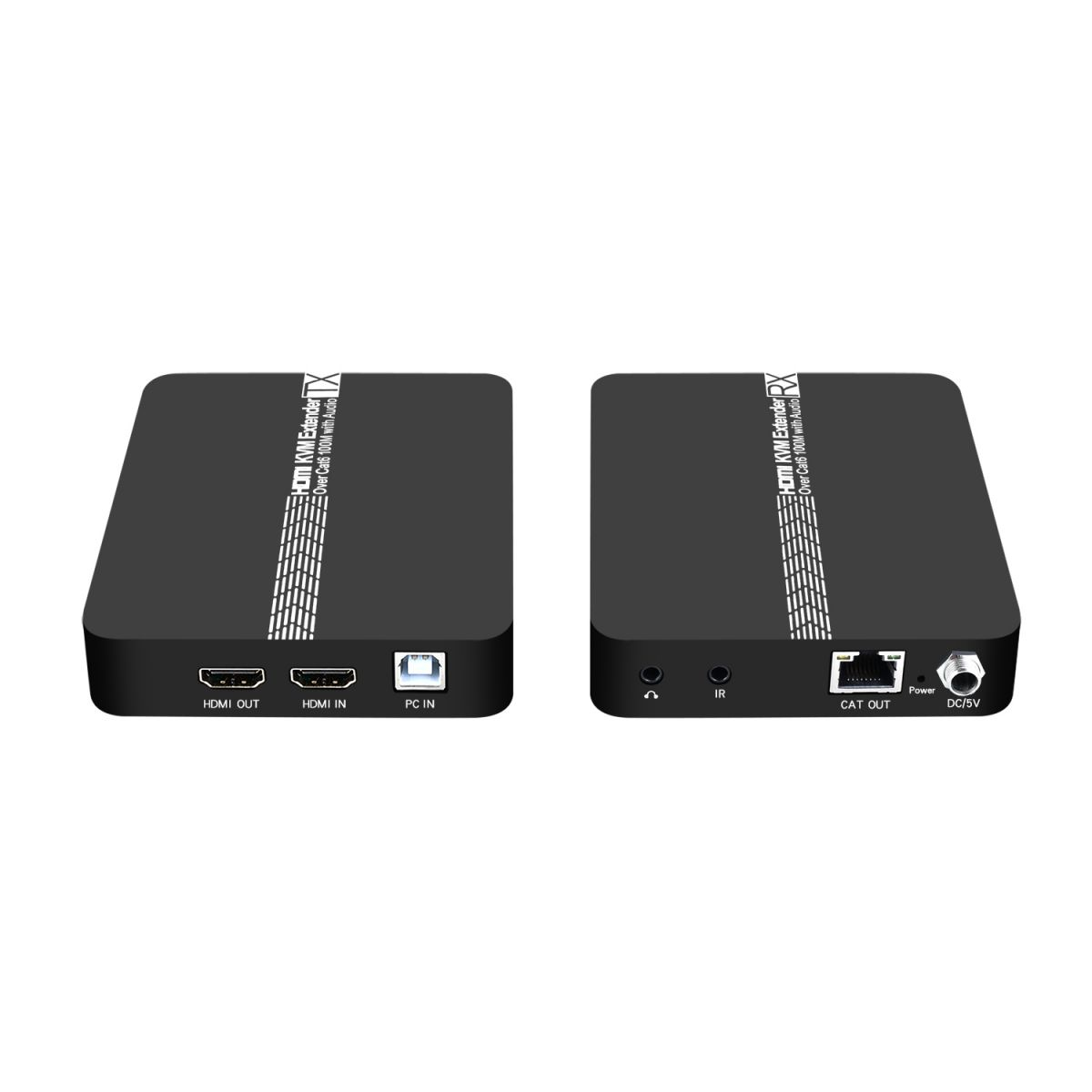

HDMI over Cat.5/6 Extender kit 4K,100 Meter, USB extension
Model HVE-8110EAN 846359056639
52 specifications
- ConnectivityWired
- TypeAV transmitter & receiver
- ColourBlack
- Transmitter video port typeHDMI
- RJ-45 ports quantity (receiver)1
- HDMI version1.4
Overview
- Connectivity
- Wired
- Type
- AV transmitter & receiver
- Colour
- Black
- Transmitter video port type
- HDMI
- RJ-45 ports quantity (receiver)
- 1
- HDMI version
- 1.4
- Brand
- LevelOne
- Category
- KVM Extender
- Model
- HVE-8110
- Part number
- HVE-8110
- EAN / UPC
- 846359056639, 4015867227763
- Also known as
- LevelOne HDMI over Cat.5/6 Extender kit 4K,100 Meter, USB extension
Specifications
52 specifications in 13 groups
Features
| Specification | Value |
|---|---|
| Type | AV transmitter & receiver |
| Connectivity technology | Wired |
| Maximum transfer distance | 100 m |
| Cable types supported | Cat5e, Cat6 |
| Maximum digital resolution | 3804 x 2160 pixels |
| Product colour | Black |
| Audio support | No |
Transmitter
| Specification | Value |
|---|---|
| Transmitter video port type | HDMI |
| Transmitter local video port | Yes |
| Transmitter local video port type | HDMI |
| Number of displays supported | 1 |
| RJ-45 ports quantity (transmitter) | 1 |
Receiver
| Specification | Value |
|---|---|
| RJ-45 ports quantity (receiver) | 1 |
| Receiver local keyboard/mouse port type | USB |
| Receiver local video port type | HDMI |
| Receiver local video ports quantity | 2 |
Ports & interfaces
| Specification | Value |
|---|---|
| HDMI version | 1.4 |
Power
| Specification | Value |
|---|---|
| Power consumption (transmitter) (max) | 20 W |
| Power consumption (receiver) (max) | 20 W |
| DC voltage | 5 V |
| DC-in jack | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Transmitter width | 10 cm |
| Transmitter depth | 13 cm |
| Transmitter height | 2.2 cm |
| Transmitter weight | 370 g |
| Receiver width | 10 cm |
| Receiver depth | 13 cm |
| Receiver height | 2.2 cm |
| Receiver weight | 370 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 143 mm |
| Package depth | 74 mm |
| Package height | 200 mm |
| Package weight | 1 kg |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Cables included | USB |
| Manual | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Storage relative humidity (H-H) | 0 - 90% |
Sustainability
| Specification | Value |
|---|---|
| Sustainability compliance | Yes |
Other features
| Specification | Value |
|---|---|
| Compliance certificates | CE, Federal Communications Commission (FCC) |
Technical details
| Specification | Value |
|---|---|
| Maximum resolution | 3840 x 2160 pixels |
Logistics data
| Specification | Value |
|---|---|
| Country of origin | China |
| Pallet gross height | 150 cm |
| Pallet gross length | 80 cm |
| Pallet gross width | 120 cm |
| Master (outer) case width | 370 mm |
| Master (outer) case length | 420 mm |
| Master (outer) case height | 420 mm |
| Master (outer) case gross weight | 8.7 kg |
| Products per master (outer) case | 30 pc(s) |
