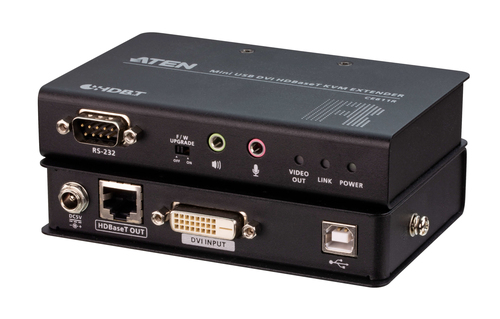

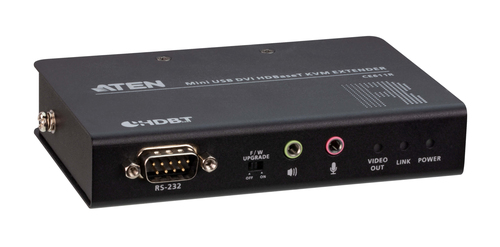

Mini USB DVI HDBaseT KVM Extender
Model CE611Part no. CE611-AT-GEAN 4719264648427
51 specifications
- ConnectivityWired
- TypeTransmitter & receiver
- Weight1.05 kg
- ColourBlack
- Transmitter video port typeDVI-D
- RJ-45 ports quantity (receiver)1
Overview
- Connectivity
- Wired
- Type
- Transmitter & receiver
- Weight
- 1.05 kg
- Colour
- Black
- Transmitter video port type
- DVI-D
- RJ-45 ports quantity (receiver)
- 1
- Brand
- ATEN
- Category
- KVM Extender
- Model
- CE611
- Part numbers
- CE611-AT-G, CE611
- EAN / UPC
- 4719264648427, 672792010408
- Also known as
- ATEN Mini USB DVI HDBaseT KVM Extender
Specifications
51 specifications in 12 groups
Features
| Specification | Value |
|---|---|
| Type | Transmitter & receiver |
| Connectivity technology | Wired |
| Maximum transfer distance | 100 m |
| Cable types supported | Cat6, Cat6a |
| Maximum digital resolution | 1920 x 1200 pixels |
| Supported resolutions | 1920x1200 1920x1080 1600x1200 |
| Product colour | Black |
| Material | Metal |
| LED indicators | Yes |
| Certification | RoHS |

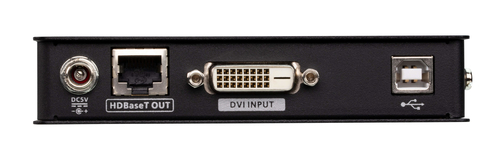

Transmitter
| Specification | Value |
|---|---|
| Transmitter video port type | DVI-D |
| Transmitter local keyboard/mouse port type | USB |
| RJ-45 ports quantity (transmitter) | 1 |

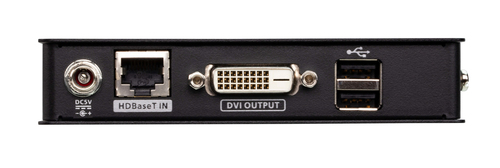

Receiver
| Specification | Value |
|---|---|
| RJ-45 ports quantity (receiver) | 1 |
| Receiver local keyboard/mouse port type | USB |
| Receiver local video port type | DVI-D |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 2 |
| USB data transfer rates | 480 Mbit/s |
| RJ-45 ports quantity | 2 |
| RS-232 ports | 2 |
| PC Audio in | Yes |
| PC Audio out | Yes |
Power
| Specification | Value |
|---|---|
| Power consumption (transmitter) (max) | 2.494 W |
| Power consumption (receiver) (max) | 4.816 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Transmitter width | 12.8 cm |
| Transmitter depth | 8.69 cm |
| Transmitter height | 2.5 cm |
| Transmitter weight | 350 g |
| Receiver width | 12.8 cm |
| Receiver depth | 8.69 cm |
| Receiver height | 2.5 cm |
| Receiver weight | 340 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 100 mm |
| Package depth | 283 mm |
| Package height | 173 mm |
| Package weight | 1.18 kg |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Manual | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Storage relative humidity (H-H) | 0 - 80% |
Other features
| Specification | Value |
|---|---|
| Firmware upgradeable | Yes |
Technical details
| Specification | Value |
|---|---|
| Weight | 1.05 kg |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84733080 |
| Master (outer) case net weight | 5.25 kg |
| Master (outer) case width | 292 mm |
| Master (outer) case length | 517 mm |
| Master (outer) case height | 194 mm |
| Master (outer) case gross weight | 6.32 kg |
| Products per master (outer) case | 5 pc(s) |
