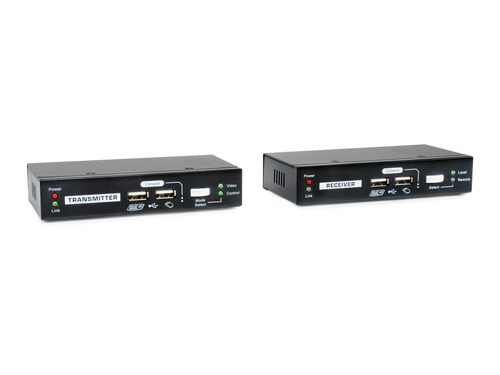

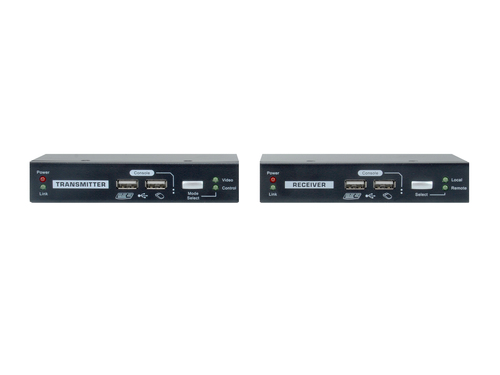

KVM over Cat.5 Extender
Model KVM-9036EAN 4015867229576
52 specifications
- ConnectivityWired
- TypeTransmitter & receiver
- ColourBlack
- Transmitter video port typeVGA
- RJ-45 ports quantity (receiver)1
- USB port typeUSB Type-B
Overview
- Connectivity
- Wired
- Type
- Transmitter & receiver
- Colour
- Black
- Transmitter video port type
- VGA
- RJ-45 ports quantity (receiver)
- 1
- USB port type
- USB Type-B
- Brand
- LevelOne
- Category
- KVM Extender
- Model
- KVM-9036
- Part number
- KVM-9036
- EAN / UPC
- 4015867229576
- Also known as
- LevelOne KVM over Cat.5 Extender
Specifications
52 specifications in 11 groups
Features
| Specification | Value |
|---|---|
| Type | Transmitter & receiver |
| Connectivity technology | Wired |
| Maximum transfer distance | 100 m |
| Cable types supported | Cat5, Cat5e |
| Maximum analog resolution | 1920 x 1200 pixels |
| KVM port selection | Hotkeys, Push-buttons |
| On Screen Display (OSD) | Yes |
| Product colour | Black |
| Material | Metal |
| Plug and Play | Yes |
| LED indicators | Yes |
Transmitter
| Specification | Value |
|---|---|
| Transmitter video port type | VGA |
| Transmitter local video port | Yes |
| Transmitter local video port type | VGA |
| Transmitter local keyboard/mouse port type | USB |
| RJ-45 ports quantity (transmitter) | 1 |
Receiver
| Specification | Value |
|---|---|
| RJ-45 ports quantity (receiver) | 1 |
| Receiver local keyboard/mouse port type | USB |
| Receiver local video port type | VGA |

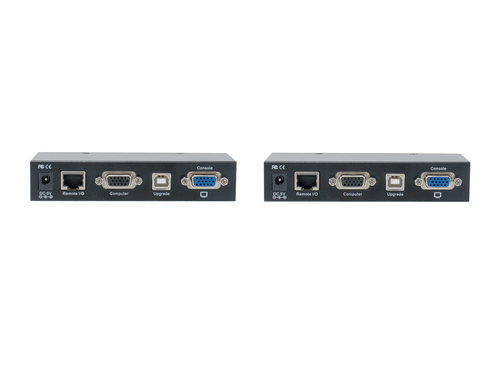

Ports & interfaces
| Specification | Value |
|---|---|
| USB port type | USB Type-B |
| USB 2.0 ports quantity | 2 |
Weight & dimensions
| Specification | Value |
|---|---|
| Transmitter width | 13.1 cm |
| Transmitter depth | 6.5 cm |
| Transmitter height | 2.6 cm |
| Transmitter weight | 586 g |
| Receiver width | 13.1 cm |
| Receiver depth | 6.5 cm |
| Receiver height | 2.6 cm |
| Receiver weight | 586 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 204 mm |
| Package depth | 176 mm |
| Package height | 139 mm |
| Package weight | 1.69 kg |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Cables included | KVM |
| Quick installation guide | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -5 - 65 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
Sustainability
| Specification | Value |
|---|---|
| Sustainability compliance | Yes |
Other features
| Specification | Value |
|---|---|
| Firmware upgradeable | Yes |
| Compliance certificates | CE, Federal Communications Commission (FCC), UKCA, WEEE |
Logistics data
| Specification | Value |
|---|---|
| Country of origin | Taiwan |
| Pallet gross height | 11.5 cm |
| Pallet gross length | 94 cm |
| Pallet gross width | 135 cm |
| Master (outer) case width | 440 mm |
| Master (outer) case length | 370 mm |
| Master (outer) case height | 430 mm |
| Master (outer) case gross weight | 21.3 kg |
| Products per master (outer) case | 12 pc(s) |
