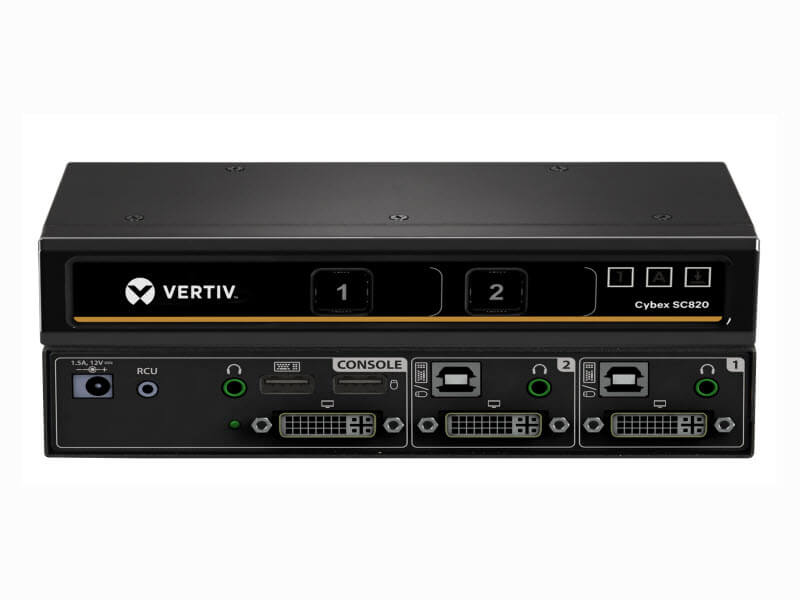

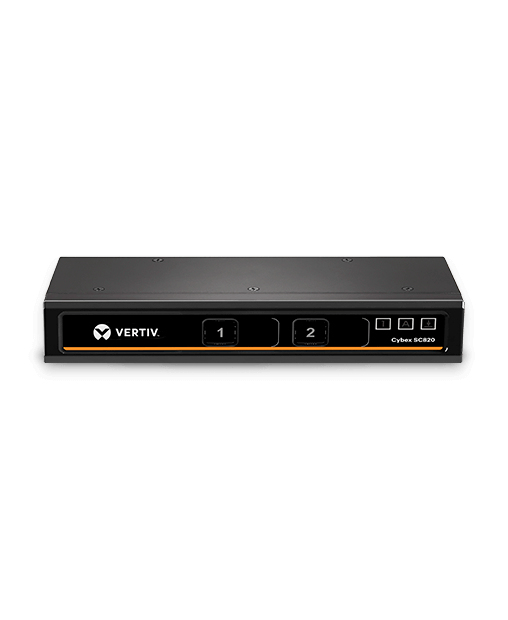

Avocent SC820-001 KVM extender Transmitter & receiver
Model SC820-001EAN 636430081908
21 specifications
- ConnectivityWired
- TypeTransmitter & receiver
- ColourBlack
- Transmitter video port typeDVI-I
- Receiver local keyboard/mouse port typeUSB
- USB port typeUSB Type-A
Overview
- Connectivity
- Wired
- Type
- Transmitter & receiver
- Colour
- Black
- Transmitter video port type
- DVI-I
- Receiver local keyboard/mouse port type
- USB
- USB port type
- USB Type-A
- Brand
- Vertiv
- Category
- KVM Extender
- Model
- SC820-001
- Part number
- SC820-001
- EAN / UPC
- 636430081908
- Also known as
- Vertiv Avocent SC820-001 KVM extender Transmitter & receiver
Specifications
21 specifications in 7 groups
Features
| Specification | Value |
|---|---|
| Type | Transmitter & receiver |
| Connectivity technology | Wired |
| Maximum digital resolution | 2560 x 1600 pixels |
| Maximum refresh rate | 60 Hz |
| Product colour | Black |
| Easy to install | Yes |
| Plug and Play | Yes |
Transmitter
| Specification | Value |
|---|---|
| Transmitter video port type | DVI-I |
Receiver
| Specification | Value |
|---|---|
| Receiver local keyboard/mouse port type | USB |
| Receiver local video port type | DVI-I |
Ports & interfaces
| Specification | Value |
|---|---|
| USB port type | USB Type-A |
| USB 2.0 ports quantity | 3 |
Power
| Specification | Value |
|---|---|
| AC input voltage | 12 V |
| Input current | 1.5 A |
Weight & dimensions
| Specification | Value |
|---|---|
| Transmitter width | 17.8 cm |
| Transmitter depth | 6.1 cm |
| Transmitter height | 4.3 cm |
| Transmitter weight | 500 g |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
