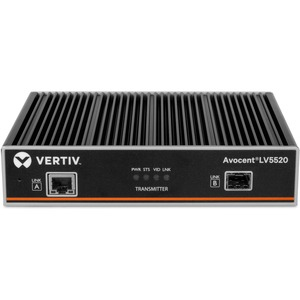

Avocent LV5520T KVM extender Transmitter
Model LV5520TPart no. LV5520T-400EAN 636430090917
35 specifications
- ConnectivityWired
- TypeTransmitter
- ColourBlack
- Transmitter video port typeDisplayPort
- USB port typeUSB Type-B
- AC input voltage100 - 240 V
Overview
- Connectivity
- Wired
- Type
- Transmitter
- Colour
- Black
- Transmitter video port type
- DisplayPort
- USB port type
- USB Type-B
- AC input voltage
- 100 - 240 V
- Brand
- Vertiv
- Category
- KVM Extender
- Model
- LV5520T
- Part number
- LV5520T-400
- EAN / UPC
- 636430090917
- Also known as
- Vertiv Avocent LV5520T KVM extender Transmitter
Specifications
35 specifications in 9 groups
Features
| Specification | Value |
|---|---|
| Type | Transmitter |
| Connectivity technology | Wired |
| Maximum transfer distance | 4000 m |
| Cable types supported | Fiber, Cat5e, Cat6e |
| Rack mounting | Yes |
| Maximum digital resolution | 4096 x 2160 pixels |
| Supported resolutions | CE, FCC |
| Product colour | Black |
| LED indicators | Yes |
| Certification | CE, FCC |
Transmitter
| Specification | Value |
|---|---|
| Transmitter video port type | DisplayPort |
| Transmitter local keyboard/mouse port type | USB |
| RJ-45 ports quantity (transmitter) | 1 |
Ports & interfaces
| Specification | Value |
|---|---|
| USB port type | USB Type-B |
| USB 2.0 ports quantity | 4 |
| Installed SFP+ modules quantity | 1 |
| PC Audio in | Yes |
| PC Audio out | Yes |
Power
| Specification | Value |
|---|---|
| AC input voltage | 100 - 240 V |
| AC input frequency | 47/63 Hz |
| Power consumption (receiver) (max) | 18 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Transmitter width | 18.6 cm |
| Transmitter depth | 13.7 cm |
| Transmitter height | 3.91 cm |
| Transmitter weight | 1.28 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 203.2 mm |
| Package depth | 152.4 mm |
| Package height | 50.8 mm |
| Package weight | 1.36 kg |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -10 - 50 °C |
| Operating relative humidity (H-H) | 0 - 80% |
Technical details
| Specification | Value |
|---|---|
| Maximum resolution | 4096 x 2160 pixels |
| Video in | DisplayPort |
Logistics data
| Specification | Value |
|---|---|
| Country of origin | United Kingdom |
