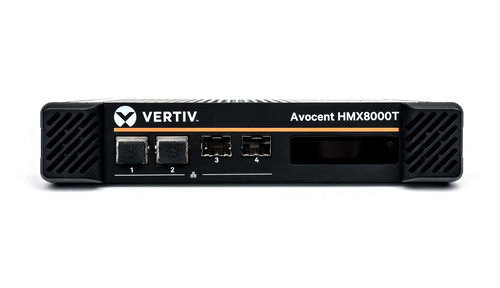

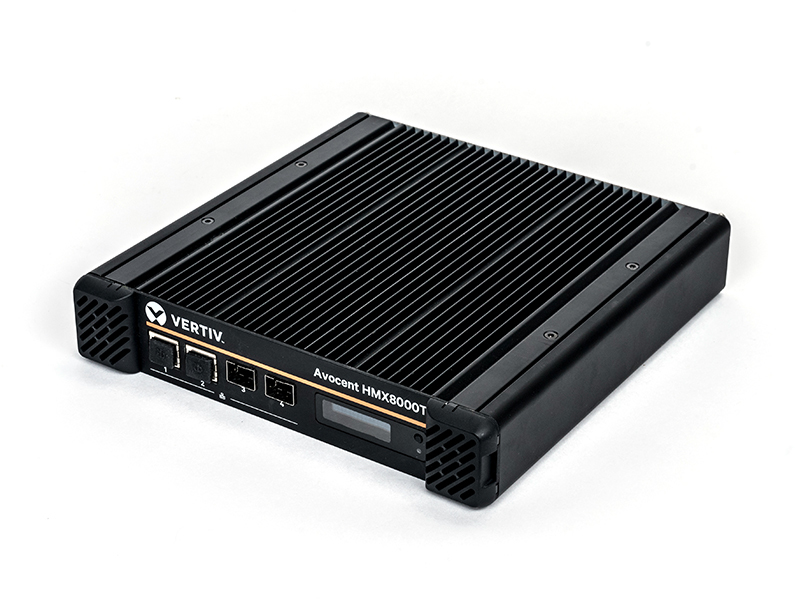

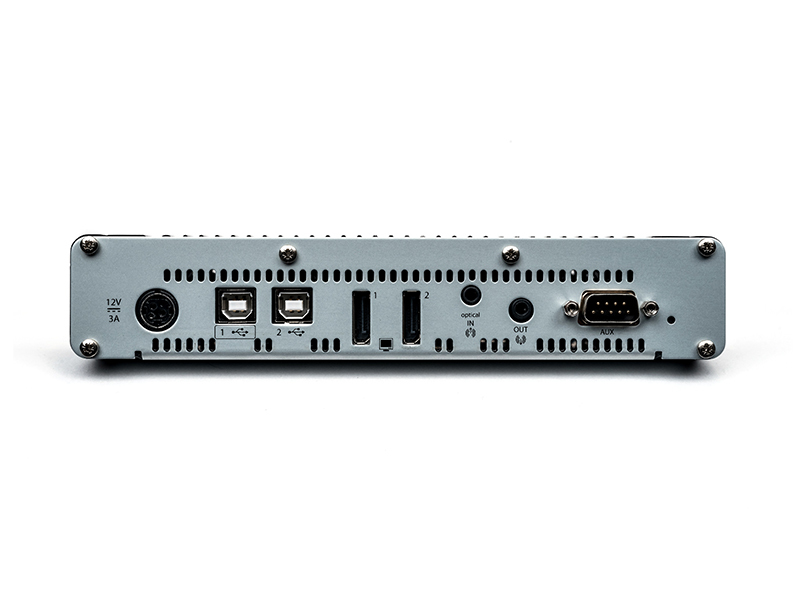

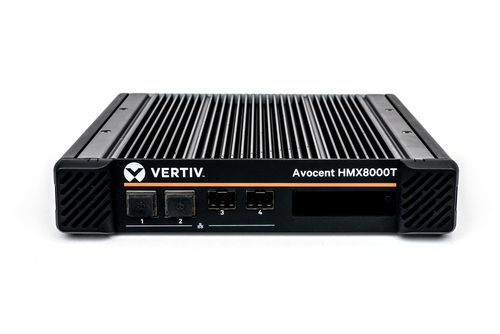

Avocent HMX8000T KVM extender Transmitter
Model HMX8000TPart no. HMX8000T-400EAN 636430088723
35 specifications
- ConnectivityWired
- TypeTransmitter
- ColourBlack
- Transmitter video port typeDisplayPort
- USB port typeUSB Type-B
- AC input voltage100-240 V
Overview
- Connectivity
- Wired
- Type
- Transmitter
- Colour
- Black
- Transmitter video port type
- DisplayPort
- USB port type
- USB Type-B
- AC input voltage
- 100-240 V
- Brand
- Vertiv
- Category
- KVM Extender
- Model
- HMX8000T
- Part number
- HMX8000T-400
- EAN / UPC
- 636430088723
- Also known as
- Vertiv Avocent HMX8000T KVM extender Transmitter
Specifications
35 specifications in 9 groups
Features
| Specification | Value |
|---|---|
| Type | Transmitter |
| Connectivity technology | Wired |
| Cable types supported | Fiber |
| Rack mounting | Yes |
| Maximum digital resolution | 4096 x 2160 pixels |
| Supported resolutions | 4K @ 60 Hz (4096 x 2160) |
| Product colour | Black |
| Material | Metal |
| Easy to install | Yes |
| Plug and Play | Yes |
Transmitter
| Specification | Value |
|---|---|
| Transmitter video port type | DisplayPort |
| Number of displays supported | 2 |
| Transmitter local keyboard/mouse port type | USB |
Ports & interfaces
| Specification | Value |
|---|---|
| USB port type | USB Type-B |
| USB 2.0 ports quantity | 2 |
| RJ-45 ports quantity | 2 |
| PC Audio in | Yes |
| PC Audio out | Yes |
| SFP/SFP+ slots quantity | 2 |
Power
| Specification | Value |
|---|---|
| AC input voltage | 100-240 V |
| AC input frequency | 50 - 60 Hz |
| AC adapter output voltage | 12 V |
| AC adapter output current | 5 A |
| Power consumption (transmitter) (max) | 20 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Transmitter width | 21.5 cm |
| Transmitter depth | 4.06 cm |
| Transmitter height | 21 cm |
| Transmitter weight | 1.81 kg |

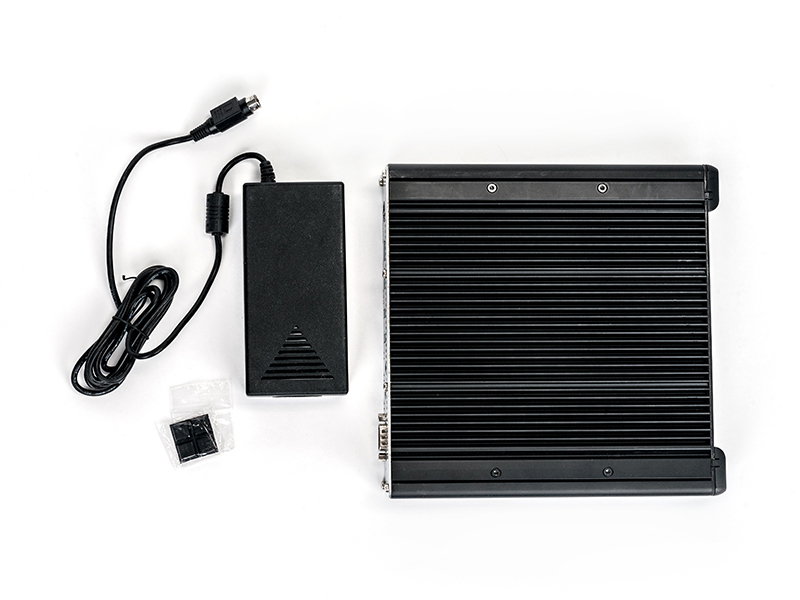

Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Quick installation guide | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Operating relative humidity (H-H) | 10 - 90% |
Other features
| Specification | Value |
|---|---|
| Firmware upgradeable | Yes |
| Compliance certificates | China Compulsory Certification (CCC), UL, Trade Agreements Act (TAA) |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84733080 |
