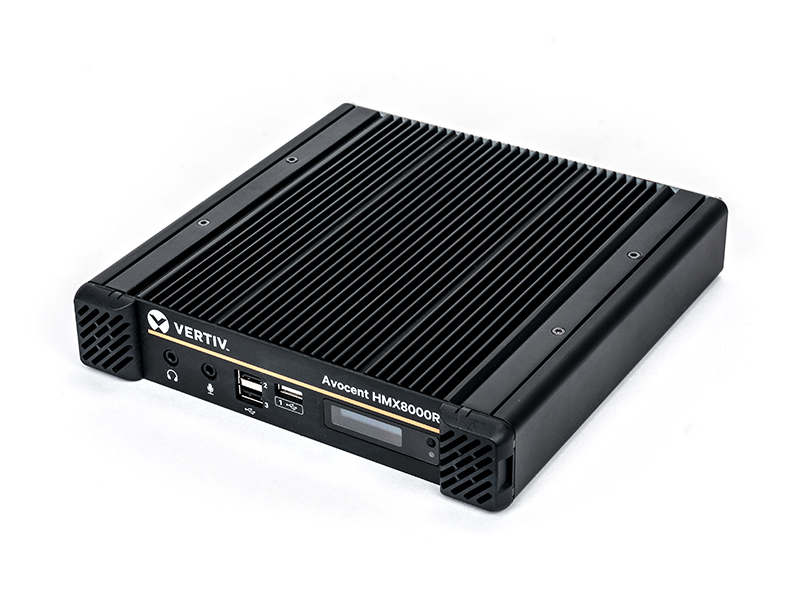

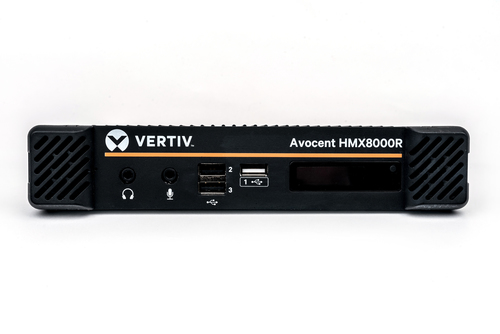

Avocent HMX8000 Digital KVM Extender Receiver – Wired
Model HMX8000RPart no. HMX8000R-400EAN 636430088730
35 specifications
- ConnectivityWired
- TypeReceiver
- ColourBlack
- Number of displays supported2
- Receiver local keyboard/mouse port typeUSB
- USB port typeUSB Type-A
Overview
- Connectivity
- Wired
- Type
- Receiver
- Colour
- Black
- Number of displays supported
- 2
- Receiver local keyboard/mouse port type
- USB
- USB port type
- USB Type-A
- Brand
- Vertiv
- Category
- KVM Extender
- Model
- HMX8000R
- Part number
- HMX8000R-400
- EAN / UPC
- 636430088730
- Also known as
- Vertiv Avocent HMX8000 Digital KVM Extender Receiver – Wired
Specifications
35 specifications in 10 groups
Features
| Specification | Value |
|---|---|
| Type | Receiver |
| Connectivity technology | Wired |
| Cable types supported | Fiber |
| Rack mounting | Yes |
| Maximum digital resolution | 4096 x 2160 pixels |
| Supported resolutions | 4K @ 60 Hz (4096 x 2160) |
| Product colour | Black |
| Material | Metal |
| Easy to install | Yes |
| Plug and Play | Yes |
Transmitter
| Specification | Value |
|---|---|
| Number of displays supported | 2 |
Receiver
| Specification | Value |
|---|---|
| Receiver local keyboard/mouse port type | USB |
| Receiver local video port type | DisplayPort |
| Receiver local video ports quantity | 2 |

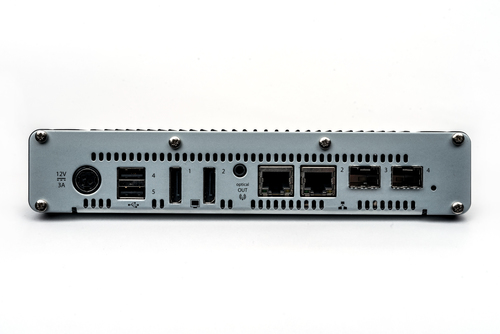

Ports & interfaces
| Specification | Value |
|---|---|
| USB port type | USB Type-A |
| USB 2.0 ports quantity | 5 |
| RJ-45 ports quantity | 1 |
| PC Audio in | Yes |
| PC Audio out | Yes |
| SFP/SFP+ slots quantity | 2 |
Power
| Specification | Value |
|---|---|
| AC input voltage | 100-240 V |
| AC input frequency | 50/60 Hz |
| AC adapter output voltage | 12 V |
| AC adapter output current | 5 A |
| Power consumption (transmitter) (max) | 20 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Transmitter width | 21.5 cm |
| Transmitter depth | 4.06 cm |
| Transmitter height | 21 cm |
| Transmitter weight | 1.81 kg |

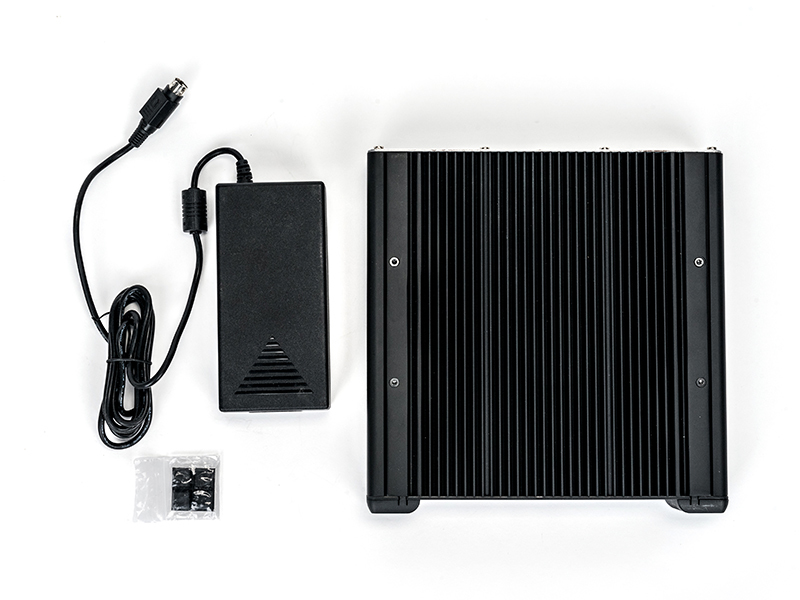

Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Quick installation guide | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Operating relative humidity (H-H) | 10 - 90% |
Other features
| Specification | Value |
|---|---|
| Firmware upgradeable | Yes |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84733080 |
