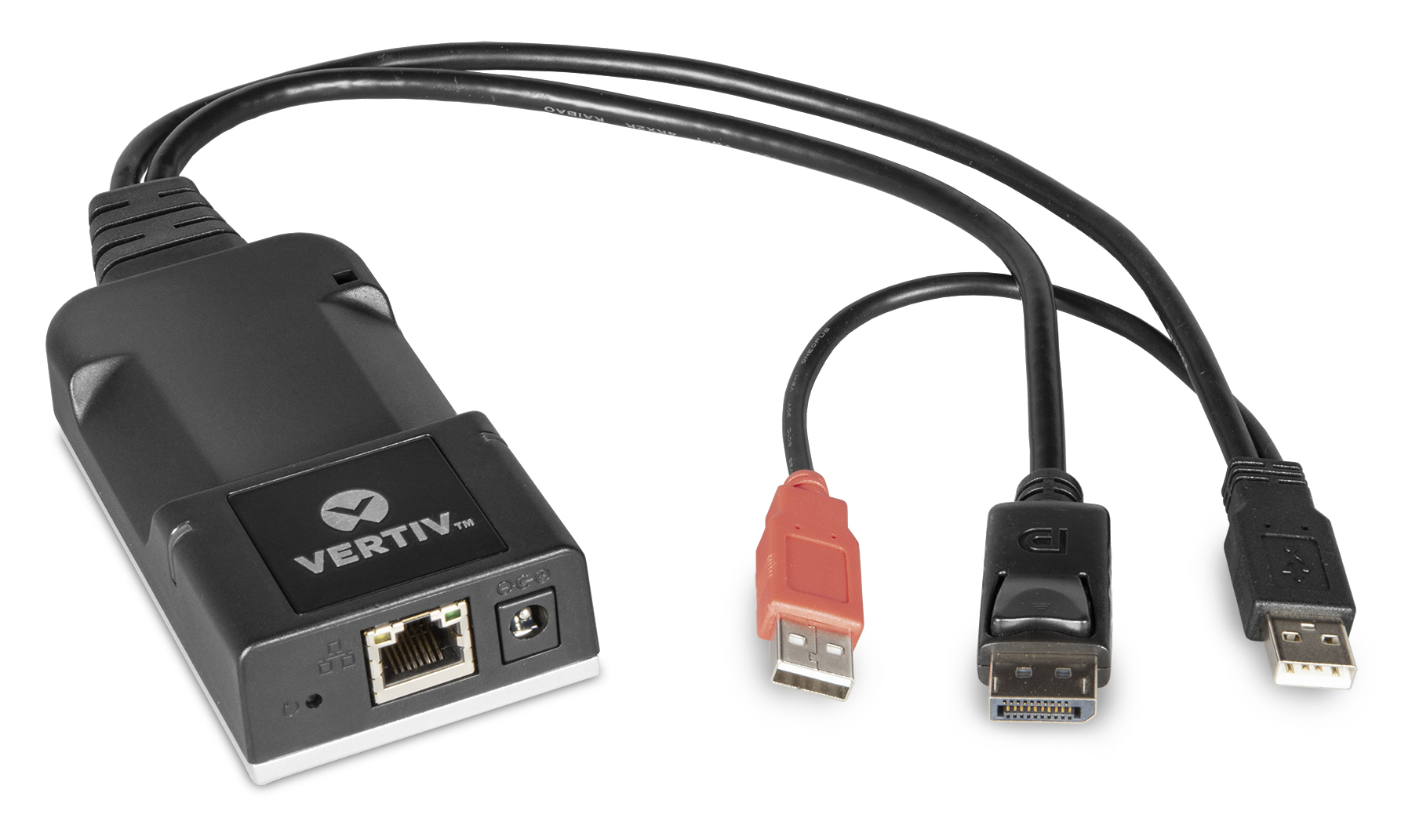

Avocent HMX6150T-DP KVM extender Transmitter
Model HMX6150T-DPEAN 636430090719
29 specifications
- ConnectivityWired
- TypeTransmitter
- ColourBlack
- Transmitter video port typeDisplayPort
- USB port typeUSB Type-A
- Transmitter width11 cm
Overview
- Connectivity
- Wired
- Type
- Transmitter
- Colour
- Black
- Transmitter video port type
- DisplayPort
- USB port type
- USB Type-A
- Transmitter width
- 11 cm
- Brand
- Vertiv
- Category
- KVM Extender
- Model
- HMX6150T-DP
- Part number
- HMX6150T-DP
- EAN / UPC
- 636430090719
- Also known as
- Vertiv Avocent HMX6150T-DP KVM extender Transmitter
Specifications
29 specifications in 8 groups
Features
| Specification | Value |
|---|---|
| Type | Transmitter |
| Connectivity technology | Wired |
| Maximum digital resolution | 2048 x 1080 pixels |
| Maximum analog resolution | 2048 x 1080 pixels |
| Supported resolutions | HD - 2K |
| Product colour | Black |
| Material | Metal, Plastic |
| Easy to install | Yes |
| Plug and Play | Yes |
| Certification | CE, FCC |
Transmitter
| Specification | Value |
|---|---|
| Transmitter video port type | DisplayPort |
| Number of displays supported | 1 |
Ports & interfaces
| Specification | Value |
|---|---|
| USB port type | USB Type-A |
| RJ-45 ports quantity | 1 |
| PC Audio in | Yes |
| PC Audio out | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Transmitter width | 11 cm |
| Transmitter depth | 5.5 cm |
| Transmitter height | 2.5 cm |
| Transmitter weight | 200 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 292.1 mm |
| Package depth | 245 mm |
| Package height | 55 mm |
| Package weight | 500 g |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -10 - 60 °C |
| Operating relative humidity (H-H) | 10 - 90% |
Other features
| Specification | Value |
|---|---|
| Firmware upgradeable | Yes |
Logistics data
| Specification | Value |
|---|---|
| Country of origin | United Kingdom |
