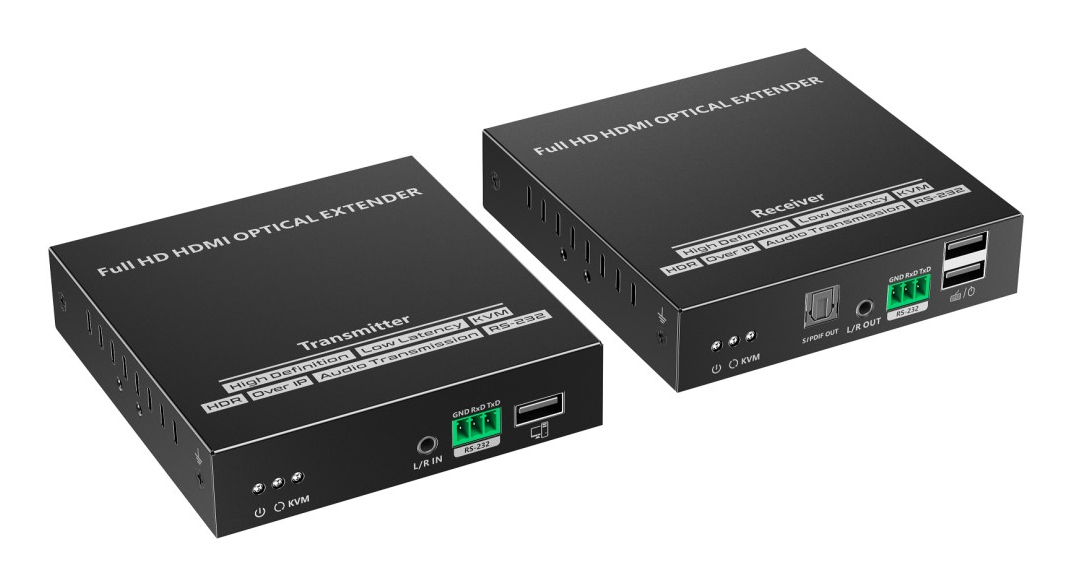

IDATA HDMI-KVM762EF
Model IDATA HDMI-KVM762EFEAN 8059018368543
39 specifications
- ConnectivityWired
- TypeTransmitter & receiver
- ColourBlack
- Transmitter video port typeHDMI
- Receiver local keyboard/mouse port typeUSB
- USB port typeUSB Type-A
Overview
- Connectivity
- Wired
- Type
- Transmitter & receiver
- Colour
- Black
- Transmitter video port type
- HDMI
- Receiver local keyboard/mouse port type
- USB
- USB port type
- USB Type-A
- Brand
- Techly
- Category
- KVM Extender
- Model
- IDATA HDMI-KVM762EF
- Part number
- IDATA HDMI-KVM762EF
- EAN / UPC
- 8059018368543
- Also known as
- Techly IDATA HDMI-KVM762EF KVM extender Transmitter & receiver
Specifications
39 specifications in 9 groups
Features
| Specification | Value |
|---|---|
| Type | Transmitter & receiver |
| Connectivity technology | Wired |

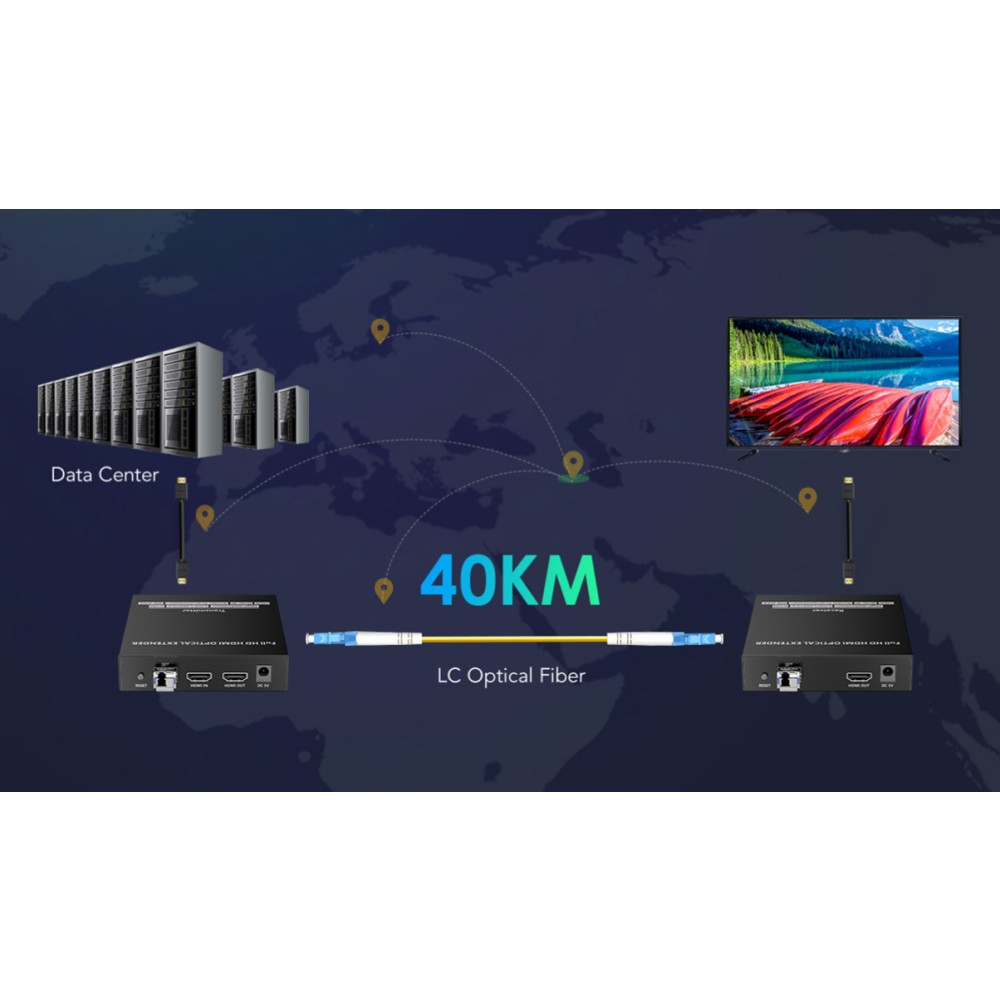

| Maximum transfer distance | 40000 m |
| Maximum digital resolution | 1920 x 1080 pixels |
| Maximum refresh rate | 60 Hz |
| Supported resolutions | 1080p@24/25/30/50/60Hz, 720p@50/60Hz, 1024x768@ 60Hz, 1280x800@60Hz, 1280x960@60Hz, 1280x1024@60H, 1440x900@60Hz, 1600x900 @60Hz, 1600x1200@60Hz, 1680x1050@60Hz, 1920x1200@60Hz, 480P@60Hz, 576P@ 50Hz, 1400x1050@60Hz, 1366x768@60Hz, 1360x768@60Hz, 1280x768@60Hz |
| Product colour | Black |
| Material | Metal |
| Plug and Play | Yes |
| LED indicators | Yes |
| Electrostatic Discharge (ESD) protection | Yes |
| Certification | EC, RoHS |
| Audio support | Yes |

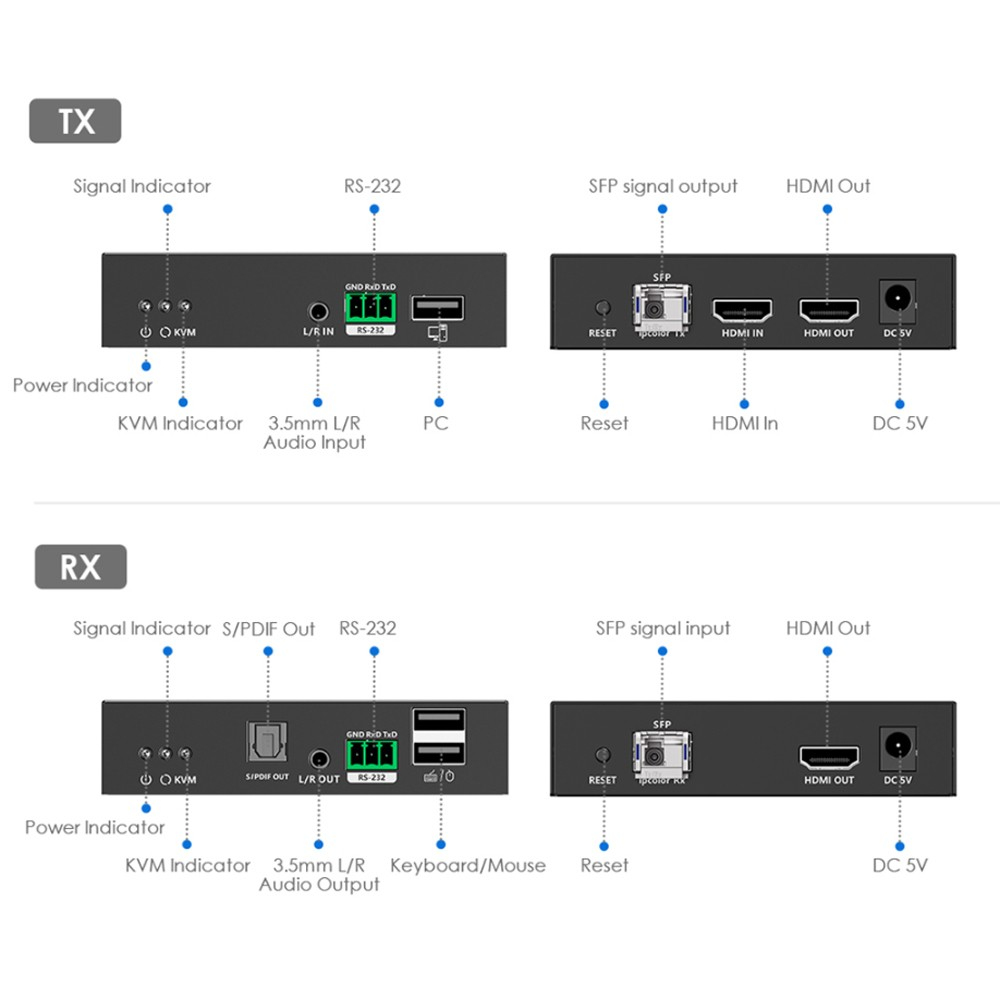

Transmitter
| Specification | Value |
|---|---|
| Transmitter video port type | HDMI |
| Transmitter local keyboard/mouse port type | USB |
Receiver
| Specification | Value |
|---|---|
| Receiver local keyboard/mouse port type | USB |
| Receiver local video port type | HDMI |
Ports & interfaces
| Specification | Value |
|---|---|
| USB port type | USB Type-A |
| USB 2.0 ports quantity | 3 |
| SFP/SFP+ slots quantity | 2 |
Power
| Specification | Value |
|---|---|
| AC adapter output voltage | 5 V |
| AC adapter output current | 2 A |
| Power consumption (transmitter) (max) | 5 W |
| Power consumption (receiver) (max) | 4 W |
| DC-in jack | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Transmitter width | 10.6 cm |
| Transmitter depth | 10.3 cm |
| Transmitter height | 2.5 cm |
| Receiver width | 10.6 cm |
| Receiver depth | 10.3 cm |
| Receiver height | 2.5 cm |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Cables included | USB |
| Manual | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -20 - 60 °C |
| Storage temperature (T-T) | -30 - 70 °C |
| Operating relative humidity (H-H) | 0 - 90% |
Other features
| Specification | Value |
|---|---|
| HDCP | No |
| Extended display identification data (EDID) | Yes |
