IDATA HDMI-KVM67
Model IDATA HDMI-KVM67EAN 8059018361629
37 specifications
- ConnectivityWired
- TypeTransmitter & receiver
- ColourBlack
- Transmitter video port typeHDMI
- RJ-45 ports quantity (receiver)1
- USB port typeUSB Type-A
Overview
- Connectivity
- Wired
- Type
- Transmitter & receiver
- Colour
- Black
- Transmitter video port type
- HDMI
- RJ-45 ports quantity (receiver)
- 1
- USB port type
- USB Type-A
- Brand
- Techly
- Category
- KVM Extender
- Model
- IDATA HDMI-KVM67
- Part number
- IDATA HDMI-KVM67
- EAN / UPC
- 8059018361629
- Also known as
- Techly IDATA HDMI-KVM67 KVM extender Transmitter & receiver
Specifications
37 specifications in 9 groups
Features
| Specification | Value |
|---|---|
| Type | Transmitter & receiver |
| Connectivity technology | Wired |
| Maximum transfer distance | 70 m |
| Cable types supported | Cat6, Cat6a, Cat7 |
| Maximum digital resolution | 4096 x 2160 pixels |
| Maximum refresh rate | 60 Hz |
| Product colour | Black |
| Certification | CE, FCC |
| Audio support | Yes |

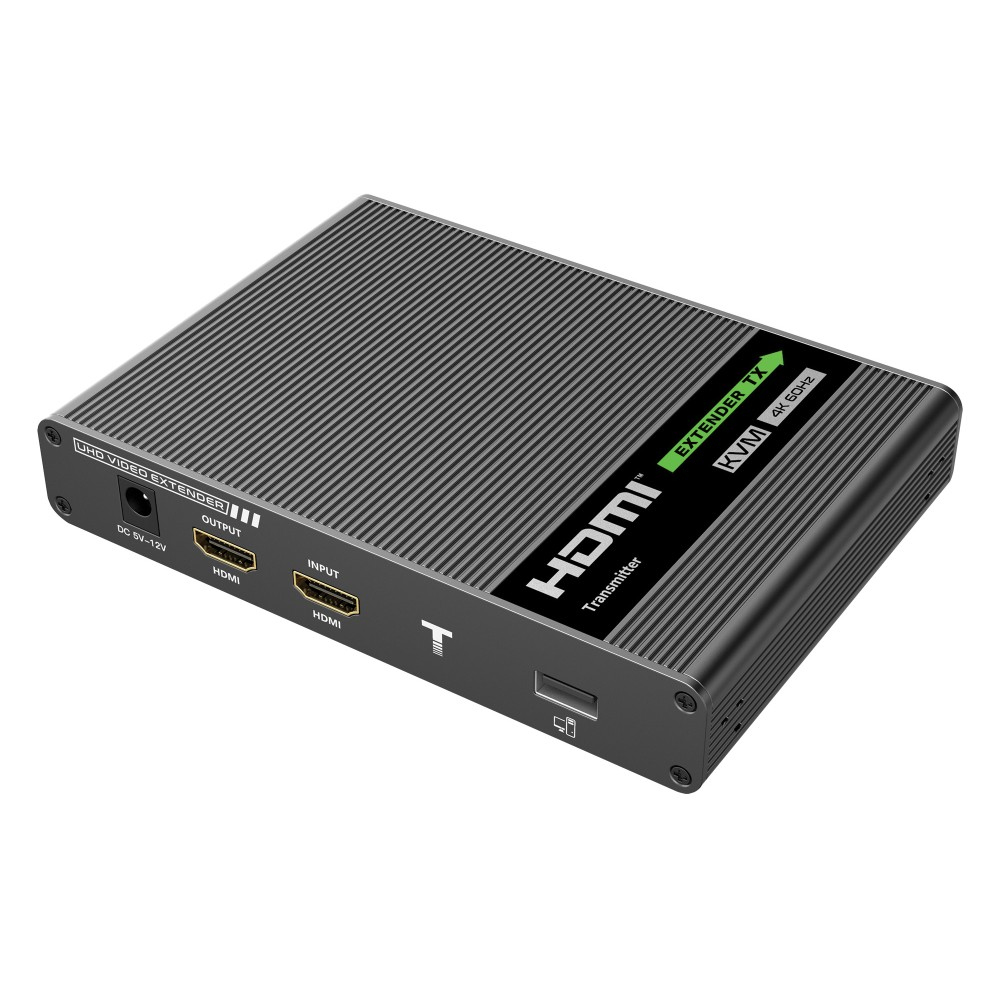

Transmitter
| Specification | Value |
|---|---|
| Transmitter video port type | HDMI |
| Transmitter local keyboard/mouse port type | USB |
| RJ-45 ports quantity (transmitter) | 1 |

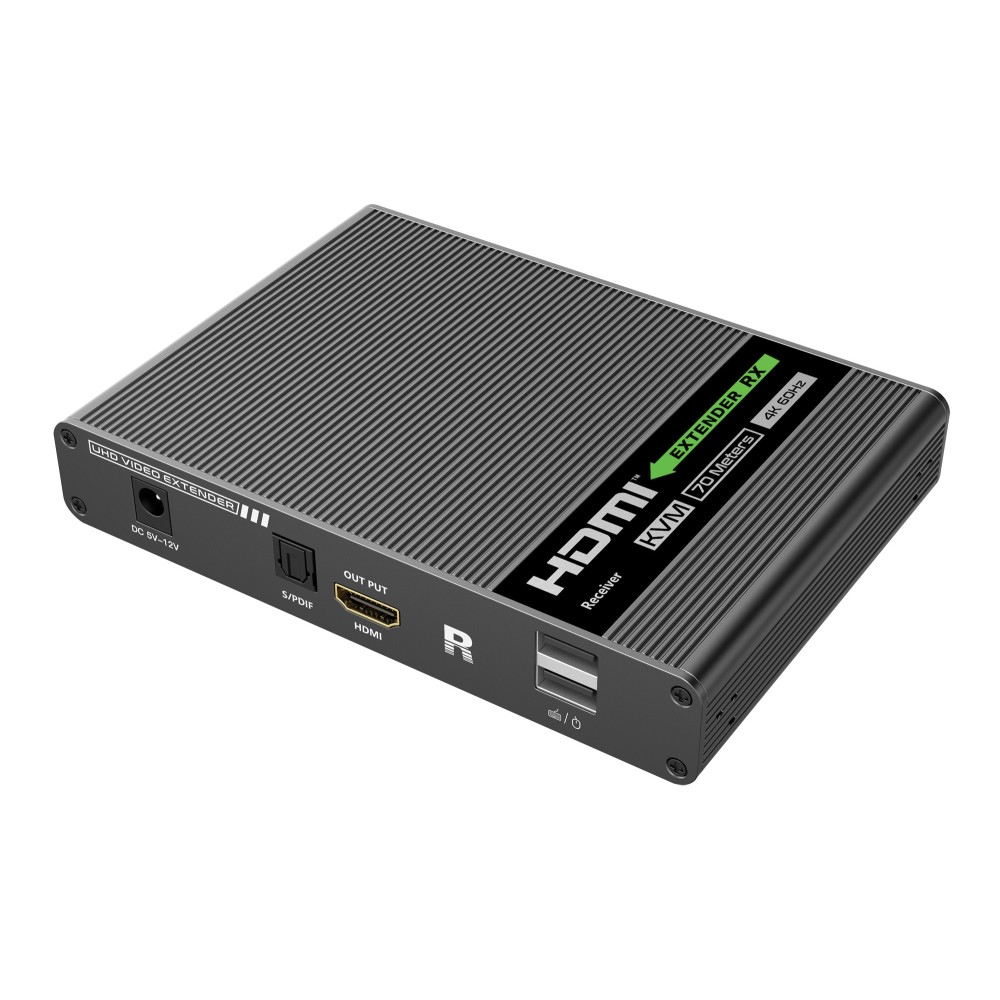

Receiver
| Specification | Value |
|---|---|
| RJ-45 ports quantity (receiver) | 1 |
| Receiver local keyboard/mouse port type | USB |
| Receiver local video port type | HDMI |
Ports & interfaces
| Specification | Value |
|---|---|
| USB port type | USB Type-A |
| HDMI version | 2.0 |
Power
| Specification | Value |
|---|---|
| AC adapter output voltage | 5 - 12 V |
| Power consumption (transmitter) (max) | 4 W |
| Power consumption (receiver) (max) | 4 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Transmitter width | 15 cm |
| Transmitter depth | 10.7 cm |
| Transmitter height | 2.84 cm |
| Transmitter weight | 1.45 kg |
| Receiver width | 15 cm |
| Receiver depth | 10.7 cm |
| Receiver height | 2.84 cm |
| Receiver weight | 1.45 kg |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Screwdriver included | Yes |
| Cables included | USB |
| Manual | Yes |
| Mounting bracket(s) included | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -20 - 60 °C |
| Storage temperature (T-T) | -30 - 70 °C |
| Operating relative humidity (H-H) | 0 - 90% |
Other features
| Specification | Value |
|---|---|
| Compliance certificates | CE |
