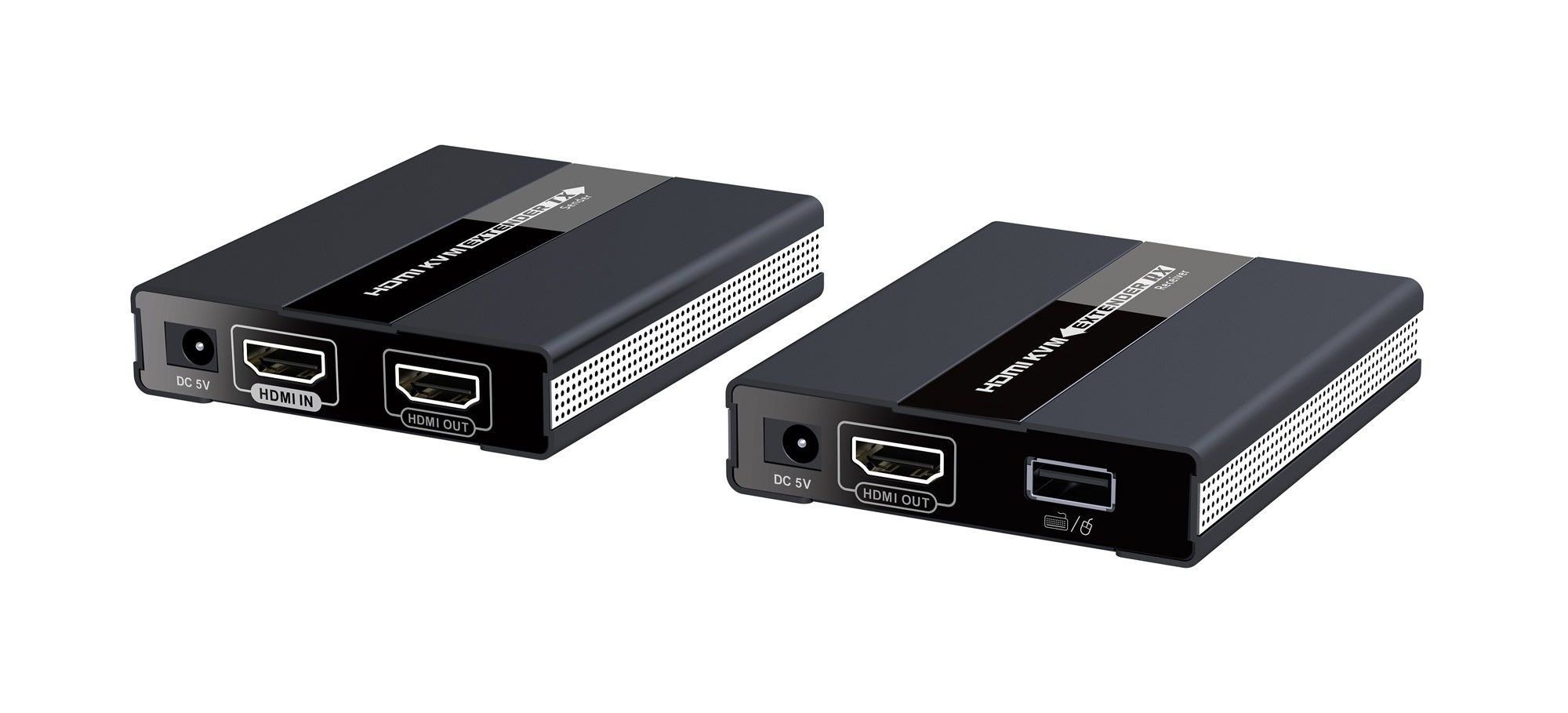

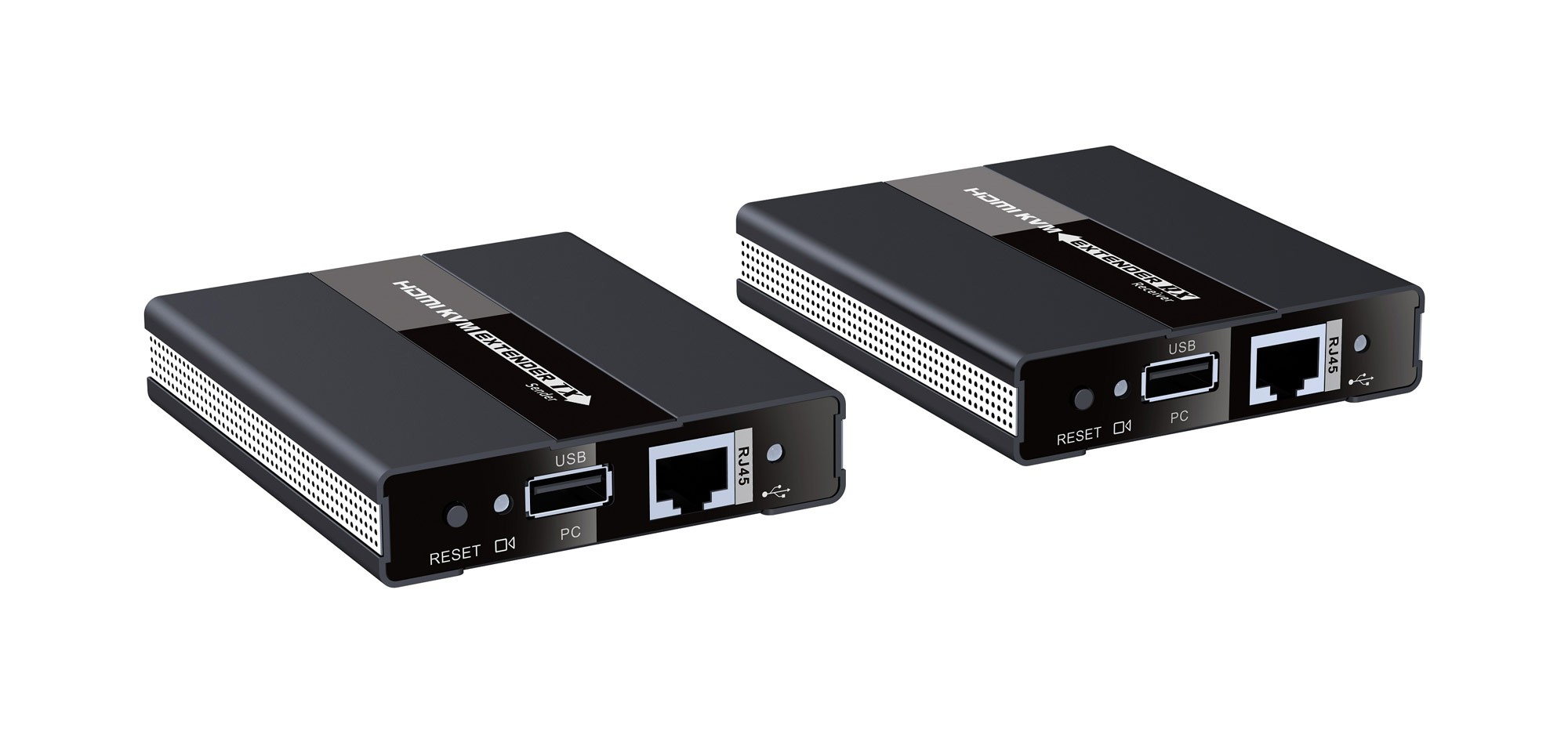

IDATA HDMI-KVM60
Model IDATA HDMI-KVM60EAN 8051128104790
23 specifications
- ConnectivityWired
- TypeTransmitter & receiver
- ColourBlack, Silver
- Transmitter video port typeHDMI
- RJ-45 ports quantity (receiver)1
- Input current2 A
Overview
- Connectivity
- Wired
- Type
- Transmitter & receiver
- Colour
- Black, Silver
- Transmitter video port type
- HDMI
- RJ-45 ports quantity (receiver)
- 1
- Input current
- 2 A
- Brand
- Techly
- Category
- KVM Extender
- Model
- IDATA HDMI-KVM60
- Part number
- IDATA HDMI-KVM60
- EAN / UPC
- 8051128104790
- Also known as
- Techly IDATA HDMI-KVM60 KVM extender Transmitter & receiver
Specifications
23 specifications in 8 groups
Features
| Specification | Value |
|---|---|
| Type | Transmitter & receiver |
| Connectivity technology | Wired |
| Maximum transfer distance | 60 m |
| Cable types supported | Cat5, Cat5e, Cat6 |
| Product colour | Black, Silver |
| Material | Aluminium |
| LED indicators | Yes |
Transmitter
| Specification | Value |
|---|---|
| Transmitter video port type | HDMI |
| Transmitter local keyboard/mouse port type | USB |
| RJ-45 ports quantity (transmitter) | 1 |
Receiver
| Specification | Value |
|---|---|
| RJ-45 ports quantity (receiver) | 1 |
| Receiver local keyboard/mouse port type | USB |
| Receiver local video port type | HDMI |
Power
| Specification | Value |
|---|---|
| Input current | 2 A |
| Power consumption (transmitter) (max) | 2 W |
| Power consumption (receiver) (max) | 2 W |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Manual | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 60 °C |
| Storage temperature (T-T) | -10 - 70 °C |
| Operating relative humidity (H-H) | 0 - 90% |
Technical details
| Specification | Value |
|---|---|
| Maximum resolution | 1920 x 1080 pixels |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84733080 |
