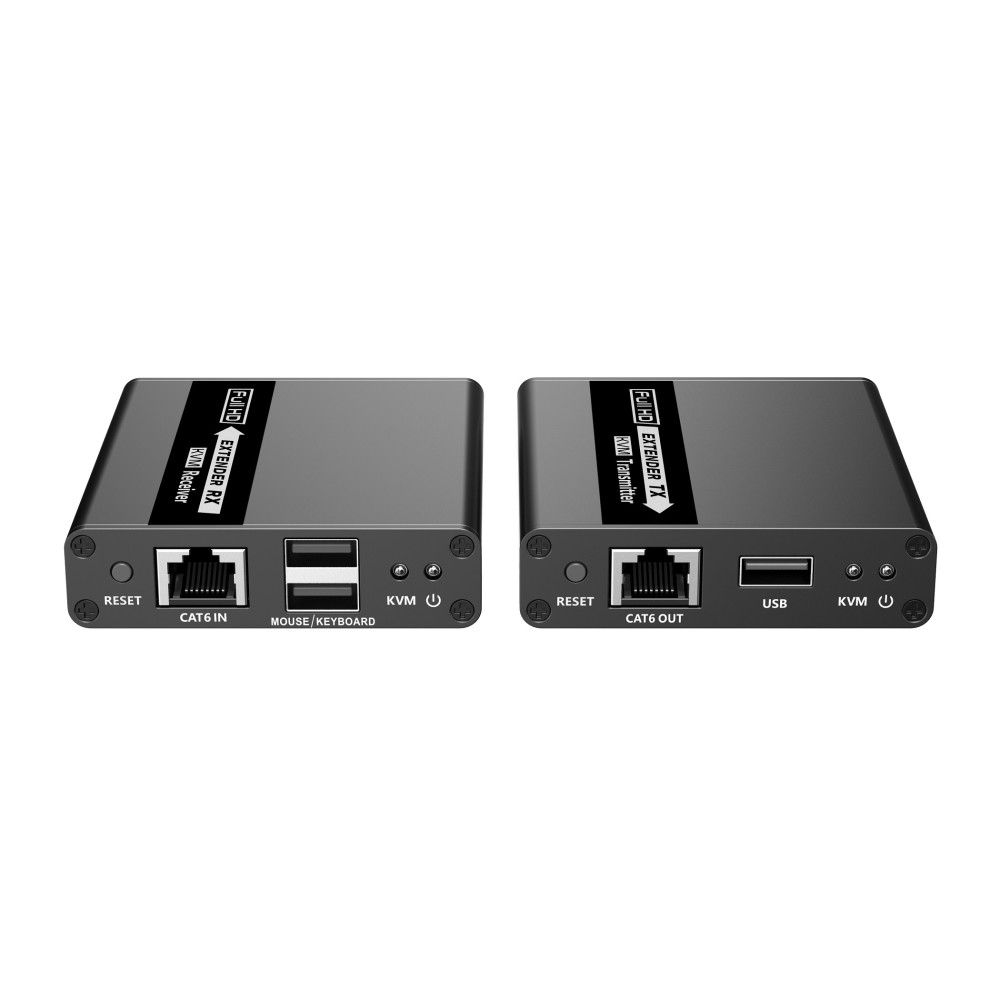

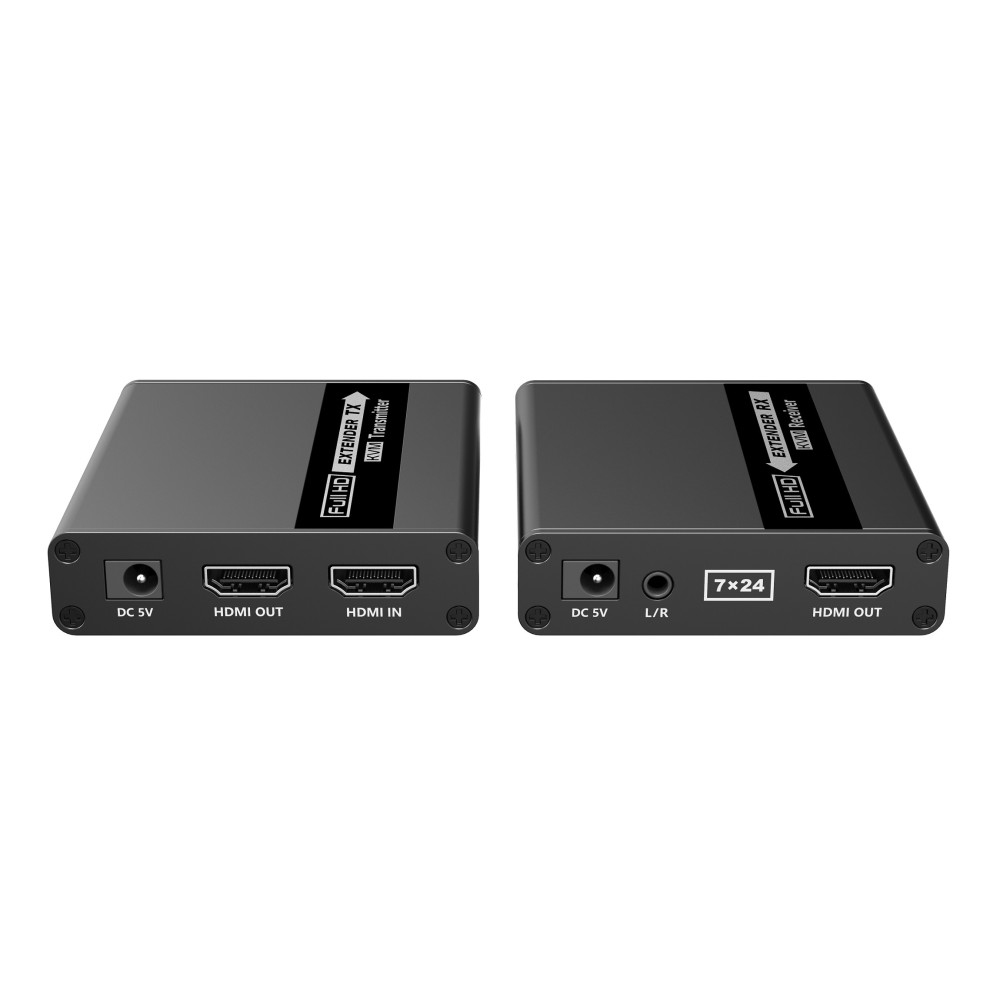

IDATA HDMI-KVM223
Model IDATA HDMI-KVM223EAN 8059018364125
38 specifications
- ConnectivityWired
- TypeTransmitter & receiver
- Weight576 g
- ColourBlack
- Transmitter video port typeHDMI
- RJ-45 ports quantity (receiver)1
Overview
- Connectivity
- Wired
- Type
- Transmitter & receiver
- Weight
- 576 g
- Colour
- Black
- Transmitter video port type
- HDMI
- RJ-45 ports quantity (receiver)
- 1
- Brand
- Techly
- Category
- KVM Extender
- Model
- IDATA HDMI-KVM223
- Part number
- IDATA HDMI-KVM223
- EAN / UPC
- 8059018364125
- Also known as
- Techly IDATA HDMI-KVM223 KVM extender Transmitter & receiver
Specifications
38 specifications in 10 groups
Features
| Specification | Value |
|---|---|
| Type | Transmitter & receiver |
| Connectivity technology | Wired |
| Maximum transfer distance | 70 m |
| Cable types supported | Cat6, Cat6a, Cat7 |
| Maximum digital resolution | 1920 x 1080 pixels |
| Maximum refresh rate | 60 Hz |
| Product colour | Black |
| Plug and Play | Yes |
| LED indicators | Yes |
| Certification | CE, FCC |
| Audio support | Yes |

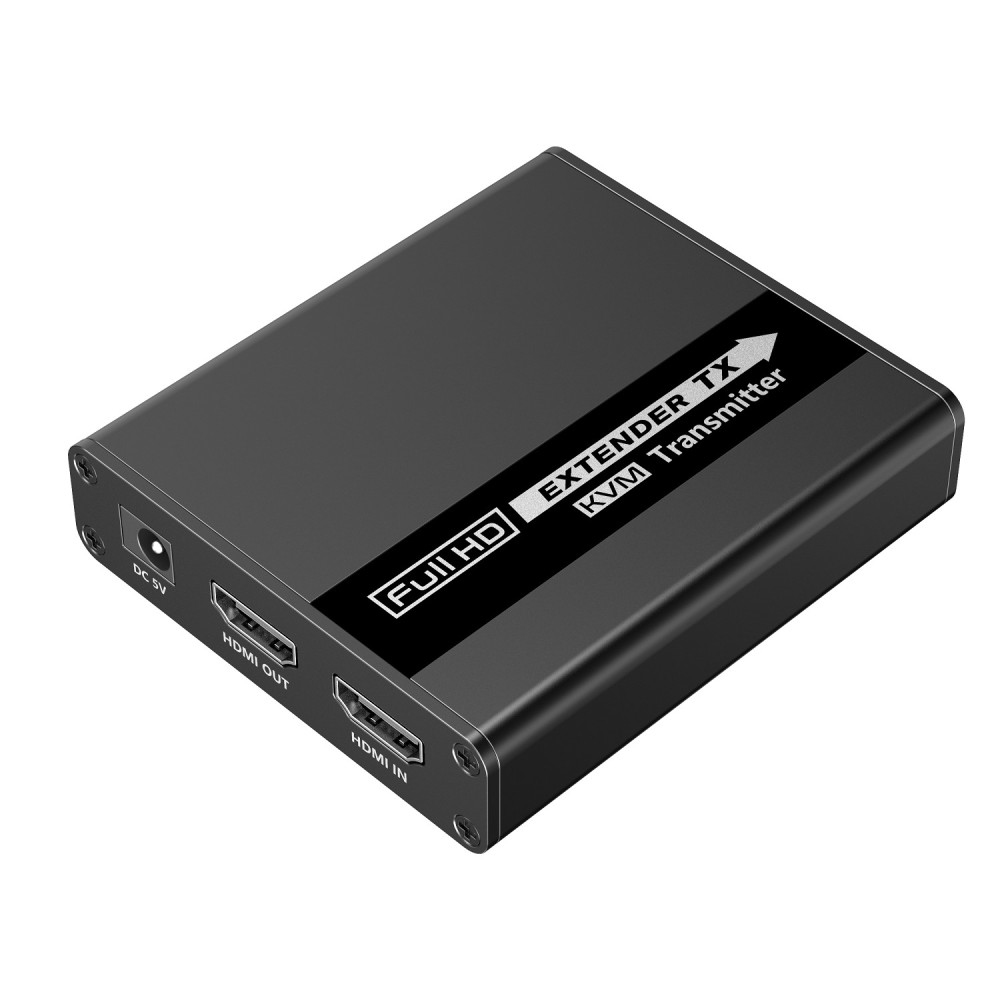

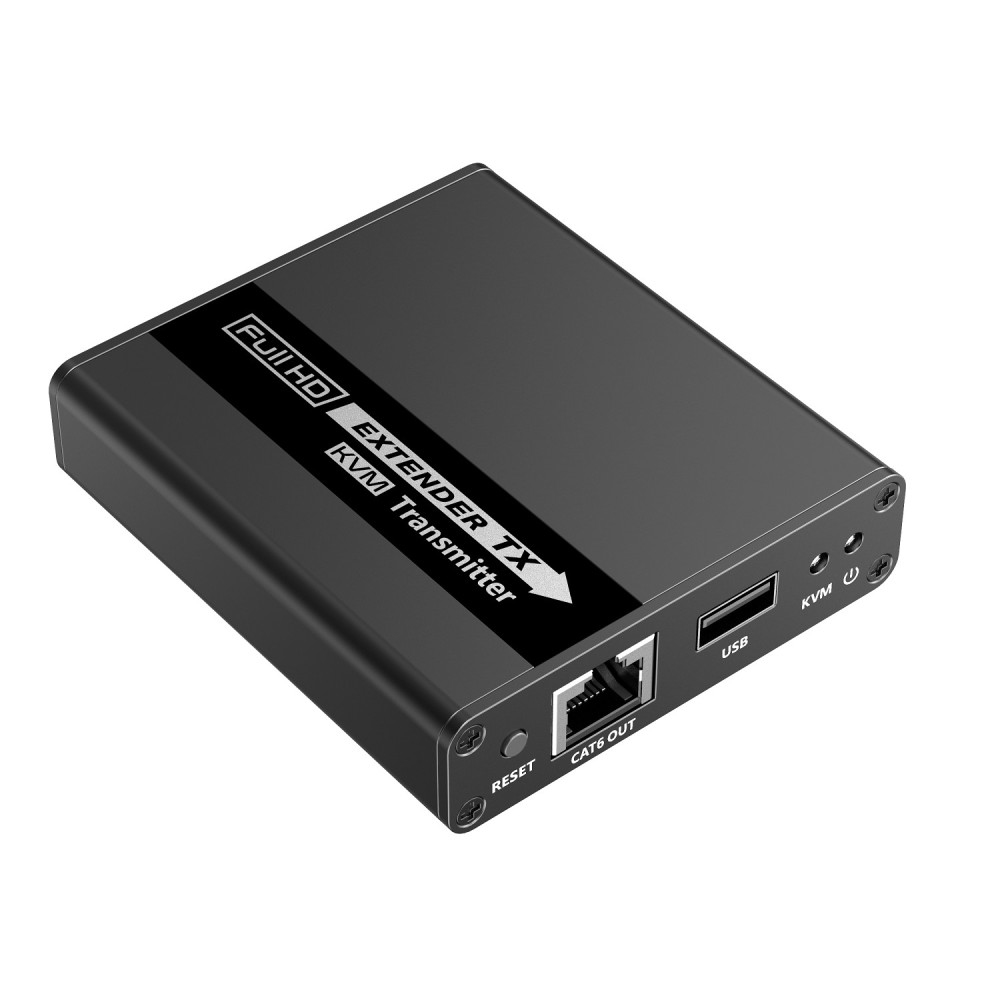

Transmitter
| Specification | Value |
|---|---|
| Transmitter video port type | HDMI |
| Transmitter local keyboard/mouse port type | USB |
| RJ-45 ports quantity (transmitter) | 1 |

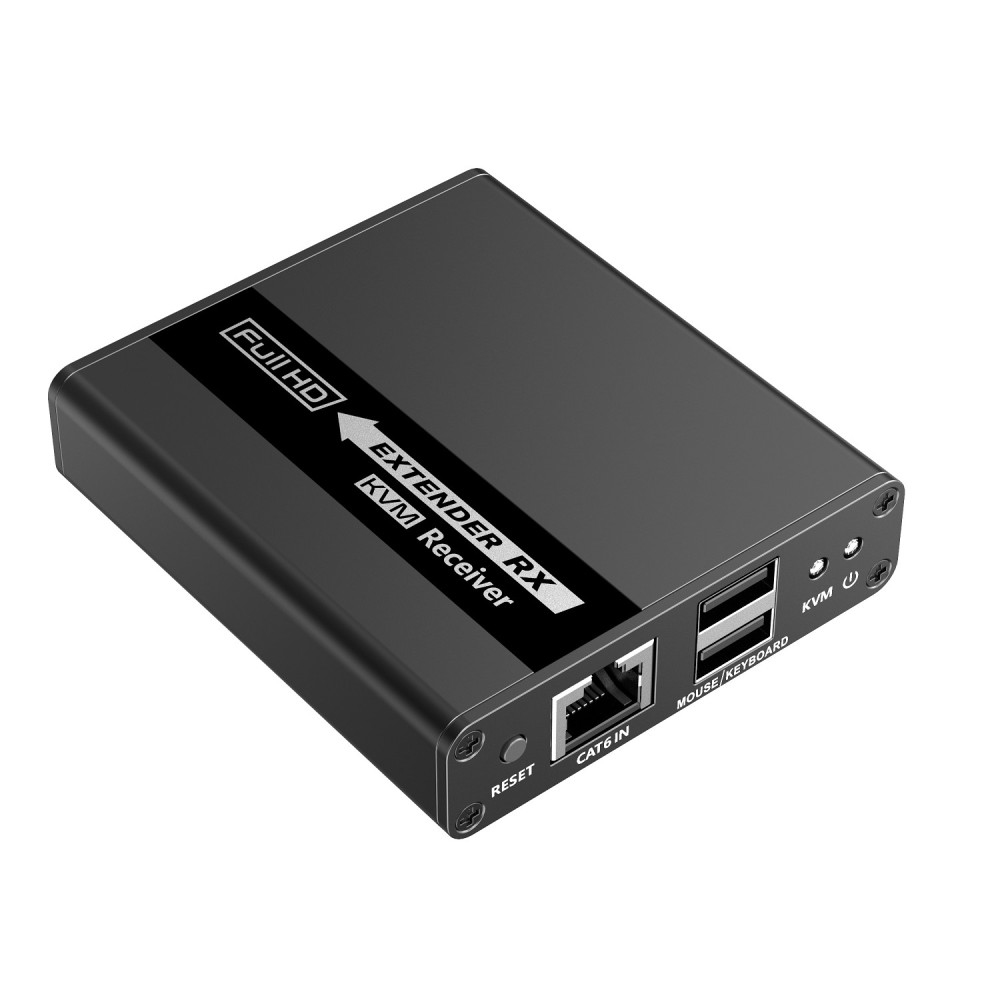

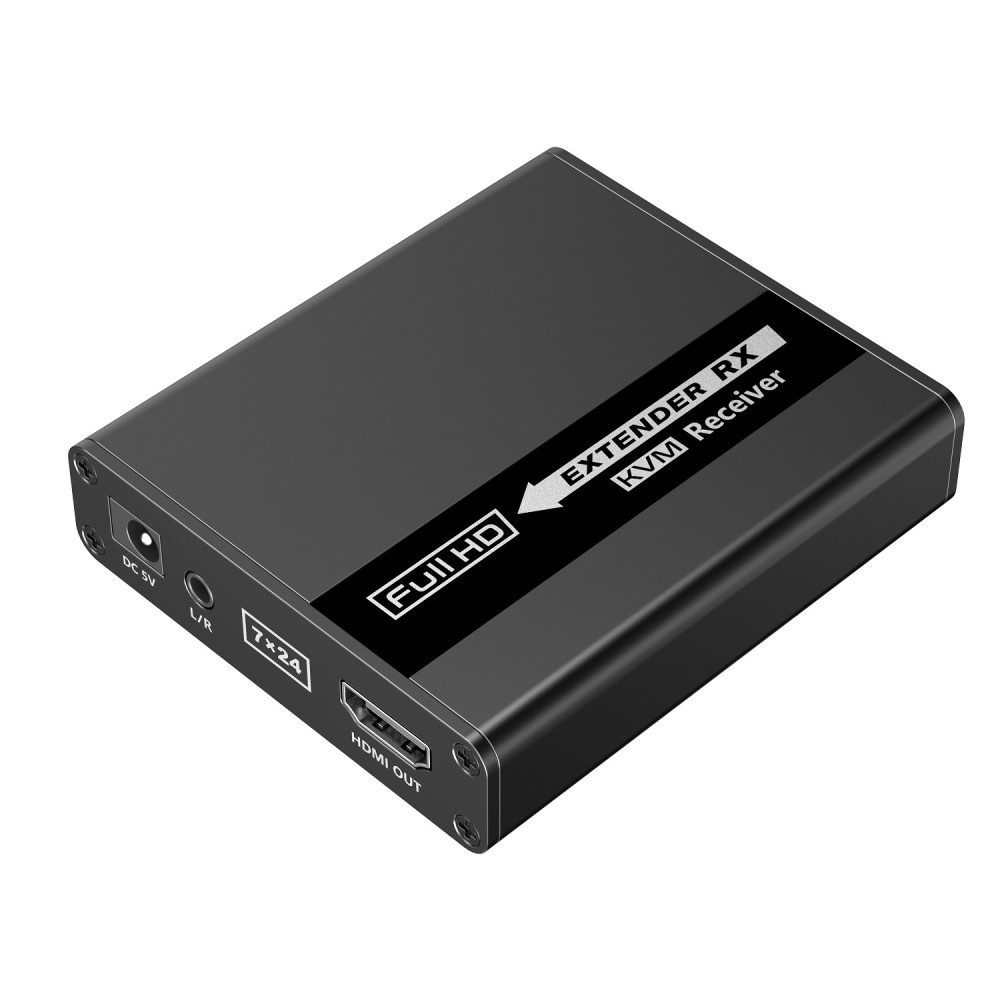

Receiver
| Specification | Value |
|---|---|
| RJ-45 ports quantity (receiver) | 1 |
| Receiver local keyboard/mouse port type | USB |
| Receiver local video port type | HDMI |
Ports & interfaces
| Specification | Value |
|---|---|
| USB port type | USB Type-A |
| HDMI version | 1.3 |
| USB 2.0 ports quantity | 2 |
Power
| Specification | Value |
|---|---|
| AC adapter output voltage | 5 V |
| AC adapter output current | 1 A |
| Power consumption (transmitter) (max) | 2.5 W |
| Power consumption (receiver) (max) | 2.5 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Transmitter width | 7.5 cm |
| Transmitter depth | 8.5 cm |
| Transmitter height | 2 cm |
| Receiver width | 7.5 cm |
| Receiver depth | 8.5 cm |
| Receiver height | 2 cm |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Cables included | USB |
| Manual | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -20 - 60 °C |
| Storage temperature (T-T) | -30 - 70 °C |
| Operating relative humidity (H-H) | 0 - 90% |
Other features
| Specification | Value |
|---|---|
| Compliance certificates | CE |
Technical details
| Specification | Value |
|---|---|
| Weight | 576 g |
