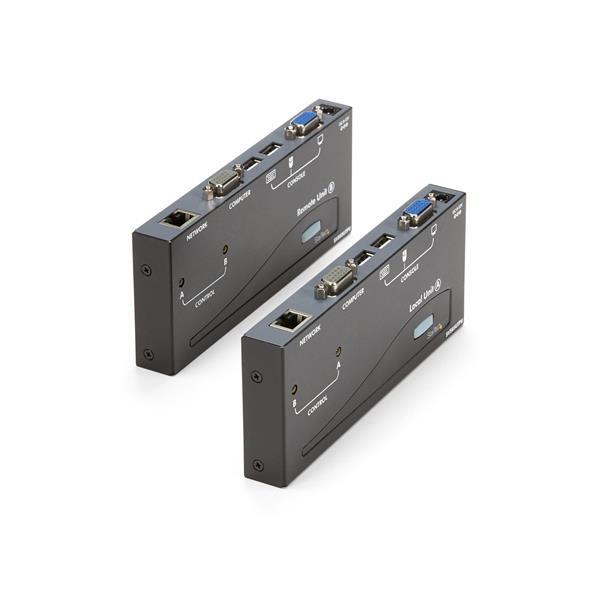

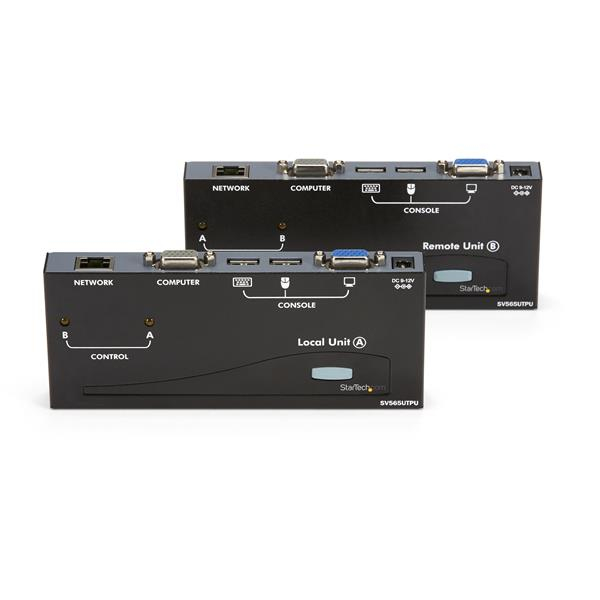

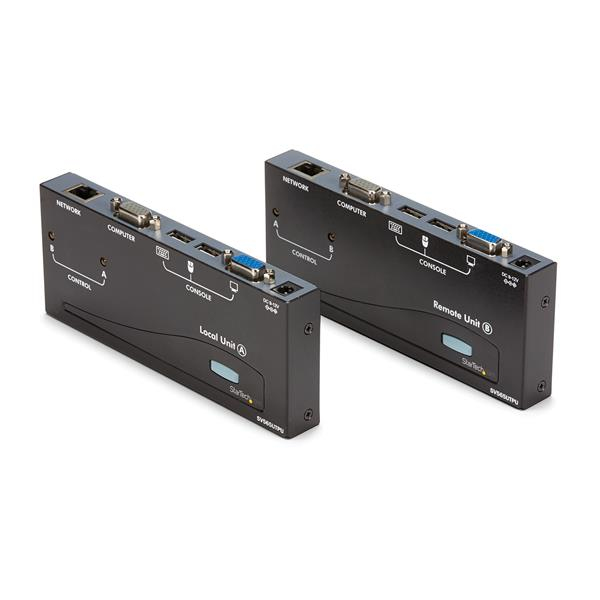

StarTech.com USB VGA KVM Console Extender over CAT5 UTP (500 ft) - TAA
StarTech.com

USB VGA KVM Console Extender over CAT5 UTP (500 ft) - TAA

Model SV565UTPUEUEAN 065030834506

46 specifications
  • ConnectivityWired
  • TypeTransmitter & receiver
  • Weight299 g
  • ColourBlack
  • Transmitter video port typeVGA
  • USB port typeUSB Type-A
See all specifications

Overview

Connectivity
Wired
Type
Transmitter & receiver
Weight
299 g
Colour
Black
Transmitter video port type
VGA
USB port type
USB Type-A
Brand
StarTech.com
Category
KVM Extender
Model
SV565UTPUEU
Part number
SV565UTPUEU
EAN / UPC
065030834506, 5054484159674
Also known as
StarTech.com USB VGA KVM Console Extender over CAT5 UTP (500 ft) - TAA

Specifications

46 specifications in 10 groups

Features

TypeTransmitter & receiver
Connectivity technologyWired
Maximum transfer distance150 m
Rack mountingNo
Product colourBlack
Plug and PlayYes
CertificationCE, FCC, RoSH

Transmitter

Transmitter video port typeVGA
Transmitter local video portYes
Transmitter local video port typeVGA

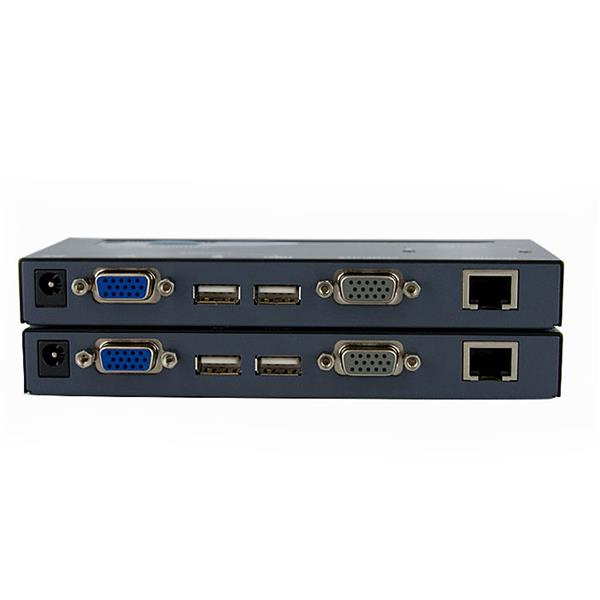

Ports & interfaces

USB port typeUSB Type-A
USB 2.0 ports quantity4
RJ-45 ports quantity2

Power

Power plug typeType M
AC input voltage100 - 240 V
Input current0.2 A
AC adapter output voltage9 V
AC adapter output current0.6 A
Power consumption (transmitter) (max)5.4 W
Power consumption (receiver) (max)5.4 W

Weight & dimensions

Transmitter width15.5 cm
Transmitter depth7.5 cm
Transmitter height2 cm
Transmitter weight299 g
Receiver width15.5 cm
Receiver depth7.5 cm
Receiver height2 cm
Receiver weight299 g

Packaging data

Package width253 mm
Package depth299 mm
Package height86 mm
Package weight1.7 kg

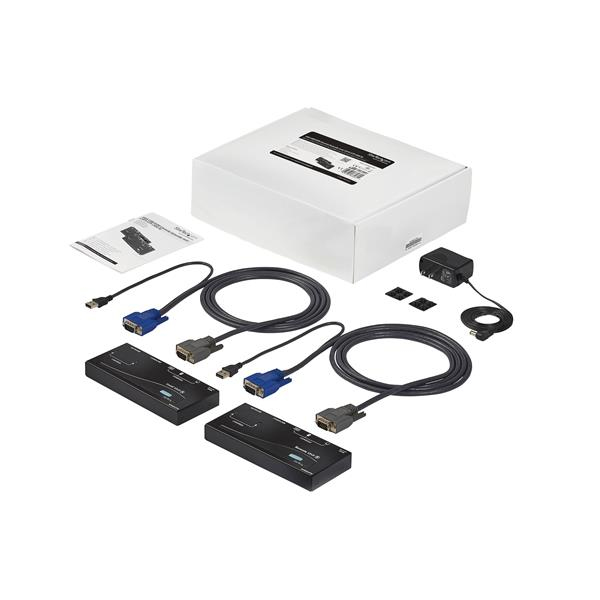

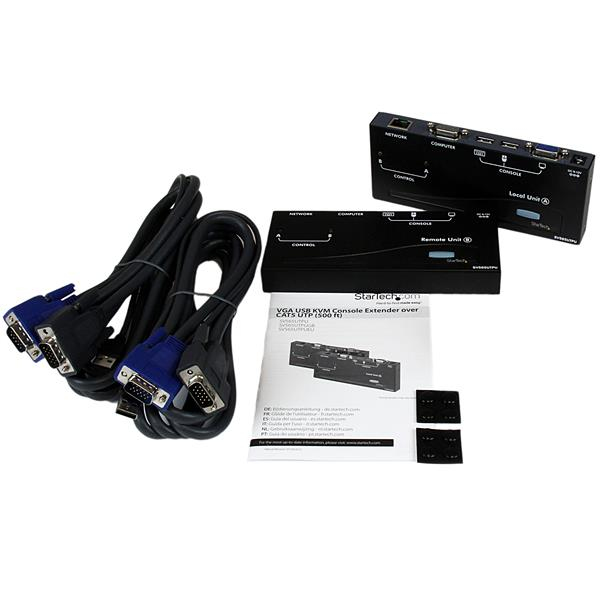

Packaging content

AC adapter includedYes
Cables includedKVM
ManualYes

Operational conditions

Operating temperature (T-T)0 - 50 °C
Storage temperature (T-T)-20 - 60 °C
Operating relative humidity (H-H)0 - 80%

Technical details

Maximum resolution1280 x 1024 pixels
Power requirements230 AC
Weight299 g

Logistics data

Harmonized System (HS) code84733080
Master (outer) case width510 mm
Master (outer) case length320 mm
Master (outer) case height295 mm
Products per master (outer) case6 pc(s)
