StarTech.com HDMI KVM Transmitter Over IP Network for the IH2006 Product Series, 4K
StarTech.com

HDMI KVM Transmitter Over IP Network for the IH2006 Product Series, 4K

60Hz, Driverless, AVoIP, Includes Mounting Kit, Transmitter Only

Model IH2006-KVM-TXEAN 065030912693

41 specifications
  • ConnectivityWired
  • TypeTransmitter
  • ColourBlack
  • Transmitter video port typeHDMI
  • USB port typeUSB Type-C
  • Power plug typeType M
See all specifications

Overview

Connectivity
Wired
Type
Transmitter
Colour
Black
Transmitter video port type
HDMI
USB port type
USB Type-C
Power plug type
Type M
Brand
StarTech.com
Category
KVM Extender
Model
IH2006-KVM-TX
Part number
IH2006-KVM-TX
EAN / UPC
065030912693
Also known as
StarTech.com HDMI KVM Transmitter Over IP Network for the IH2006 Product Series, 4K 60Hz, Driverless, AVoIP, Includes Mounting Kit, Transmitter Only

Specifications

41 specifications in 9 groups

Features

TypeTransmitter
Connectivity technologyWired
Rack mountingNo
Maximum digital resolution3840 x 2160 pixels
Maximum refresh rate60 Hz
Product colourBlack
MaterialMetal
LED indicatorsYes

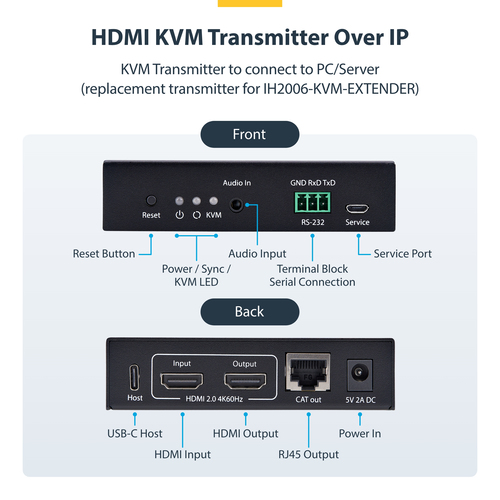

Transmitter

Transmitter video port typeHDMI
Transmitter local video portYes
Transmitter local video port typeHDMI
RJ-45 ports quantity (transmitter)1
Transmitter Micro-USB ports quantity1

Ports & interfaces

USB port typeUSB Type-C
HDMI version2.0
USB 2.0 ports quantity1
RS-232 ports1
PC Audio inYes

Power

Power plug typeType M
AC input voltage100 - 240 V
Input current0.3 A
AC adapter output voltage5 V
AC adapter output current2 A
Power consumption (receiver) (max)10 W
DC-in jackYes

Packaging data

Package width199 mm
Package depth149 mm
Package height80 mm
Package weight500 g

Packaging content

AC adapter includedYes
Cables includedNo
Included power plug typesANZ, EU, NA, UK
Mounting bracket(s) includedYes

Operational conditions

Operating temperature (T-T)-20 - 60 °C
Storage temperature (T-T)-30 - 70 °C
Operating relative humidity (H-H)0 - 90%

Other features

Compliance certificatesFederal Communications Commission (FCC), RoHS

Logistics data

Master (outer) case width425 mm
Master (outer) case length315 mm
Master (outer) case height420 mm
Products per master (outer) case20 pc(s)
