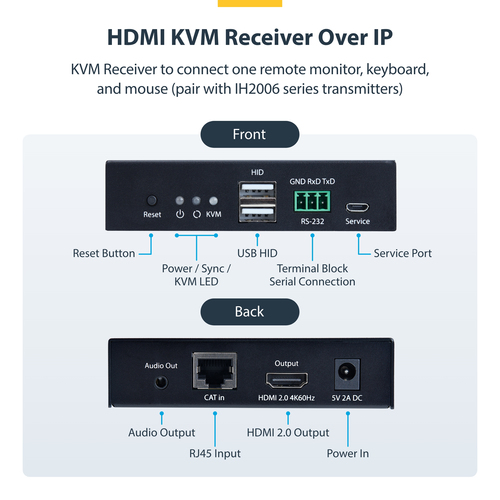

HDMI KVM Receiver Over IP Network for the IH2006 Product Series, 4K
60Hz, Driverless, AVoIP, Includes Mounting Kit, Receiver Only
Model IH2006-KVM-RXEAN 065030912679
40 specifications
- ConnectivityWired
- TypeReceiver
- ColourBlack
- RJ-45 ports quantity (receiver)1
- HDMI version2.0
- Power plug typeType M
Overview
- Connectivity
- Wired
- Type
- Receiver
- Colour
- Black
- RJ-45 ports quantity (receiver)
- 1
- HDMI version
- 2.0
- Power plug type
- Type M
- Brand
- StarTech.com
- Category
- KVM Extender
- Model
- IH2006-KVM-RX
- Part number
- IH2006-KVM-RX
- EAN / UPC
- 065030912679
- Also known as
- StarTech.com HDMI KVM Receiver Over IP Network for the IH2006 Product Series, 4K 60Hz, Driverless, AVoIP, Includes Mounting Kit, Receiver Only
Specifications
40 specifications in 9 groups
Features
| Specification | Value |
|---|---|
| Type | Receiver |
| Connectivity technology | Wired |
| Rack mounting | No |
| Maximum digital resolution | 3840 x 2160 pixels |
| Maximum refresh rate | 60 Hz |
| On Screen Display (OSD) | No |
| Product colour | Black |
| Material | Metal |
| LED indicators | Yes |
Receiver
| Specification | Value |
|---|---|
| RJ-45 ports quantity (receiver) | 1 |
| Receiver Micro-USB ports quantity | 1 |
| Receiver USB Type-A ports quantity | 2 |
| Receiver local keyboard/mouse port type | USB |
| Receiver local video port type | HDMI |
Ports & interfaces
| Specification | Value |
|---|---|
| HDMI version | 2.0 |
| RS-232 ports | 1 |
| PC Audio out | Yes |
Power
| Specification | Value |
|---|---|
| Power plug type | Type M |
| AC input voltage | 100 - 240 V |
| Input current | 0.3 A |
| AC adapter output voltage | 5 V |
| AC adapter output current | 2 A |
| Power consumption (receiver) (max) | 10 W |
| DC-in jack | Yes |
Packaging data
| Specification | Value |
|---|---|
| Package width | 199 mm |
| Package depth | 149 mm |
| Package height | 80 mm |
| Package weight | 500 g |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Cables included | No |
| Included power plug types | ANZ, EU, NA, UK |
| Mounting bracket(s) included | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -20 - 60 °C |
| Storage temperature (T-T) | -30 - 70 °C |
| Operating relative humidity (H-H) | 0 - 90% |
Other features
| Specification | Value |
|---|---|
| Compliance certificates | Federal Communications Commission (FCC), RoHS |
Logistics data
| Specification | Value |
|---|---|
| Master (outer) case width | 425 mm |
| Master (outer) case length | 315 mm |
| Master (outer) case height | 420 mm |
| Products per master (outer) case | 20 pc(s) |
