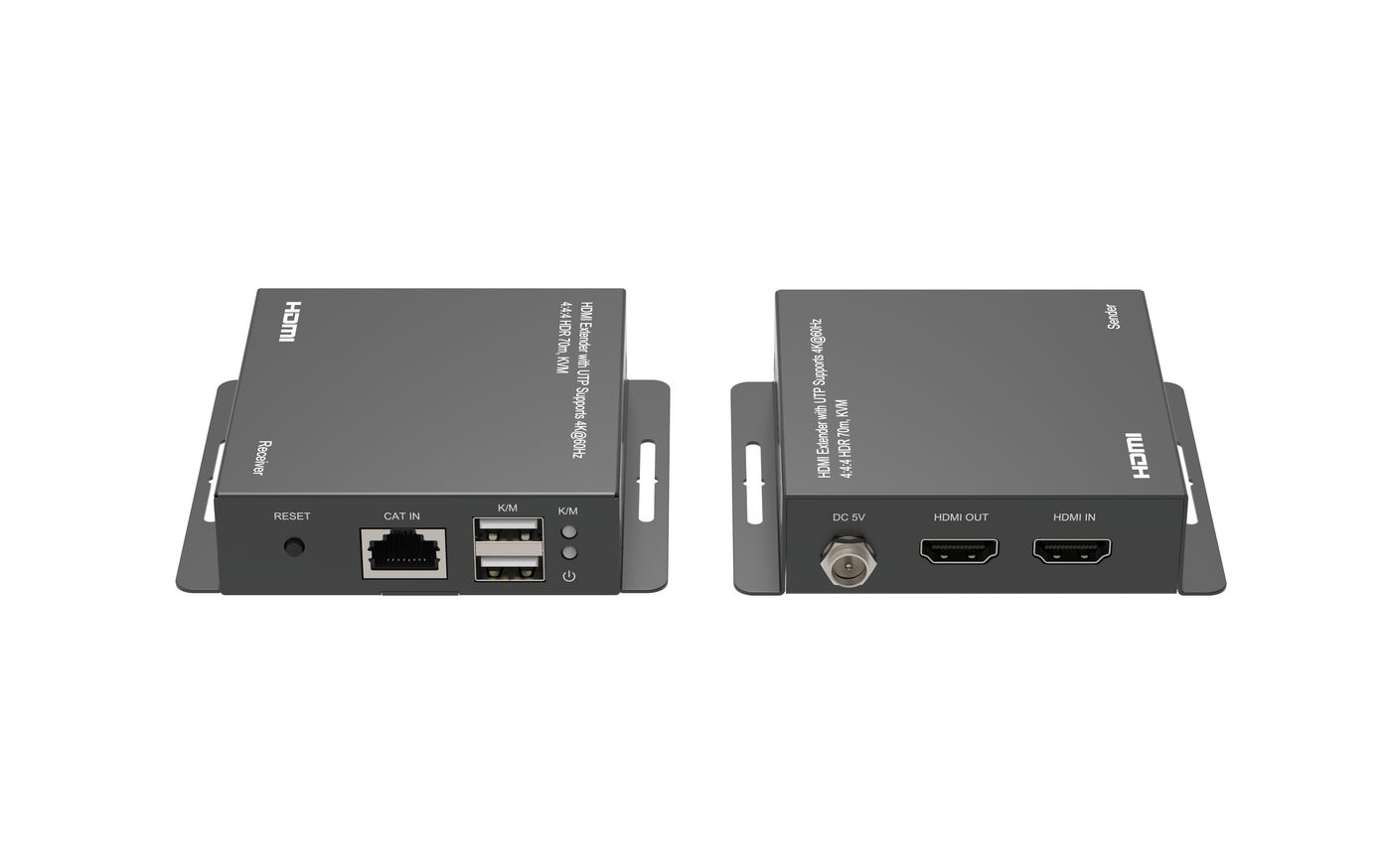

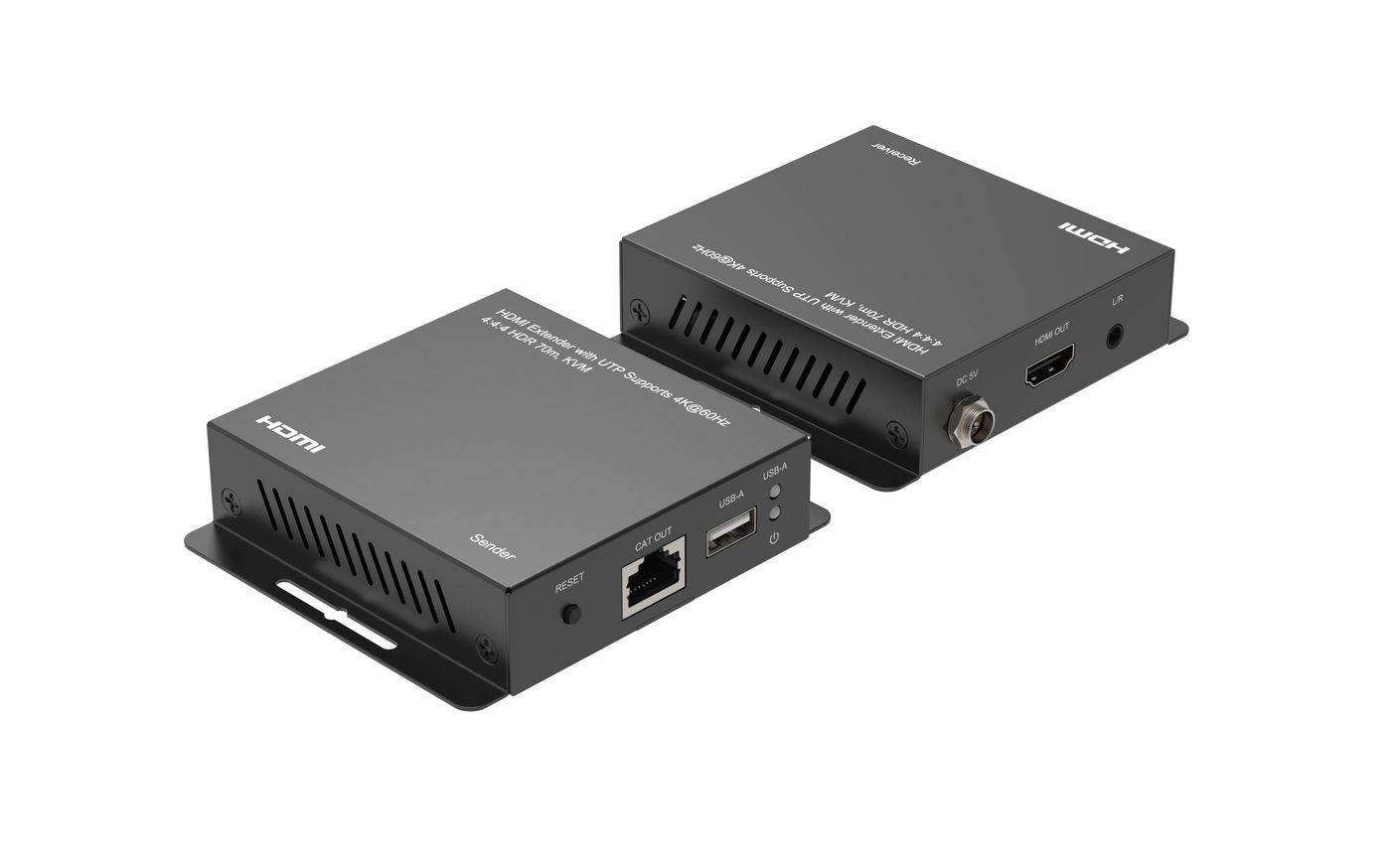

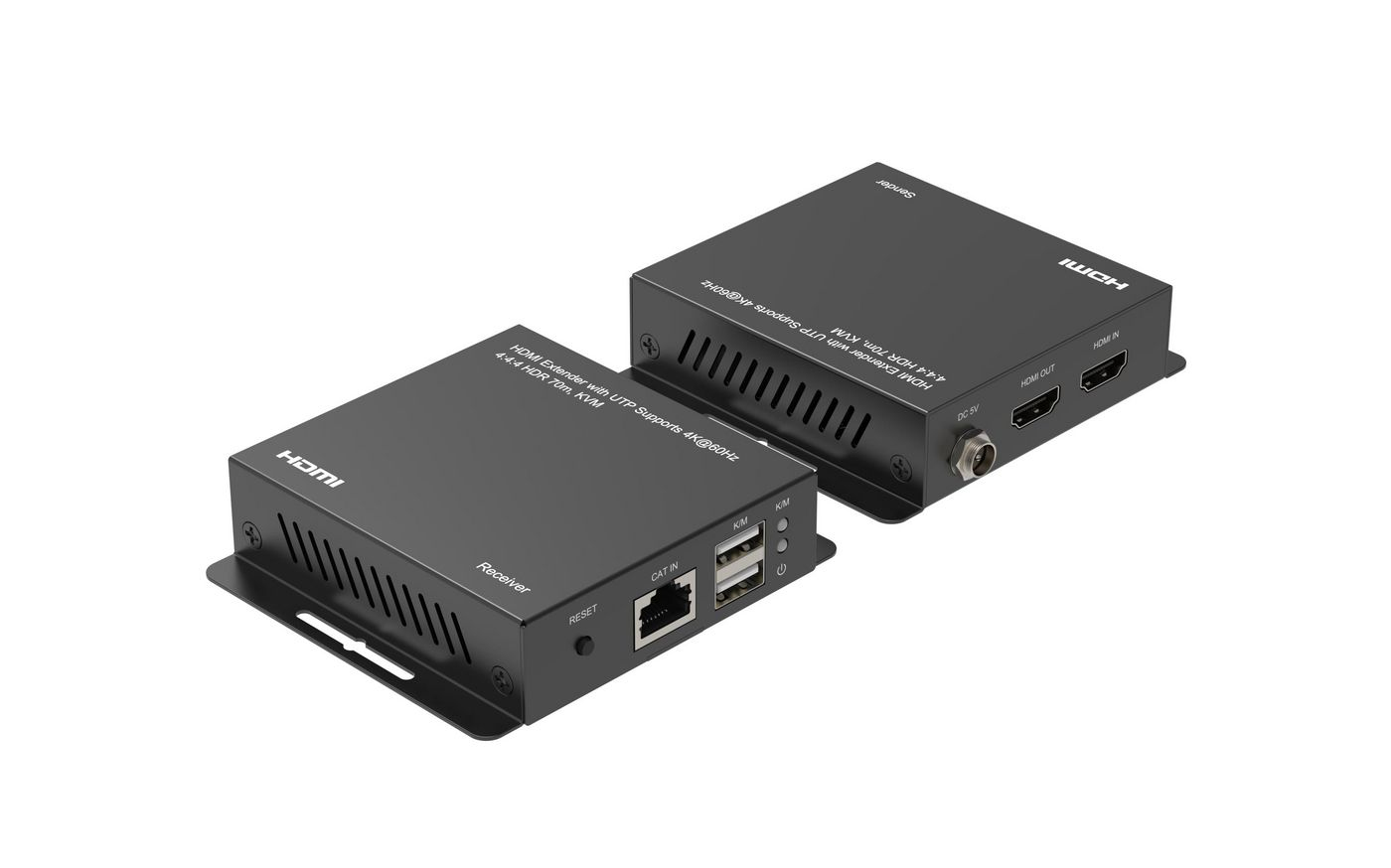

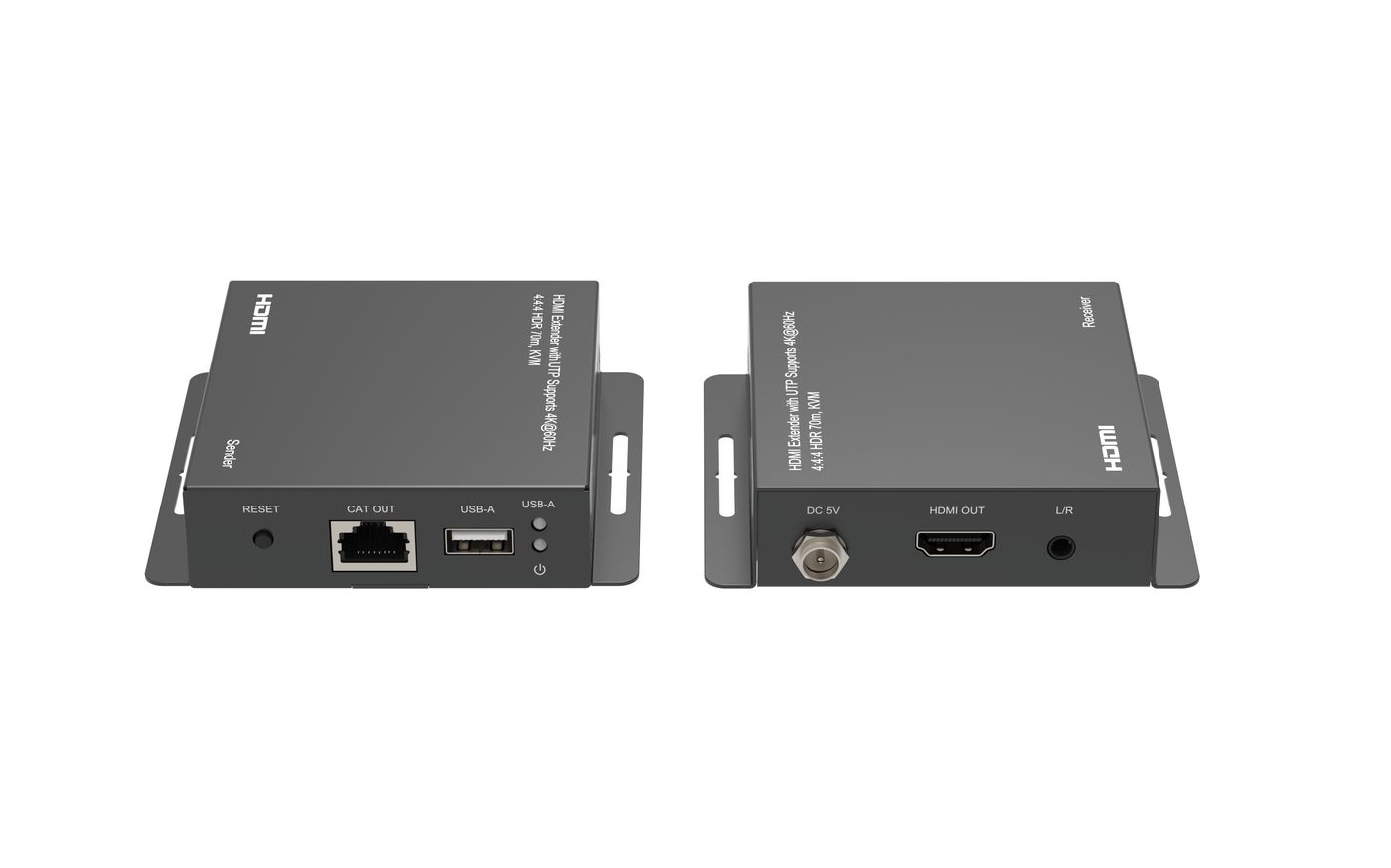

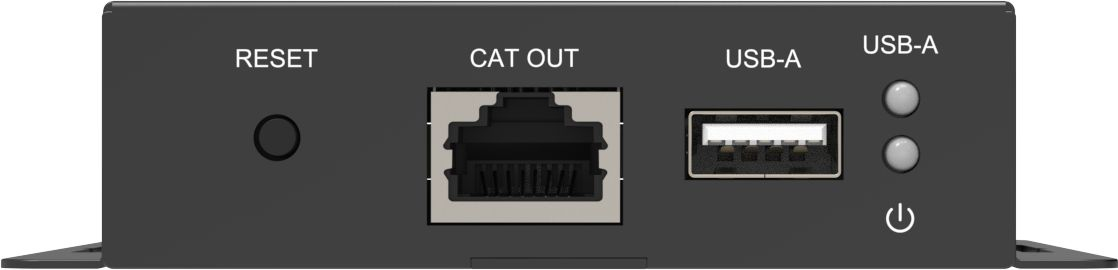

MC-HDMIKVMEXT-70M KVM extender
Model MC-HDMIKVMEXT-70MEAN 5715063739952
39 specifications
- ConnectivityWired
- Weight316 g
- ColourBlack
- Transmitter video port typeHDMI
- RJ-45 ports quantity (receiver)1
- USB port typeUSB Type-A
Overview
- Connectivity
- Wired
- Weight
- 316 g
- Colour
- Black
- Transmitter video port type
- HDMI
- RJ-45 ports quantity (receiver)
- 1
- USB port type
- USB Type-A
- Brand
- Microconnect
- Category
- KVM Extender
- Model
- MC-HDMIKVMEXT-70M
- Part number
- MC-HDMIKVMEXT-70M
- EAN / UPC
- 5715063739952
- Also known as
- Microconnect MC-HDMIKVMEXT-70M KVM extender
Specifications
39 specifications in 8 groups
Features
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Maximum transfer distance | 70 m |
| Maximum refresh rate | 60 Hz |
| Product colour | Black |
| Material | Aluminium |
| Easy to install | Yes |
| Plug and Play | Yes |
| LED indicators | Power |
| Certification | CE, RoHS and FCC |
Transmitter
| Specification | Value |
|---|---|

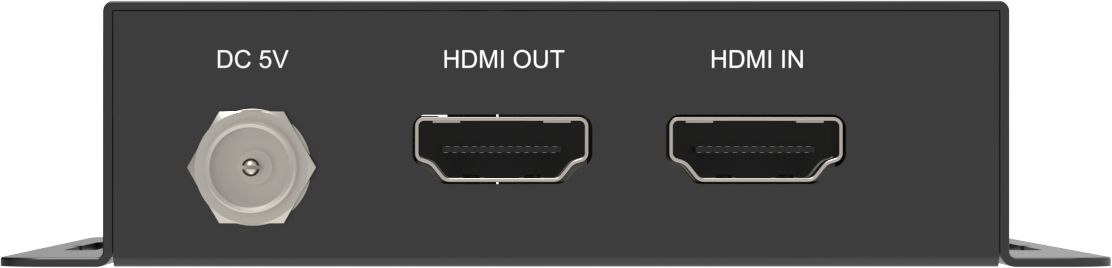

| Transmitter video port type | HDMI |
| Transmitter local video port | Yes |
| Transmitter local video port type | HDMI |
| Number of displays supported | 2 |
| Transmitter local keyboard/mouse port type | USB |
| RJ-45 ports quantity (transmitter) | 1 |
Receiver
| Specification | Value |
|---|---|

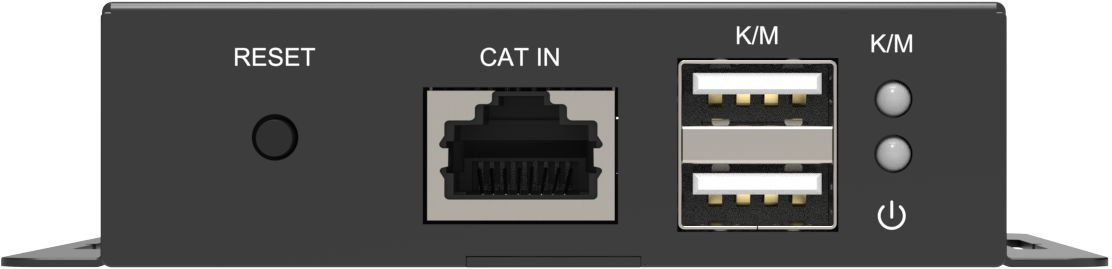

| RJ-45 ports quantity (receiver) | 1 |
| Receiver USB Type-A ports quantity | 2 |
| Receiver local keyboard/mouse port type | USB |

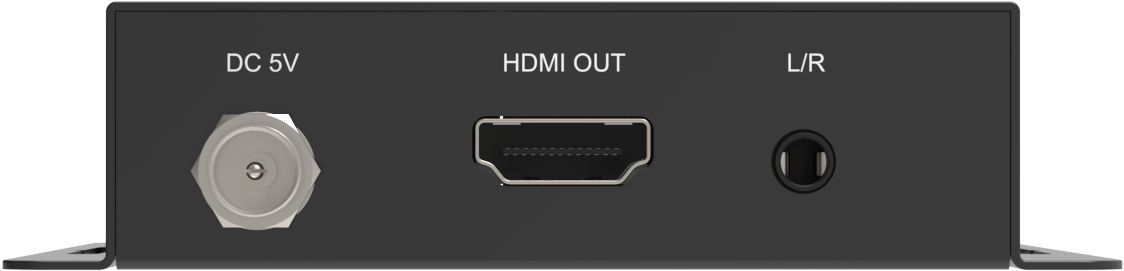

| Receiver local video port type | HDMI |
| Receiver local video ports quantity | 1 |
Ports & interfaces
| Specification | Value |
|---|---|
| USB port type | USB Type-A |
| HDMI version | 2.0 |
| USB 2.0 ports quantity | 3 |
| RJ-45 ports quantity | 2 |
| PC Audio out | Yes |
Packaging data
| Specification | Value |
|---|---|
| Package width | 243 mm |
| Package depth | 196 mm |
| Package height | 60 mm |
| Package weight | 769 g |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Cables included | No |
| Manual | Yes |
| Quick installation guide | Yes |
| Mounting bracket(s) included | Yes |
Other features
| Specification | Value |
|---|---|
| HDCP | Yes |
| HDCP version | 2.2 |
| Compliance certificates | CE |
Technical details
| Specification | Value |
|---|---|
| Maximum resolution | 3840 x 2160 pixels |
| Weight | 316 g |
