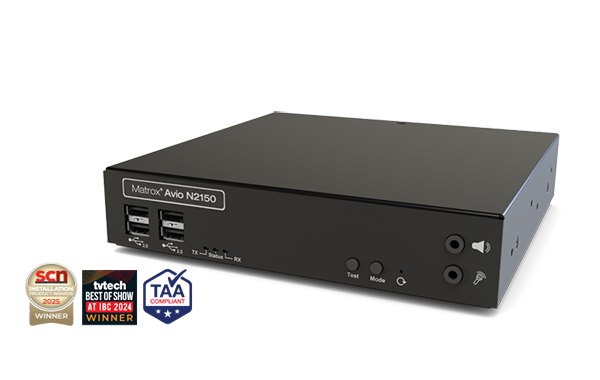

Avio 2 4K HDMI IP KVM Extender
Model Avio 2 4K HDMI IP KVM ExtenderPart no. AV2-N2150EAN 790750262963
36 specifications
- ConnectivityWired
- TypeTransmitter & receiver
- ColourBlack
- Transmitter video port typeHDMI
- Receiver local keyboard/mouse port typeUSB
- RJ-45 ports quantity1
Overview
- Connectivity
- Wired
- Type
- Transmitter & receiver
- Colour
- Black
- Transmitter video port type
- HDMI
- Receiver local keyboard/mouse port type
- USB
- RJ-45 ports quantity
- 1
- Brand
- Matrox
- Category
- KVM Extender
- Model
- Avio 2 4K HDMI IP KVM Extender
- Part number
- AV2-N2150
- EAN / UPC
- 790750262963
- Also known as
- Matrox Avio N2150 IP KVM Extender / AV2-N2150
Specifications
36 specifications in 8 groups
Features
| Specification | Value |
|---|---|
| Type | Transmitter & receiver |
| Connectivity technology | Wired |
| Rack mounting | Yes |
| Maximum digital resolution | 4096 x 2160 pixels |
| Maximum refresh rate | 60 Hz |
| Colour depth | 444 bit |
| On Screen Display (OSD) | Yes |
| Product colour | Black |
| Material | Metal |
| Easy to install | Yes |
| Certification | EMC/EMI device class: • Class A EMC/EMI compliance: • CE (EU) • FCC (USA) • ICES-003 (Canada) • KC (Korea) • RCM (Aus/NZ) Environmental compliance: • China RoHS • EU RoHS • REACH |
Transmitter
| Specification | Value |
|---|---|
| Transmitter video port type | HDMI |
| Transmitter local video port | Yes |
| Transmitter local video port type | HDMI |
| Number of displays supported | 1 |
| Transmitter local keyboard/mouse port type | USB |
Receiver
| Specification | Value |
|---|---|
| Receiver local keyboard/mouse port type | USB |
| Receiver local video port type | HDMI |
| Receiver local video ports quantity | 1 |

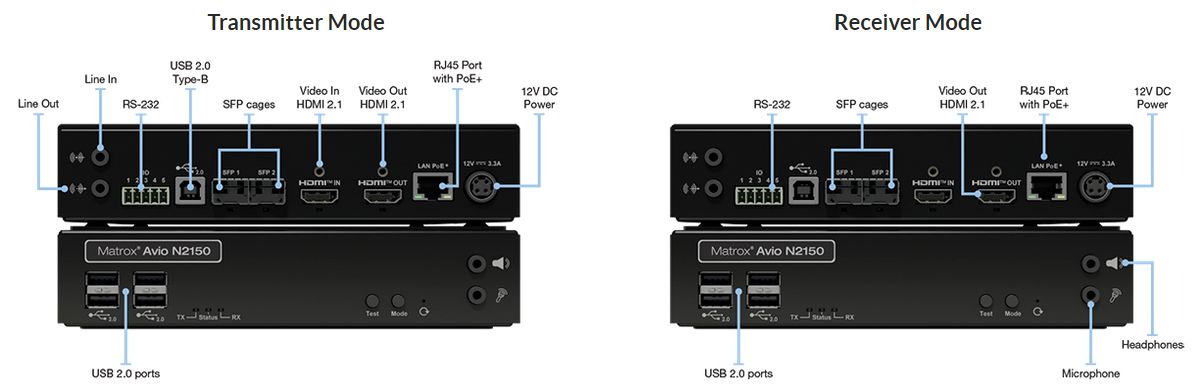

Ports & interfaces
| Specification | Value |
|---|---|
| RJ-45 ports quantity | 1 |
| SFP/SFP+ slots quantity | 2 |
Weight & dimensions
| Specification | Value |
|---|---|
| Transmitter width | 18.5 cm |
| Transmitter depth | 18.5 cm |
| Transmitter height | 4.3 cm |
| Transmitter weight | 820 g |
| Receiver width | 18.5 cm |
| Receiver depth | 18.5 cm |
| Receiver height | 4.3 cm |
| Receiver weight | 820 g |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | No |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage relative humidity (H-H) | 5 - 95% |
Other features
| Specification | Value |
|---|---|
| Firmware upgradeable | Yes |
| Warranty period | 3 year(s) |
