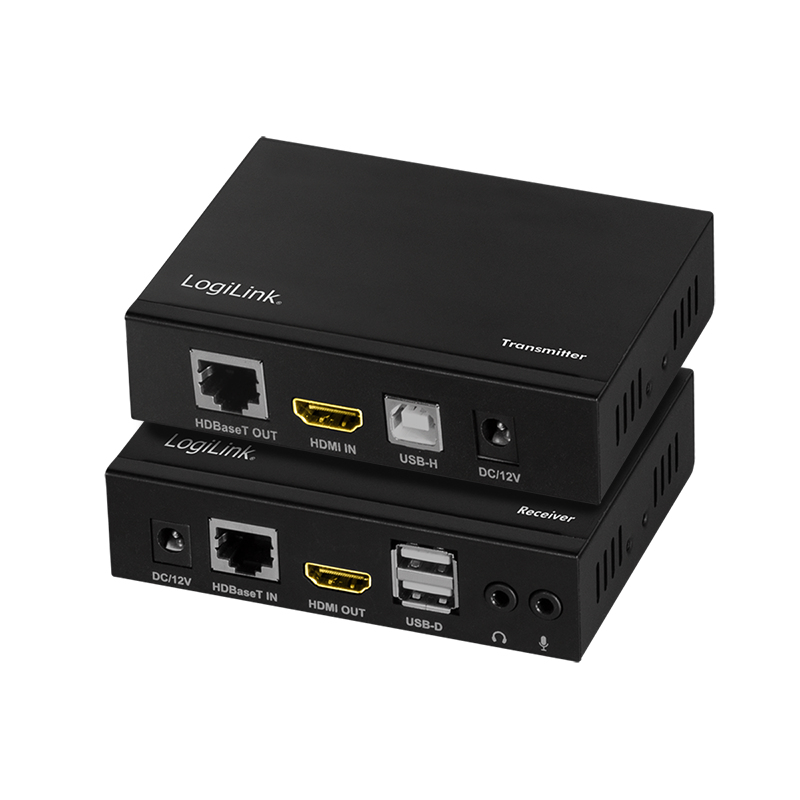

HD0029 KVM extender Transmitter & receiver
Model HD0029EAN 4052792050752
37 specifications
- ConnectivityWired
- TypeTransmitter & receiver
- ColourBlack
- Transmitter video port typeHDMI
- RJ-45 ports quantity (receiver)1
- HDMI version2.0
Overview
- Connectivity
- Wired
- Type
- Transmitter & receiver
- Colour
- Black
- Transmitter video port type
- HDMI
- RJ-45 ports quantity (receiver)
- 1
- HDMI version
- 2.0
- Brand
- LogiLink
- Category
- KVM Extender
- Model
- HD0029
- Part number
- HD0029
- EAN / UPC
- 4052792050752
- Also known as
- LogiLink HD0029 KVM extender Transmitter & receiver
Specifications
37 specifications in 10 groups
Features
| Specification | Value |
|---|---|
| Type | Transmitter & receiver |
| Connectivity technology | Wired |
| Maximum transfer distance | 100 m |
| Cable types supported | Cat5e, Cat6, Cat7, Cat8.1 |
| Product colour | Black |
| Material | Metal |
| LED indicators | Yes |

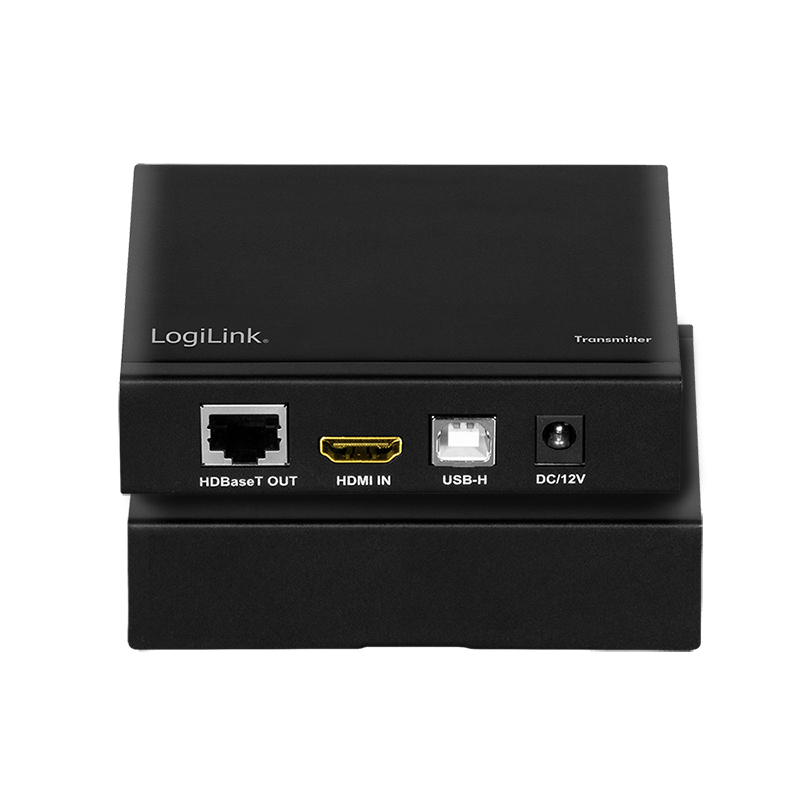

Transmitter
| Specification | Value |
|---|---|
| Transmitter video port type | HDMI |
| Transmitter local keyboard/mouse port type | USB |
| RJ-45 ports quantity (transmitter) | 1 |

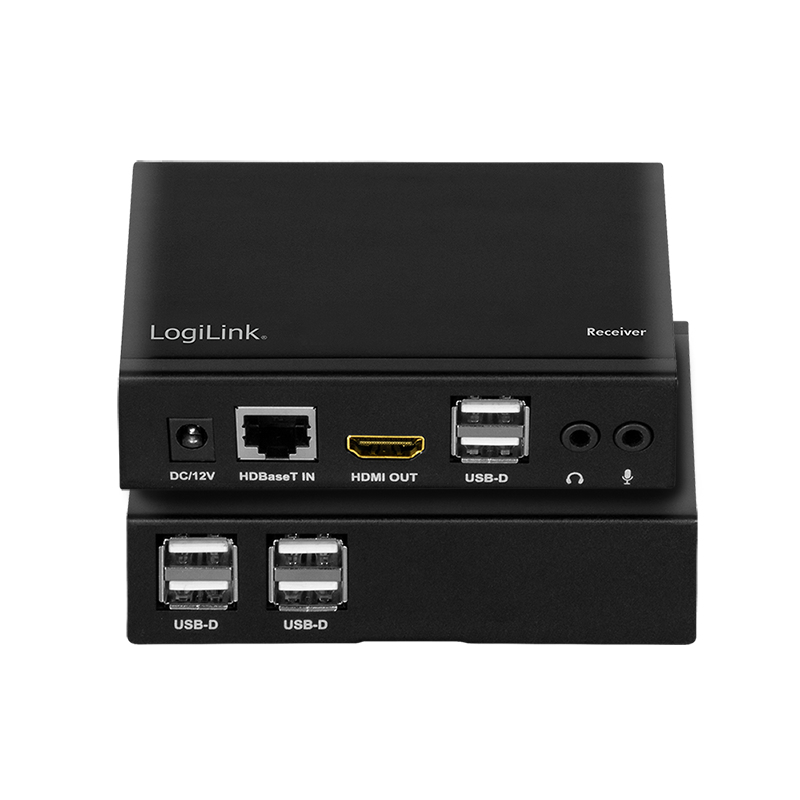

Receiver
| Specification | Value |
|---|---|
| RJ-45 ports quantity (receiver) | 1 |
| Receiver local keyboard/mouse port type | USB |
| Receiver local video port type | HDMI |
Ports & interfaces
| Specification | Value |
|---|---|
| HDMI version | 2.0 |
Power
| Specification | Value |
|---|---|
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 0.65 A |
| AC adapter output voltage | 12 V |
| AC adapter output current | 2 A |
| Power consumption (transmitter) (max) | 3 W |
| Power consumption (receiver) (max) | 7 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Transmitter width | 10.4 cm |
| Transmitter depth | 8.9 cm |
| Transmitter height | 2.6 cm |
| Transmitter weight | 235 g |
| Receiver width | 10.8 cm |
| Receiver depth | 8.2 cm |
| Receiver height | 2.8 cm |
| Receiver weight | 260 g |

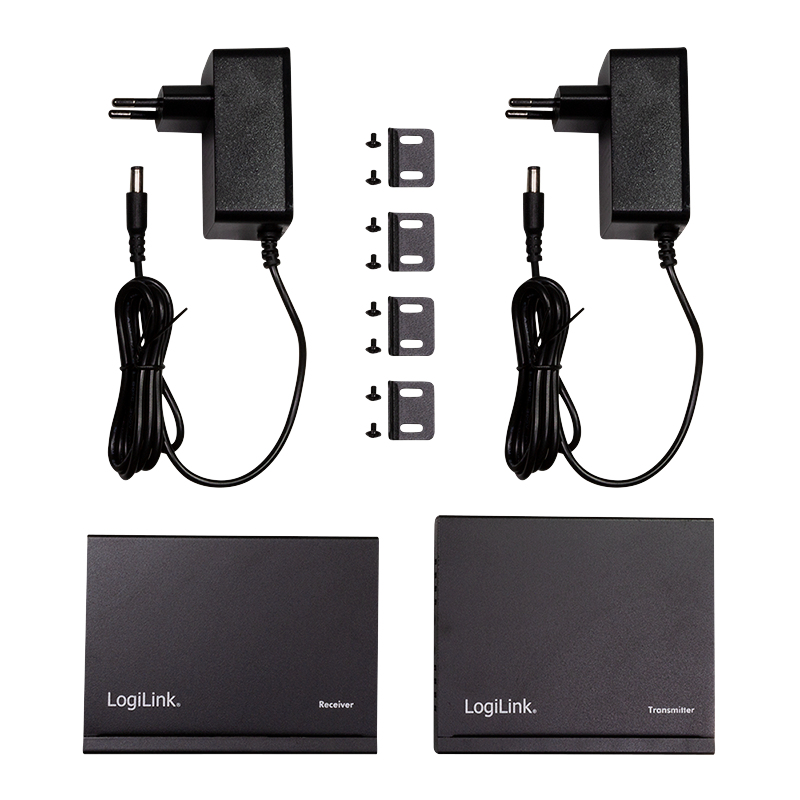

Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Manual | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -10 - 80 °C |
| Operating relative humidity (H-H) | 10 - 85% |
| Storage relative humidity (H-H) | 5 - 90% |
Other features
| Specification | Value |
|---|---|
| Bandwidth | 340 MHz |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84733080 |
