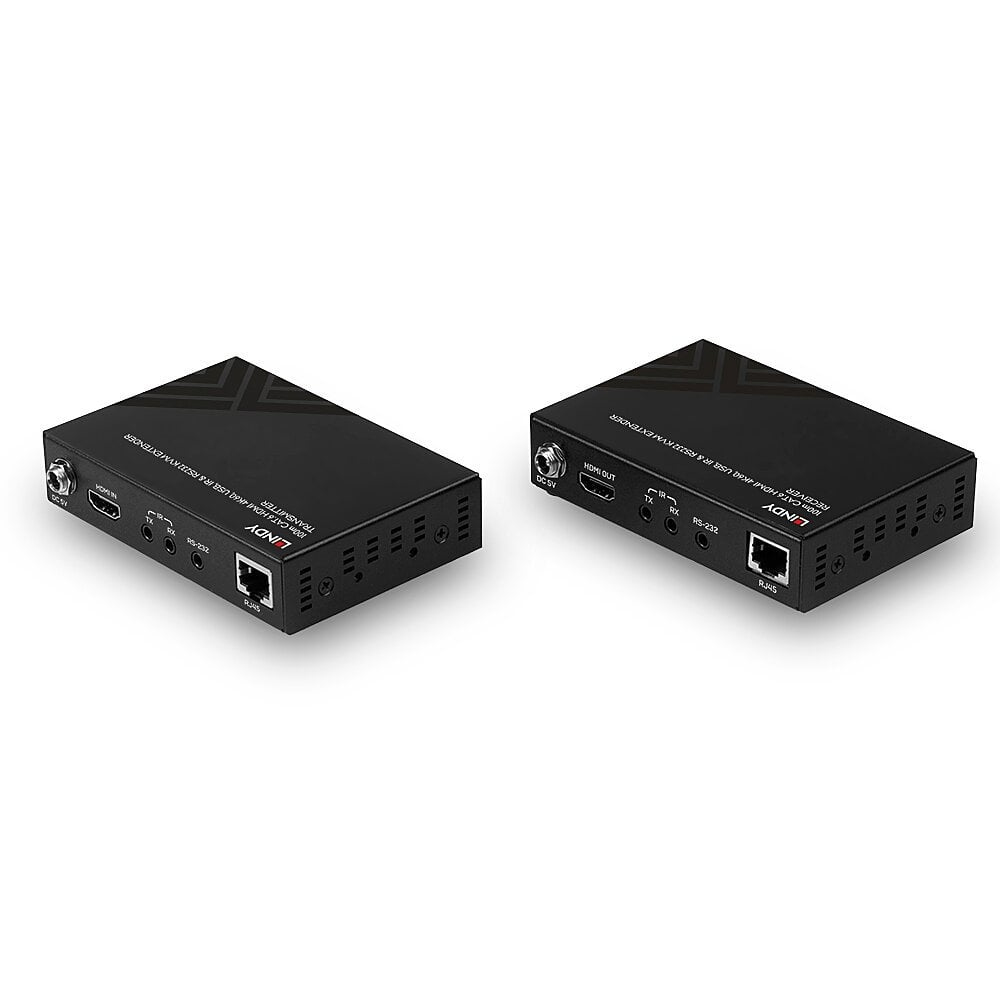

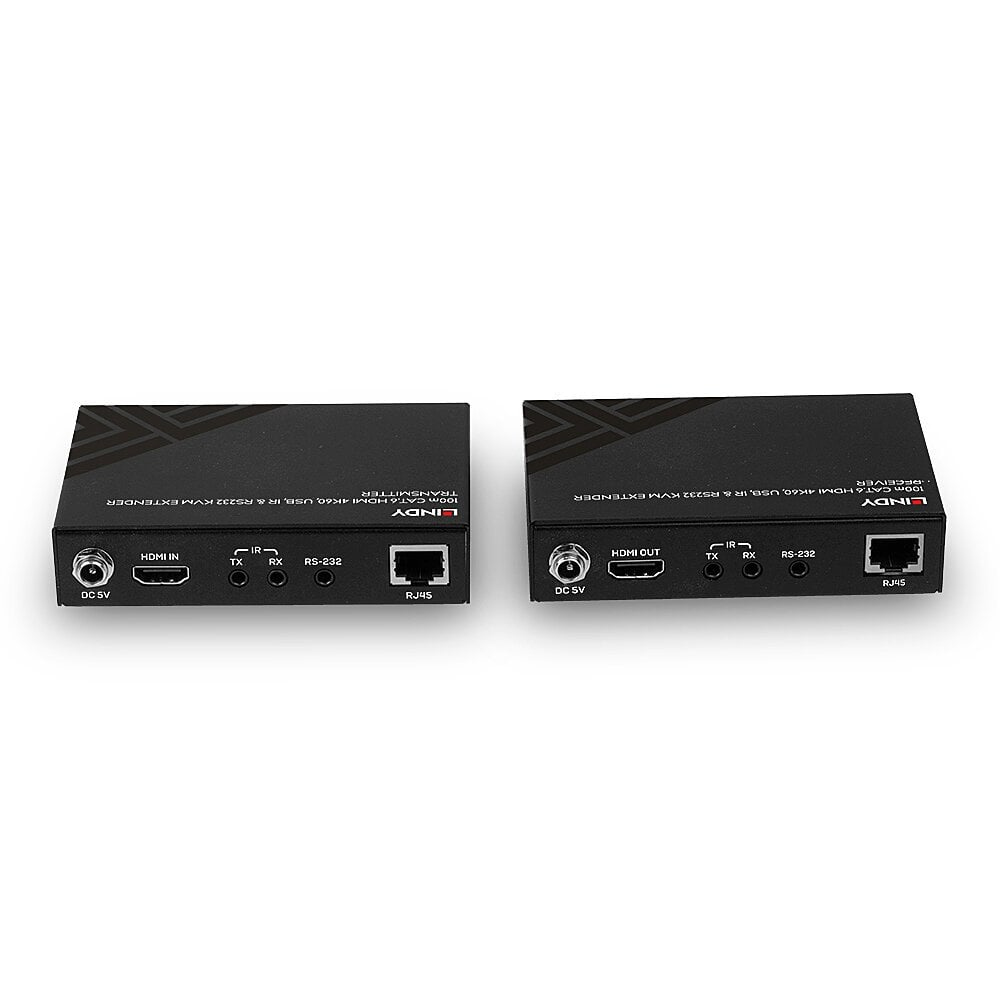

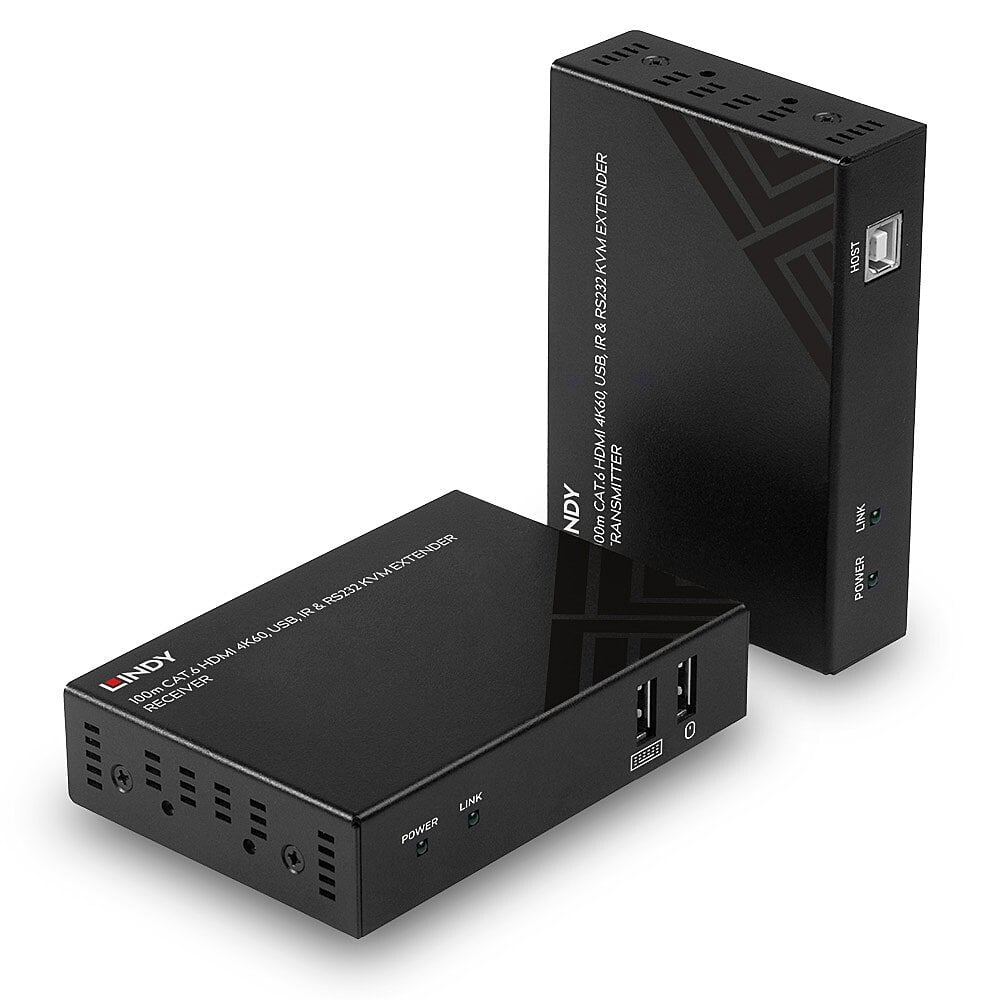

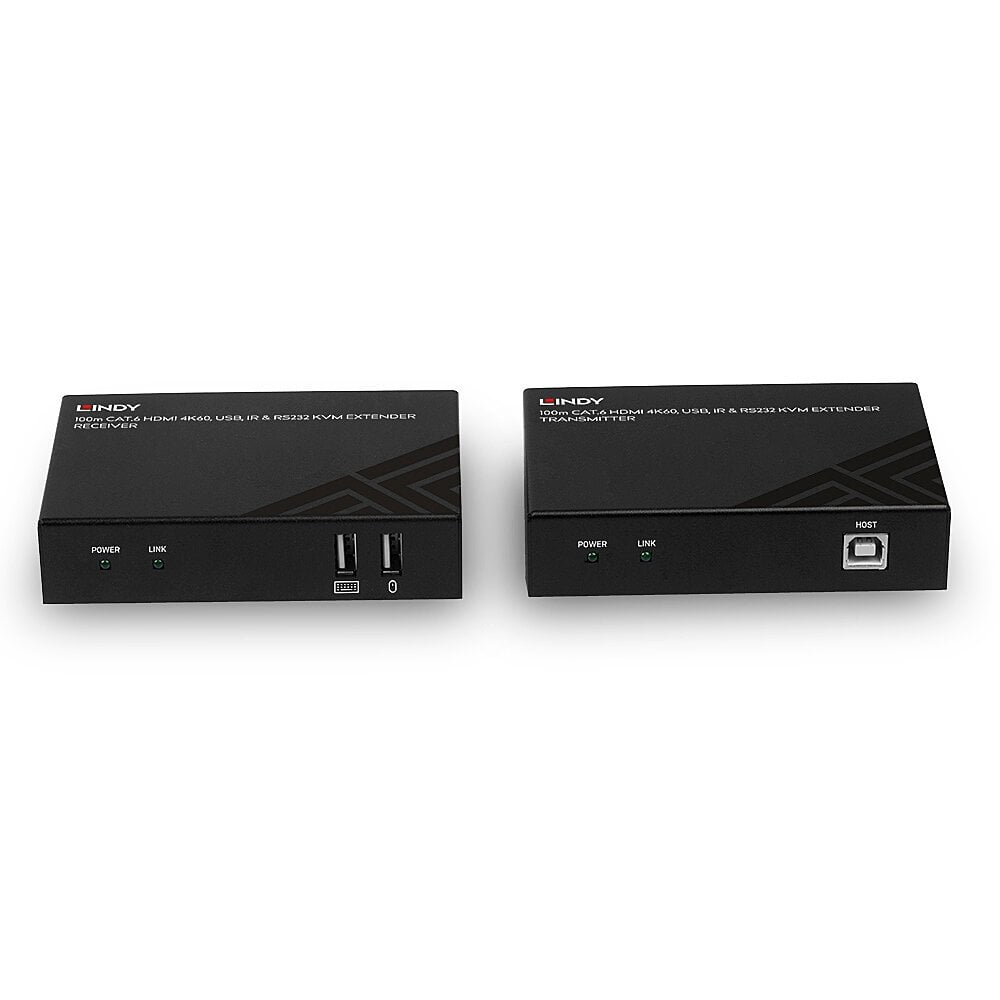

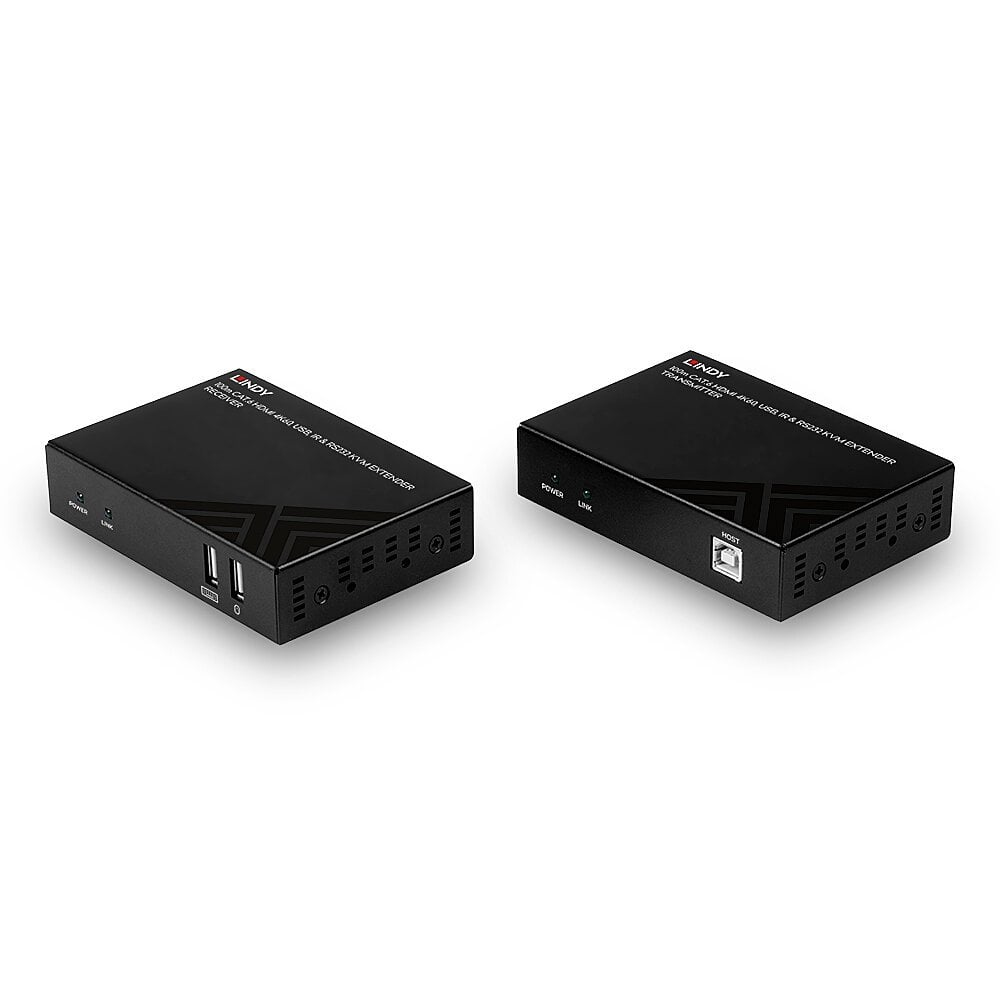

100m Cat.6 HDMI 4K60, USB and RS232 KVM Extender
Model 39382EAN 4002888393829
32 specifications
- ConnectivityWired
- TypeTransmitter & receiver
- ColourBlack
- Transmitter video port typeHDMI
- RJ-45 ports quantity (receiver)1
- AC adapter output voltage5 V
Overview
- Connectivity
- Wired
- Type
- Transmitter & receiver
- Colour
- Black
- Transmitter video port type
- HDMI
- RJ-45 ports quantity (receiver)
- 1
- AC adapter output voltage
- 5 V
- Brand
- Lindy
- Category
- KVM Extender
- Model
- 39382
- Part number
- 39382
- EAN / UPC
- 4002888393829
- Also known as
- Lindy 100m Cat.6 HDMI 4K60, USB and RS232 KVM Extender
Specifications
32 specifications in 8 groups
Features
| Specification | Value |
|---|---|
| Type | Transmitter & receiver |
| Connectivity technology | Wired |
| Maximum transfer distance | 100 m |
| Maximum digital resolution | 3840 x 2160 pixels |
| Product colour | Black |
| Certification | CE, UKCA, FCC, RoHS, REACH & California Proposition 65 |
Transmitter
| Specification | Value |
|---|---|
| Transmitter video port type | HDMI |
| Transmitter local keyboard/mouse port type | USB |
| RJ-45 ports quantity (transmitter) | 1 |
Receiver
| Specification | Value |
|---|---|
| RJ-45 ports quantity (receiver) | 1 |
| Receiver local keyboard/mouse port type | USB |
| Receiver local video port type | HDMI |
Power
| Specification | Value |
|---|---|
| AC adapter output voltage | 5 V |
| AC adapter output current | 3 A |
Weight & dimensions
| Specification | Value |
|---|---|
| Transmitter width | 11.1 cm |
| Transmitter depth | 7.5 cm |
| Transmitter height | 2.5 cm |
| Transmitter weight | 1.16 kg |
| Receiver width | 11.1 cm |
| Receiver depth | 7.5 cm |
| Receiver height | 2.5 cm |
| Receiver weight | 1.16 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 248 mm |
| Package depth | 195 mm |
| Package height | 95 mm |
| Package weight | 1.4 kg |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC, IR, RS-232 |
| Manual | Yes |
| Mounting bracket(s) included | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -15 - 55 °C |
| Operating relative humidity (H-H) | 5 - 85% |
