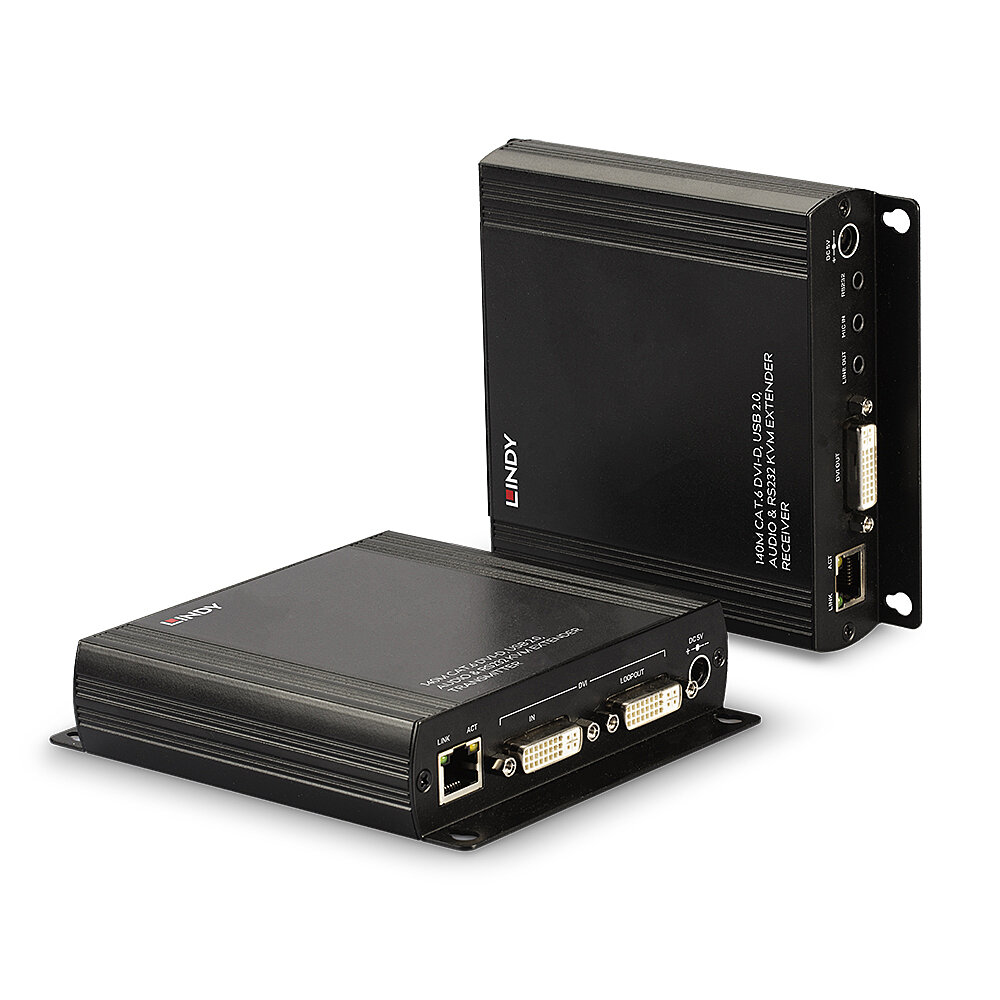

140m Cat.6 DVI-D, USB, Audio and RS-232 KVM Extender
Model 39245EAN 4002888392457
37 specifications
- ConnectivityWired
- TypeTransmitter & receiver
- Weight1.27 kg
- ColourBlack
- Transmitter video port typeDVI-I
- RJ-45 ports quantity (receiver)1
Overview
- Connectivity
- Wired
- Type
- Transmitter & receiver
- Weight
- 1.27 kg
- Colour
- Black
- Transmitter video port type
- DVI-I
- RJ-45 ports quantity (receiver)
- 1
- Brand
- Lindy
- Category
- KVM Extender
- Model
- 39245
- Part number
- 39245
- EAN / UPC
- 4002888392457
- Also known as
- Lindy 140m Cat.6 DVI-D, USB, Audio and RS-232 KVM Extender
Specifications
37 specifications in 10 groups
Features
| Specification | Value |
|---|---|
| Type | Transmitter & receiver |
| Connectivity technology | Wired |
| Maximum transfer distance | 140 m |
| Cable types supported | Cat6 |
| Maximum refresh rate | 60 Hz |
| Product colour | Black |
| Material | Metal |
| Certification | CE, UKCA, FCC, RoHS, REACH & California Proposition 65 |
Transmitter
| Specification | Value |
|---|---|
| Transmitter video port type | DVI-I |
| RJ-45 ports quantity (transmitter) | 1 |
Receiver
| Specification | Value |
|---|---|
| RJ-45 ports quantity (receiver) | 1 |
| Receiver local video port type | DVI-I |
Ports & interfaces
| Specification | Value |
|---|---|
| USB port type | USB Type-A/USB Type-B |
| USB 2.0 ports quantity | 4 |
| RJ-45 ports quantity | 2 |
| PC Audio in | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Transmitter width | 12.5 cm |
| Transmitter depth | 14 cm |
| Transmitter height | 3 cm |
| Receiver width | 12.5 cm |
| Receiver depth | 14 cm |
| Receiver height | 3 cm |
Packaging data
| Specification | Value |
|---|---|
| Package width | 355 mm |
| Package depth | 195 mm |
| Package height | 60 mm |
| Package weight | 1.52 kg |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Screwdriver included | Yes |
| Cables included | Audio (3.5mm), RS-232, USB Type-A to USB Type-B |
| Manual | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -20 - 60 °C |
| Storage temperature (T-T) | -20 - 85 °C |
| Operating relative humidity (H-H) | 0 - 95% |
Technical details
| Specification | Value |
|---|---|
| Maximum resolution | 1920 x 1200 pixels |
| Power requirements | 5VDC 2.6A |
| Weight | 1.27 kg |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84733080 |
