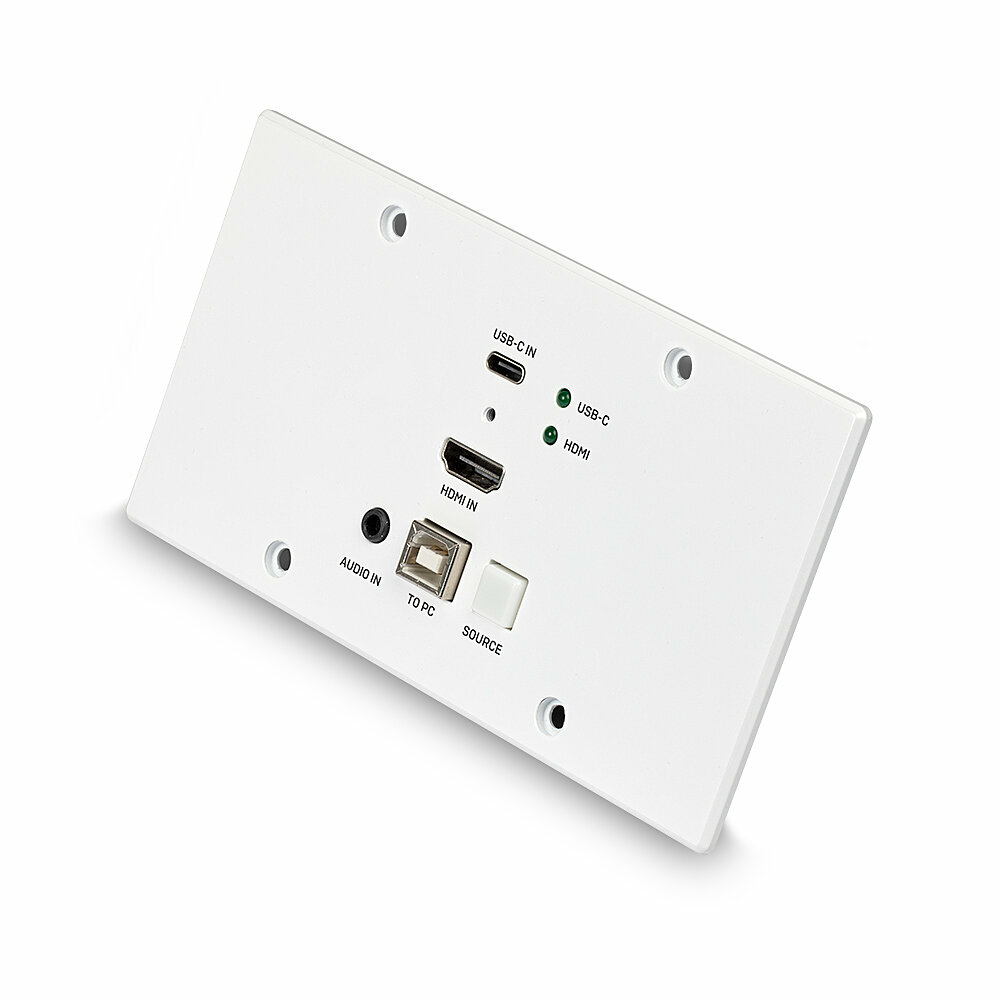

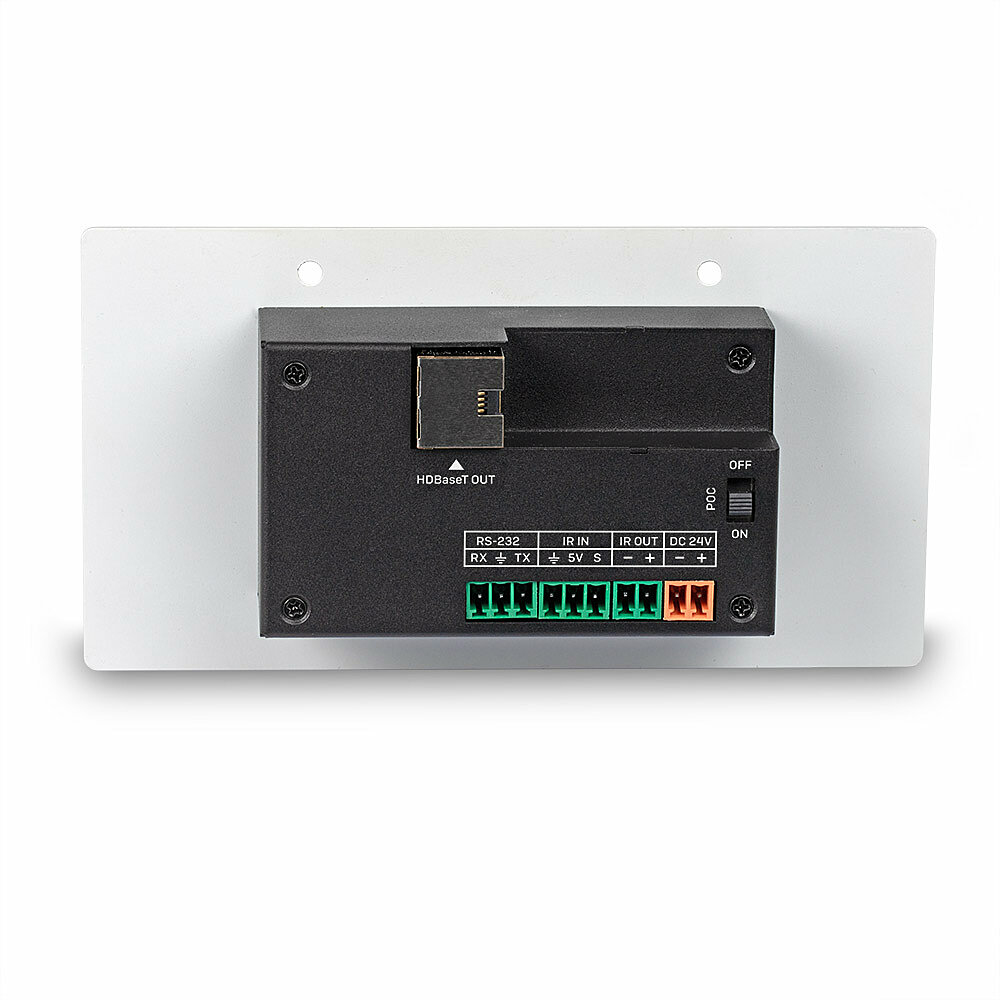

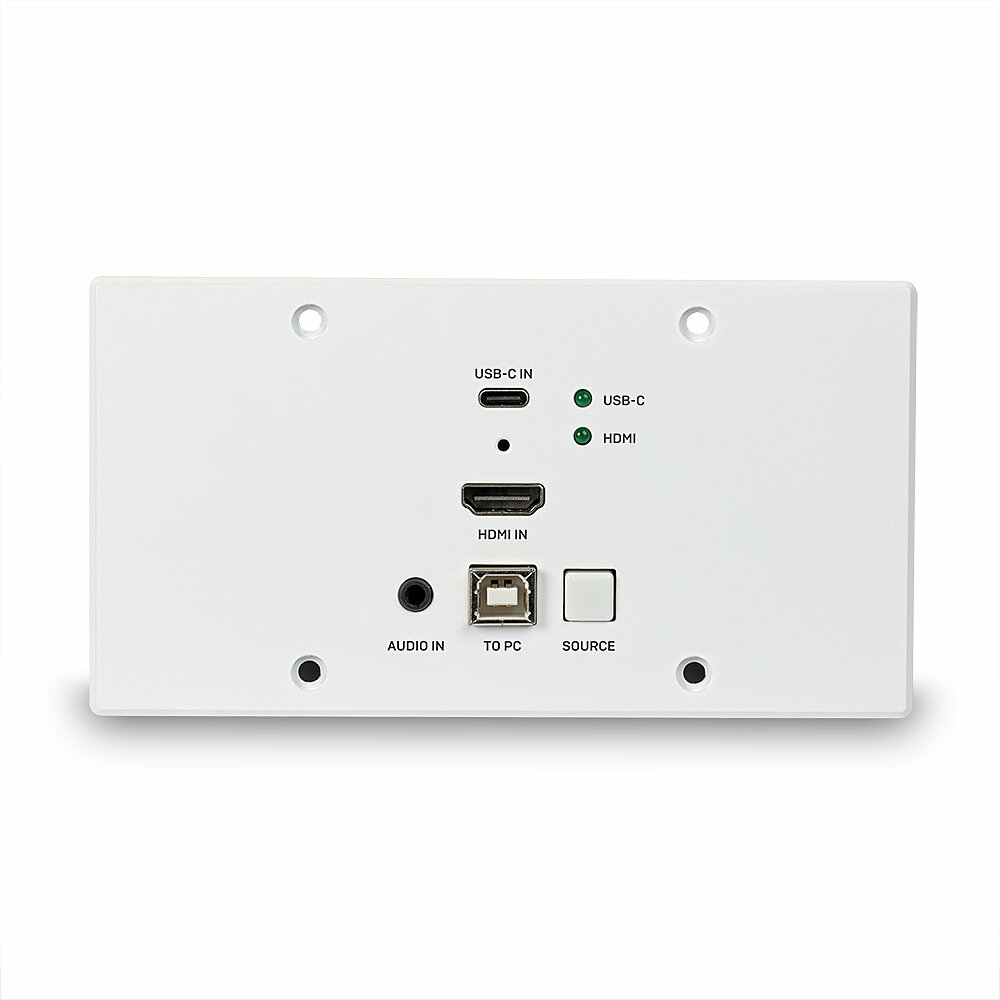

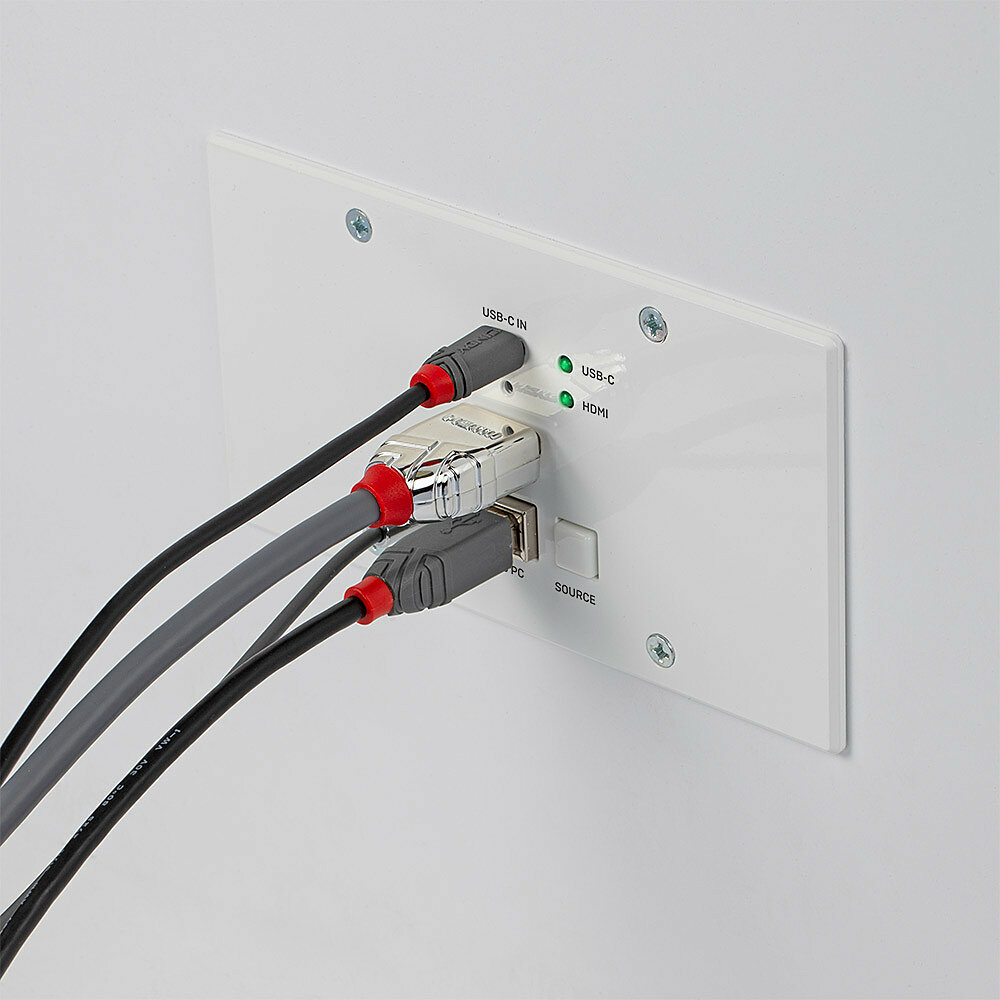

150m Cat.6 HDMI 4K60 & Type C HDBaseT EU Wall Plate KVM Extender, Transmitter
Model 38388EAN 4002888383882
39 specifications
- ConnectivityWired
- TypeTransmitter
- Weight390 g
- ColourWhite
- Transmitter video port typeHDMI
- RJ-45 ports quantity (receiver)1
Overview
- Connectivity
- Wired
- Type
- Transmitter
- Weight
- 390 g
- Colour
- White
- Transmitter video port type
- HDMI
- RJ-45 ports quantity (receiver)
- 1
- Brand
- Lindy
- Category
- KVM Extender
- Model
- 38388
- Part number
- 38388
- EAN / UPC
- 4002888383882
- Also known as
- Lindy 150m Cat.6 HDMI 4K60 & Type C HDBaseT EU Wall Plate KVM Extender, Transmitter
Specifications
39 specifications in 12 groups
Features
| Specification | Value |
|---|---|
| Type | Transmitter |
| Connectivity technology | Wired |
| Maximum transfer distance | 150 m |
| Cable types supported | Cat6 |
| Maximum digital resolution | 3840 x 2160 pixels |
| Maximum refresh rate | 60 Hz |
| Colour depth | 8 bit |
| Product colour | White |
| Material | Metal, Plastic |
| LED indicators | Yes |
| Chipset | VS2010 |
| Certification | CE, UKCA, FCC, RoHS, REACH, California Proposition 65 |
Transmitter
| Specification | Value |
|---|---|
| Transmitter video port type | HDMI |
| RJ-45 ports quantity (transmitter) | 1 |
Receiver
| Specification | Value |
|---|---|
| RJ-45 ports quantity (receiver) | 1 |
| Receiver local video port type | HDMI |
Ports & interfaces
| Specification | Value |
|---|---|
| USB port type | USB Type-C |
| HDMI version | 2.0 |
| RS-232 ports | 1 |
Power
| Specification | Value |
|---|---|
| AC input voltage | 24 V |
| Input current | 1 A |
Packaging data
| Specification | Value |
|---|---|
| Package width | 172 mm |
| Package depth | 98 mm |
| Package height | 133 mm |
| Package weight | 540 g |
Packaging content
| Specification | Value |
|---|---|
| Manual | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 20 - 90% |
| Storage relative humidity (H-H) | 20 - 90% |
Sustainability
| Specification | Value |
|---|---|
| Sustainability compliance | Yes |
Other features
| Specification | Value |
|---|---|
| HDCP | Yes |
| HDCP version | 2.2 |
| Extended display identification data (EDID) | Yes |
| Compliance certificates | CE, Federal Communications Commission (FCC), REACH, RoHS, UKCA |
Technical details
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 152 x 33.5 x 81 mm |
| Maximum resolution | 3840 x 2160 pixels |
| Weight | 390 g |
Logistics data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
