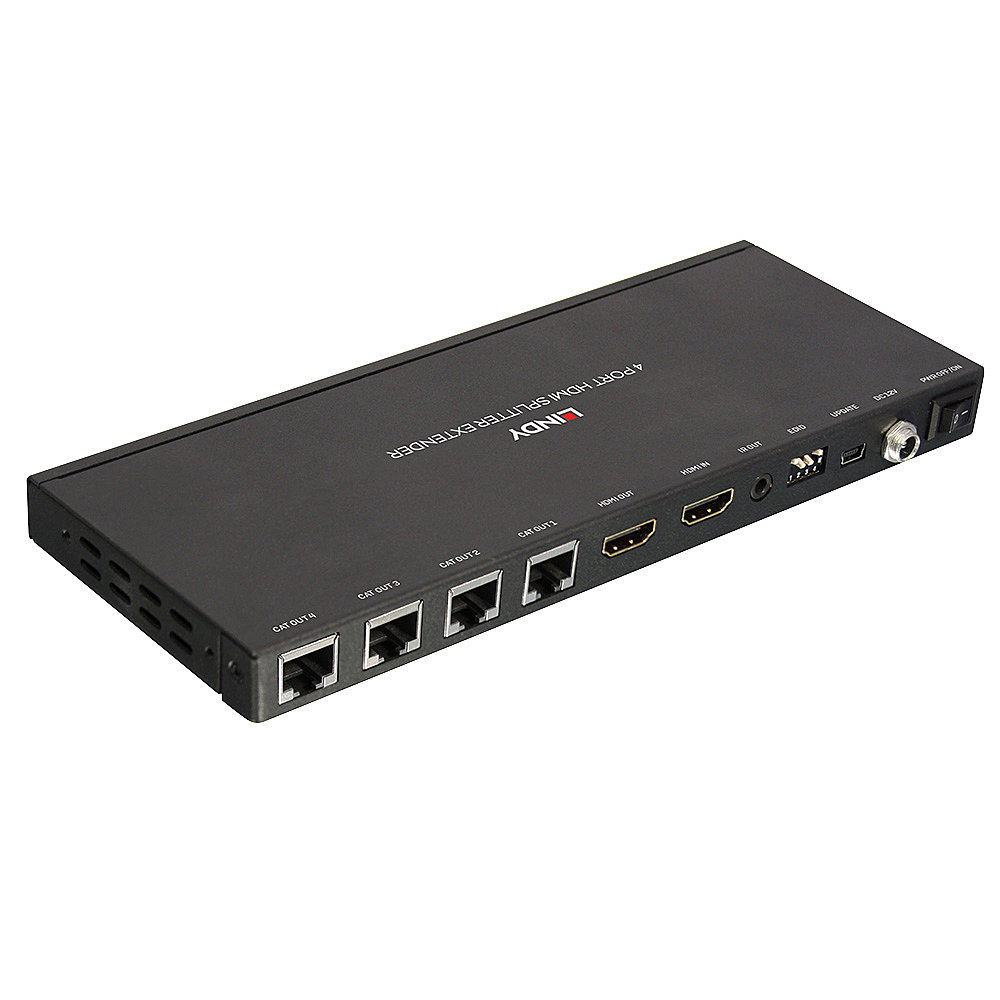

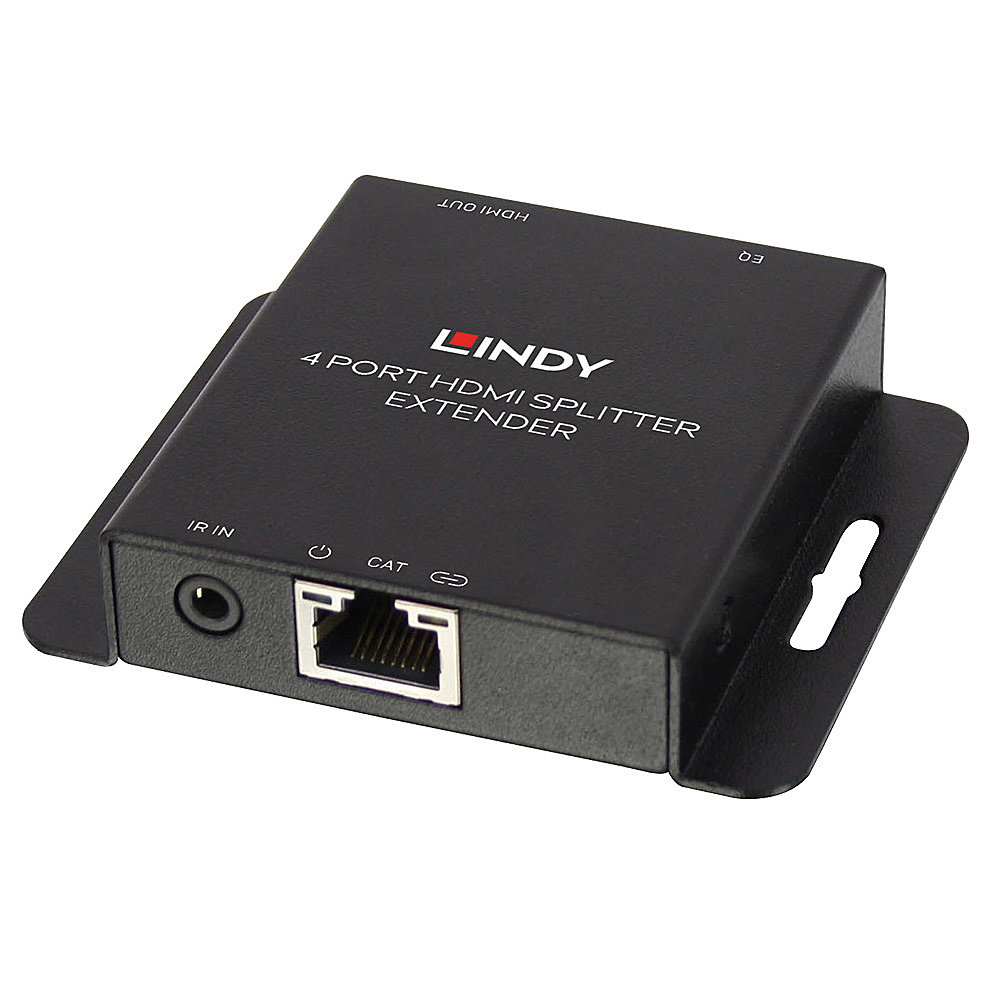

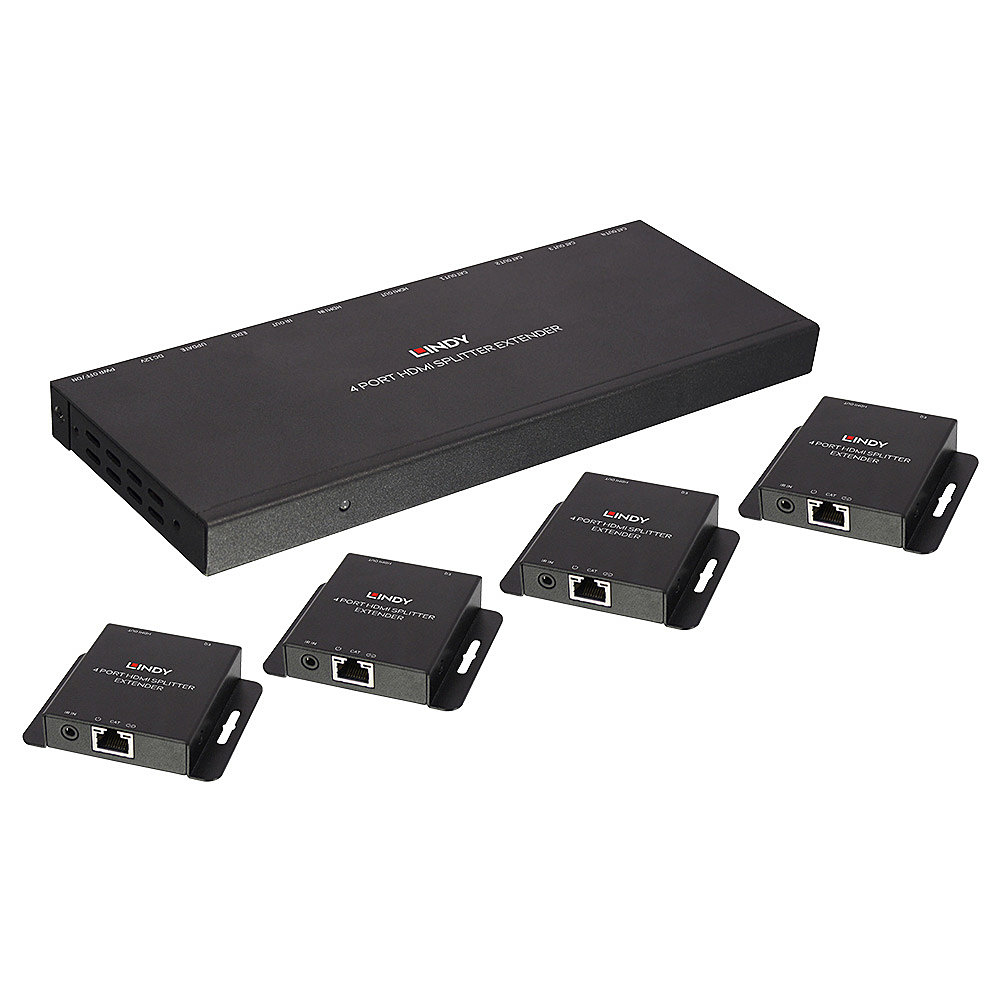

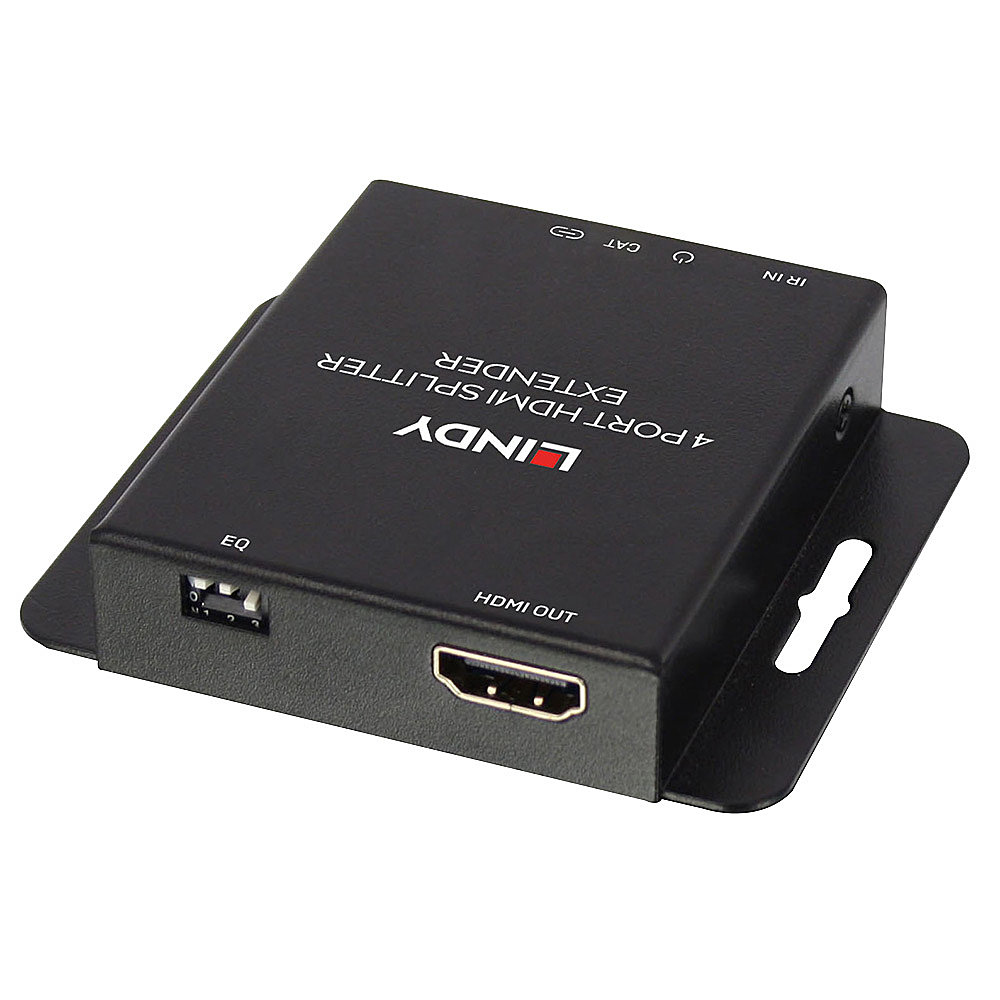

70m Cat.6 4 Port HDMI 4K30 and IR Splitter Extender with Loop Out
Model 38155EAN 4002888381550
32 specifications
- ConnectivityWired
- TypeTransmitter & receiver
- ColourBlack
- Transmitter video port typeHDMI
- RJ-45 ports quantity (receiver)1
- AC adapter output voltage12 V
Overview
- Connectivity
- Wired
- Type
- Transmitter & receiver
- Colour
- Black
- Transmitter video port type
- HDMI
- RJ-45 ports quantity (receiver)
- 1
- AC adapter output voltage
- 12 V
- Brand
- Lindy
- Category
- KVM Extender
- Model
- 38155
- Part number
- 38155
- EAN / UPC
- 4002888381550
- Also known as
- Lindy 70m Cat.6 4 Port HDMI 4K30 and IR Splitter Extender with Loop Out
Specifications
32 specifications in 8 groups
Features
| Specification | Value |
|---|---|
| Type | Transmitter & receiver |
| Connectivity technology | Wired |
| Maximum transfer distance | 50 m |
| Cable types supported | Cat6 |
| Maximum digital resolution | 1920 x 1080 pixels |
| Product colour | Black |
| LED indicators | Yes |
| Certification | CE, FCC, RoHS, REACH |
Transmitter
| Specification | Value |
|---|---|
| Transmitter video port type | HDMI |
| Transmitter local video port | Yes |
| Transmitter local video port type | HDMI |
| Number of displays supported | 4 |
| RJ-45 ports quantity (transmitter) | 4 |
Receiver
| Specification | Value |
|---|---|
| RJ-45 ports quantity (receiver) | 1 |
| Receiver local video port type | HDMI |
Power
| Specification | Value |
|---|---|
| AC adapter output voltage | 12 V |
| AC adapter output current | 2.5 A |
Weight & dimensions
| Specification | Value |
|---|---|
| Transmitter width | 11.8 cm |
| Transmitter depth | 25 cm |
| Transmitter height | 3.2 cm |
| Transmitter weight | 443 g |
| Receiver width | 4.9 cm |
| Receiver depth | 8.1 cm |
| Receiver height | 2.5 cm |
| Receiver weight | 131 g |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Cables included | IR |
| Manual | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 20 - 90% |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84733080 |
