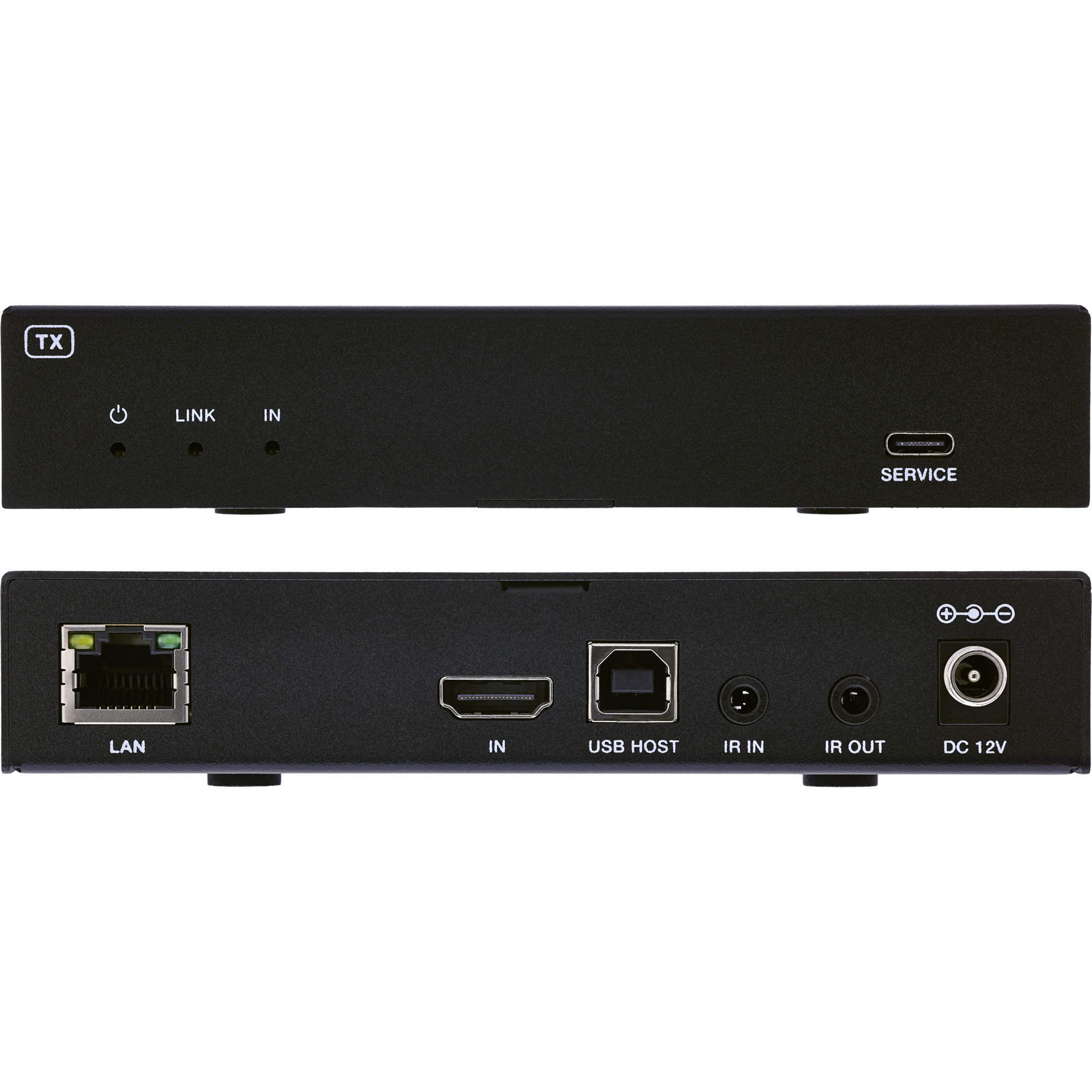

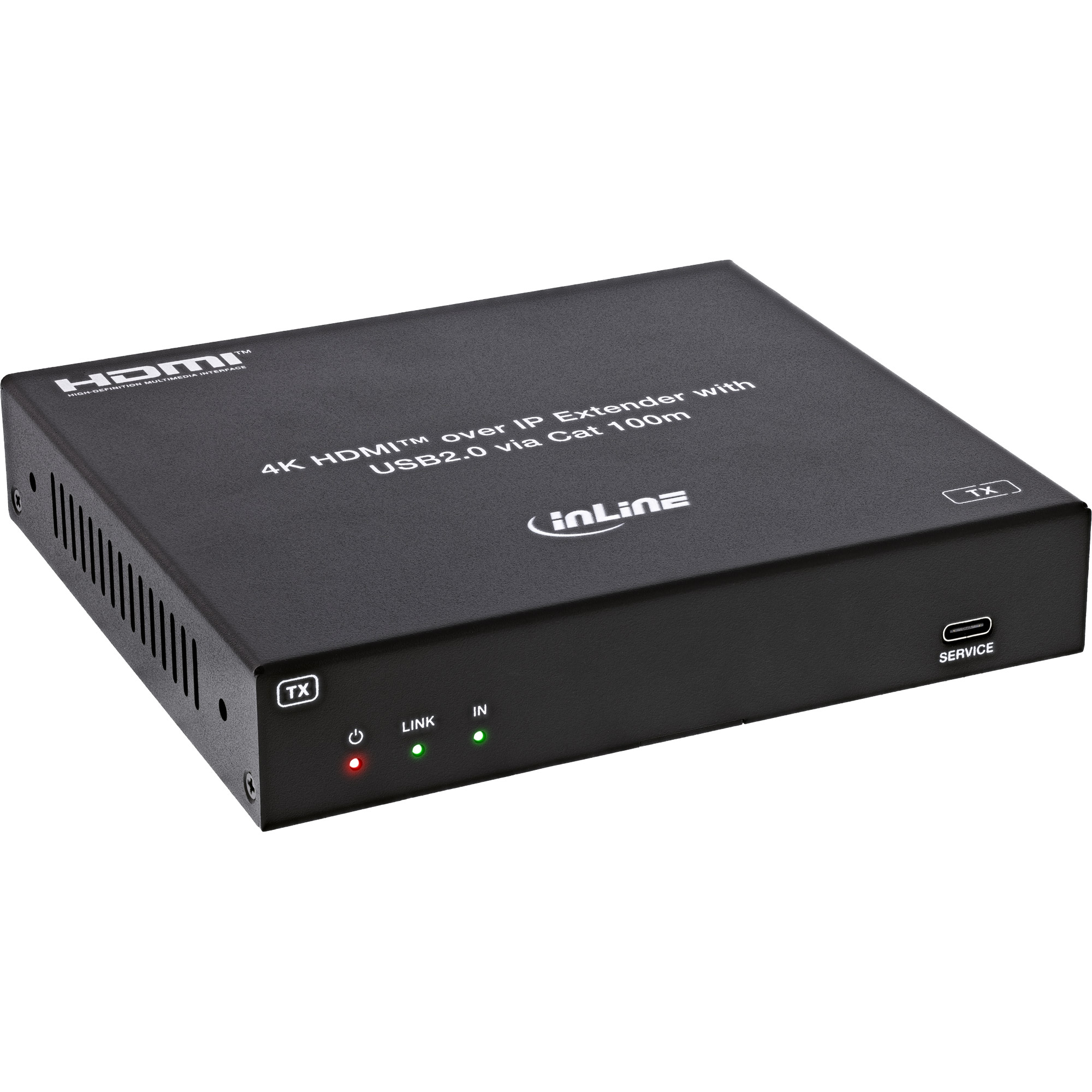

57886I KVM extender Transmitter
Model 57886IEAN 4043718348824
32 specifications
- ConnectivityWired
- TypeTransmitter
- Weight490 g
- ColourBlack
- HDMI version2.0b
- AC input voltage100 - 240 V
Overview
- Connectivity
- Wired
- Type
- Transmitter
- Weight
- 490 g
- Colour
- Black
- HDMI version
- 2.0b
- AC input voltage
- 100 - 240 V
- Brand
- InLine
- Category
- KVM Extender
- Model
- 57886I
- Part number
- 57886I
- EAN / UPC
- 4043718348824
- Also known as
- InLine 57886I KVM extender Transmitter
Specifications
32 specifications in 9 groups
Features
| Specification | Value |
|---|---|
| Type | Transmitter |
| Connectivity technology | Wired |
| Maximum transfer distance | 100 m |
| Maximum digital resolution | 3840 x 2160 pixels |
| Maximum refresh rate | 60 Hz |
| Colour depth | 12 bit |
| High Dynamic Range (HDR) supported | Yes |
| Product colour | Black |
| Material | Metal |
Ports & interfaces
| Specification | Value |
|---|---|
| HDMI version | 2.0b |
Power
| Specification | Value |
|---|---|
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| AC adapter output voltage | 12 V |
| AC adapter output current | 1 A |

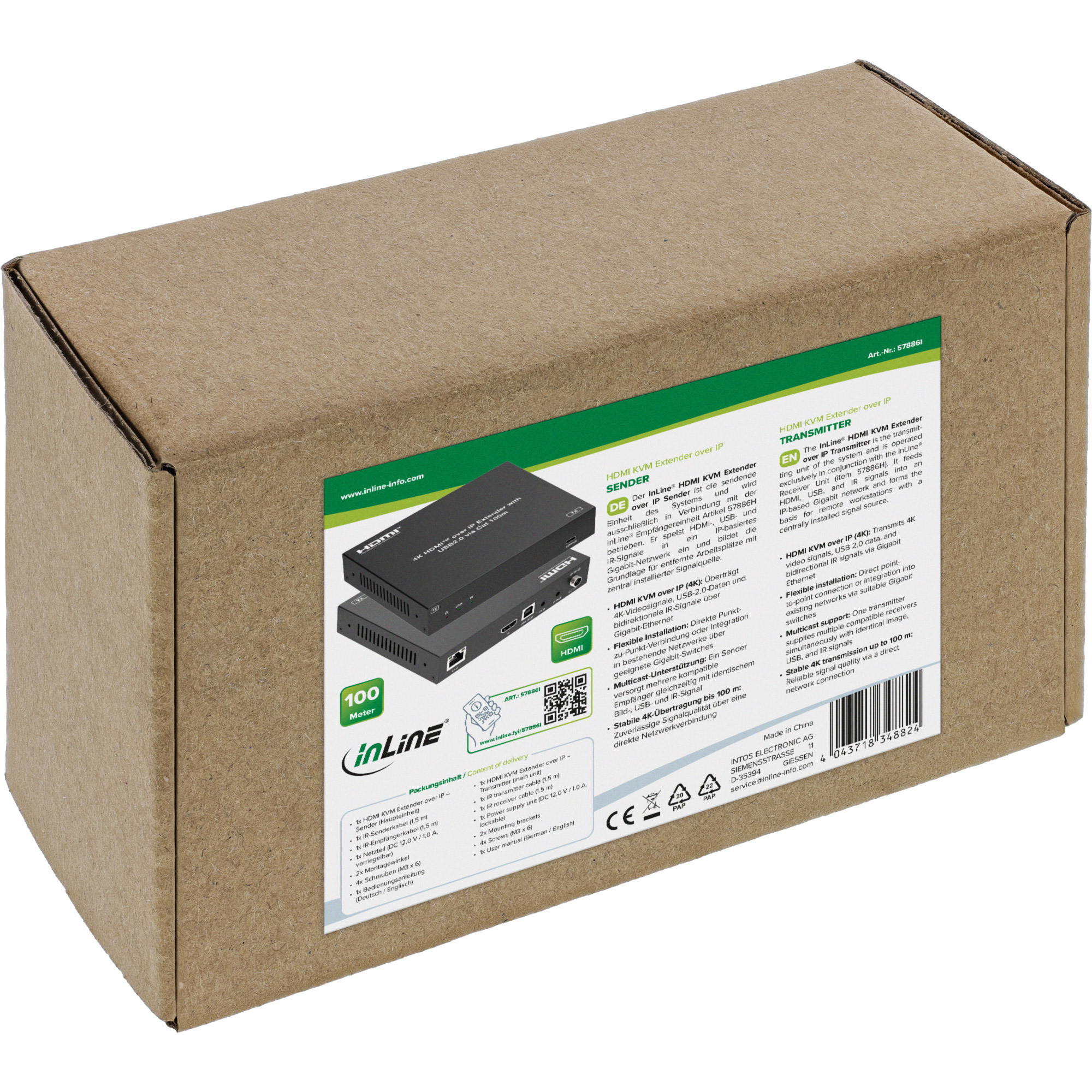

Packaging data
| Specification | Value |
|---|---|
| Package width | 182 mm |
| Package depth | 217 mm |
| Package height | 78 mm |

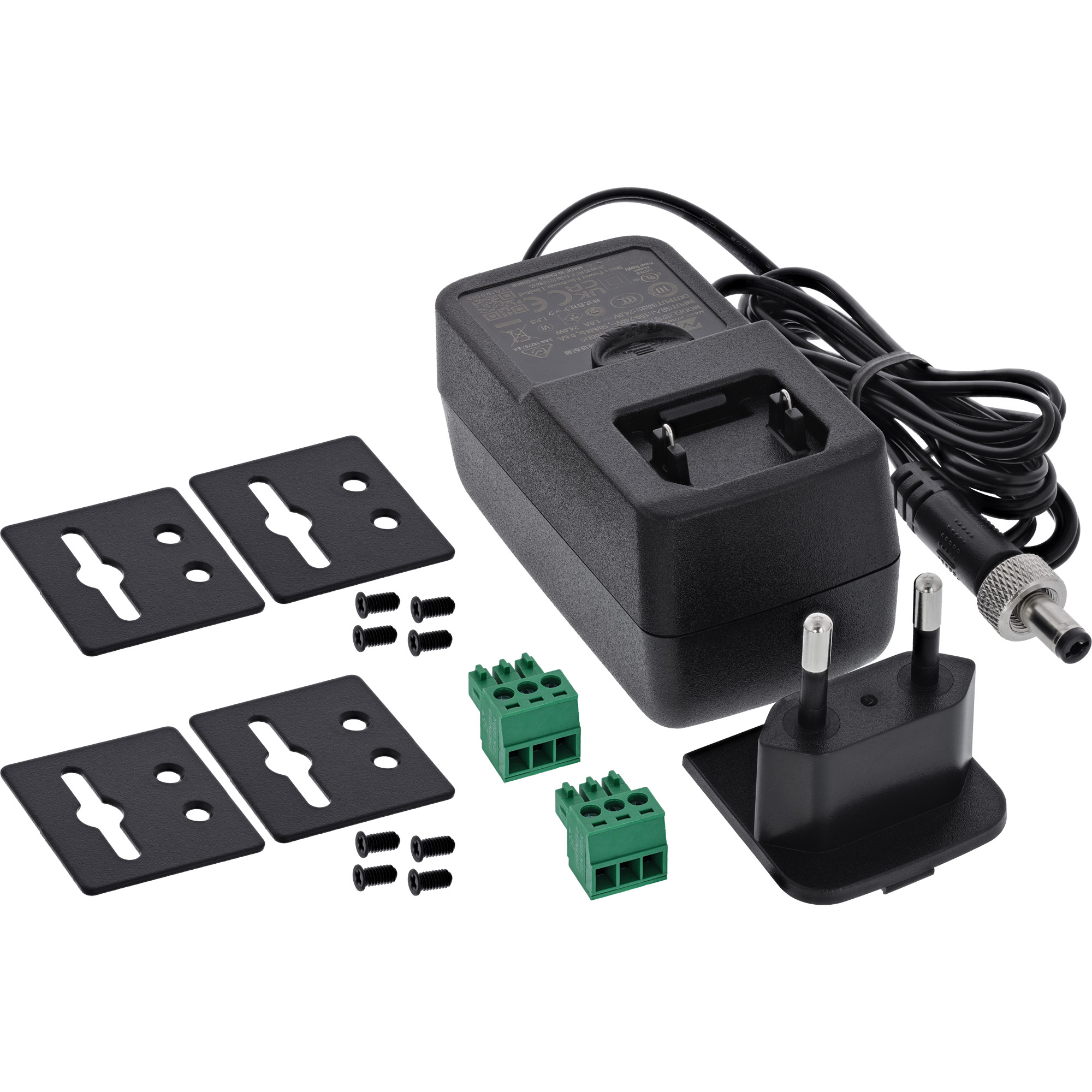

Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |

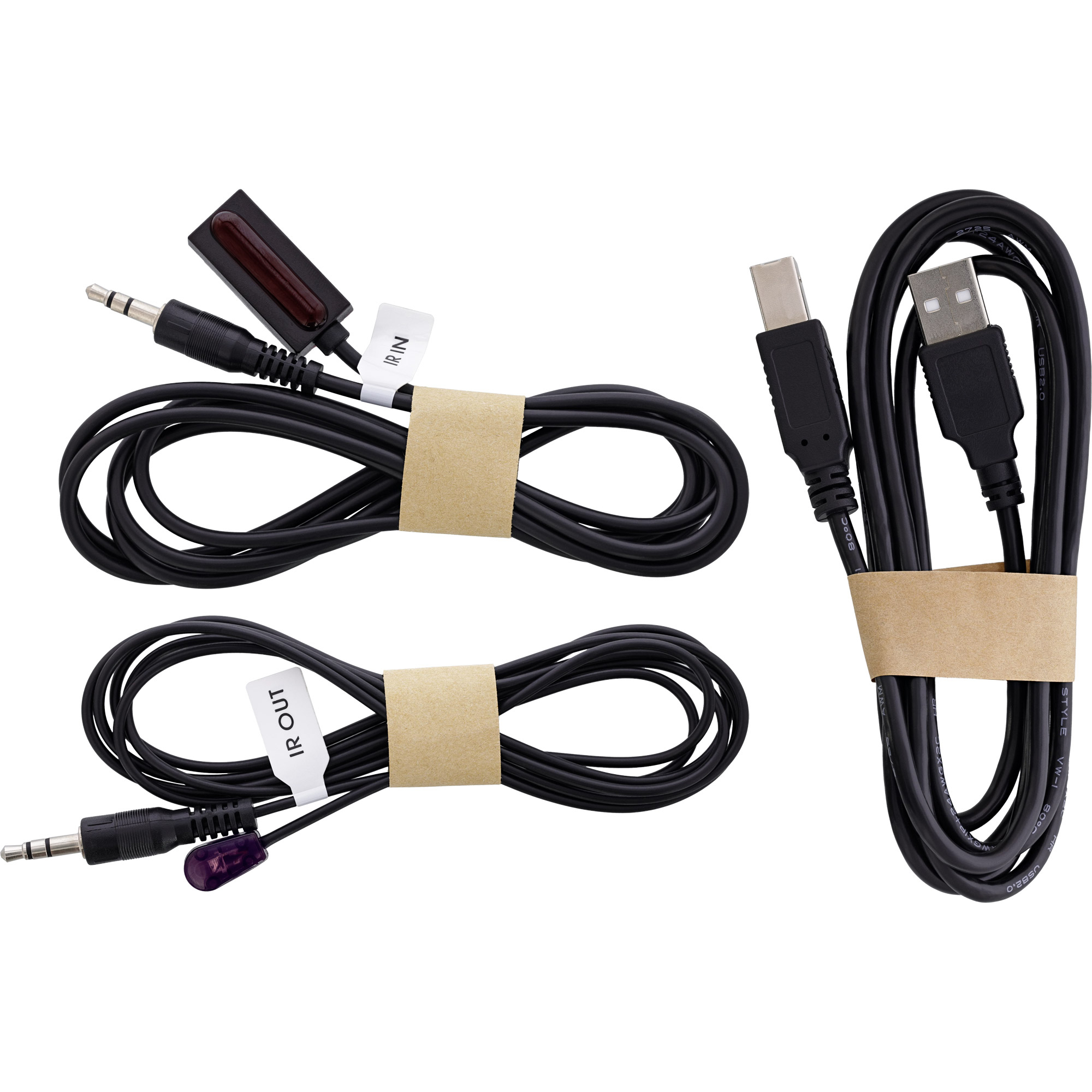

| Cables included | IR |
| Manual | Yes |
| Mounting bracket(s) included | Yes |
| Screws included | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage relative humidity (H-H) | 10 - 90% |
Other features
| Specification | Value |
|---|---|
| HDCP | Yes |
| HDCP version | 1.4/2.2/2.3 |
| Bandwidth | 18 Gbit/s |
Technical details
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 125 x 142 x 28 mm |
| Weight | 490 g |
Logistics data
| Specification | Value |
|---|---|
| Country of origin | China |
Similar products
All kvm extenders
ATEN
USB HDMI Dual View HDBaseT 2.0 KVM Extender (4K@100m for Single View)
Model CE824
- Connectivity
- Wired
- Type
- Transmitter & receiver
- Weight
- 2.91 kg
ATEN
USB True 4K HDMI Cat 6 KVM Extender (4K @ 70 m / FHD @ 100 m)
Model CE801
- Connectivity
- Wired
- Type
- AV transmitter & transceiver
- Colour
- Black

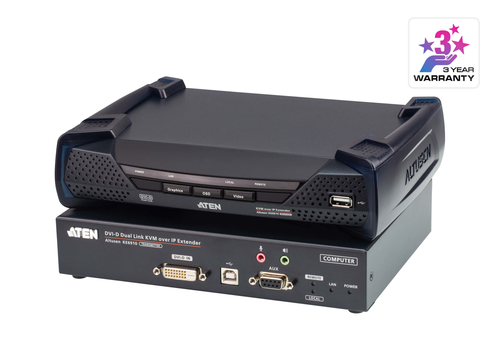

ATEN
2K DVI-D dual-link KVM over IP Extender
Model KE6910
- Connectivity
- Wired
- Type
- Transmitter & receiver
- Weight
- 3.62 kg
Lindy
150m Cat.6 HDMI 4K60, USB 2.0 & IR HDBaseT KVM Extender
Model 39384
- Connectivity
- Wired
- Type
- Transmitter & receiver
- Colour
- Black

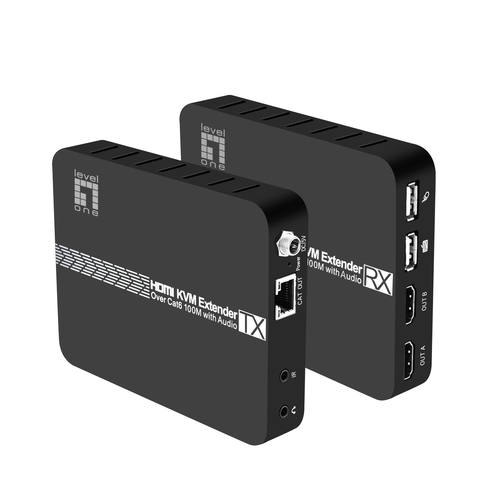

LevelOne
HDMI over Cat.5/6 Extender kit 4K,100 Meter, USB extension
Model HVE-8110
- Connectivity
- Wired
- Type
- AV transmitter & receiver
- Colour
- Black
ATEN

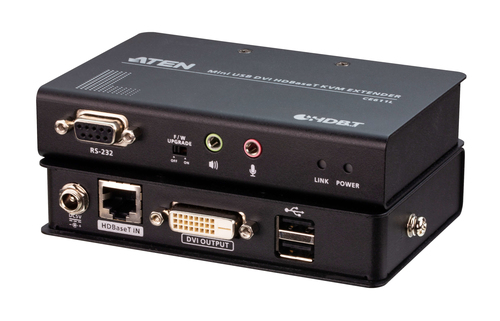

Mini USB DVI HDBaseT KVM Extender
Model CE611
- Connectivity
- Wired
- Type
- Transmitter & receiver
- Weight
- 1.05 kg
Lindy
150m Cat.6 DisplayPort 1.2, USB, IR and RS-232 HDBaseT KVM Extender
Model 39385
- Connectivity
- Wired
- Type
- Transmitter & receiver
- Colour
- Black
Vivolink
VLUSBCEXT150 KVM extender Transmitter & receiver
Model VLUSBCEXT150
- Connectivity
- Wired
- Type
- Transmitter & receiver
- Weight
- 500 g

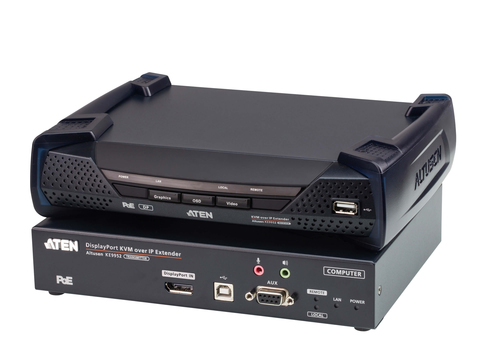

ATEN
