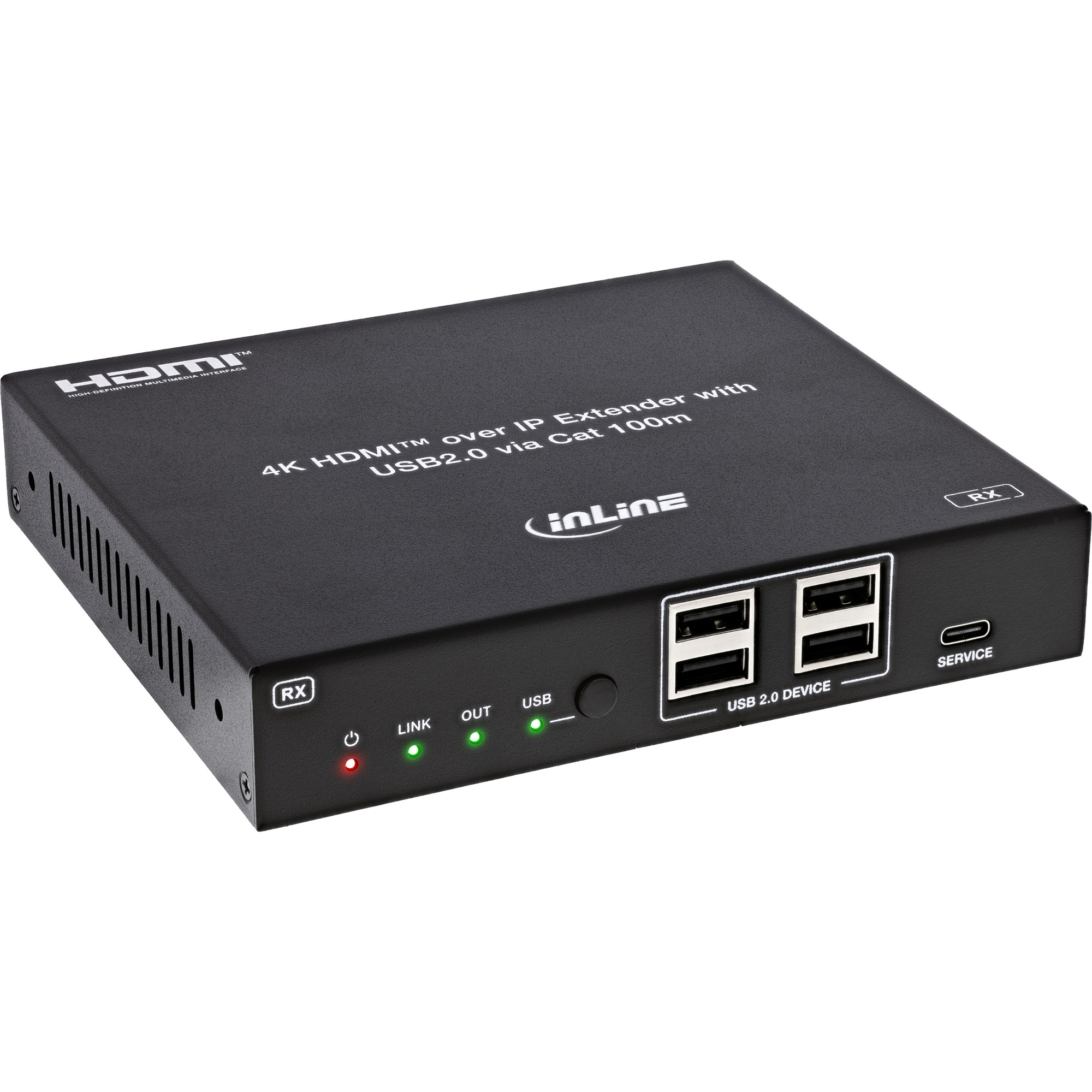

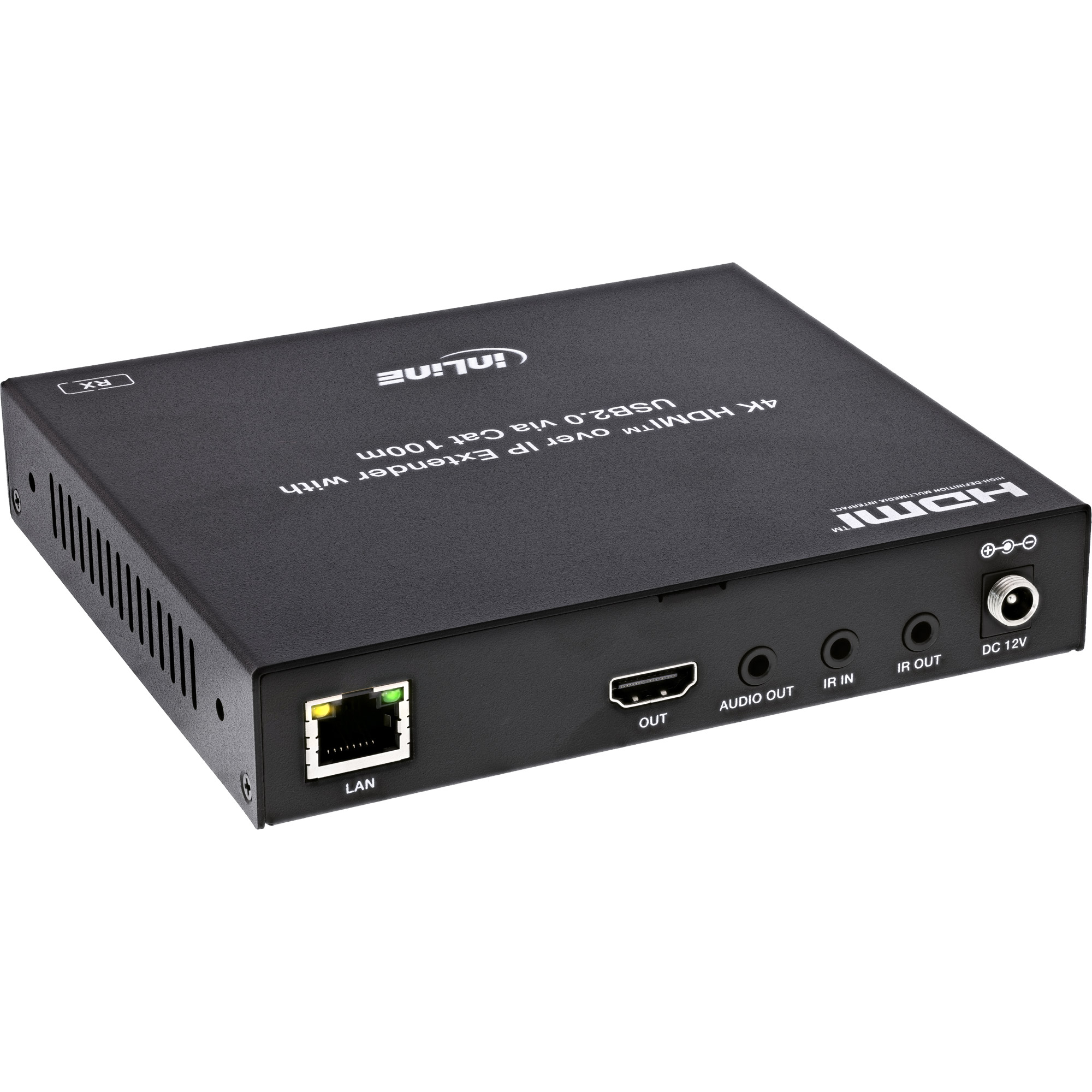

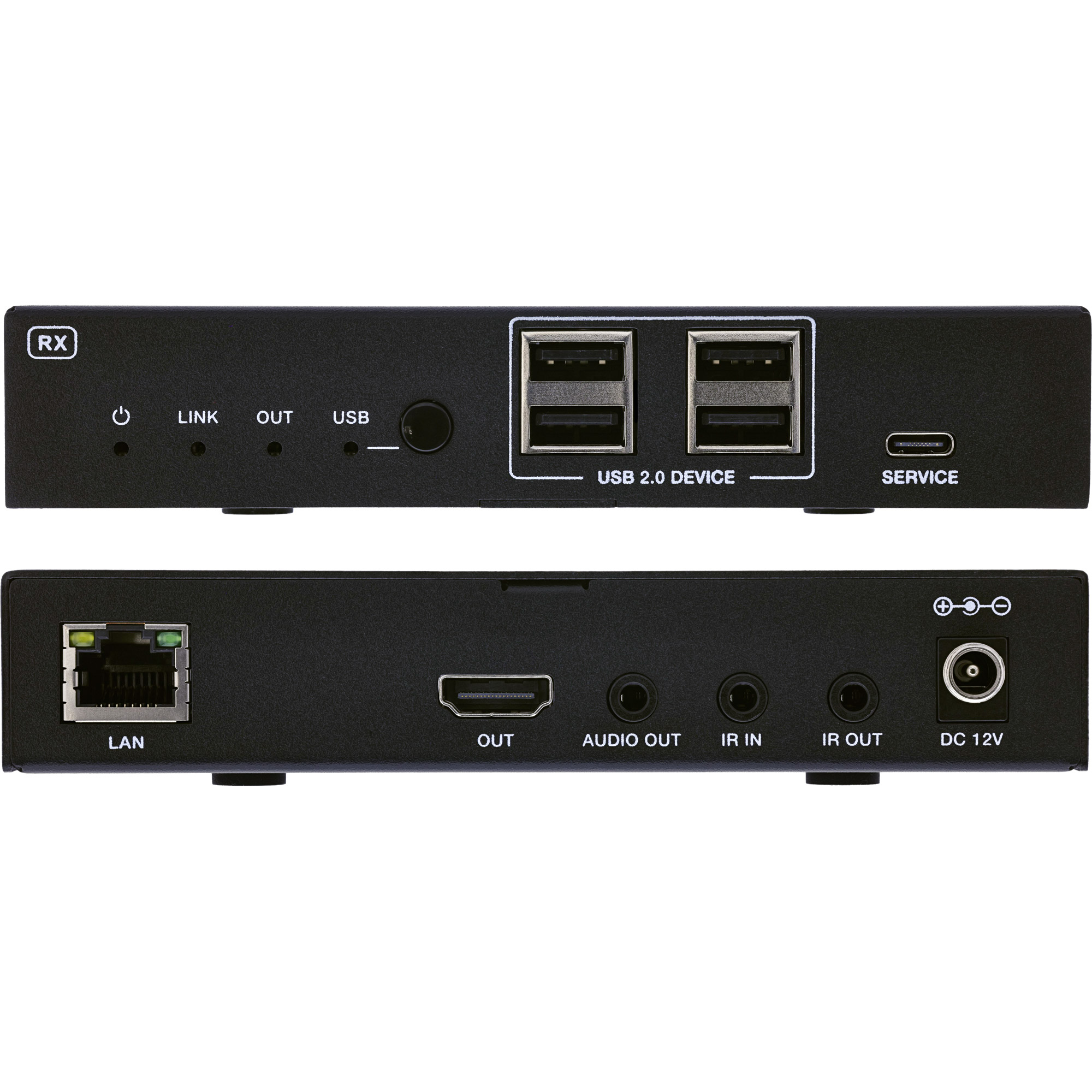

57886H KVM extender Receiver
Model 57886HEAN 4043718348817
35 specifications
- ConnectivityWired
- TypeReceiver
- Weight1 kg
- ColourBlack
- Receiver USB Type-A ports quantity4
- HDMI version2.0b
Overview
- Connectivity
- Wired
- Type
- Receiver
- Weight
- 1 kg
- Colour
- Black
- Receiver USB Type-A ports quantity
- 4
- HDMI version
- 2.0b
- Brand
- InLine
- Category
- KVM Extender
- Model
- 57886H
- Part number
- 57886H
- EAN / UPC
- 4043718348817
- Also known as
- InLine 57886H KVM extender Receiver
Specifications
35 specifications in 10 groups
Features
| Specification | Value |
|---|---|
| Type | Receiver |
| Connectivity technology | Wired |
| Maximum transfer distance | 100 m |
| Cable types supported | Cat6 |
| Maximum digital resolution | 3840 x 2160 pixels |
| Maximum refresh rate | 60 Hz |
| Colour depth | 12 bit |
| Product colour | Black |
| Material | Metal |
| LED indicators | Power, Link, USB |
Receiver
| Specification | Value |
|---|---|
| Receiver USB Type-A ports quantity | 4 |
Ports & interfaces
| Specification | Value |
|---|---|
| HDMI version | 2.0b |
Power
| Specification | Value |
|---|---|
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| AC adapter output voltage | 12 V |
| AC adapter output current | 1 A |
Packaging data
| Specification | Value |
|---|---|
| Package width | 182 mm |
| Package depth | 215 mm |
| Package height | 78 mm |
| Package weight | 914 g |

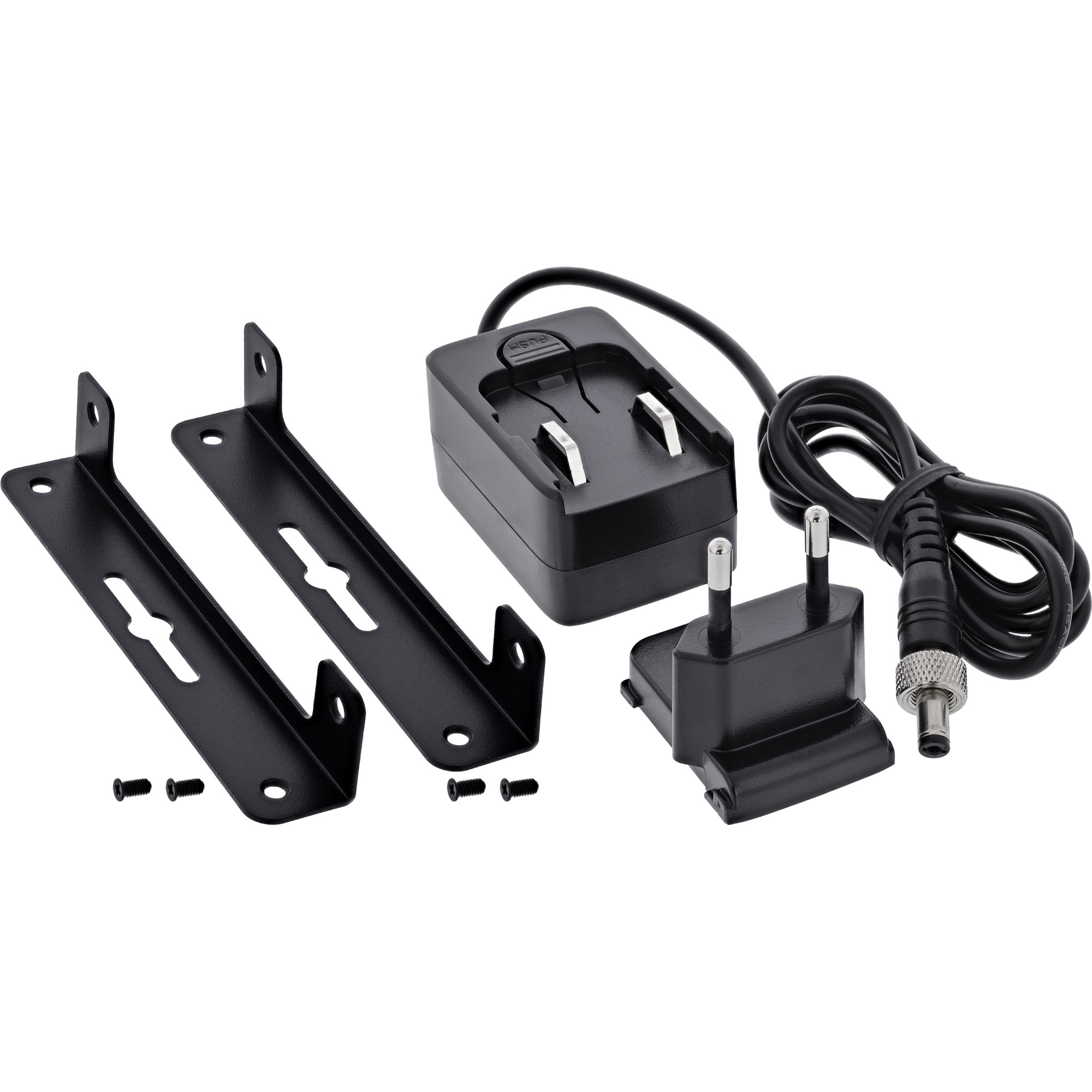

Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Cables included | IR |
| Manual | Yes |
| Mounting bracket(s) included | Yes |
| Screws included | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage relative humidity (H-H) | 10 - 90% |
Other features
| Specification | Value |
|---|---|
| HDCP | Yes |
| HDCP version | 1.4/2.2/2.3 |
| Bandwidth | 18 Gbit/s |
Technical details
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 125 x 142 x 27 mm |
| Weight | 1 kg |
Logistics data
| Specification | Value |
|---|---|
| Country of origin | China |
