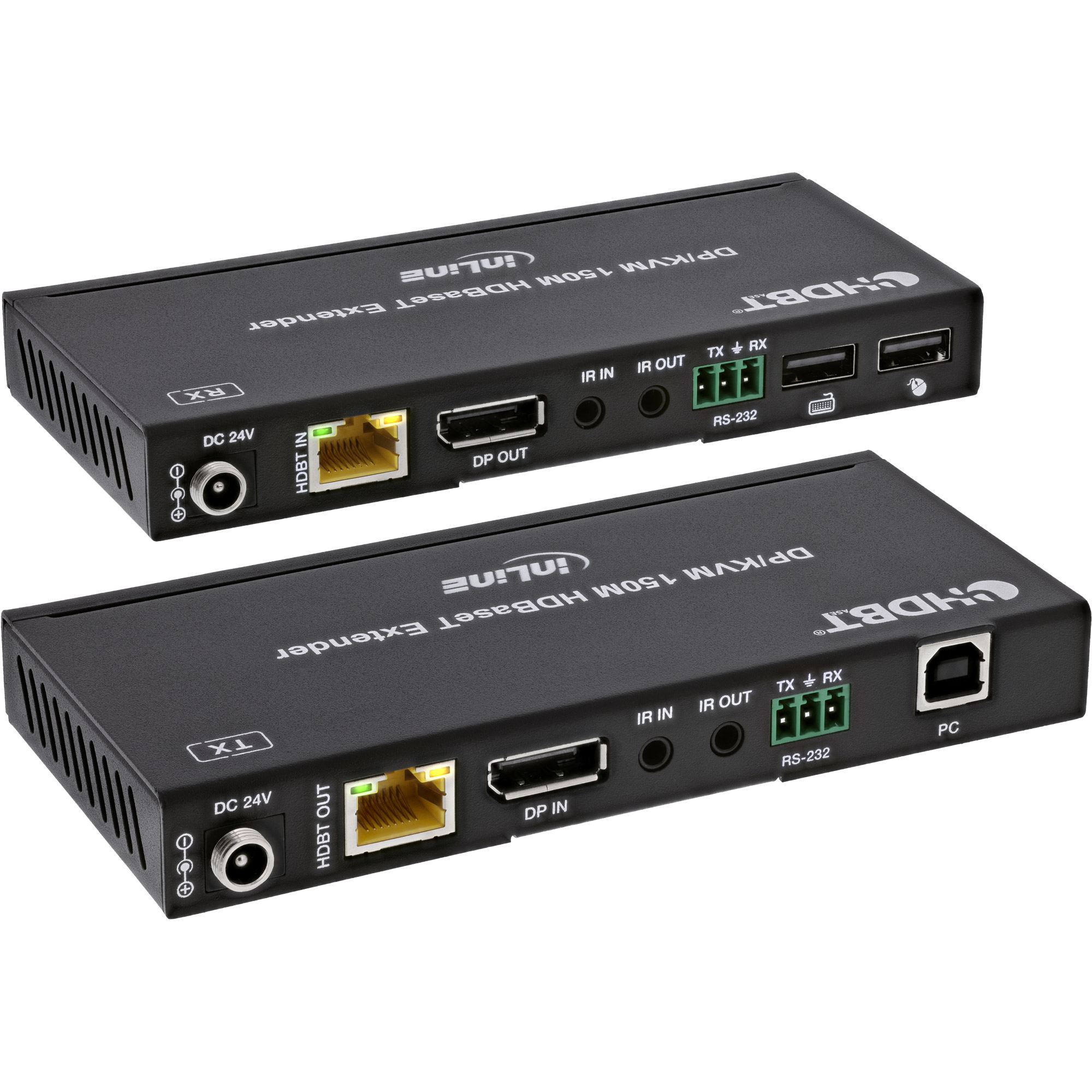

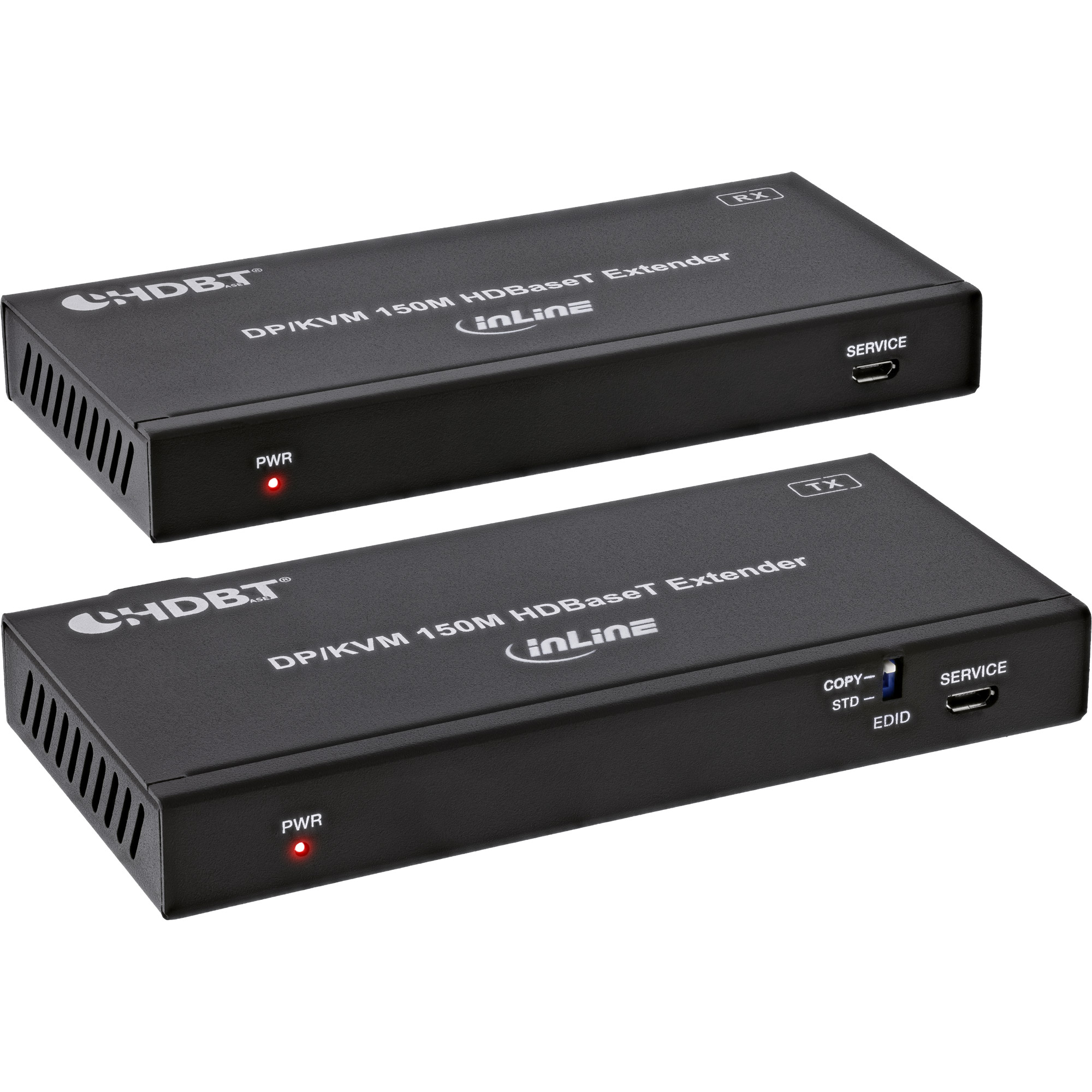

57885N KVM extender Transmitter & receiver
Model 57885NEAN 4043718348718
38 specifications
- ConnectivityWired
- TypeTransmitter & receiver
- Weight246 g
- Transmitter video port typeDisplayPort
- RS-232 ports1
- AC input voltage100 - 240 V
Overview
- Connectivity
- Wired
- Type
- Transmitter & receiver
- Weight
- 246 g
- Transmitter video port type
- DisplayPort
- RS-232 ports
- 1
- AC input voltage
- 100 - 240 V
- Brand
- InLine
- Category
- KVM Extender
- Model
- 57885N
- Part number
- 57885N
- EAN / UPC
- 4043718348718
- Also known as
- InLine 57885N KVM extender Transmitter & receiver
Specifications
38 specifications in 11 groups
Features
| Specification | Value |
|---|---|
| Type | Transmitter & receiver |
| Connectivity technology | Wired |
| Maximum transfer distance | 150 m |
| Cable types supported | Cat5e, Cat6 |
| Maximum digital resolution | 3840 x 2160 pixels |
| Maximum refresh rate | 60 Hz |
| Colour depth | 12 bit |
| High Dynamic Range (HDR) supported | Yes |

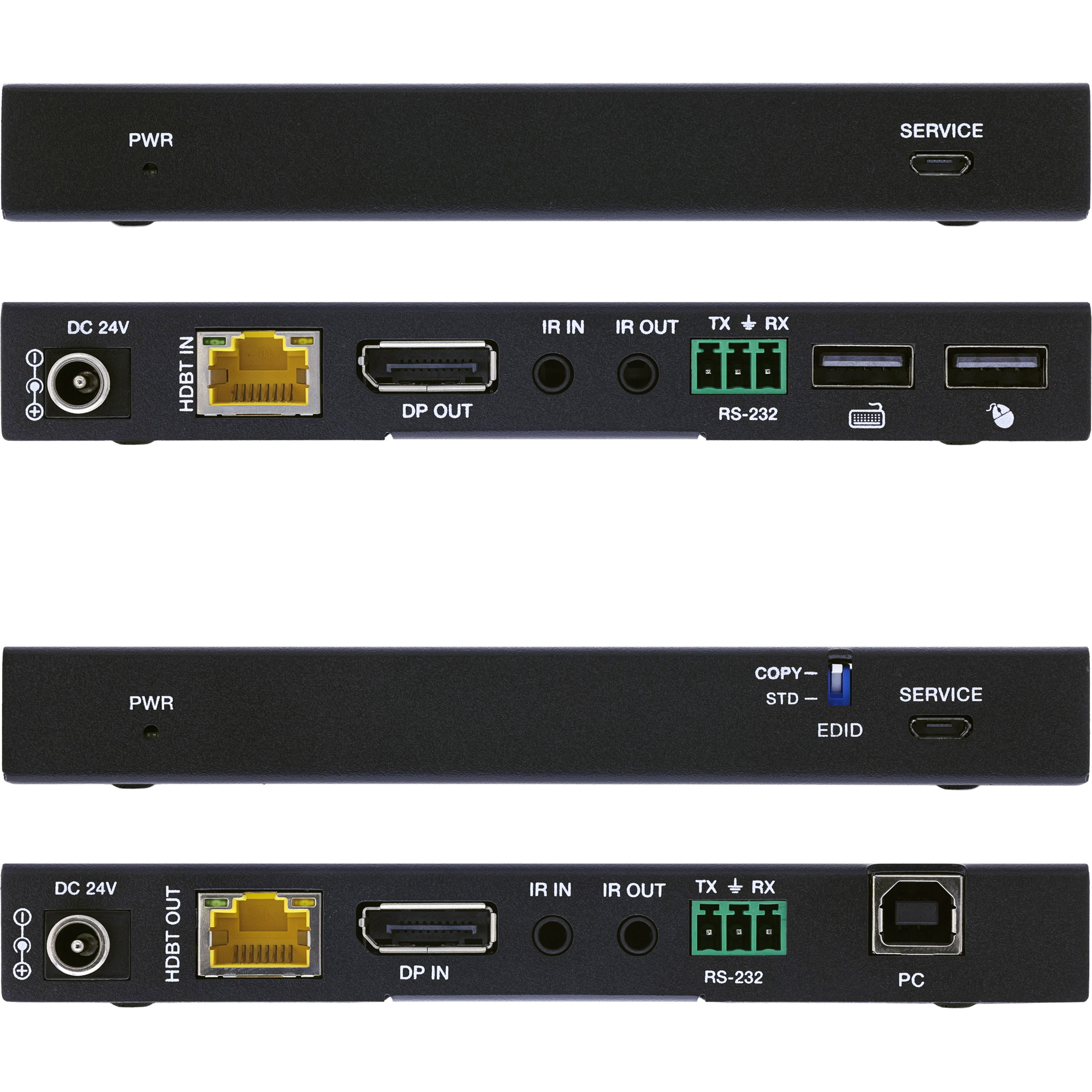

Transmitter
| Specification | Value |
|---|---|
| Transmitter video port type | DisplayPort |
| Transmitter local keyboard/mouse port type | USB |
| RJ-45 ports quantity (transmitter) | 1 |
| Transmitter USB Type-B ports quantity | 1 |
Receiver
| Specification | Value |
|---|---|
| Receiver local video port type | DisplayPort |
Ports & interfaces
| Specification | Value |
|---|---|
| RS-232 ports | 1 |
| Remote (IR) input | 1 |
| Remote (IR) output | 1 |
Power
| Specification | Value |
|---|---|
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
Packaging data
| Specification | Value |
|---|---|
| Package width | 186 mm |
| Package depth | 245 mm |
| Package height | 75 mm |
| Package weight | 964 g |

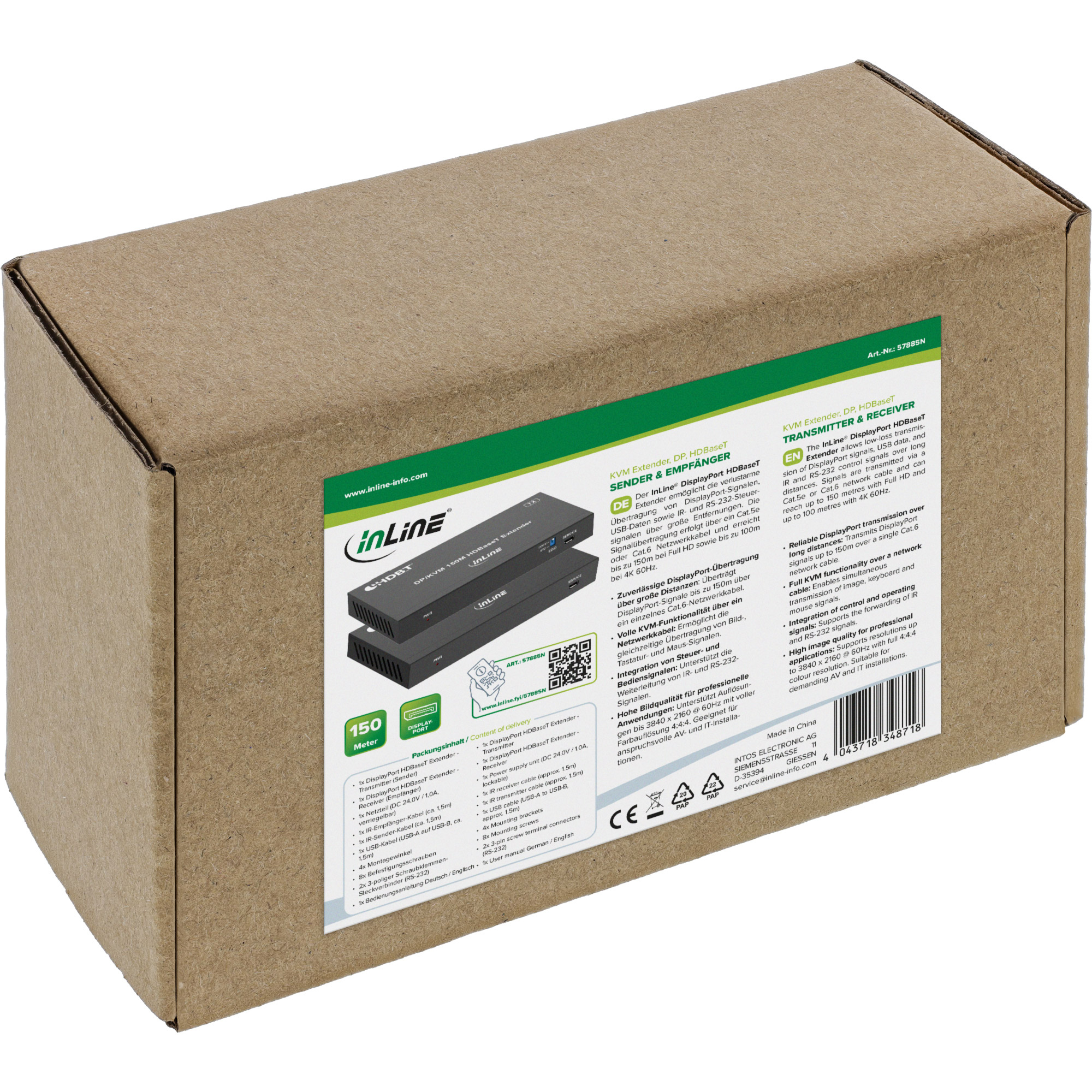

Packaging content
| Specification | Value |
|---|---|
| Cables included | IR, USB Type-A to USB Type-B |
| Manual | Yes |
| IR extender included | Yes |
| IR receiver included | Yes |
| Mounting bracket(s) included | Yes |
| Screws included | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 20 - 80% |
Other features
| Specification | Value |
|---|---|
| HDCP version | 2.2 |
| Bandwidth | 21.6 Gbit/s |
| Compliance certificates | RoHS |
Technical details
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 65 x 140 x 18 mm |
| Package volume | 3400 cm³ |
| Weight | 246 g |
Logistics data
| Specification | Value |
|---|---|
| Country of origin | China |
