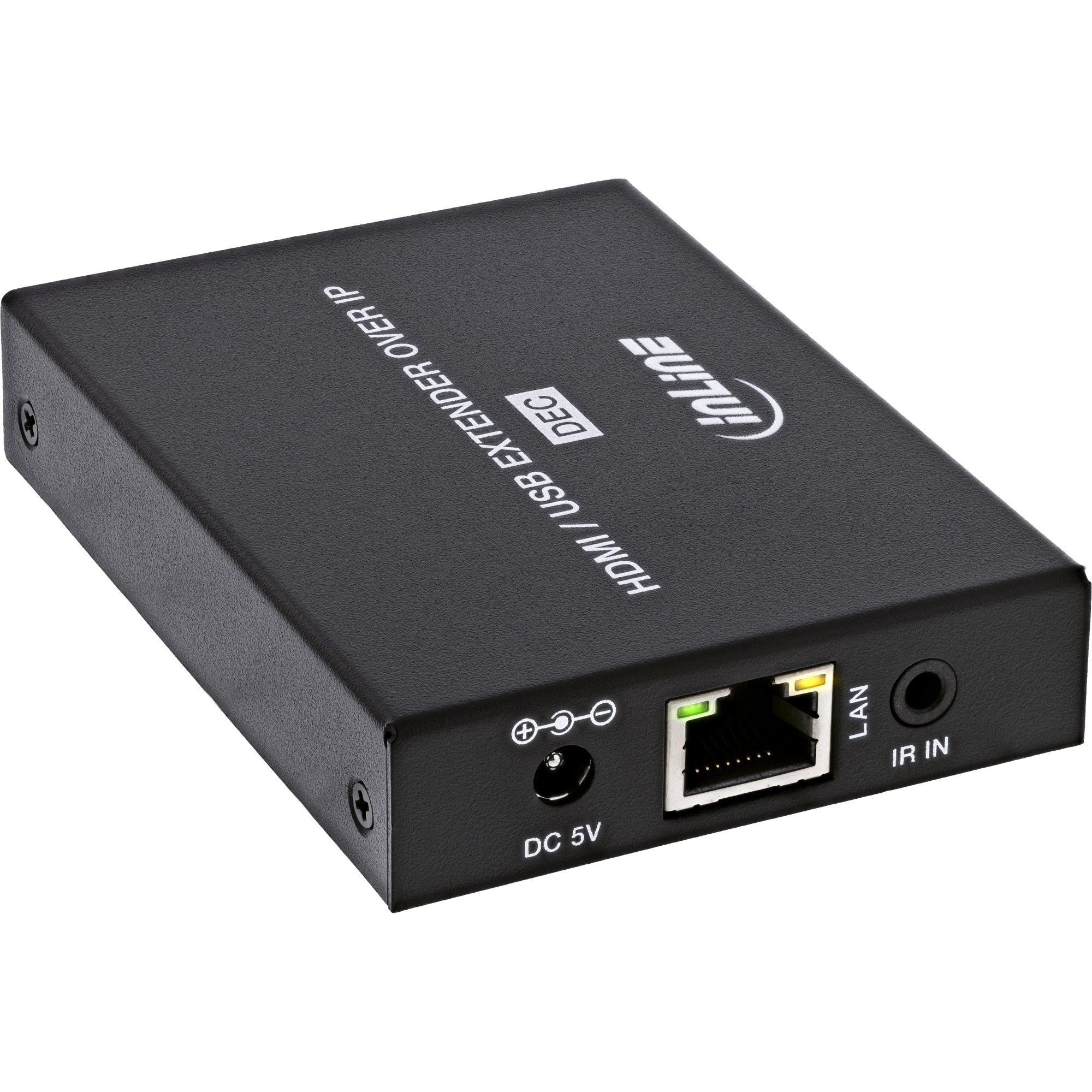

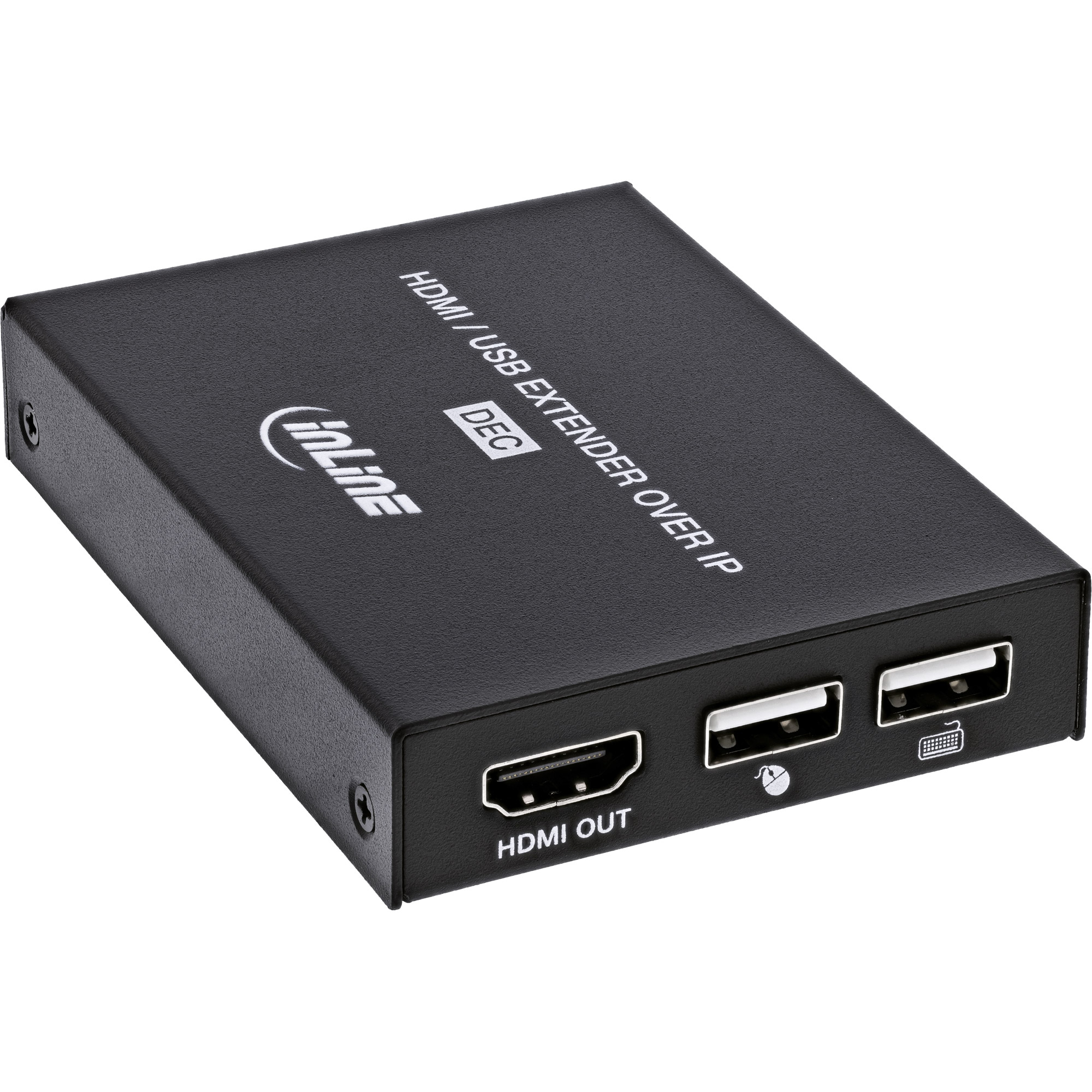

57885L KVM extender Receiver
Model 57885LEAN 4043718348695
38 specifications
- ConnectivityWired
- TypeReceiver
- Weight143 g
- ColourBlack
- Transmitter video port typeHDMI
- RJ-45 ports quantity (receiver)1
Overview
- Connectivity
- Wired
- Type
- Receiver
- Weight
- 143 g
- Colour
- Black
- Transmitter video port type
- HDMI
- RJ-45 ports quantity (receiver)
- 1
- Brand
- InLine
- Category
- KVM Extender
- Model
- 57885L
- Part number
- 57885L
- EAN / UPC
- 4043718348695
- Also known as
- InLine 57885L KVM extender Receiver
Specifications
38 specifications in 12 groups
Features
| Specification | Value |
|---|---|
| Type | Receiver |
| Connectivity technology | Wired |
| Maximum transfer distance | 150 m |
| Maximum digital resolution | 1920 x 1080 pixels |
| Maximum refresh rate | 60 Hz |
| Colour depth | 12 bit |
| Product colour | Black |
| Material | Metal |
Transmitter
| Specification | Value |
|---|---|
| Transmitter video port type | HDMI |
Receiver
| Specification | Value |
|---|---|
| RJ-45 ports quantity (receiver) | 1 |
| Receiver local keyboard/mouse port type | USB |
Ports & interfaces
| Specification | Value |
|---|---|
| USB port type | USB Type-A |
| HDMI version | 1.4 |
| USB 2.0 ports quantity | 2 |
| RJ-45 ports quantity | 1 |
Power
| Specification | Value |
|---|---|
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
Weight & dimensions
| Specification | Value |
|---|---|
| Receiver width | 6.7 cm |
| Receiver depth | 9.2 cm |
| Receiver height | 1.8 cm |
Packaging data
| Specification | Value |
|---|---|
| Package width | 105 mm |
| Package depth | 148 mm |
| Package height | 73 mm |
| Package weight | 319 g |
Packaging content
| Specification | Value |
|---|---|

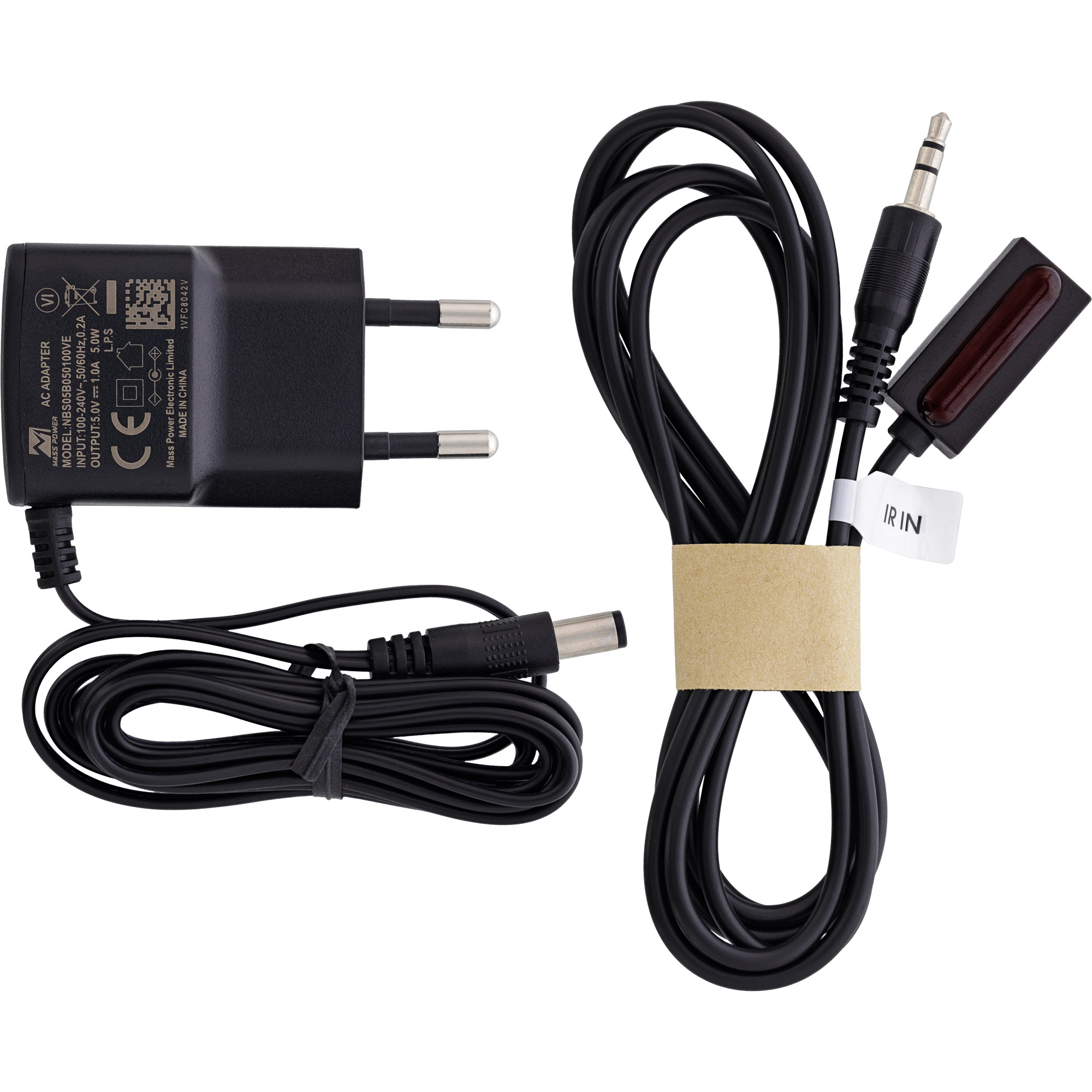

| AC adapter included | Yes |
| Cables included | IR |
| Manual | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -10 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 20 - 90% |
Other features
| Specification | Value |
|---|---|
| HDCP | Yes |
| HDCP version | 1.4 |
| Bandwidth | 6.75 Gbit/s |
| Compliance certificates | RoHS |
Technical details
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 67 x 92 x 18 mm |
| Package volume | 1100 cm³ |
| Weight | 143 g |
Logistics data
| Specification | Value |
|---|---|
| Country of origin | China |
