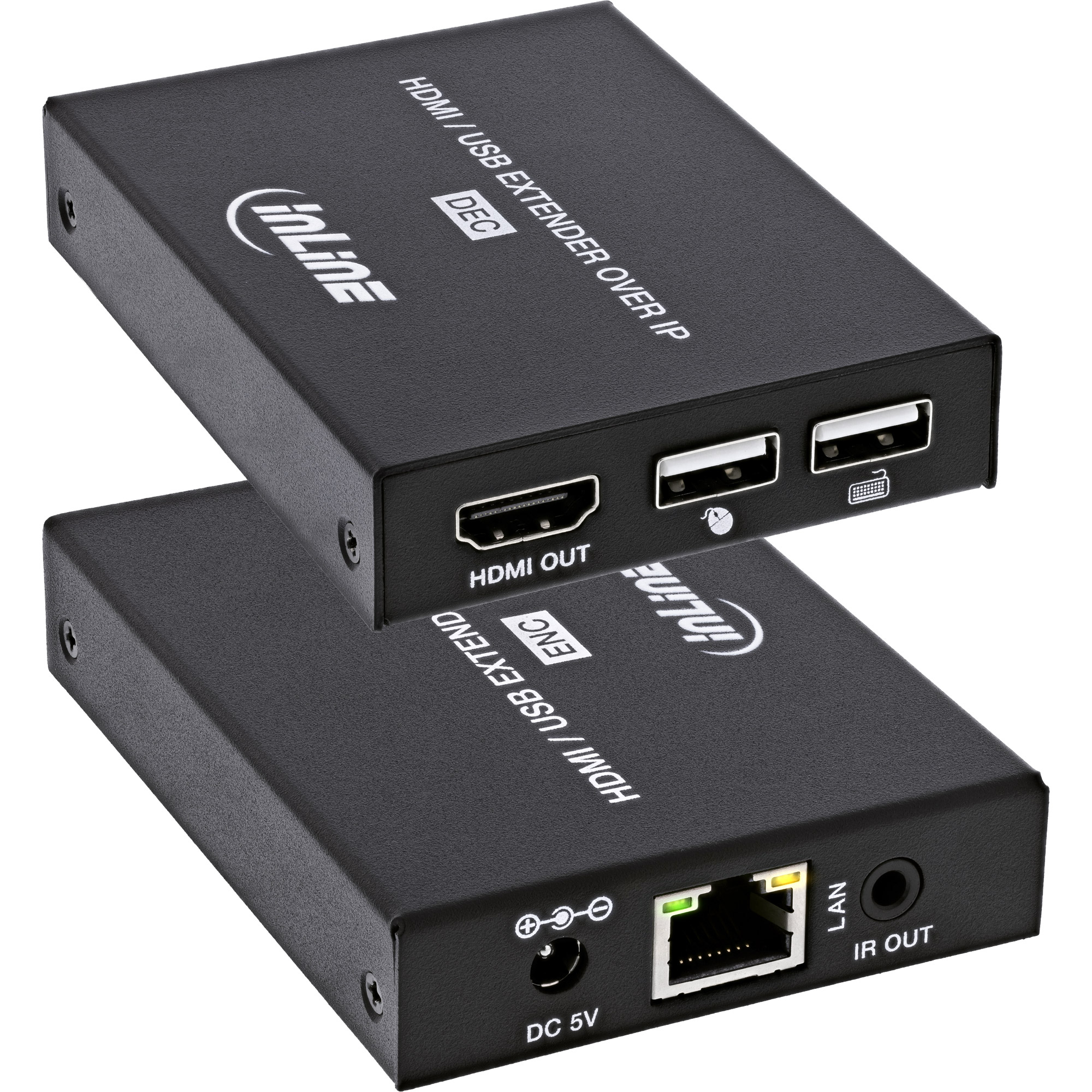

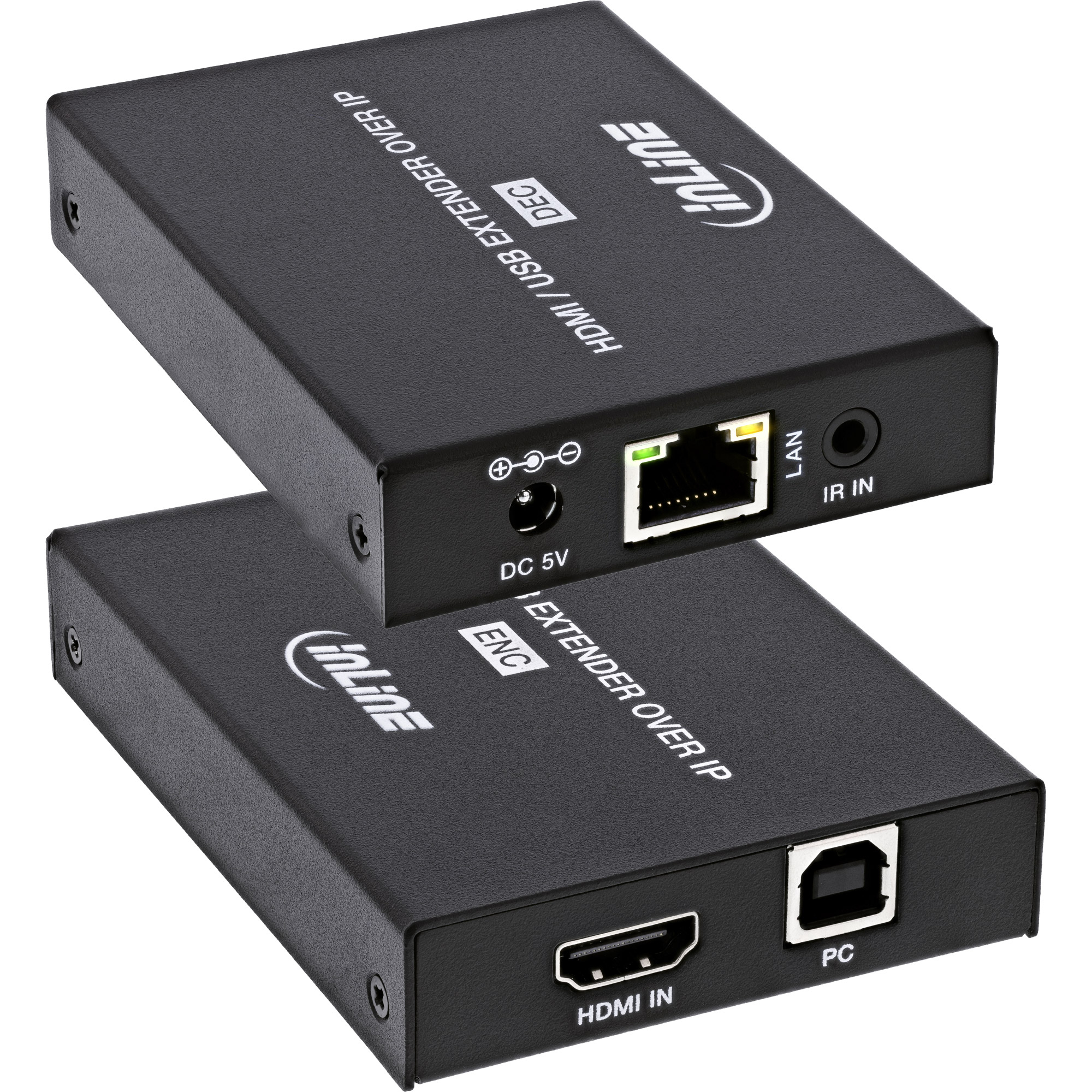

57885K KVM extender Transmitter & receiver
Model 57885KEAN 4043718348688
33 specifications
- ConnectivityWired
- TypeTransmitter & receiver
- Weight295 g
- ColourBlack
- Transmitter video port typeHDMI
- RJ-45 ports quantity (receiver)1
Overview
- Connectivity
- Wired
- Type
- Transmitter & receiver
- Weight
- 295 g
- Colour
- Black
- Transmitter video port type
- HDMI
- RJ-45 ports quantity (receiver)
- 1
- Brand
- InLine
- Category
- KVM Extender
- Model
- 57885K
- Part number
- 57885K
- EAN / UPC
- 4043718348688
- Also known as
- InLine 57885K KVM extender Transmitter & receiver
Specifications
33 specifications in 10 groups
Features
| Specification | Value |
|---|---|
| Type | Transmitter & receiver |
| Connectivity technology | Wired |
| Maximum transfer distance | 150 m |
| Maximum digital resolution | 1920 x 1200 pixels |
| Maximum refresh rate | 60 Hz |
| Colour depth | 12 bit |
| Product colour | Black |
| Material | Metal |

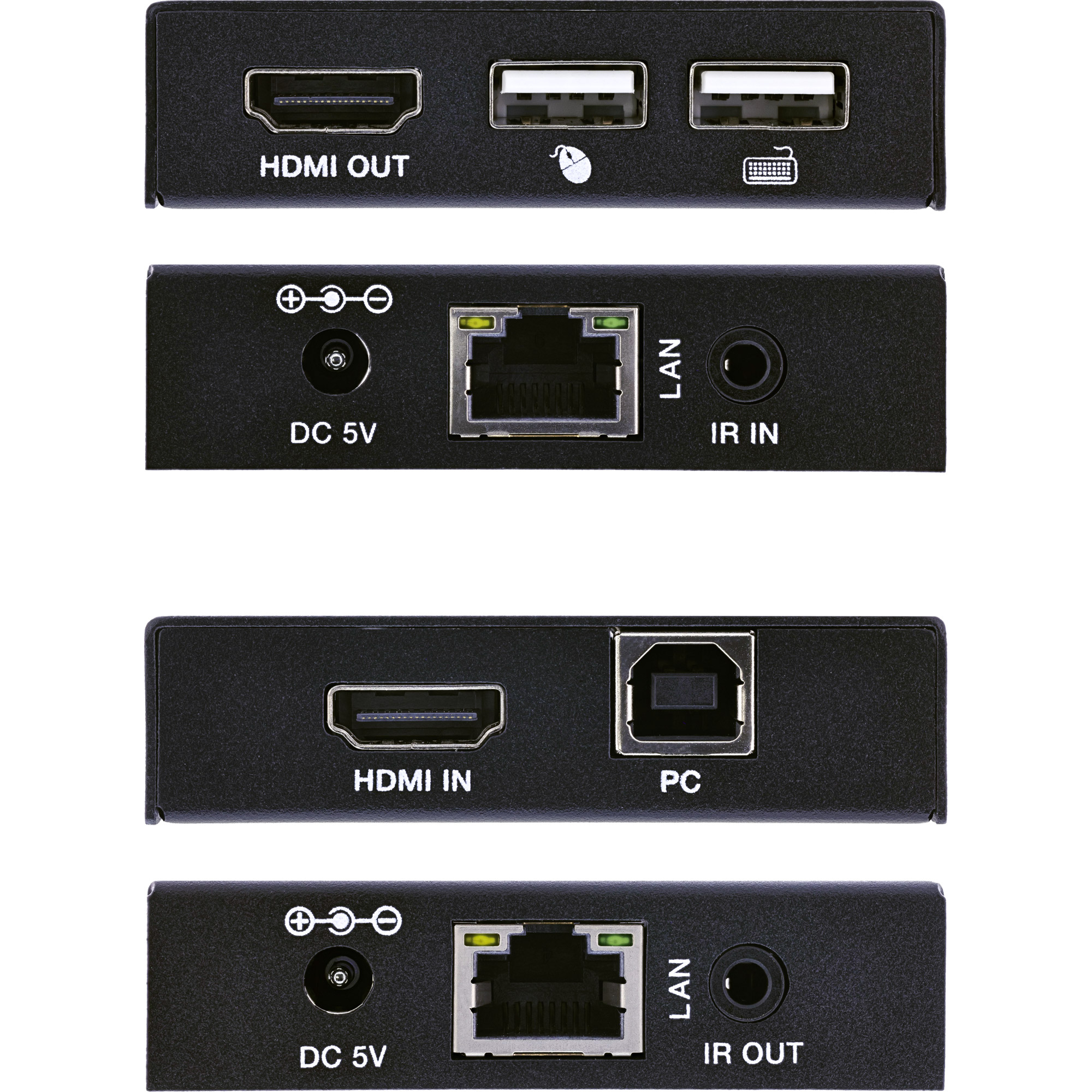

Transmitter
| Specification | Value |
|---|---|
| Transmitter video port type | HDMI |
| RJ-45 ports quantity (transmitter) | 1 |
Receiver
| Specification | Value |
|---|---|
| RJ-45 ports quantity (receiver) | 1 |
Ports & interfaces
| Specification | Value |
|---|---|
| HDMI version | 1.4 |
Power
| Specification | Value |
|---|---|
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| AC adapter output voltage | 5 V |
| AC adapter output current | 1 A |
| DC-in jack | Yes |
Packaging data
| Specification | Value |
|---|---|
| Package width | 136 mm |
| Package depth | 188 mm |
| Package height | 76 mm |
| Package weight | 572 g |

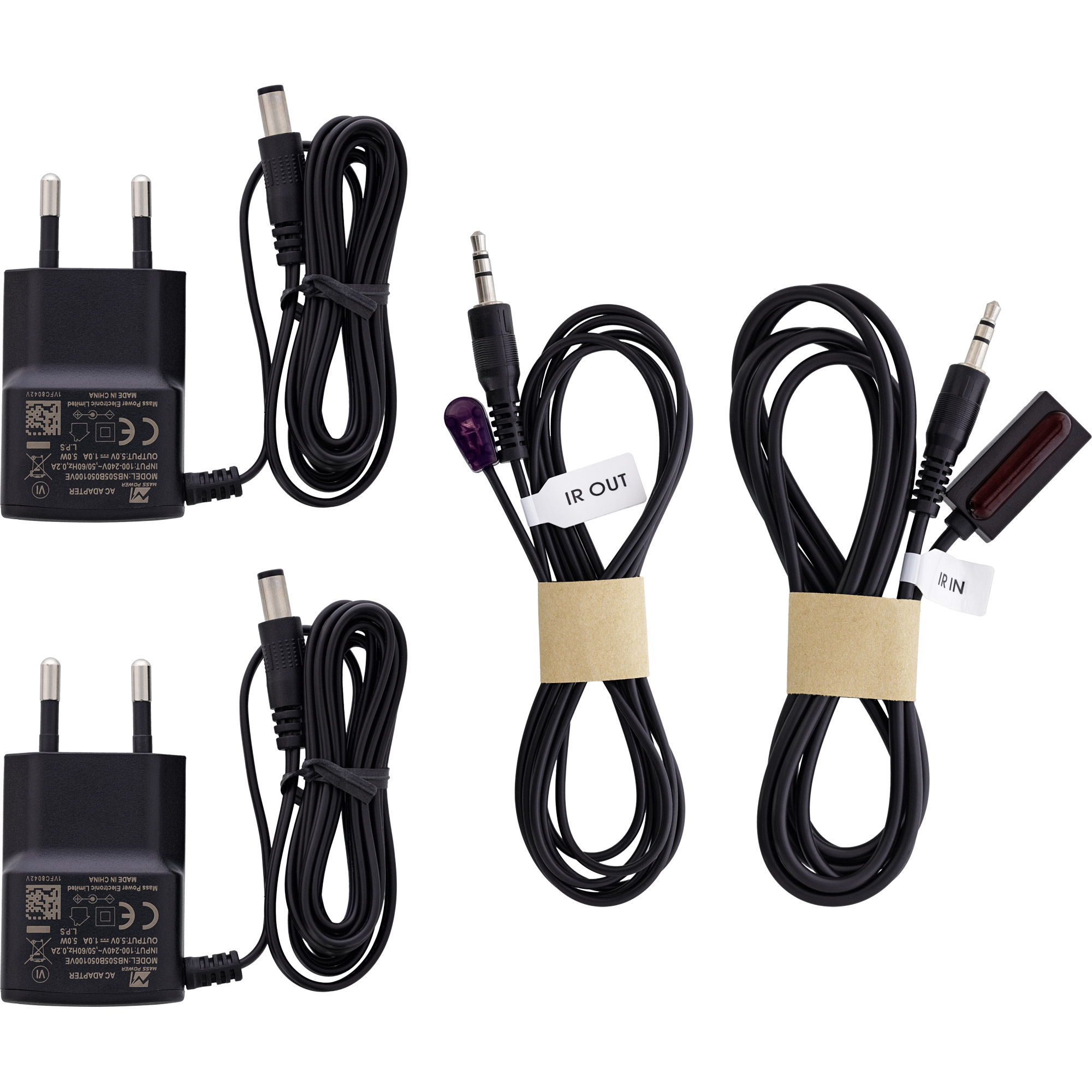

Packaging content
| Specification | Value |
|---|---|
| Cables included | IR |
| Manual | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -10 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 20 - 90% |
Other features
| Specification | Value |
|---|---|
| HDCP | Yes |
| HDCP version | 1.4 |
| Bandwidth | 6.75 Gbit/s |
| Compliance certificates | RoHS |
Technical details
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 68 x 93 x 18 mm |
| Package volume | 1900 cm³ |
| Weight | 295 g |
