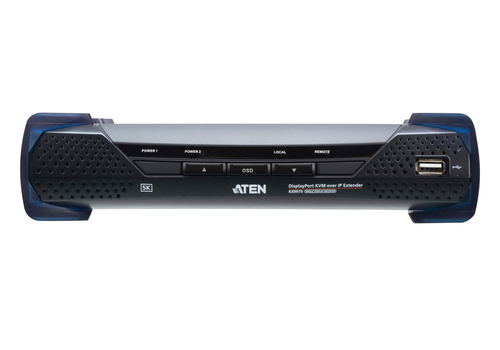

KX9970R-AX-E KVM extender Receiver
Model KX9970R-AX-E
27 specifications
- ConnectivityWired
- TypeReceiver
- ColourBlack
- RJ-45 ports quantity (receiver)1
- USB port typeUSB Type-A
- Receiver width22.4 cm
Overview
- Connectivity
- Wired
- Type
- Receiver
- Colour
- Black
- RJ-45 ports quantity (receiver)
- 1
- USB port type
- USB Type-A
- Receiver width
- 22.4 cm
- Brand
- ATEN
- Category
- KVM Extender
- Model
- KX9970R-AX-E
- Part number
- KX9970R-AX-E
- Also known as
- ATEN KX9970R-AX-E KVM extender Receiver
Specifications
27 specifications in 6 groups
Features
| Specification | Value |
|---|---|
| Type | Receiver |
| Connectivity technology | Wired |
| Maximum digital resolution | 5120 x 2880 pixels |
| Maximum refresh rate | 60 Hz |
| Product colour | Black |
| Material | Metal |
| LED indicators | Yes |
Receiver
| Specification | Value |
|---|---|
| RJ-45 ports quantity (receiver) | 1 |
| Receiver local keyboard/mouse port type | USB |
| Receiver local video port type | DisplayPort |

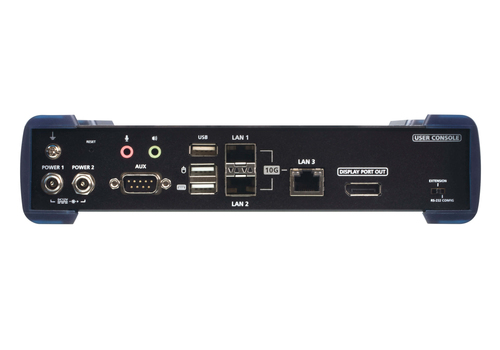

Ports & interfaces
| Specification | Value |
|---|---|

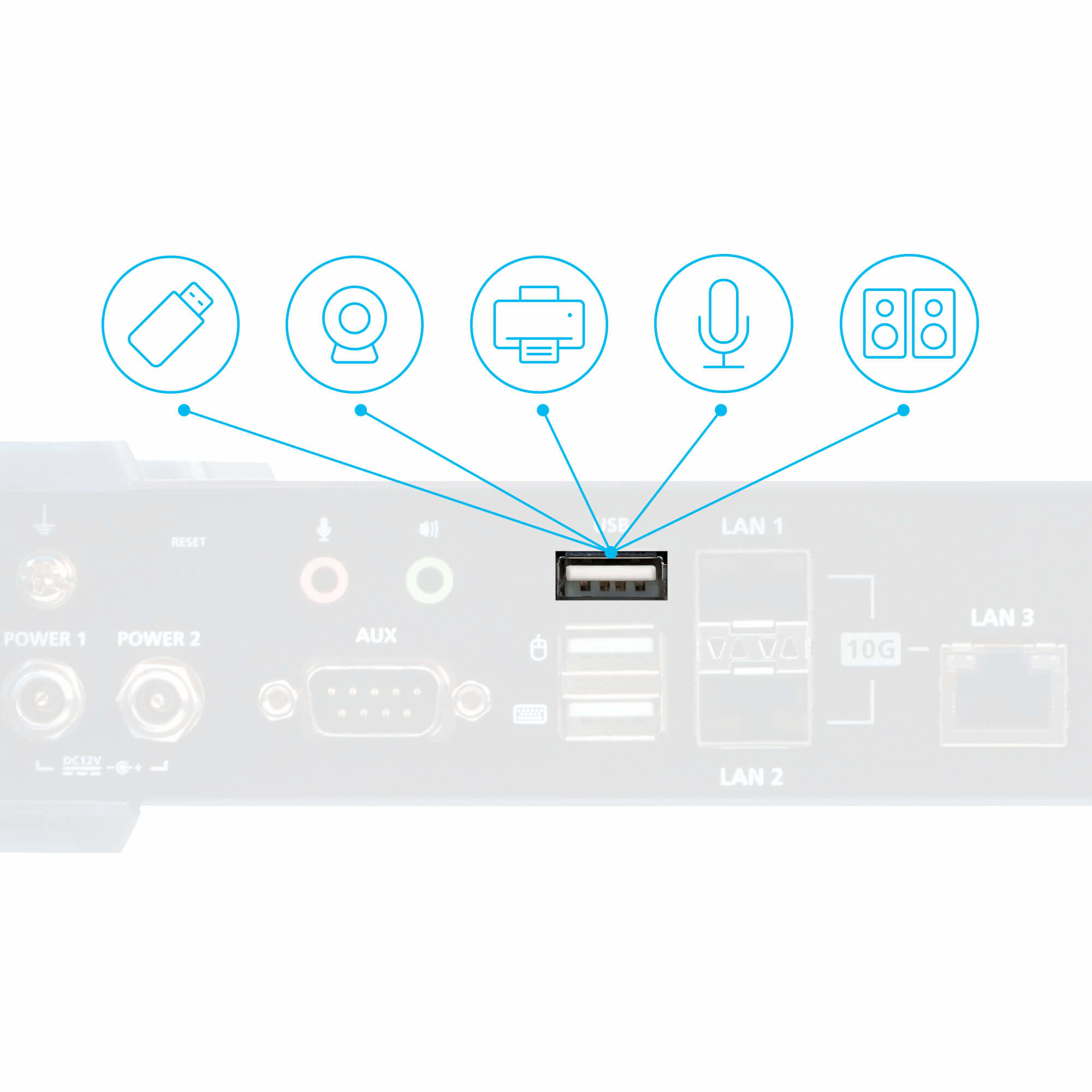

| USB port type | USB Type-A |
| USB 2.0 ports quantity | 4 |
| USB data transfer rates | 480 Mbit/s |
| RS-232 ports | 1 |
| Installed SFP+ modules quantity | 2 |
| PC Audio in | Yes |
| PC Audio out | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Receiver width | 22.4 cm |
| Receiver depth | 22.6 cm |
| Receiver height | 5.3 cm |
| Receiver weight | 1.38 kg |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Manual | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
