KX9970FT KVM extender Transmitter
Model KX9970FTEAN 672792013607
32 specifications
- ConnectivityWired
- TypeTransmitter
- ColourBlack
- Transmitter video port typeDisplayPort
- USB port typeUSB Type-A/USB Type-B
- Power consumption (transmitter) (max)17.99 W
Overview
- Connectivity
- Wired
- Type
- Transmitter
- Colour
- Black
- Transmitter video port type
- DisplayPort
- USB port type
- USB Type-A/USB Type-B
- Power consumption (transmitter) (max)
- 17.99 W
- Brand
- ATEN
- Category
- KVM Extender
- Model
- KX9970FT
- Part number
- KX9970FT
- EAN / UPC
- 672792013607, 4710469341779
- Also known as
- ATEN KX9970FT KVM extender Transmitter
Specifications
32 specifications in 7 groups
Features
| Specification | Value |
|---|---|
| Type | Transmitter |
| Connectivity technology | Wired |
| Maximum digital resolution | 5120 x 2880 pixels |
| Maximum refresh rate | 144 Hz |
| KVM port selection | OSD, Push-buttons |
| Supported resolutions | 5120 x 2880 @ 30 Hz, 5120 x 1440 @ 60 Hz, 4096 x 2160 @ 60 Hz (4:4:4), 2560 x 1440 @ 144 Hz, 1920 x 1080 @ 240 Hz (CVT-RB) |
| On Screen Display (OSD) | Yes |
| Product colour | Black |
| Material | Metal |
| LED indicators | Yes |
Transmitter
| Specification | Value |
|---|---|
| Transmitter video port type | DisplayPort |
| Transmitter local keyboard/mouse port type | PS/2 |
| Transmitter USB Type-B ports quantity | 1 |
Ports & interfaces
| Specification | Value |
|---|---|

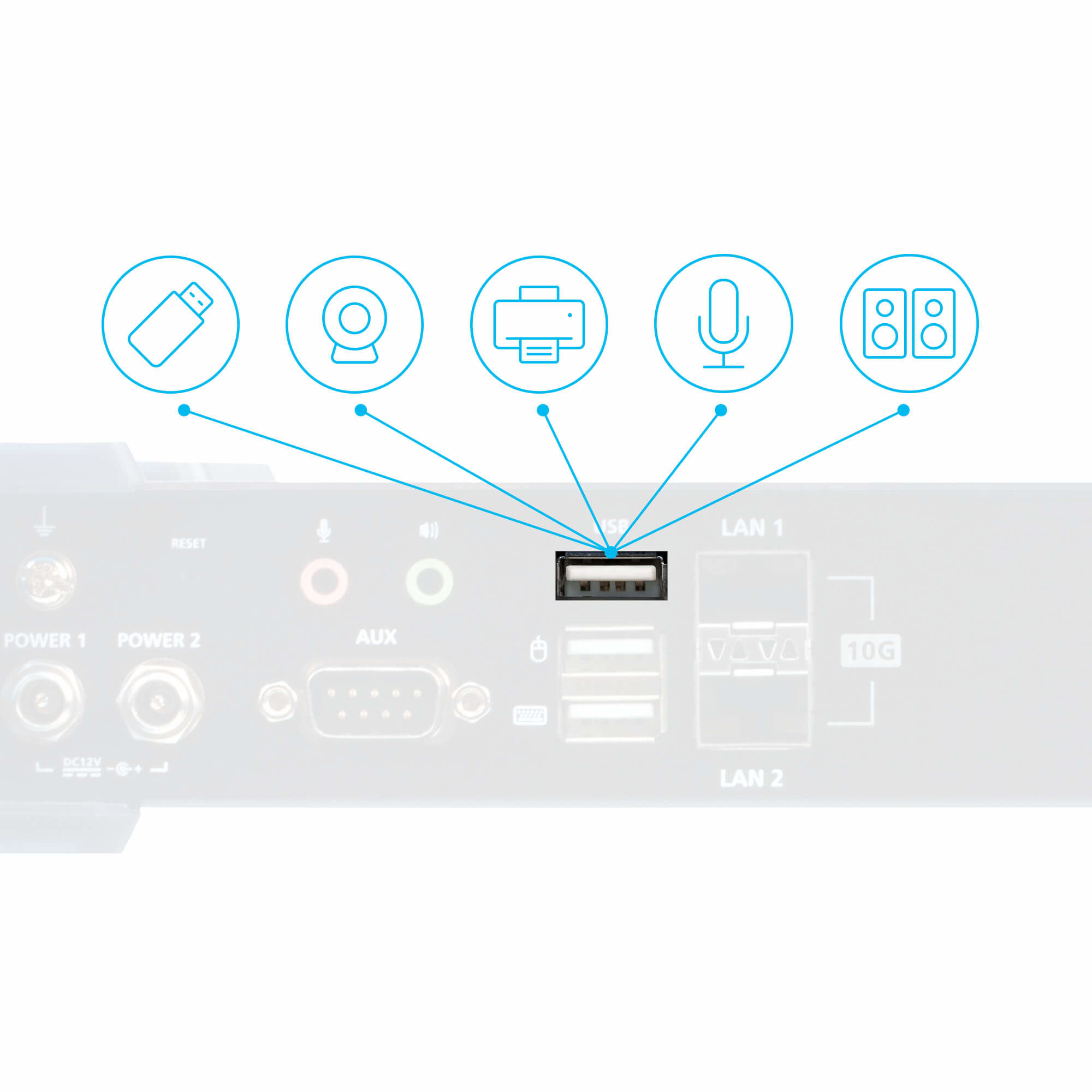

| USB port type | USB Type-A/USB Type-B |
| USB 2.0 ports quantity | 3 |
| USB data transfer rates | 480 Mbit/s |
| Installed SFP+ modules quantity | 2 |
| PC Audio in | Yes |
| PC Audio out | Yes |
Power
| Specification | Value |
|---|---|
| Power consumption (transmitter) (max) | 17.99 W |
| DC voltage | 12 V |
| DC-in jack | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Transmitter width | 16.3 cm |
| Transmitter depth | 21.5 cm |
| Transmitter height | 4.2 cm |
| Transmitter weight | 1.1 kg |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Manual | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
