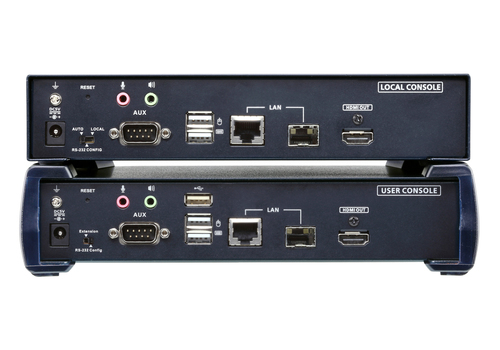

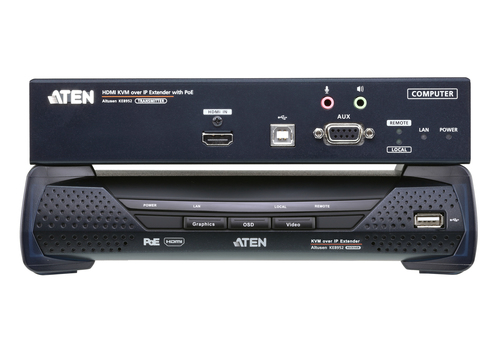

KE8952 KVM extender Transmitter & receiver
Model KE8952
30 specifications
- ConnectivityWired
- TypeTransmitter & receiver
- ColourBlack
- Transmitter video port typeHDMI
- RJ-45 ports quantity (receiver)1
- USB 2.0 ports quantity4
Overview
- Connectivity
- Wired
- Type
- Transmitter & receiver
- Colour
- Black
- Transmitter video port type
- HDMI
- RJ-45 ports quantity (receiver)
- 1
- USB 2.0 ports quantity
- 4
- Brand
- ATEN
- Category
- KVM Extender
- Model
- KE8952
- Part number
- KE8952
- Also known as
- ATEN KE8952 KVM extender Transmitter & receiver
Specifications
30 specifications in 8 groups
Features
| Specification | Value |
|---|---|
| Type | Transmitter & receiver |
| Connectivity technology | Wired |
| Maximum digital resolution | 3840 x 2160 pixels |
| KVM port selection | Push-buttons |
| Product colour | Black |
| Material | Metal |
| LED indicators | LAN, Power, Status |
Transmitter
| Specification | Value |
|---|---|
| Transmitter video port type | HDMI |
| Transmitter local keyboard/mouse port type | USB |
| RJ-45 ports quantity (transmitter) | 1 |
Receiver
| Specification | Value |
|---|---|
| RJ-45 ports quantity (receiver) | 1 |
| Receiver local keyboard/mouse port type | USB |
| Receiver local video port type | HDMI |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
Power
| Specification | Value |
|---|---|
| Power consumption (transmitter) (max) | 7.22 W |
| Power consumption (receiver) (max) | 5.65 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Transmitter width | 16.3 cm |
| Transmitter depth | 21.5 cm |
| Transmitter height | 4.18 cm |
| Transmitter weight | 1.13 kg |
| Receiver width | 17.2 cm |
| Receiver depth | 22.8 cm |
| Receiver height | 5.48 cm |
| Receiver weight | 1.26 kg |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Cables included | KVM |
| Manual | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 95% |
